| Model NO. | 614v 100ah lithium battery | Rechargeable | Chargeable |
| Discharge Rate | Medium Discharge Rate | Size | Medium |
| Accessories Type | Chargers, Smart BMS | Rated Capacity | 412ah |
| Standard Voltage | 540V | Usage | EV |
| Electrolyte | Li-ion | OEM/ODM | Allowed |
| Warranty | 2 Years | Voltage | 614V |
| Capacity | 100ah | Energy | 61.4kwh |
| Application | EV/E-Car/Boat/Marine | Protection | BMS+Relay |
| Cooling Type | Liquid Cooling | HS Code | 8507600090 |

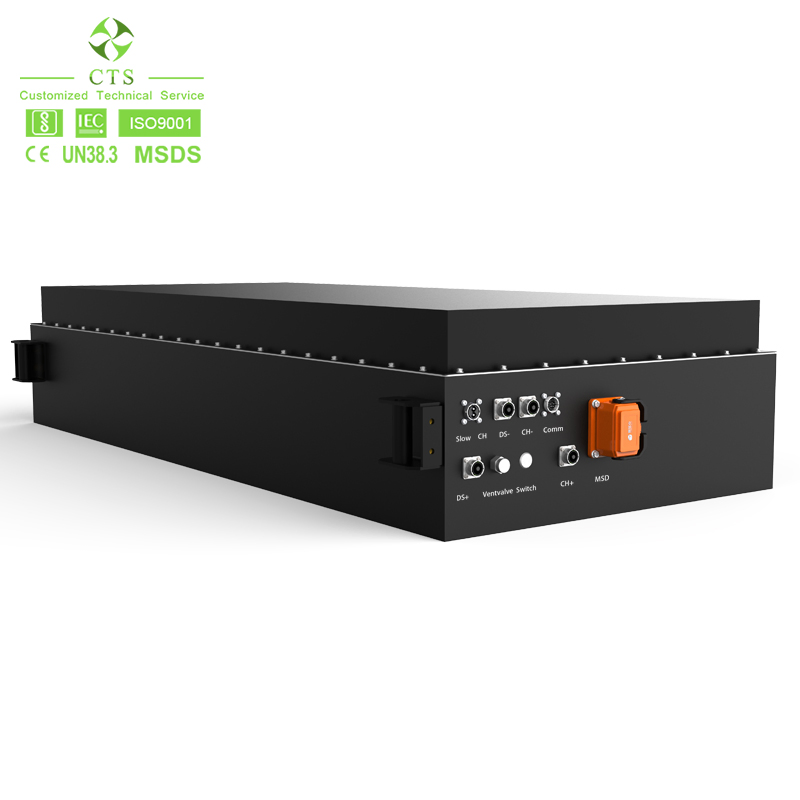

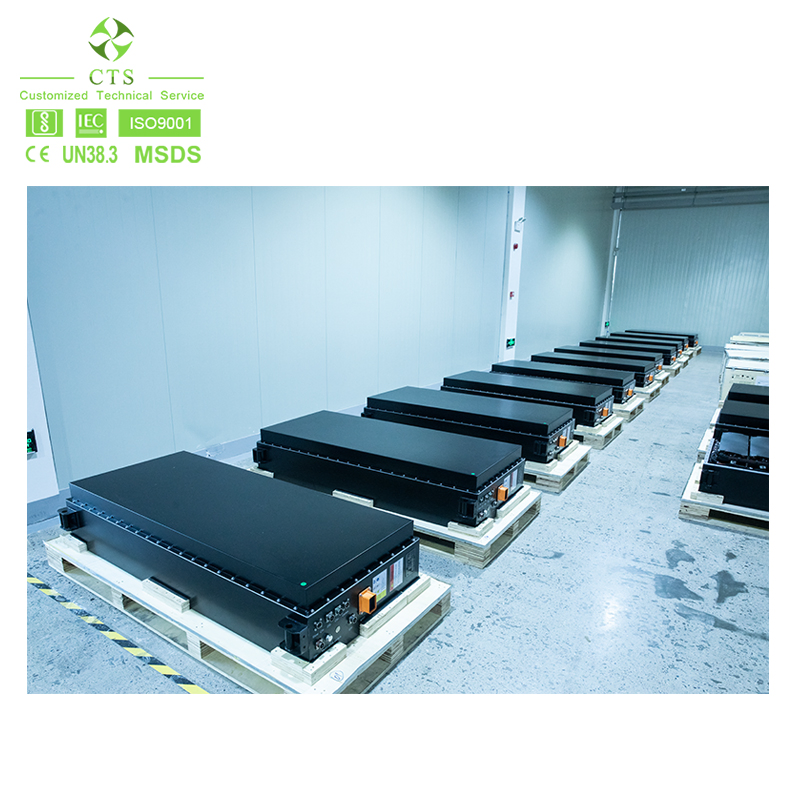

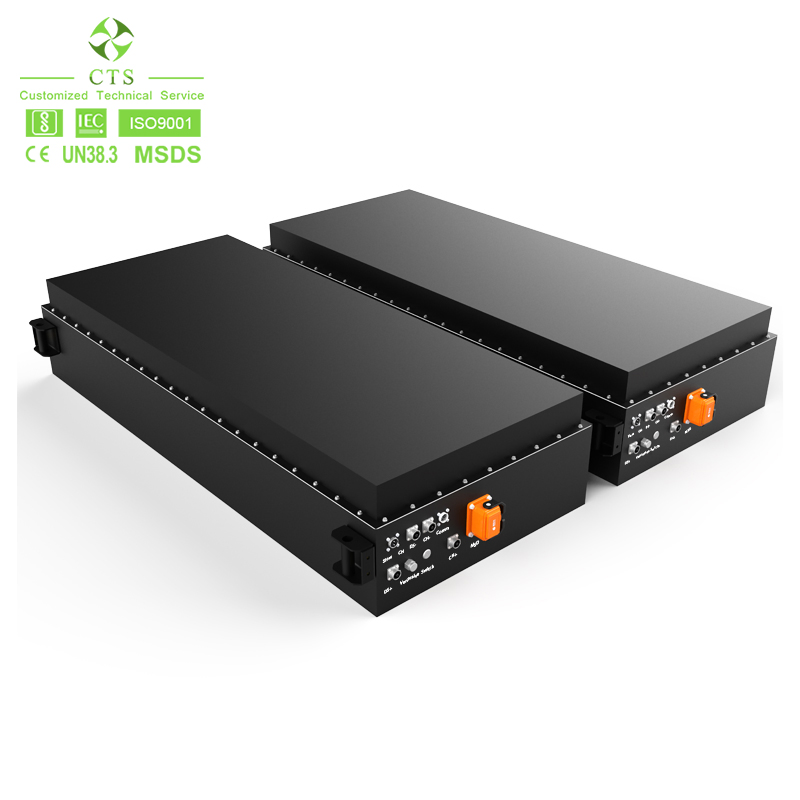

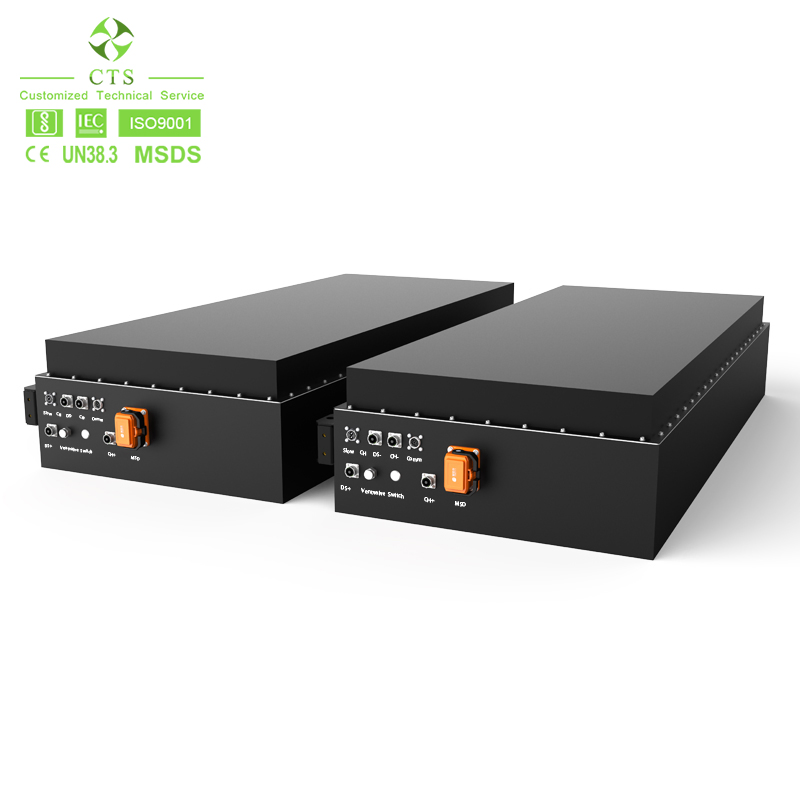

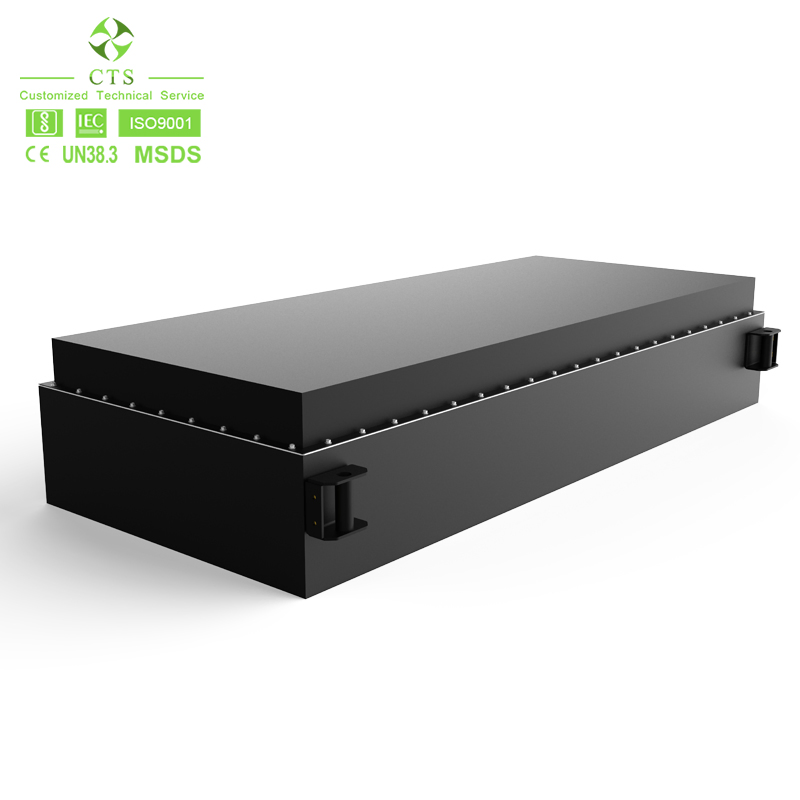

New Electric Car 345V 400V 200ah EV Battery Pack 300V 100ah 60kwh LiFePO4 Battery with Water Cooling for Agv/Electric Bus/Vehicle
| No. | Items | Technical requirement | Note |
|---|---|---|---|
| 1 | Battery Type | Lifepo4 | - |
| 2 | Capacity(Ah) | 100 | @25ºC |
| 3 | Voltage | 614.4v | - |
| 4 | Power(kWh) | 61.44kWh | - |
| 5 | Weight(kg) | 558.55 | - |
| 6 | Working Voltage range | 480-700.8 (DC V) | - |
| 7 | Continuous discharge current | 80A | @EOL, @25ºC |
| 8 | Peak discharge current | 200A | For 30 seconds |

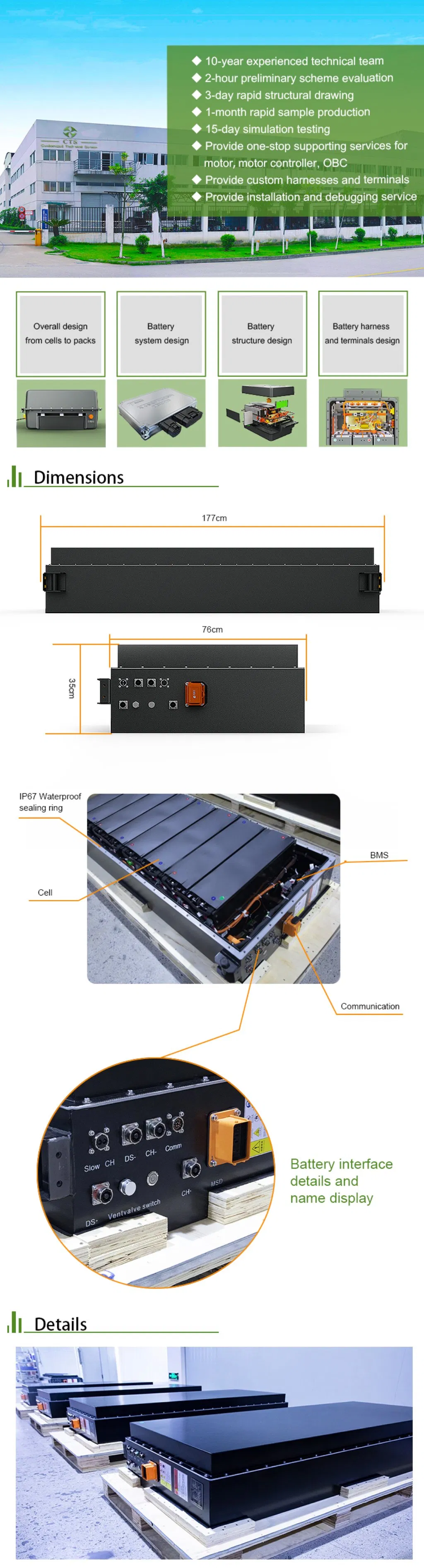

| 9 | Dimension (L/W/H) | 1780*720*345 mm | - |

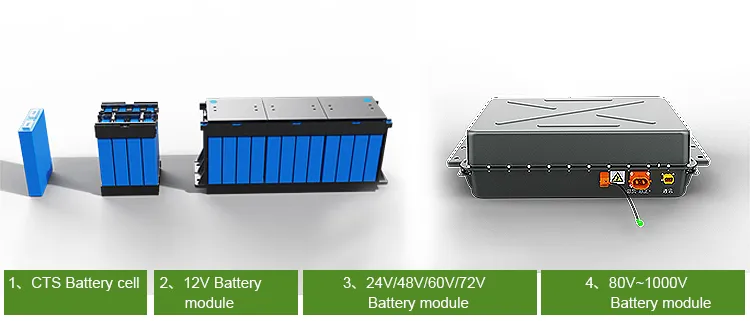

Systematic optimization of cell design and electrical component selection. High-strength aluminum alloy and plastics are used to reduce volume and weight. Standardized cells and BMS allow excellent scalability for 12V to 72V modules to meet various requirements.

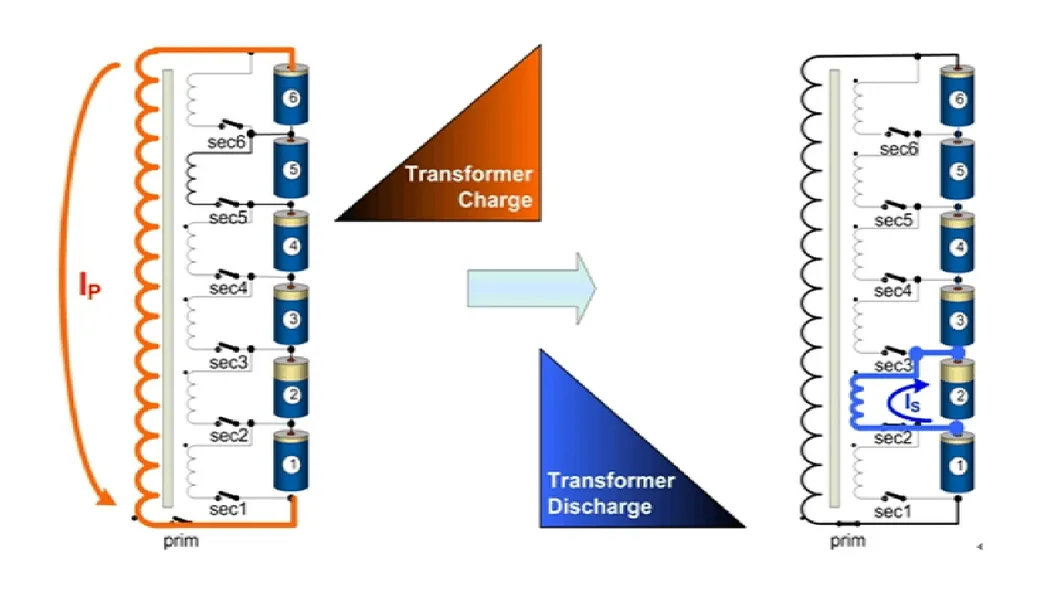

Experienced BMS development ensures safety. While passive balance is default, active balance can be selected to modify parameters like CAN/RS485 protocols, over/under voltage protection, and temperature management.

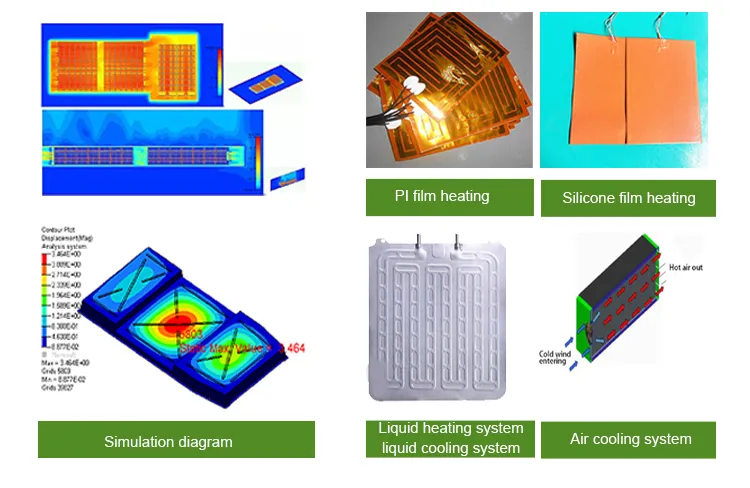

Advanced CFD (Computational Fluid Dynamics) and CAE simulation for structural mechanics. Options include air cooling, liquid cooling systems, and specialized film heating for cold environments.

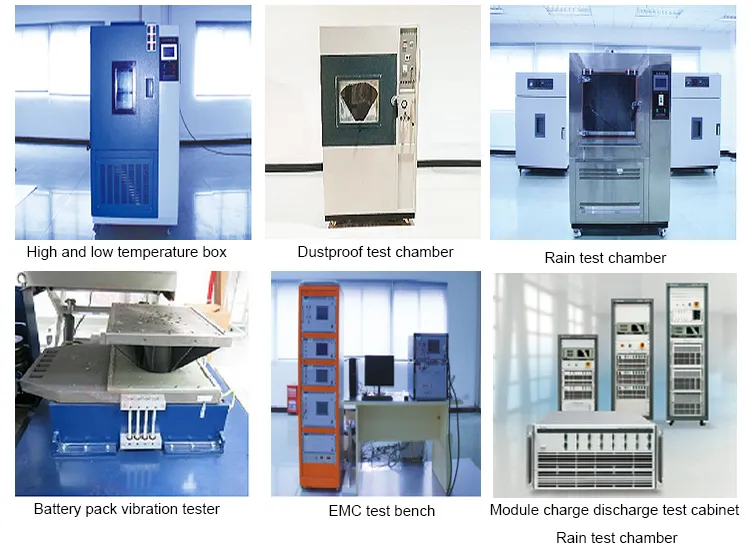

Rigorous laboratory testing for design and production verification (DV/PV). Includes mechanical, electrical safety, temperature, and abuse testing to ensure maximum reliability.

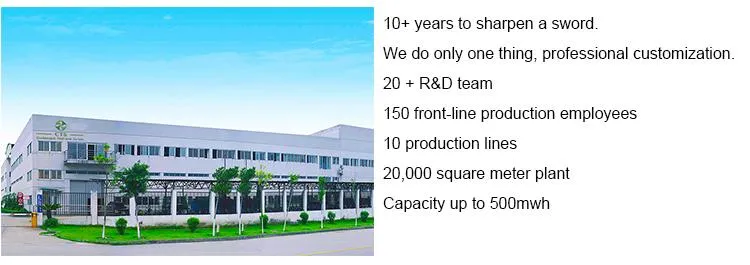

Focused on one-stop customization of lithium battery products since 2011. Providing solutions for electric vehicles, large energy storage, smart homes, and high-end electric motorcycles. With over 30 types of cells, OEM battery packs can range from 12V to 800V and 10Ah to 200Ah.

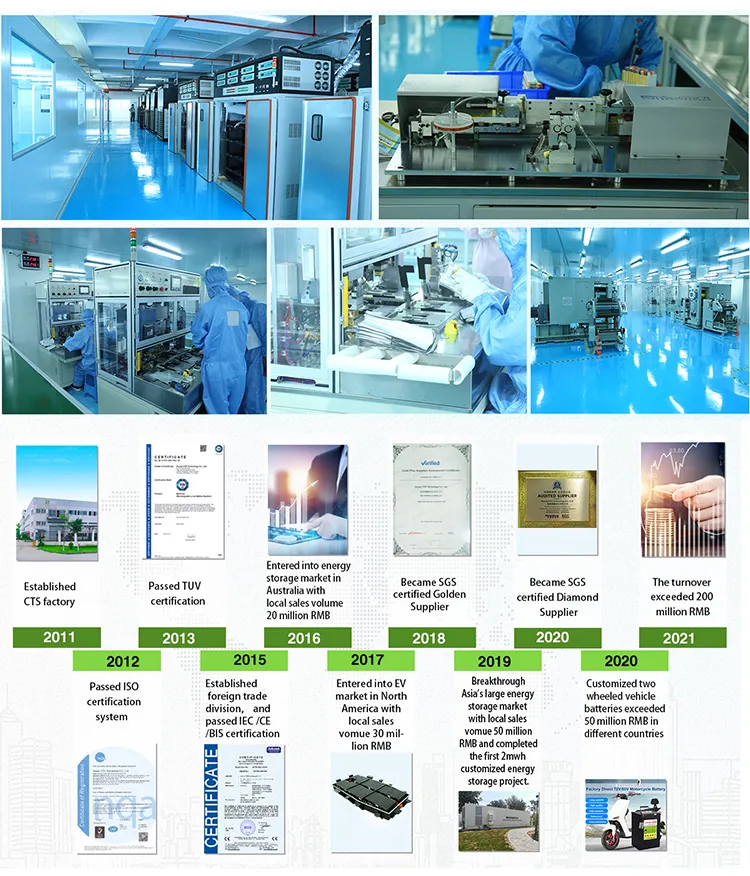

Utilizing advanced automated equipment and technology to ensure top-tier quality. Adhering to strict international standards including ISO 9001, ISO 14001, and OHSAS 18001 certifications.
Adhere to the principle of service first.
