| Specification | Detail | Specification | Detail |
|---|---|---|---|
| Rechargeable | Yes | Voltage | 345.6V |
| Size | Large | Capacity | 210ah |
| Weight | 660kg | Certificate | Un38.3/MSDS/CE/RoHS |

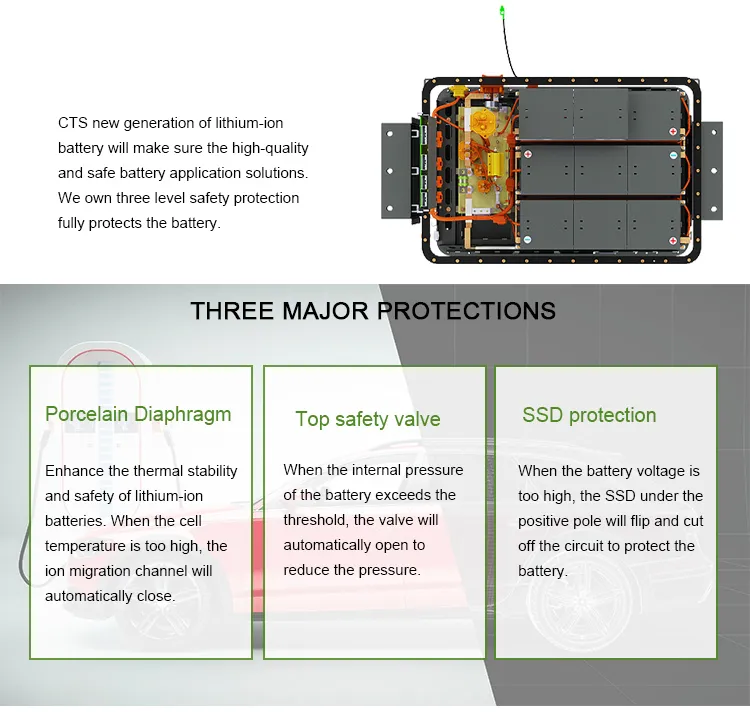

| Warranty | 2 Years | Protection | BMS |
| Case | Metal Case | Fast Charger | 45kw |
| Production Capacity | 1000 packs/Day | HS Code | 8507802000 |

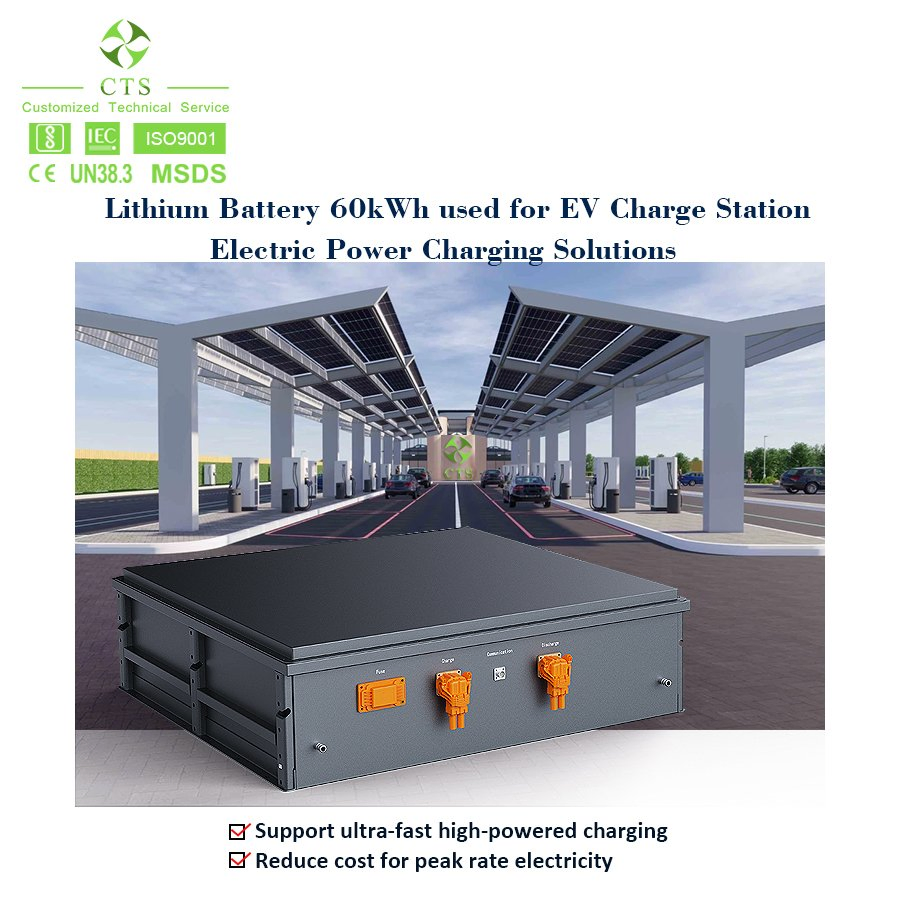

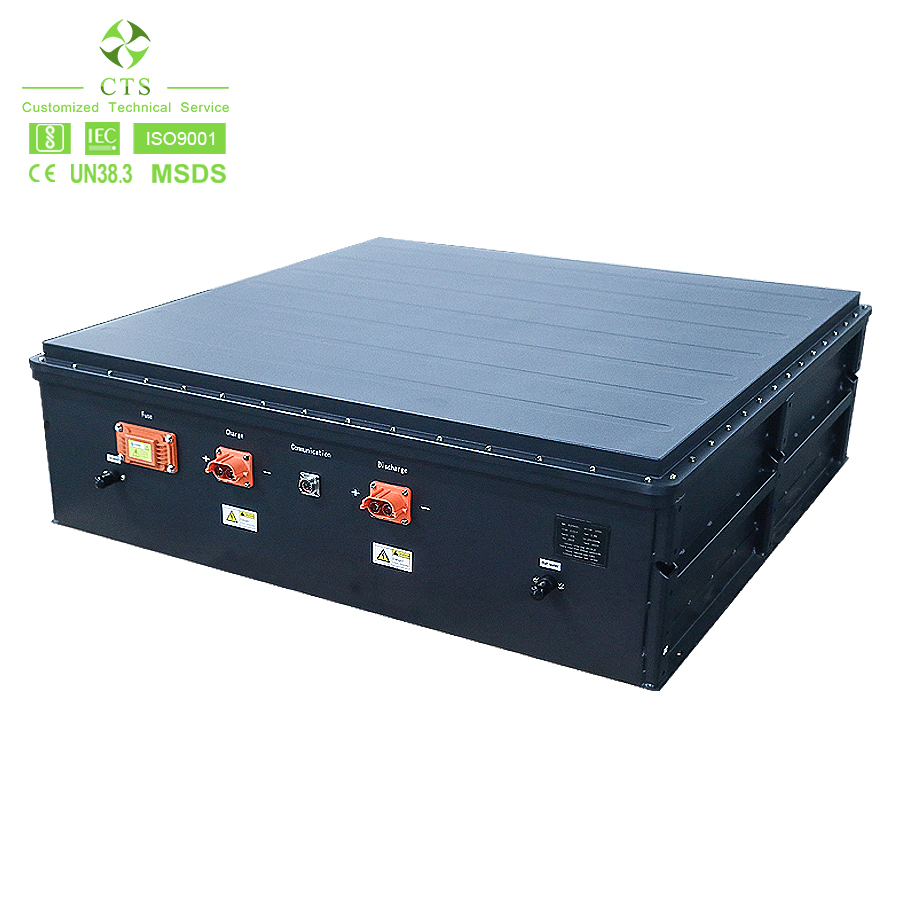

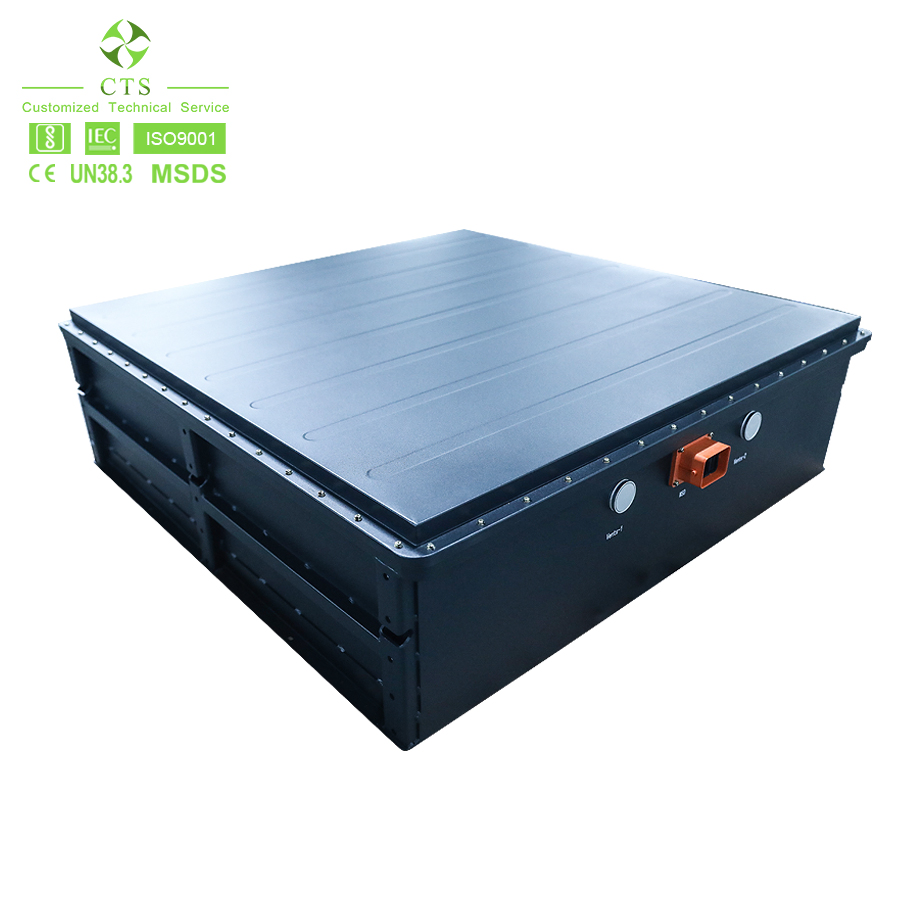

Electric Vehicle Lithium Ion Graphene EV Batteries 300V 500V 600V LiFePo4 Battery Packs With Liquid Cooling System
| Parameters of 345v 210Ah LFP battery pack | ||
|---|---|---|
| Items | Technical requirement | Note |
| Battery Type | LFP | - |
| Capacity(Ah) | 210 | @25ºC |
| Power(kWh) | 72.45 | - |
| Working Voltage range | 270V - 388.8V DC | - |
| Peak discharge current | 200A | For 30 seconds |

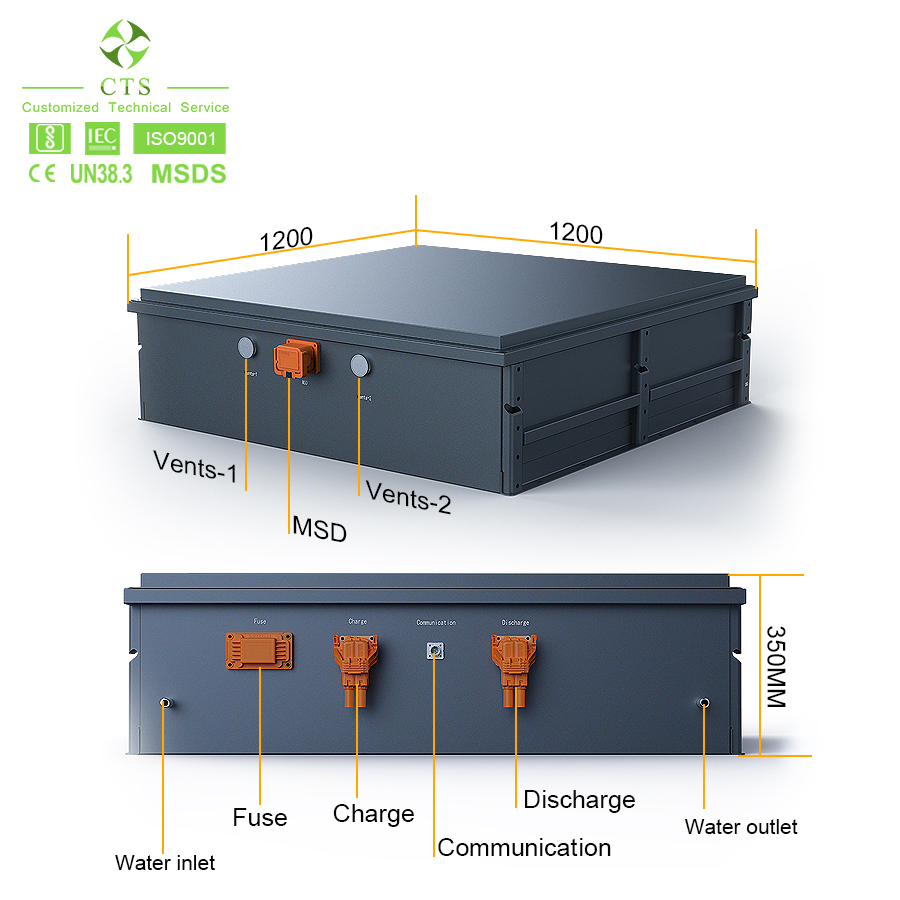

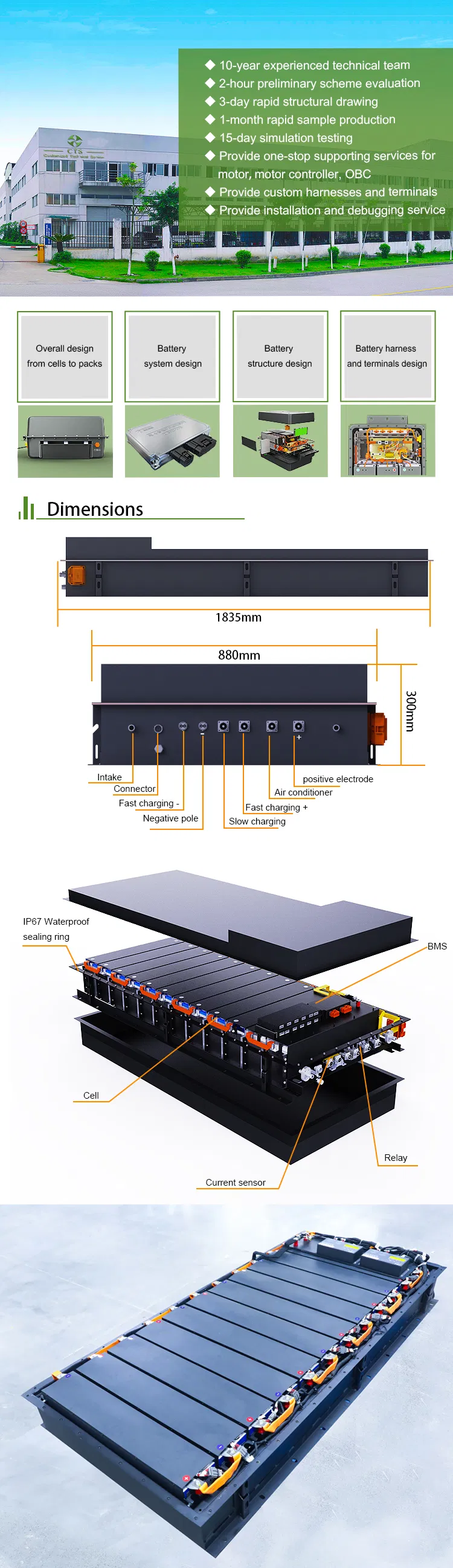

| Dimension (L/W/H) | 1835*800*300mm | - |
We systematically optimize cell design and electrical component selection. We utilize lightweight steel/aluminum alloys and high-strength plastics for the battery box and pack structure to reduce volume and weight, combined with CAE structural simulation to ensure strength and energy density.

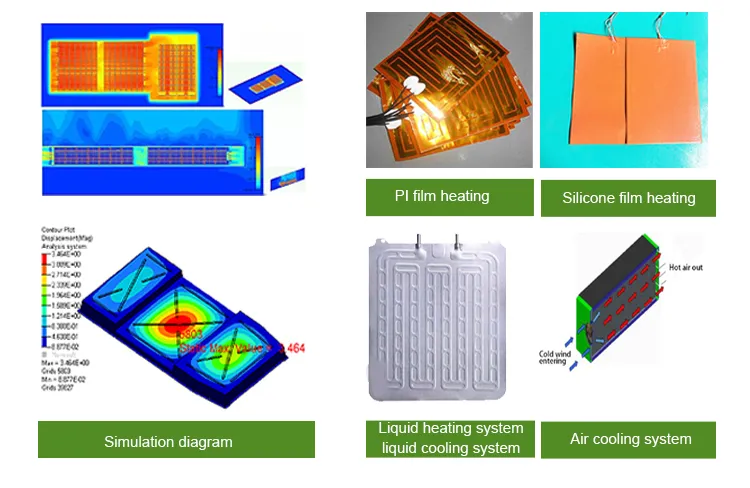

Our capabilities include CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering). We design thermal management systems using air cooling, liquid heating/cooling, and PI film heating to optimize performance.

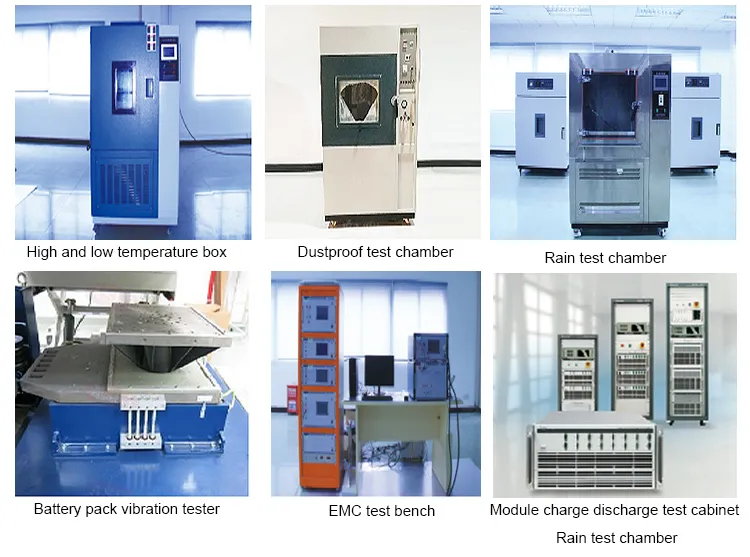

Verification is conducted at DV/PV stages, including temperature tests, mechanical tests, external environment simulations, electrical safety, and battery performance tests to ensure all requirements are met.

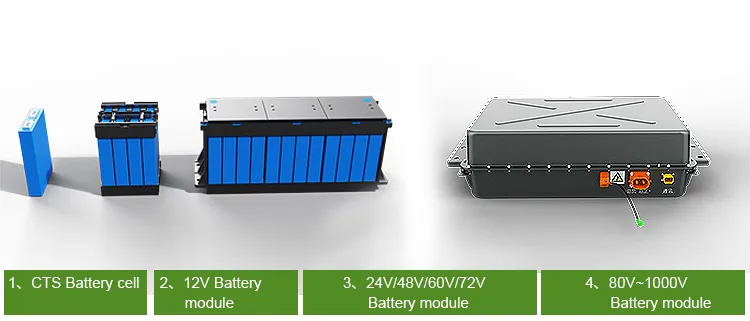

Focused on one-stop customization of lithium battery products including electric vehicle batteries, large energy storage, and smart home solutions. With over 30 types of cells, we provide OEM battery packs ranging from 12V to 800V and 10Ah to 200Ah.

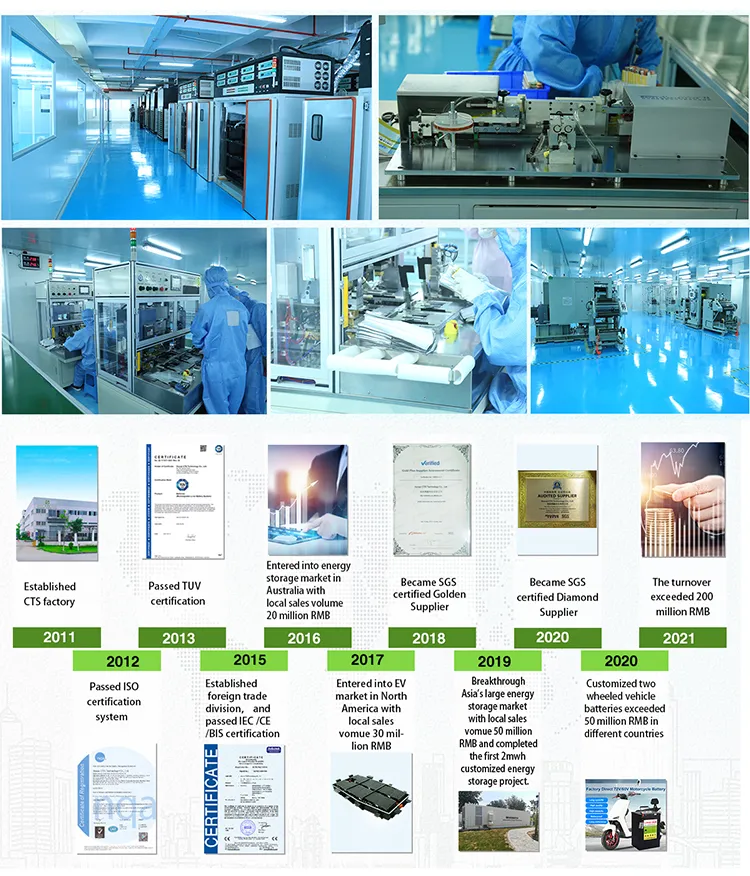

Our facilities utilize advanced automated equipment to ensure the highest quality standards, holding certifications such as ISO 9001, ISO 14001, and OHSAS 18001.
Feel free to contact us for any OEM/ODM requirements!
