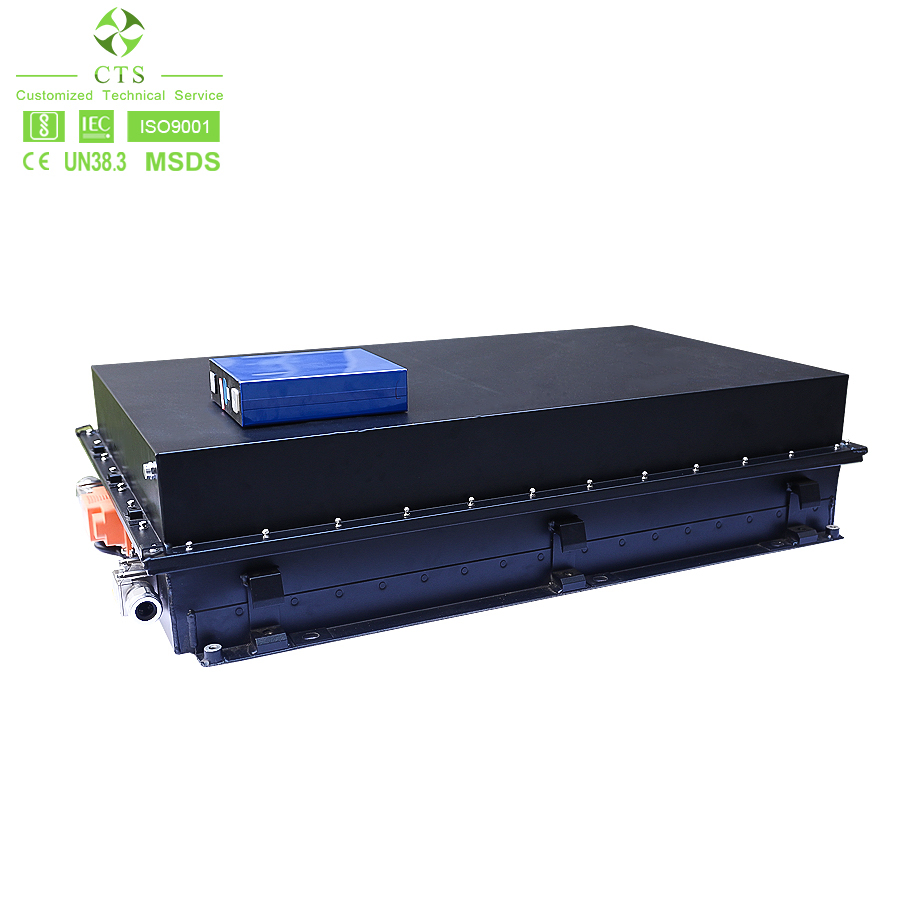

| Parameters of 614v 100Ah Lifepo4 Battery Pack | |||
|---|---|---|---|
| 1 | Battery Type | Lifepo4 | - |
| 2 | Capacity(Ah) | 100 | @25ºC |
| 3 | Voltage | 614.4V | - |
| 4 | Power(kWh) | 61.44kWh | - |
| 5 | Weight(kg) | 558.55 | - |
| 6 | Working Voltage range(DC V) | 480-700.8 | - |
| 7 | Continuous discharge current(A) | 80 | @EOL,@25ºC |
| 8 | Peak discharge current(A) | 200 | For 30 seconds |

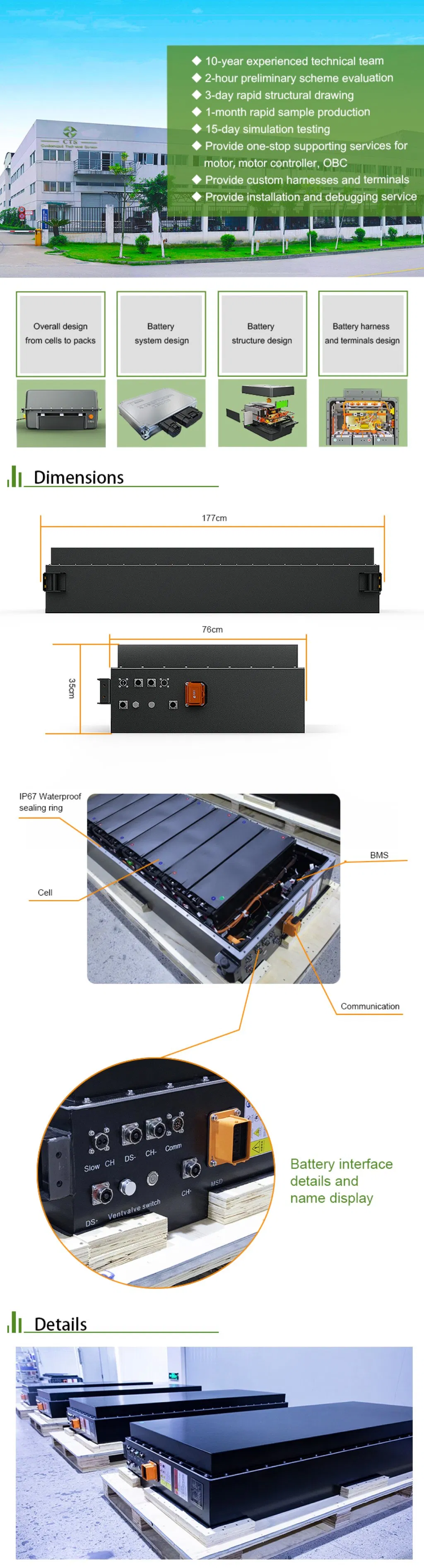

| 9 | Dimension (L/W/H, mm) | 1780*720*345 | - |

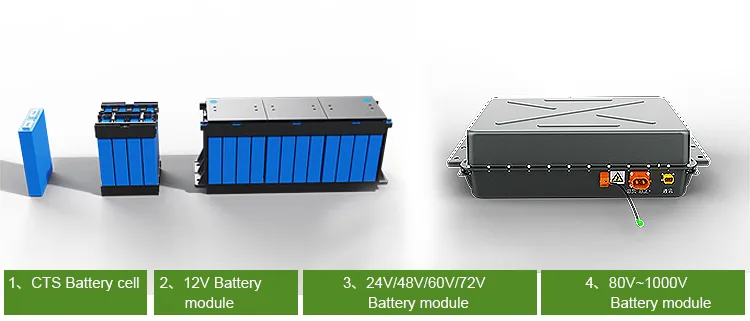

1. Lightweight and Scalability: Systematically optimized cell design and electrical component selection. We utilize lightweight aluminum alloys and high-strength plastics combined with CAE structural simulation to improve energy density and ensure structural strength.

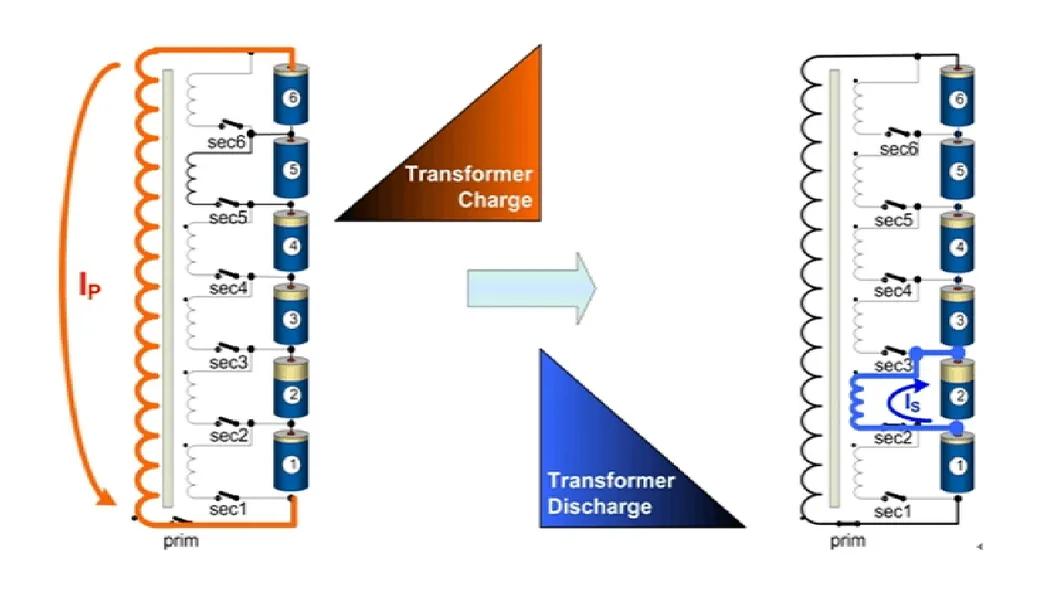

2. BMS and Active Balance: Experienced BMS development ensuring safe operation. Supports passive balance by default with active balance options. Configurable parameters for CAN/RS485 communication, over/under voltage, and temperature protection.

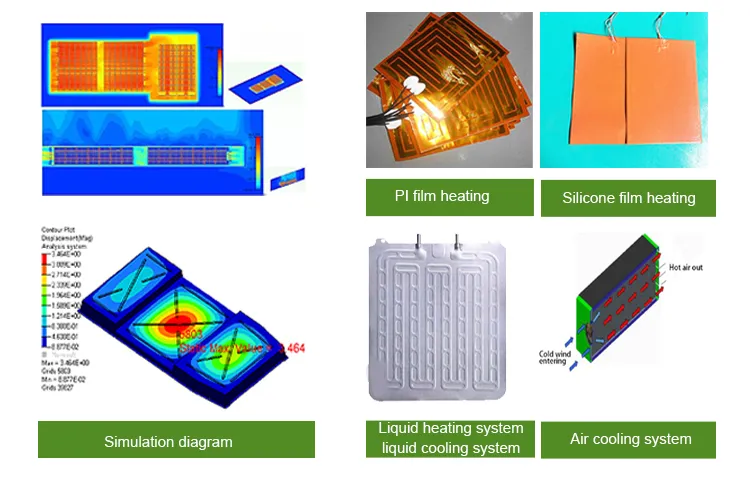

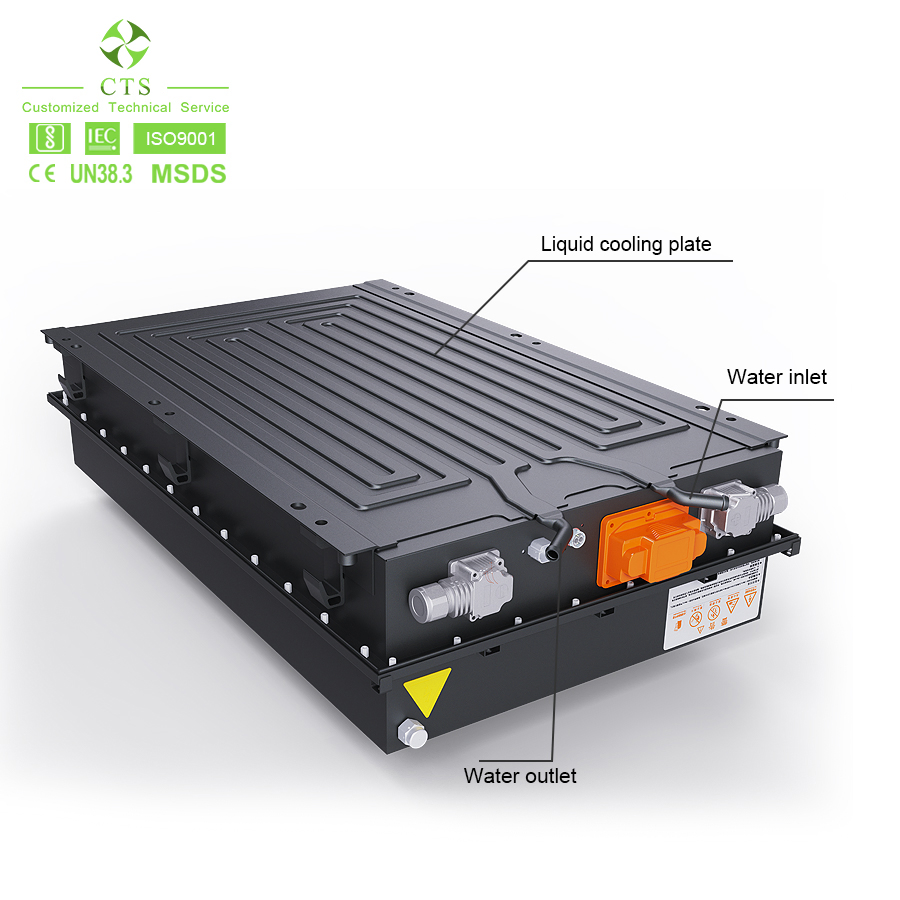

3. Thermal Management: Utilization of CFD and CAE simulation for liquid cooling/heating systems, PI film heating, and silica gel film heating to maintain optimal battery temperature.

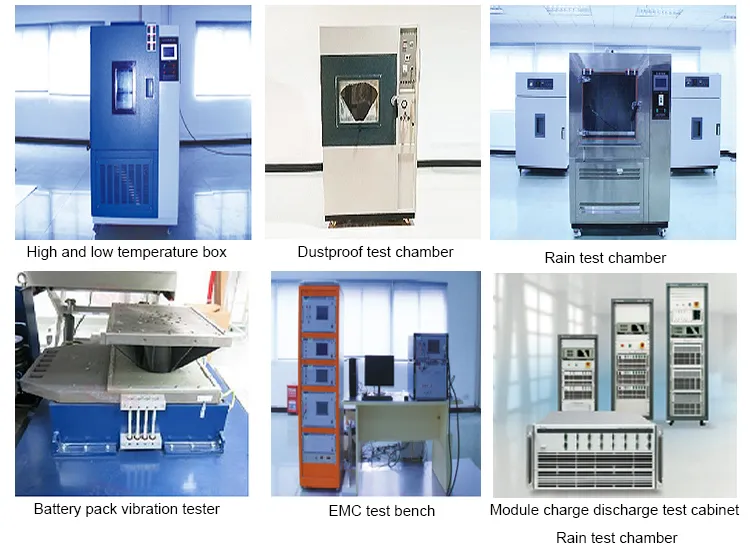

4. Test and Verification: Rigorous DV/PV verification including temperature tests, mechanical tests, electrical safety, and performance abuse tests in professional laboratories.
