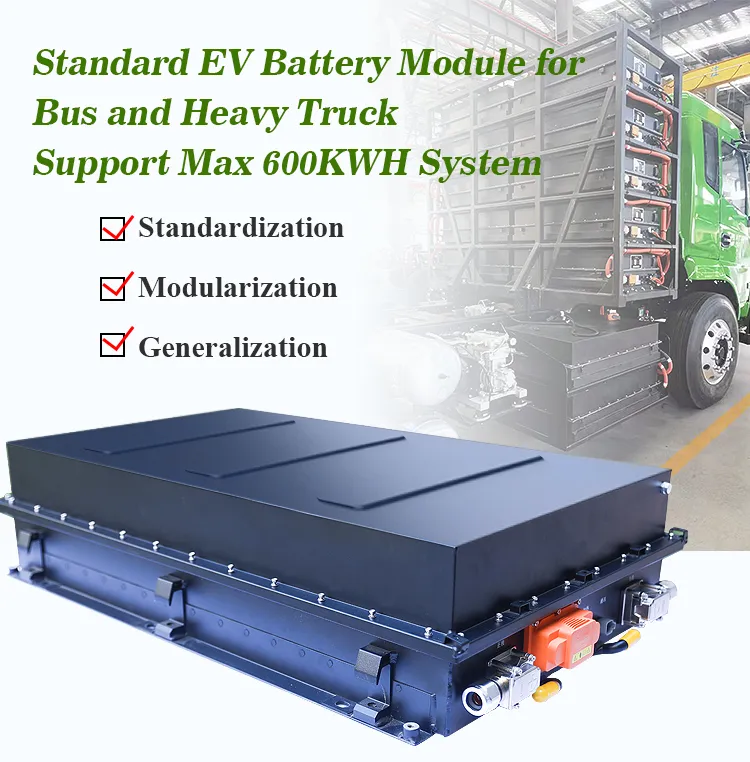

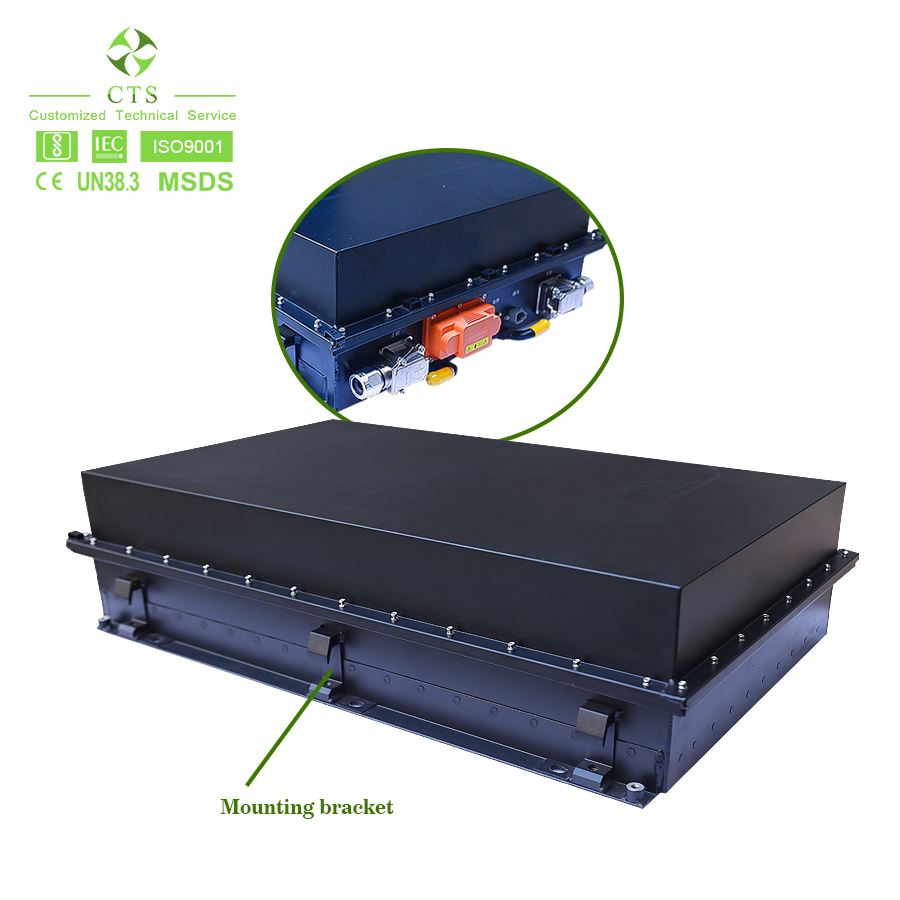

>>>Standard EV Battery Module
>>>For Electric Bus and Heavy Truck
>>>Support Max 600KWH System
| MODEL | F128206 | F128230 | F153206 | F153230 |
| ELECTRICAL SPECIFICATIONS | ||||
| Cell Type | 3.2V 206ah | 3.2V 230ah | 3.2V 206ah | 3.2V 230ah |
| Rated Capacity | 206Ah | 230Ah | 206Ah | 230Ah |
| Rated Voltage | 128V | 128V | 153.6V | 153.6V |
| Energy | 26.386kWh | 29.44kWh | 31.16kWh | 35.328kWh |
| IP Protection | IP67 | |||
| Cycle life | >3000 cycles (90%DOD, 0.5C) | |||
| MECHANICAL SPECIFICATIONS | ||||

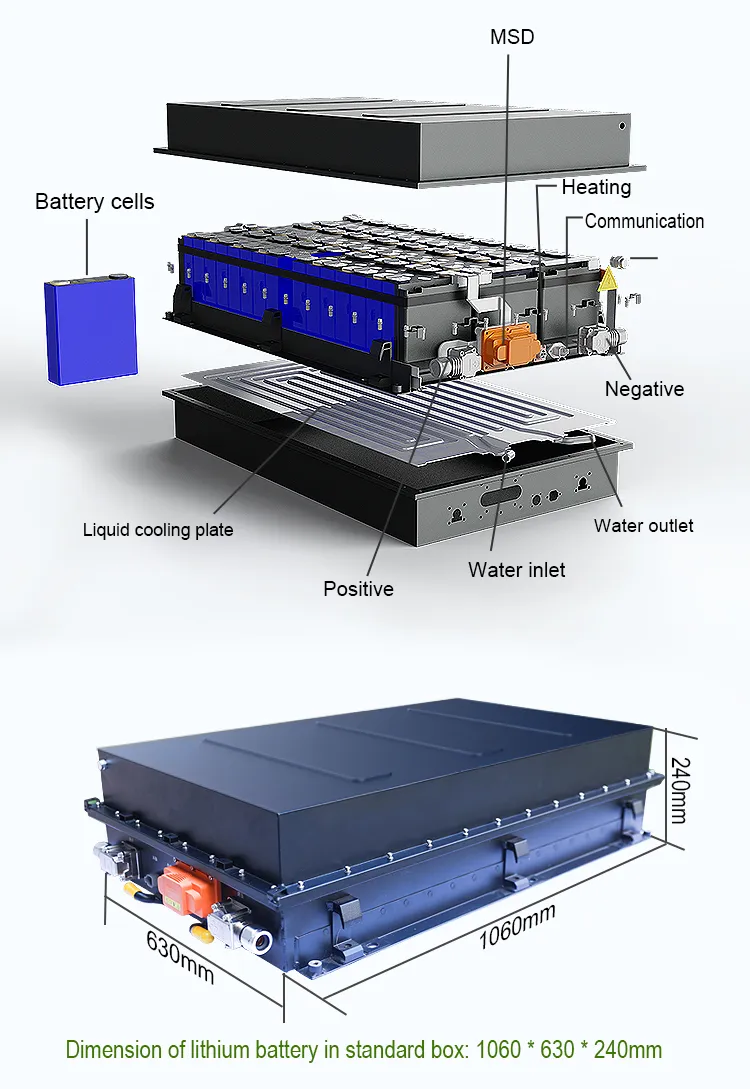

| Dimensions | Within L1060*W630*H245mm | |||
| Weight | <=230Kg | |||
| MODEL | F96280 | F96302 | F115280 | F115302 |
| Rated Voltage | 96V | 96V | 115.2V | 115.2V |
| Energy | 26.88kWh | 28.99kWh | 32.256kWh | 34.79kWh |
| System cooling | Liquid cooling | |||

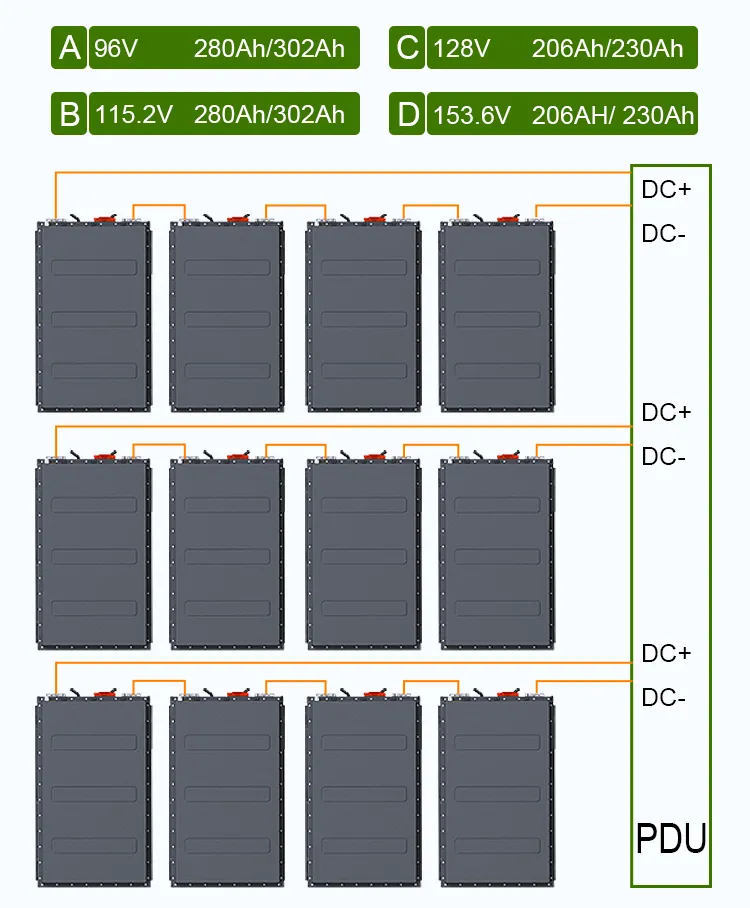

Support the max connection of 12 module(4S3P) in one system. Max 656V, 600KWH system capability.

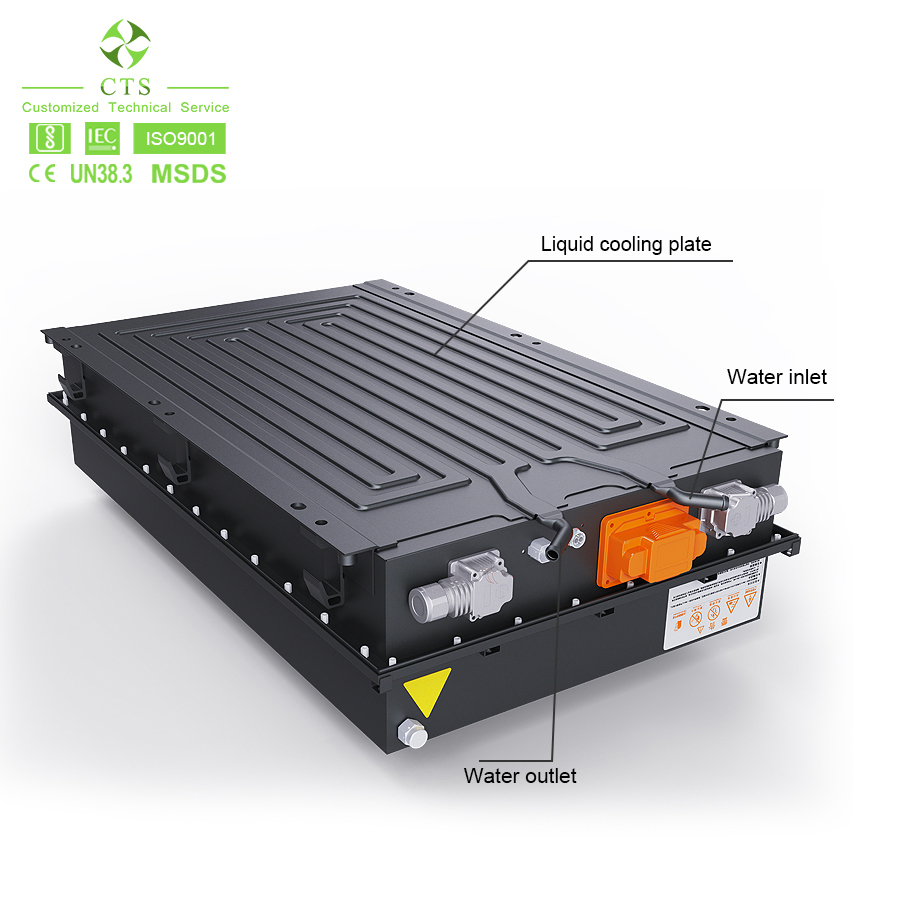

Redesigned liquid cooling system for improved thermal consistency and significantly longer battery life.

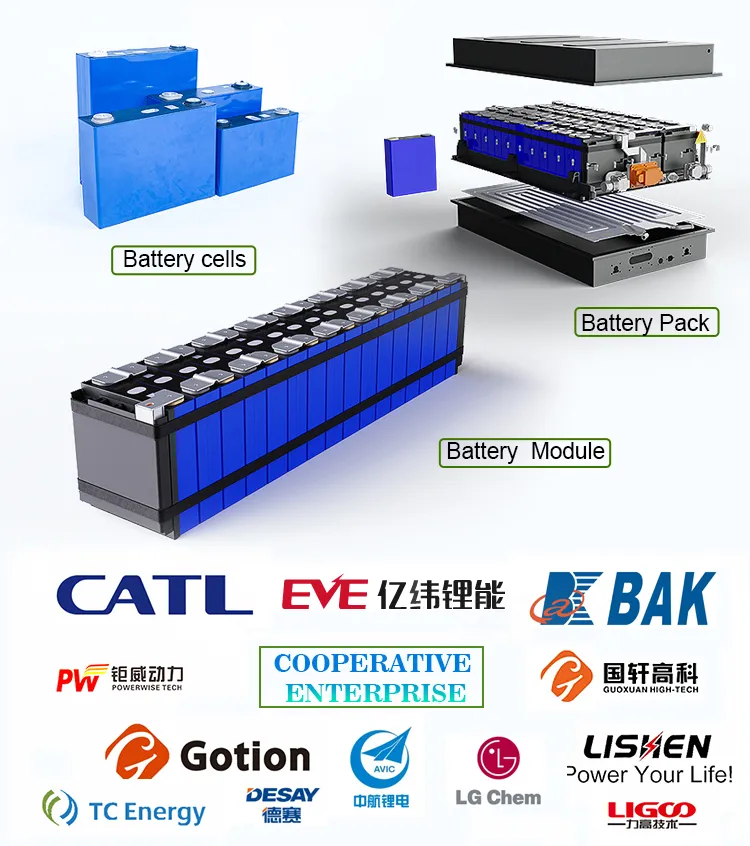

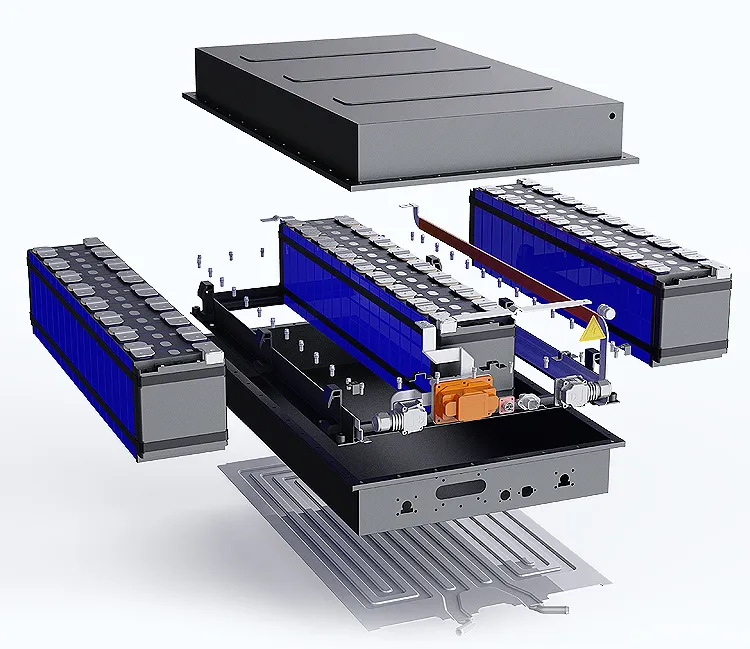

Reliable LiFePO4 cells integrated with a multi-tiered safety system.

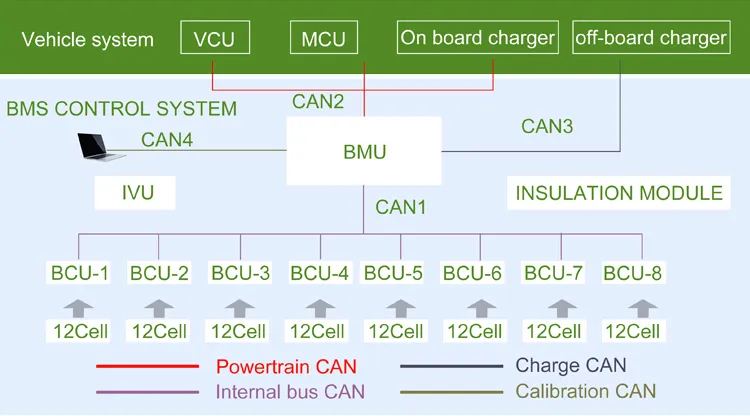

Real-time dynamic calibration considering vehicle operation conditions. High accuracy measurement of voltage, temperature, and pack current.
Monitoring insulation, water leakage, cell voltage, temperature extremes, communication faults, and sensor integrity.

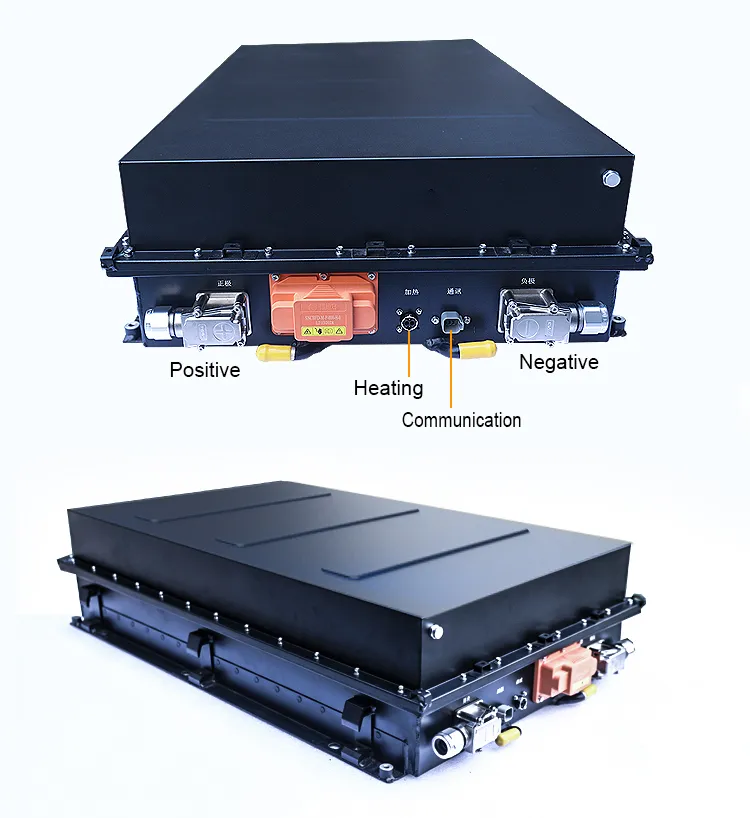

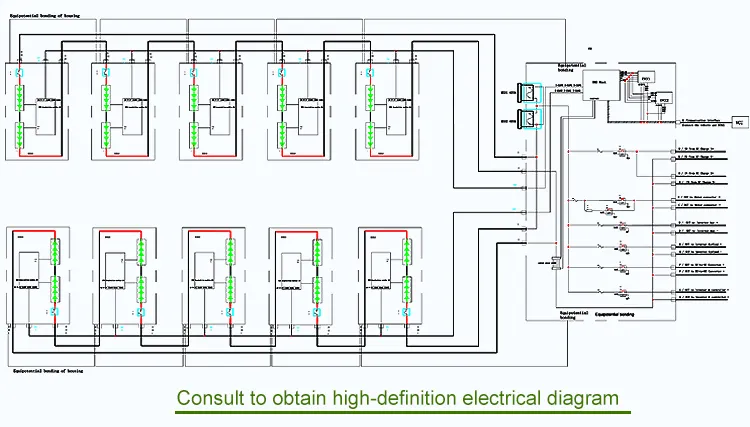

Standardized electrical diagrams supporting double-gun charging, high voltage outputs for water cooling compressors and motor driving.

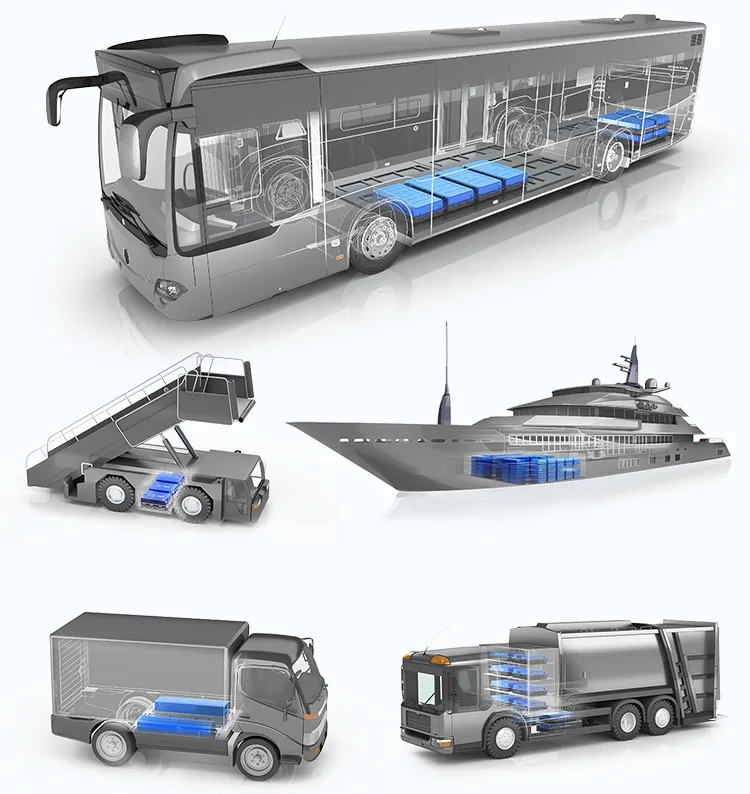

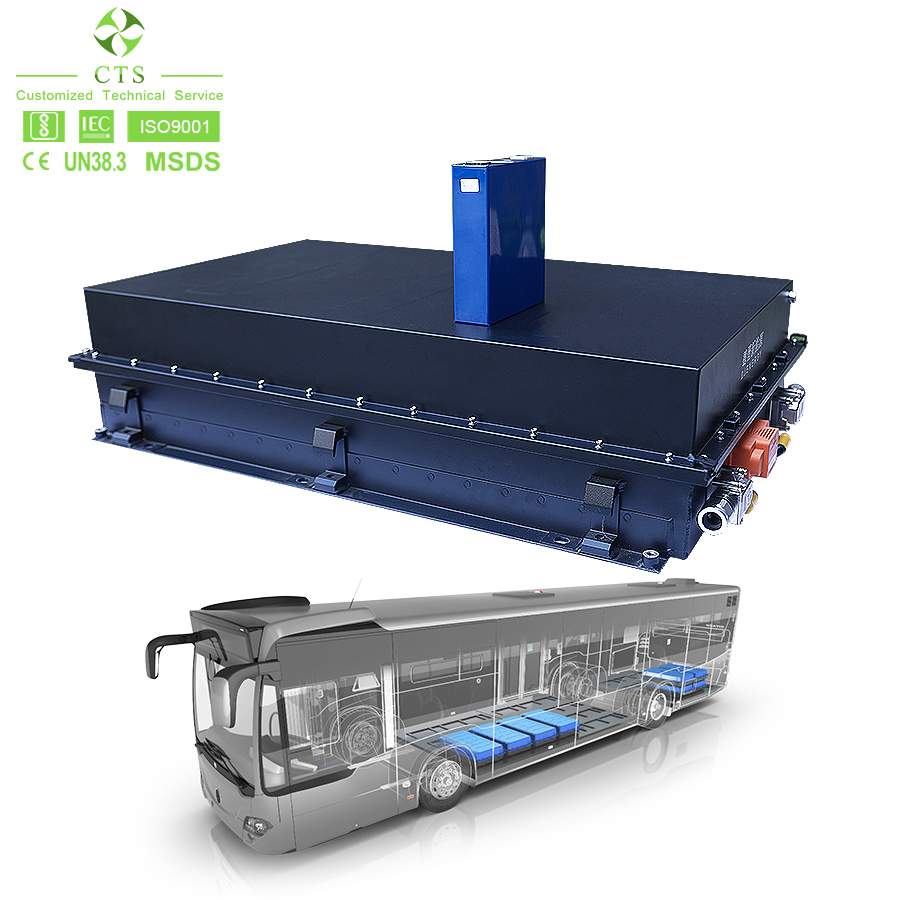

Our standard modules are widely used in public buses, industrial vehicles like mining trucks, tunnel vehicles, large capacity AGVs, and skyline cranes.
Focused on one-stop customization of lithium battery products since 2011, covering electric vehicles, energy storage, and high-end industrial applications. With over 30 types of cells, we produce OEM battery packs ranging from 12V to 800V.
To ensure high quality, the production process utilizes full automation and advanced technology. We adhere to ISO9001, ISO14001, and OHSAS18001 certifications.
