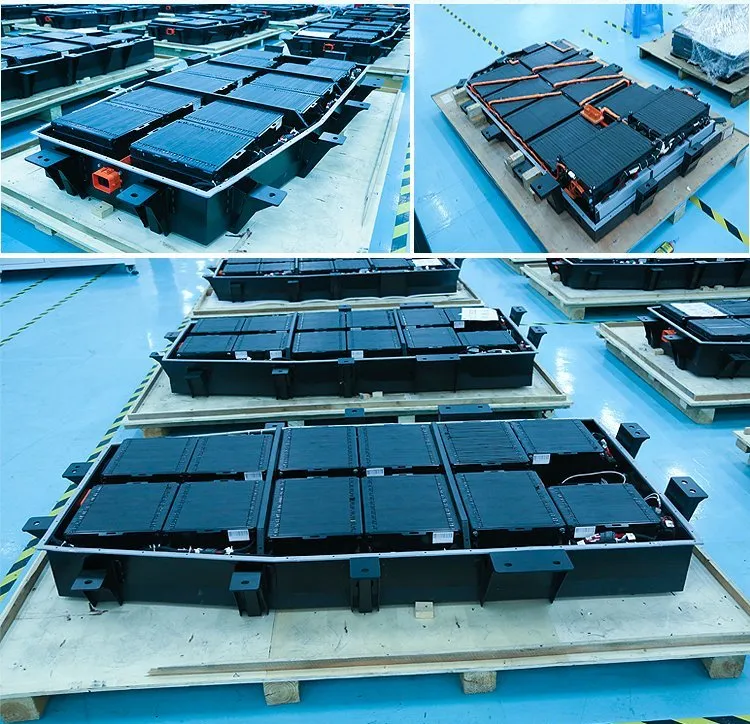

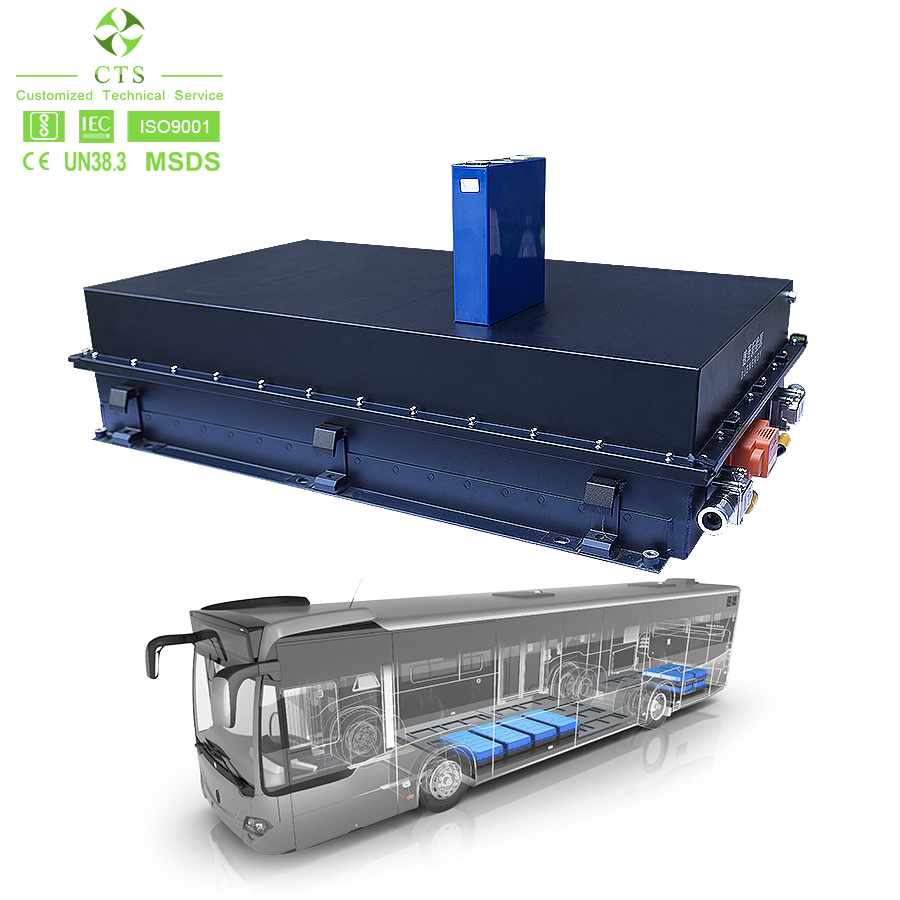

High Voltage 355V 400V 450V 614V 100ah 150ah 200ah 50kwh 60kwh 100kwh EV LiFePO4 Lithium Battery Pack
| Parameters of 614v 100Ah Lifepo4 battery pack | |||
|---|---|---|---|
| No. | Items | Technical Requirement | Note |
| 1 | Battery Type | Lifepo4 | - |
| 2 | Capacity(Ah) | 100 | @25ºC |
| 3 | Voltage | 614.4V | - |
| 4 | Power(kWh) | 61.44kWh | - |
| 5 | Weight(kg) | 558.55 | - |
| 6 | Working Voltage (DC V) | 480-700.8 | - |
| 7 | Continuous Discharge (A) | 80 | @EOL, @25ºC |
| 8 | Peak Discharge Current (A) | 200 | For 30 seconds |

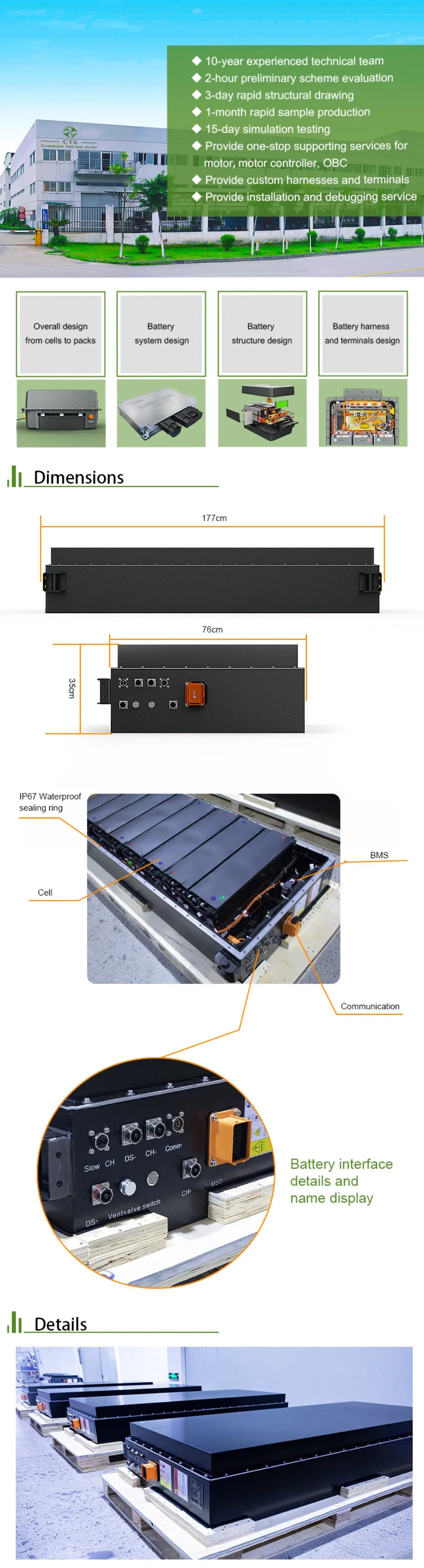

| 9 | Dimension (L/W/H, mm) | 1780*720*345 | - |

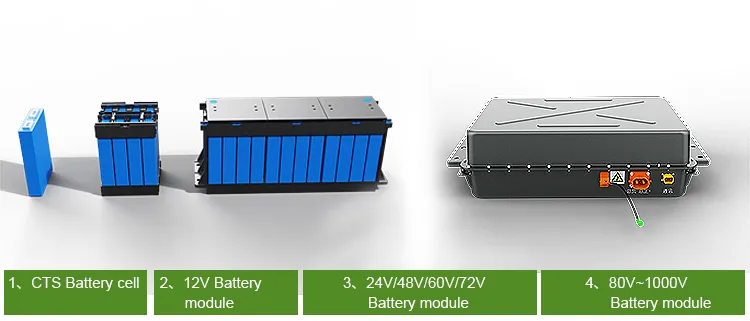

Cell design and electrical component selection are systematically optimized. By using high-strength steel/aluminum alloys and CAE structural simulation, the system achieves reduced volume and weight while increasing energy density. Standardized cells and BMS allow for 12V-72V modules with excellent scalability.

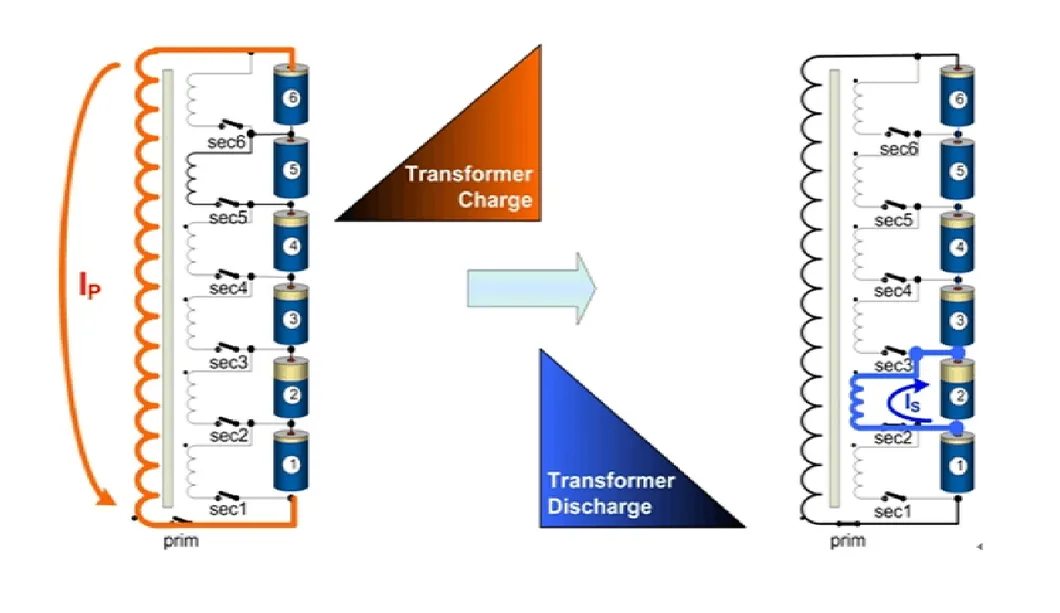

Advanced BMS development supports both passive and active balance. Parameters such as CAN/RS485 communication protocols, over/under voltage protection, and temperature thresholds can be modified on-site to meet specific application needs.

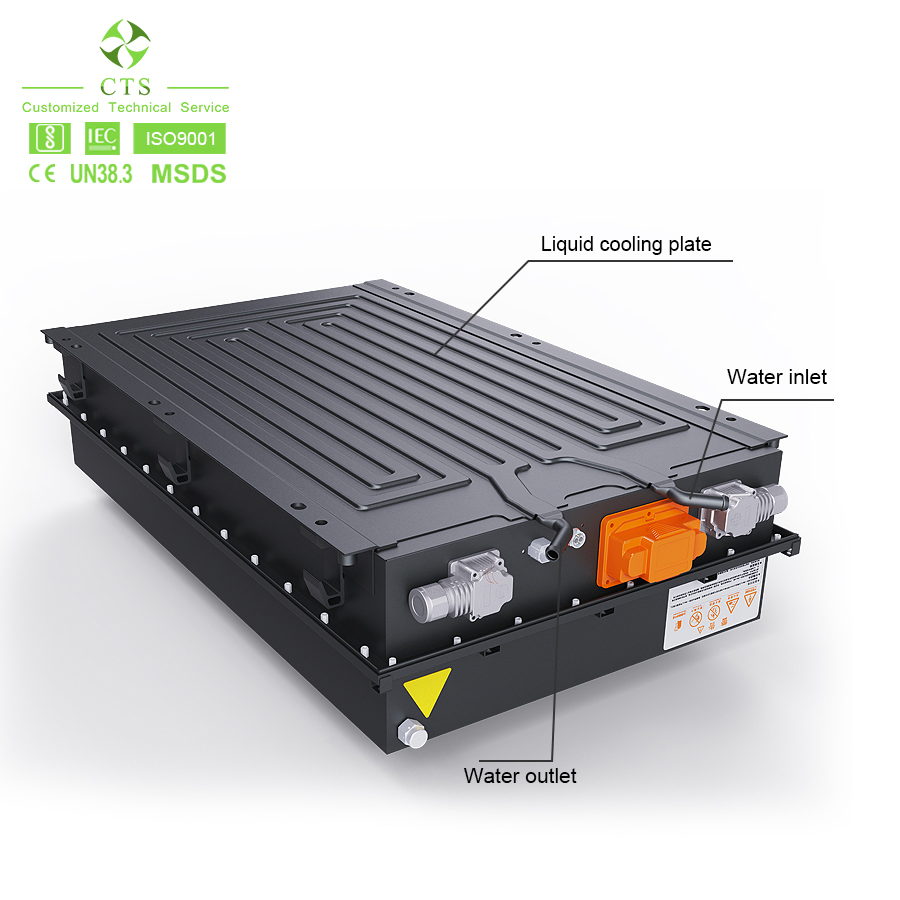

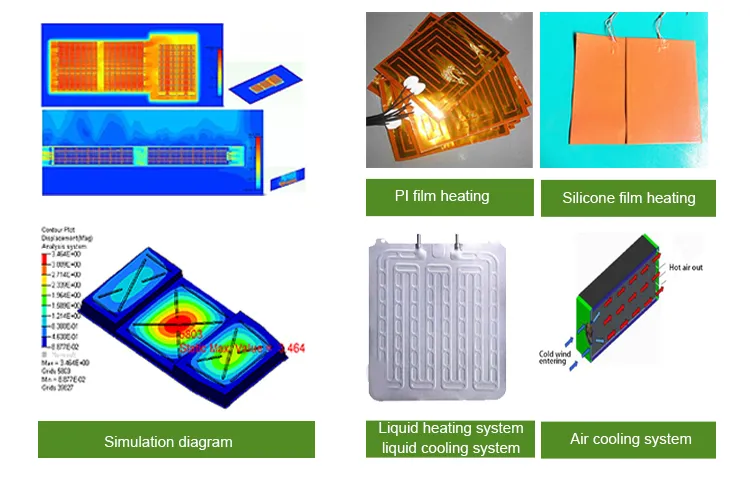

Utilizing CFD (Computational Fluid Dynamics) and CAE (Computer Aided Engineering), we design robust thermal management systems including liquid cooling, air cooling, and specialized heating films (PI/Silica gel) to ensure structural integrity and safety.

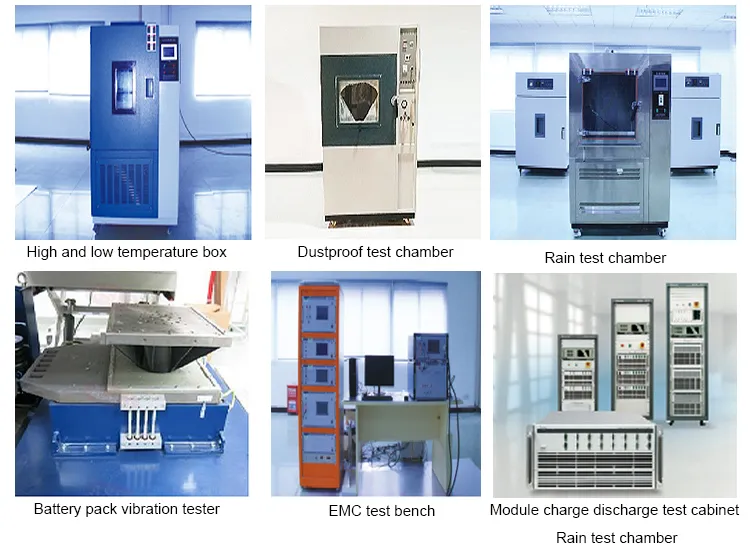

Comprehensive DV / PV (design and production verification) stages include temperature tests, mechanical stress tests, environmental simulations, electrical safety, and performance abuse tests.

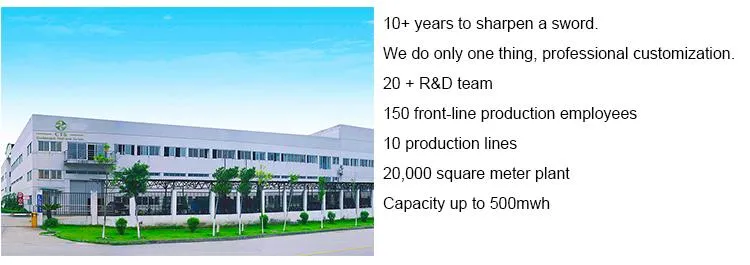

Focusing on one-stop customization for lithium battery products since 2011, including electric vehicles, large storage, and high-end motorcycles. Offering over 30 types of cells for OEM packs from 12V to 800V.
Adhere to the principle of service first!
