| Model | 614v 206ah battery | Rechargeable | Yes |
| Discharge Rate | Medium Discharge Rate | Electrolyte | Li-ion |
| Standard Voltage | 540V / 614V | Rated Capacity | 412Ah / 100Ah |
| Energy | 61.4kWh | Application | EV / E-Car / Boat / Marine |
| Cooling Type | Liquid Cooling | Protection | BMS + Relay |
| Warranty | 2 Years | Origin | China |

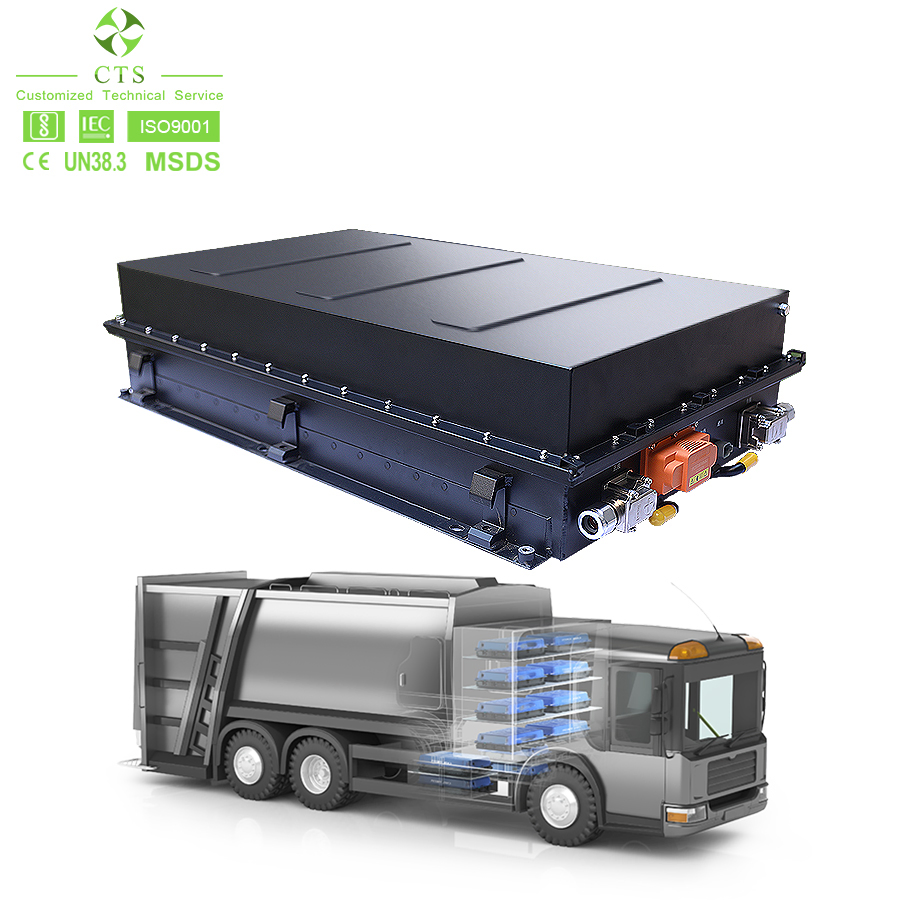

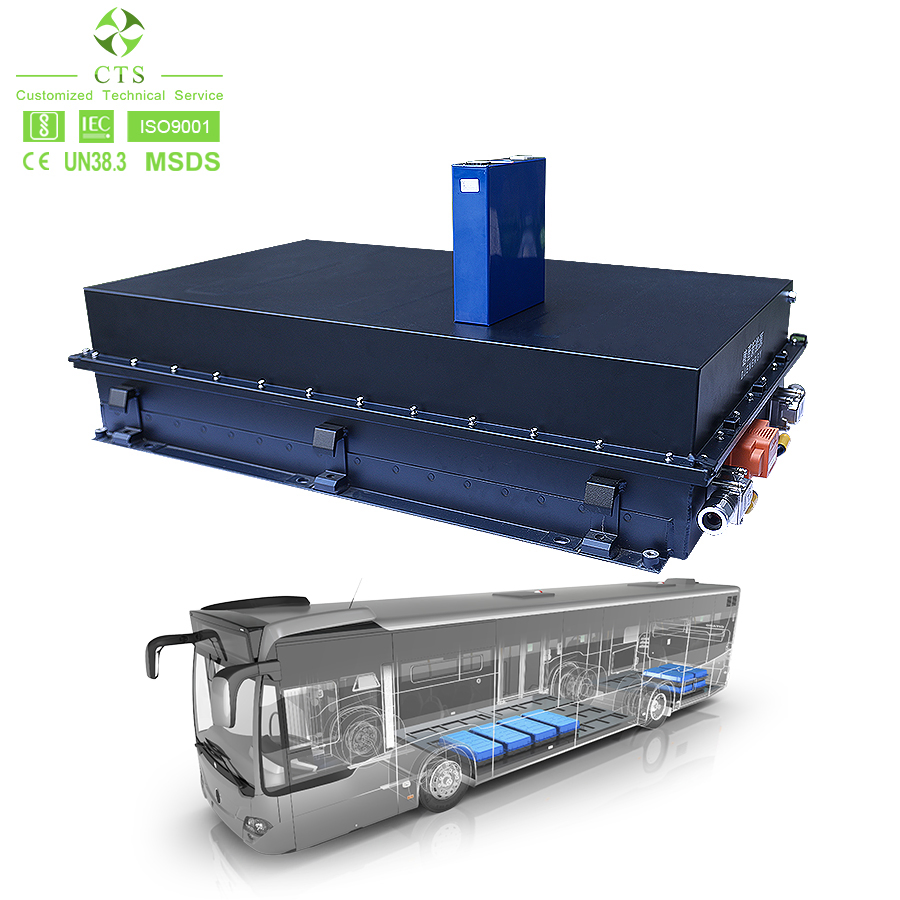

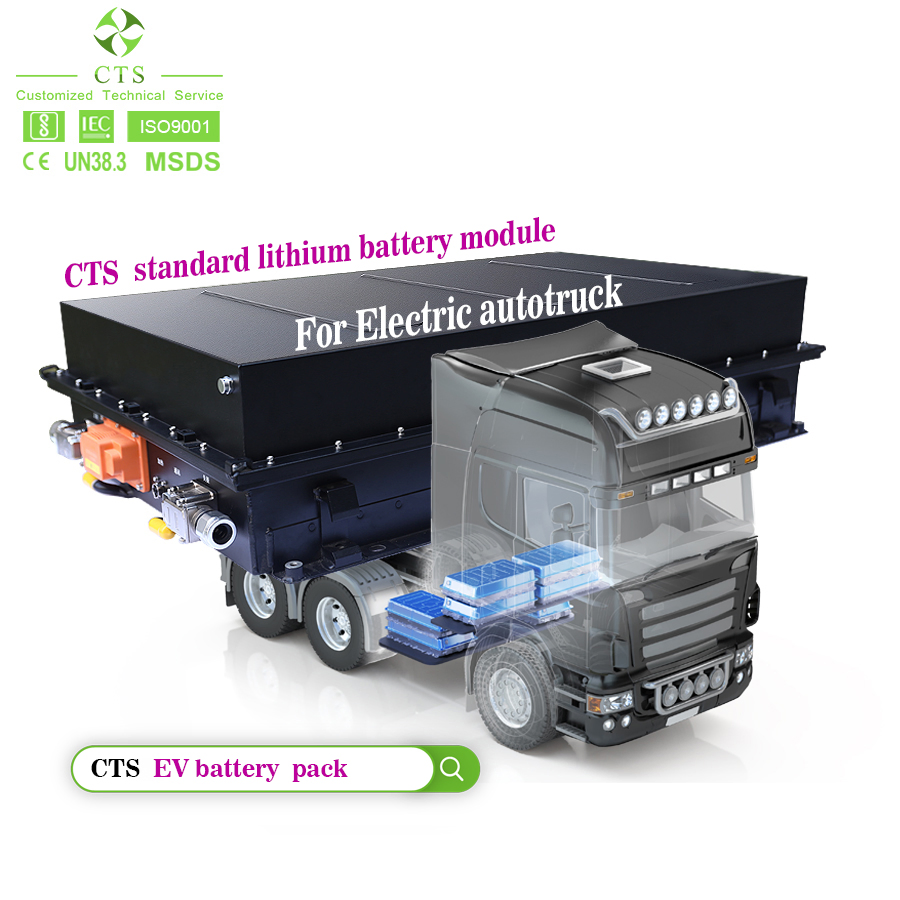

High Voltage Electric Car Battery 400V 300V 50kwh 100kwh Lithium Ion Rechargeable Batteries Pack for Electric Vehicle EV
| Technical Parameters (614V 100Ah LiFePO4) | |||
| No. | Items | Technical Requirement | Note |
| 1 | Battery Type | LiFePO4 | |
| 2 | Capacity (Ah) | 100 | @25ºC |
| 3 | Voltage | 614.4V | |
| 4 | Power (kWh) | 61.44kWh | |
| 5 | Weight (kg) | 558.55 | |
| 6 | Working Voltage Range | 480V - 700.8V | DC |
| 7 | Continuous Discharge | 80A | @EOL, @25ºC |
| 8 | Peak Discharge | 200A | For 30 seconds |

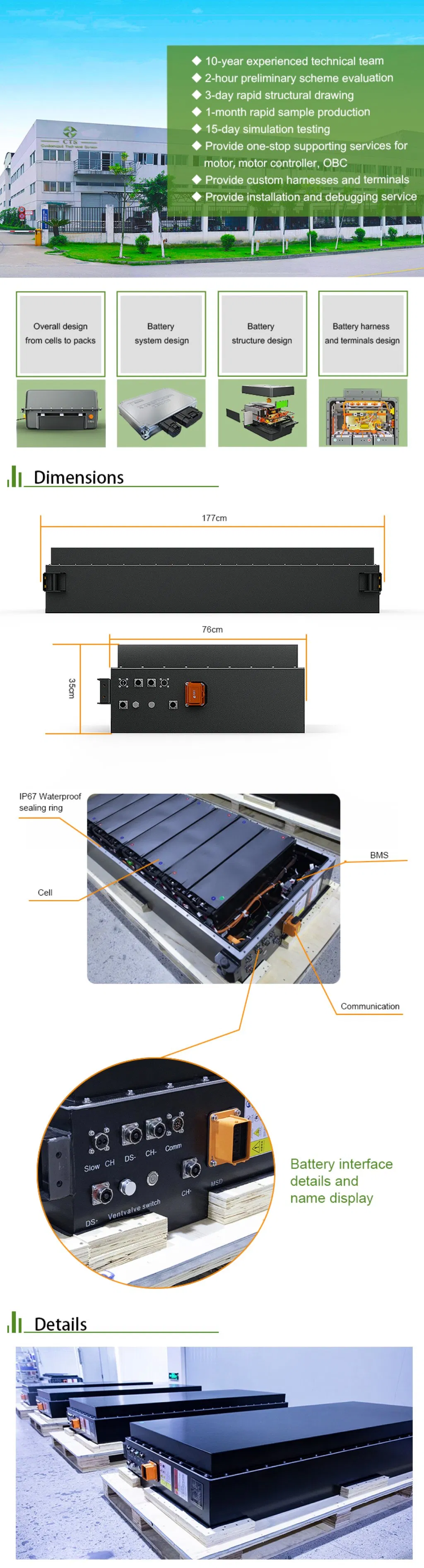

| 9 | Dimension (L/W/H) | 1780*720*345 mm | |

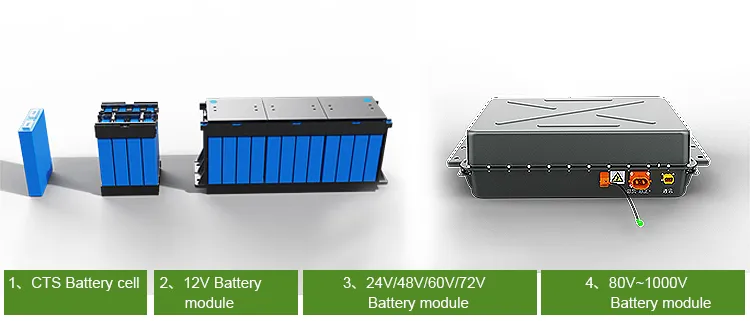

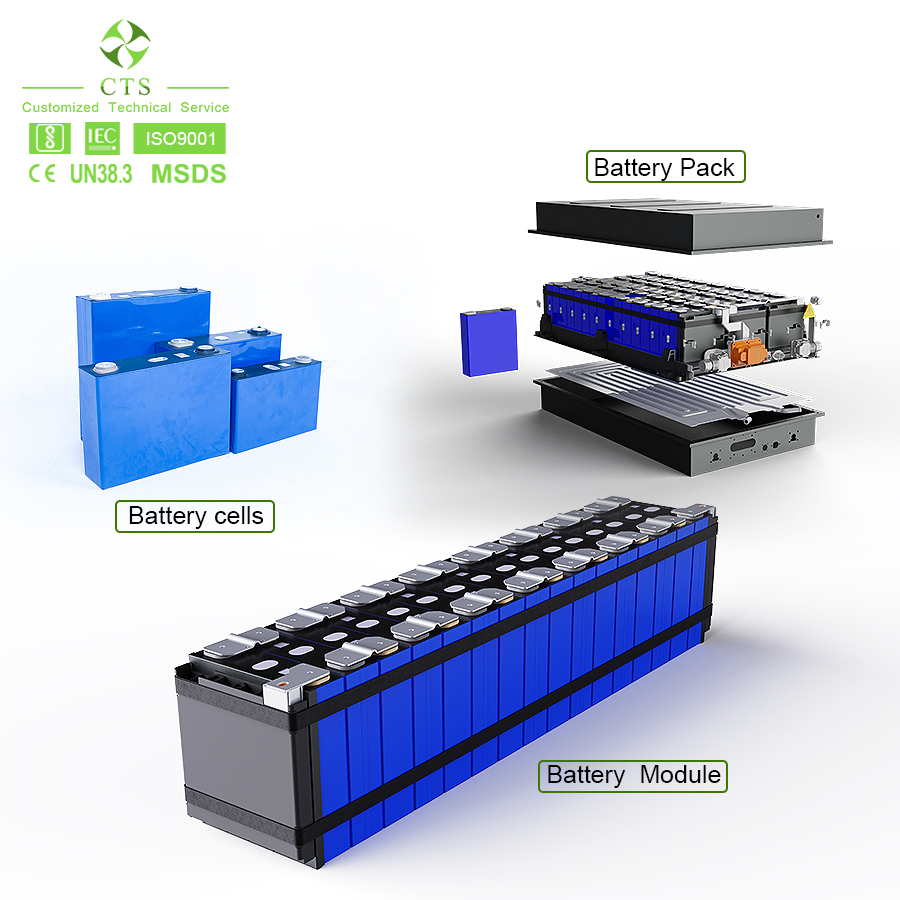

Systematic optimization of cell design and electrical components. Using high-strength steel/aluminum alloys and plastics to reduce volume and weight while ensuring structural strength through CAE simulation. Standardized modules (12V-72V) allow for excellent scalability and shorter design cycles.

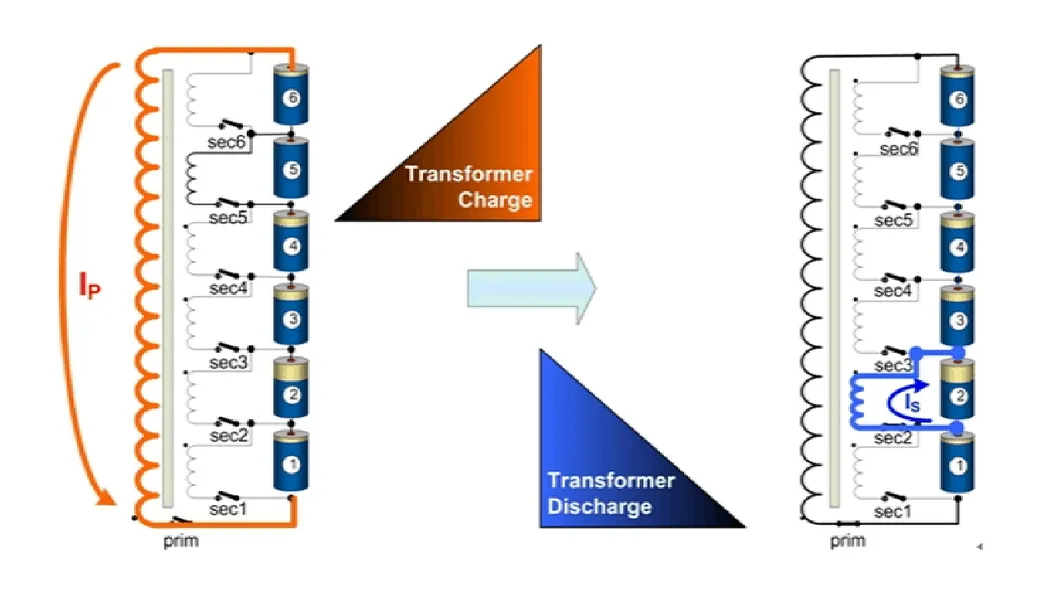

Advanced BMS development featuring both passive and active balance options. Parameters such as CAN/RS485 protocols, over/under voltage, high current, and temperature protection can be customized to specific application requirements.

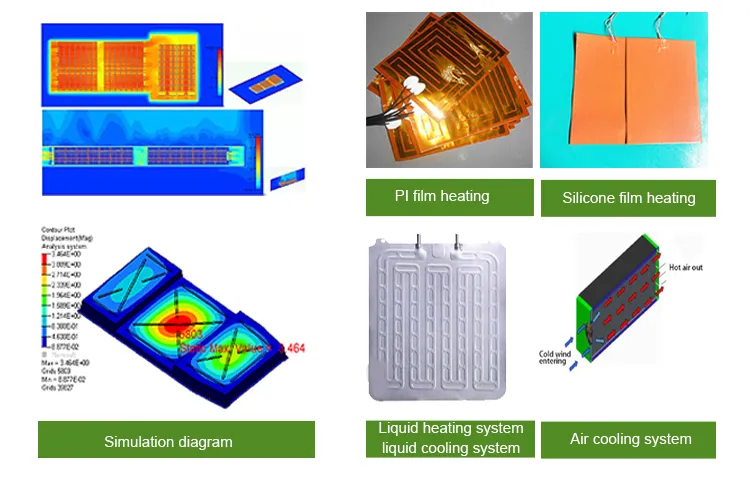

Capabilities in CFD (Computational Fluid Dynamics) and CAE simulation. Designs include air cooling, liquid heating/cooling systems, and PI/silica gel film heating for optimal battery performance in various environments.

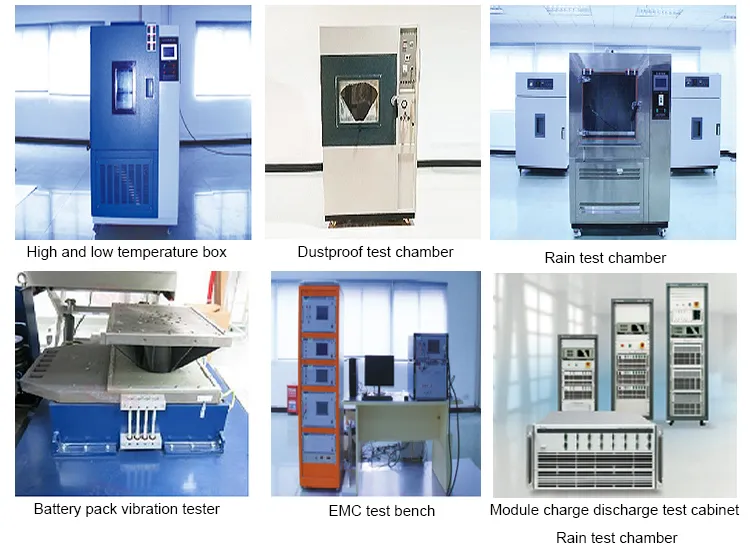

Rigorous DV/PV (Design/Production Verification) stages in specialized laboratories. Tests include temperature, mechanical stress, external environment simulation, electrical safety, and battery performance/abuse testing.
Focusing on one-stop customization of lithium battery products for electric vehicles, energy storage, and high-end motorcycles. We offer over 30 types of cells and can produce OEM battery packs from 12V to 800V, 10Ah to 200Ah.

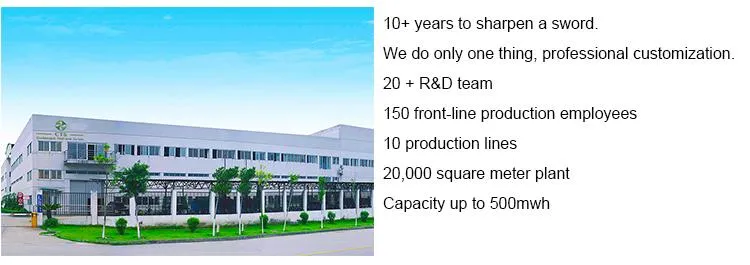

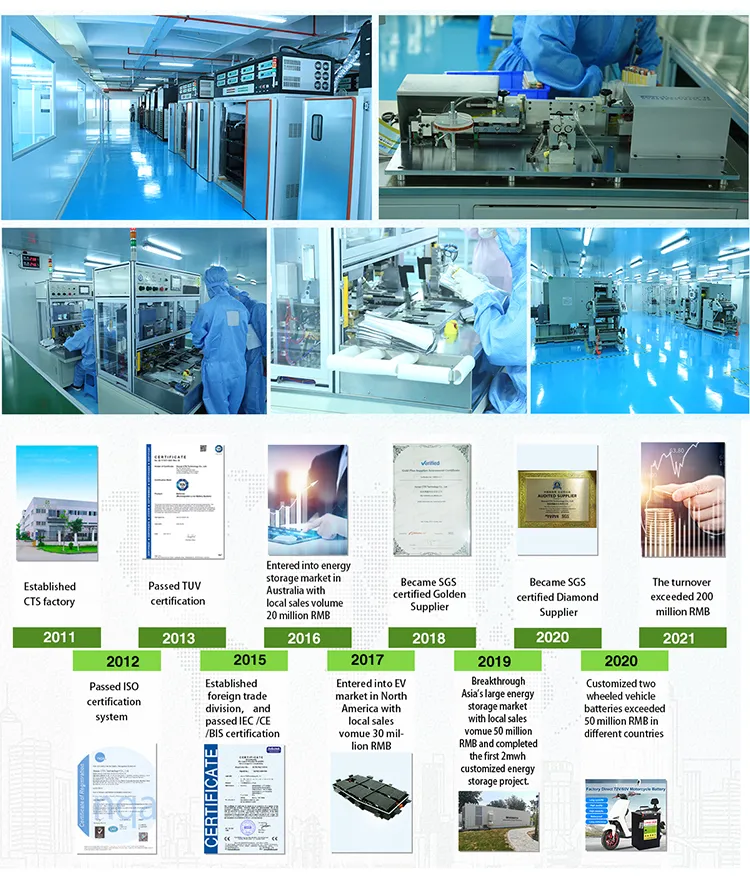

Our production facilities utilize advanced automated equipment to ensure precision and quality, adhering to international standards including ISO 9001, ISO 14001, and OHSAS 18001.
