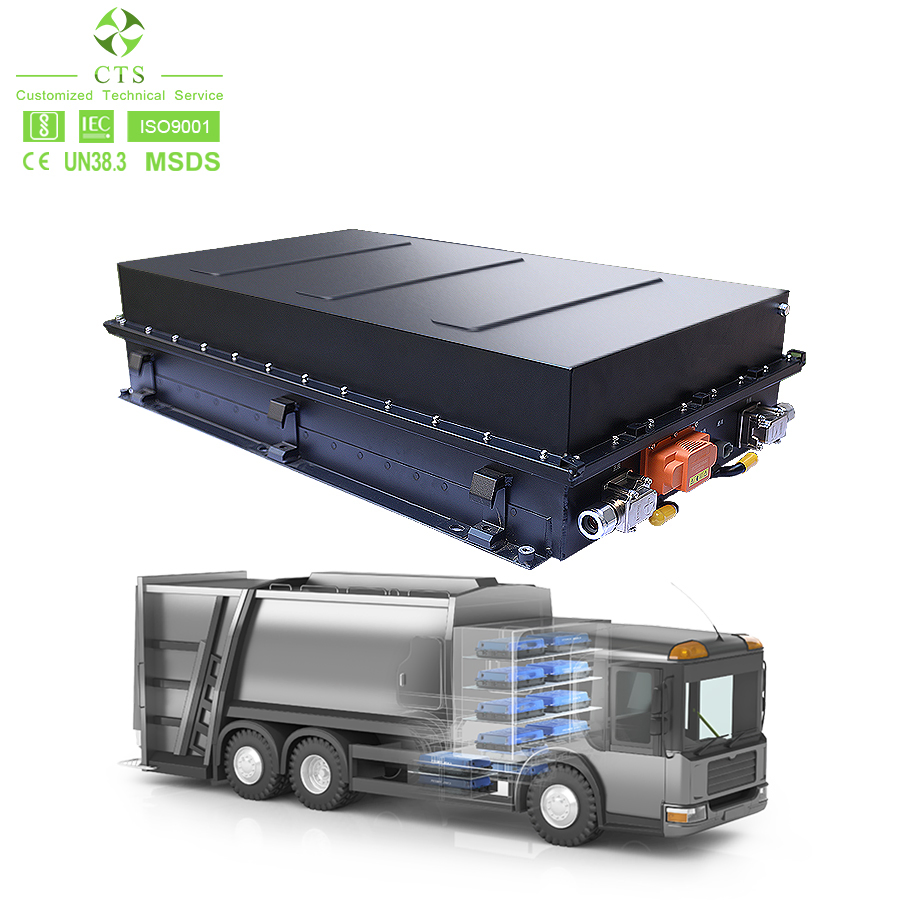

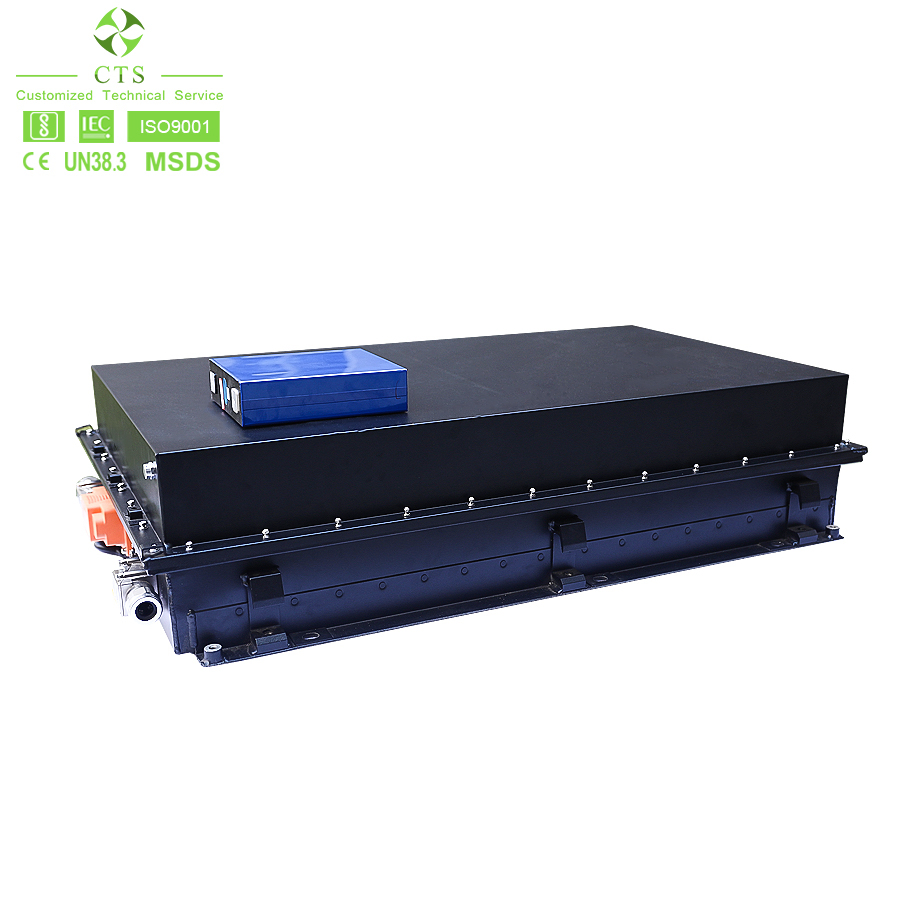

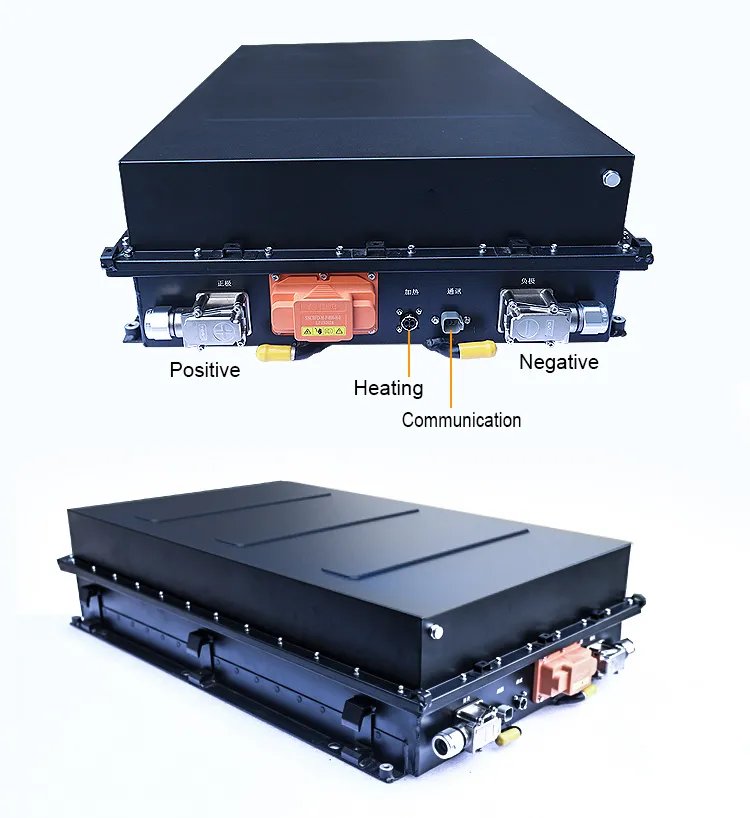

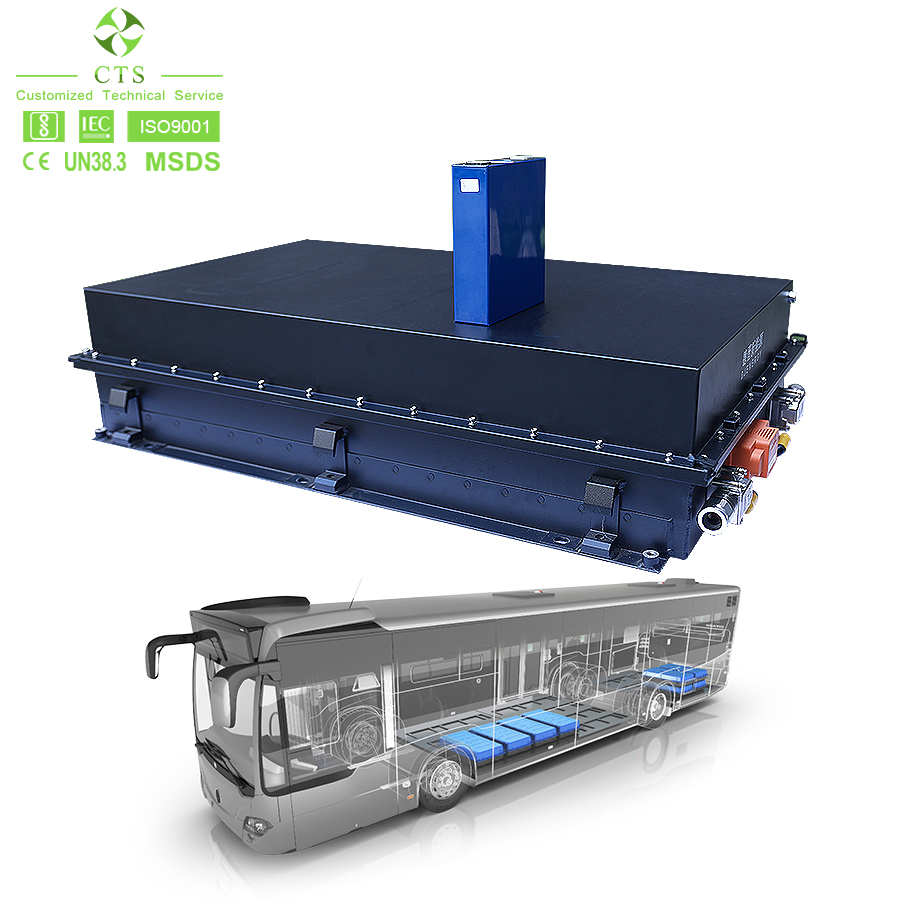

High Energy Density LFP 100v 120v 206ah 230ah Lithium Ion EV Car Electric Vehicle Battery for E-Bus/Truck
| MODEL | F128206 | F128230 | F153206 | F153230 |
| ELECTRICAL SPECIFICATIONS | ||||
| Cell Type | 3.2V 206ah | 3.2V 230ah | 3.2V 206ah | 3.2V 230ah |
| Rated Voltage | 128V | 128V | 153.6V | 153.6V |
| Energy | 26.386kWh | 29.44kWh | 31.16kWh | 35.328kWh |
| IP Protection | IP67 | |||
| Cycle life | >3000 cycles (90% DOD, 0.5C) | |||
| MECHANICAL SPECIFICATIONS | ||||

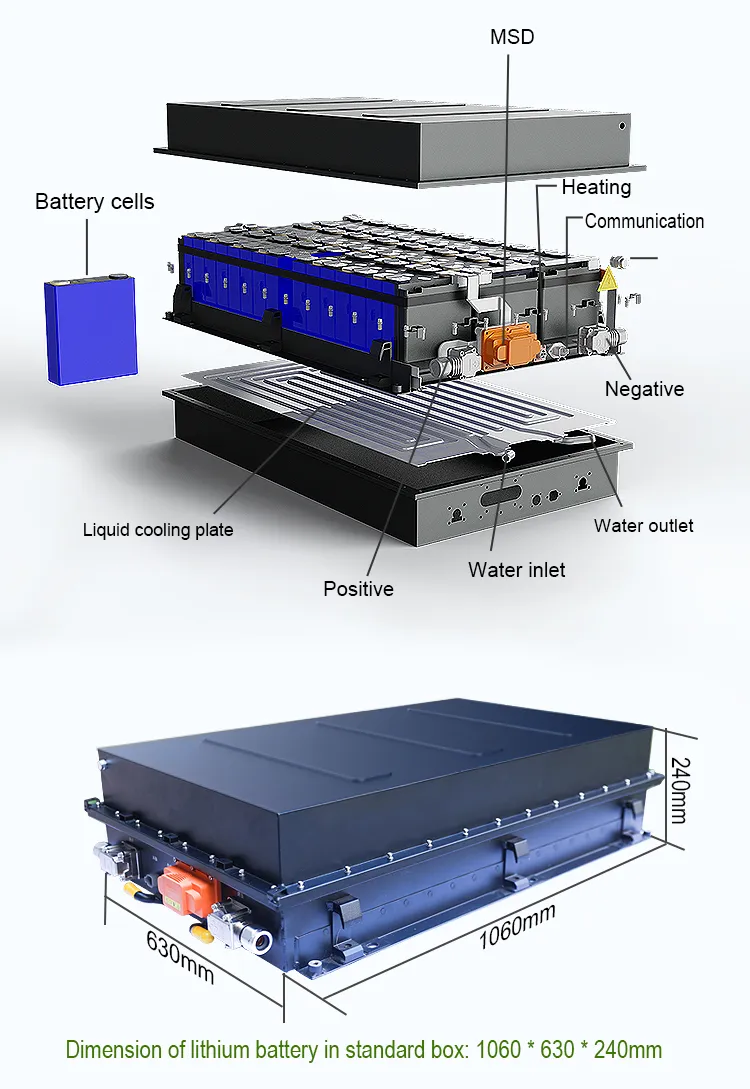

| Dimensions | L1060*W630*H245mm | |||
| Weight | <=230Kg | |||

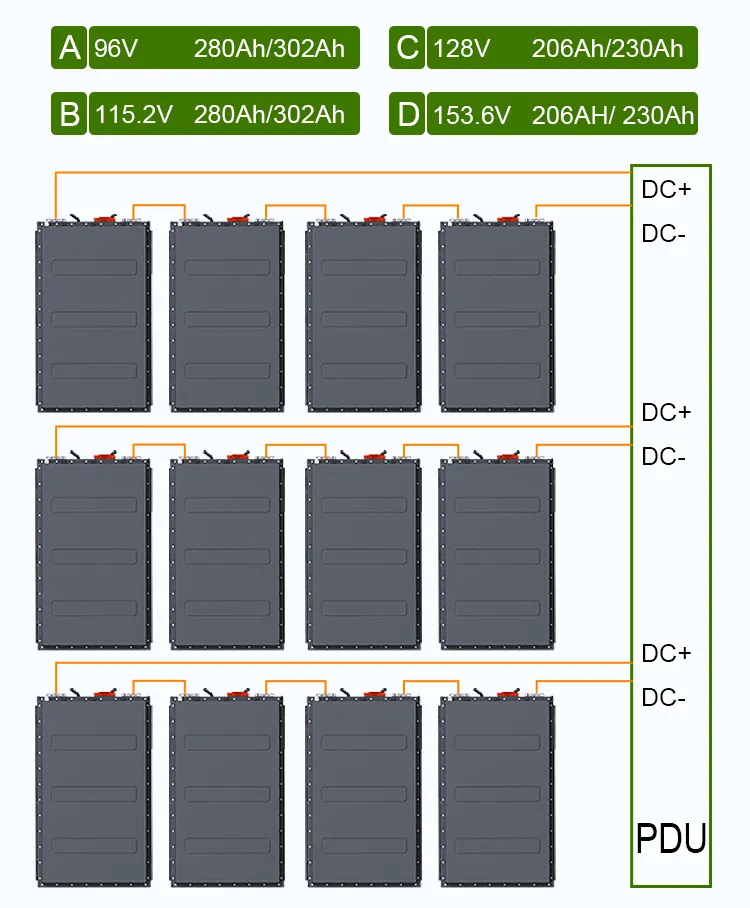

Support the max connection of 12 module(4S3P) in one system. Max 656V, 600KWH.

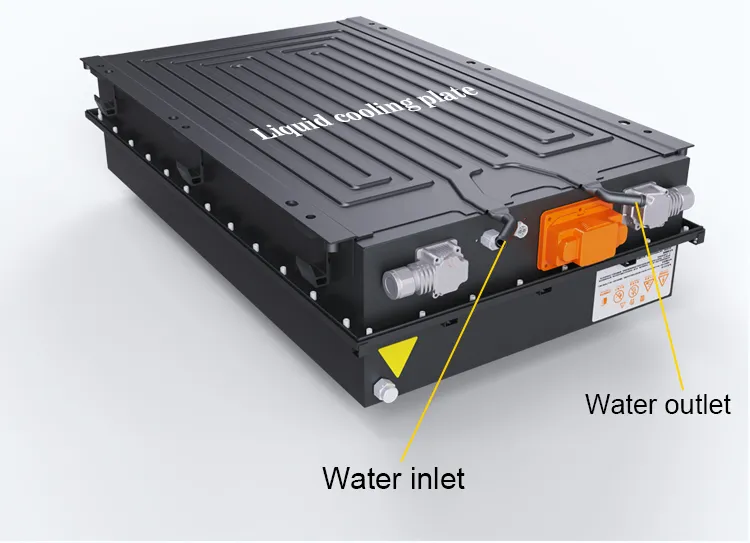

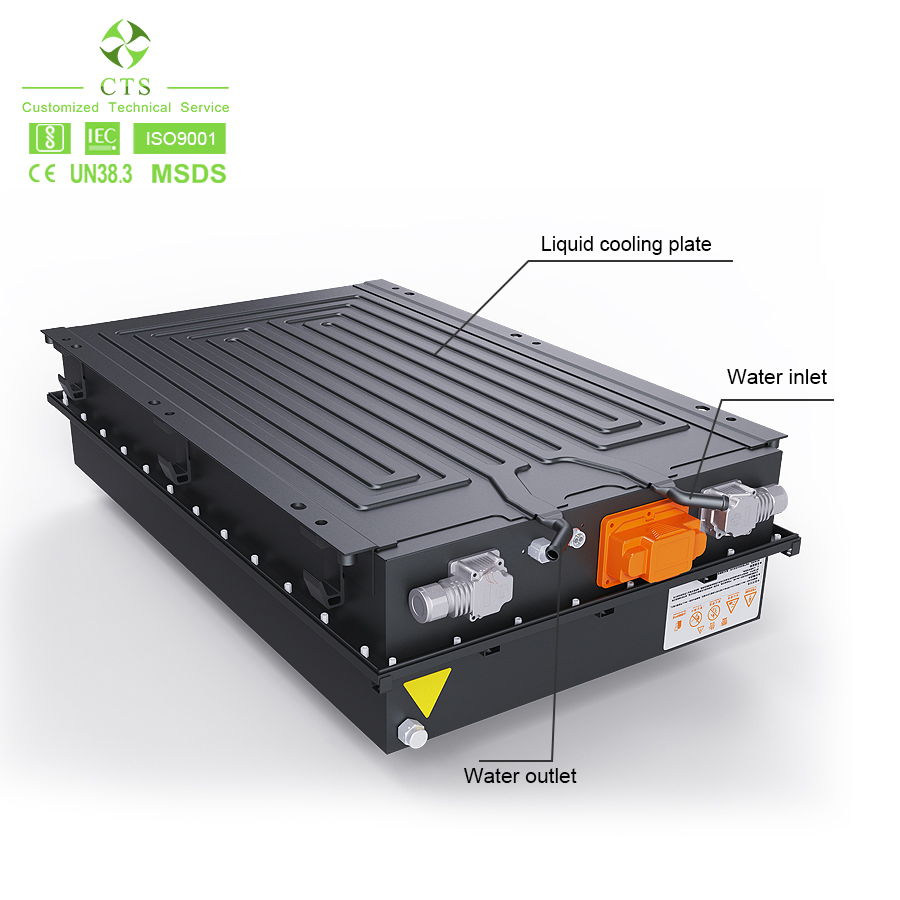

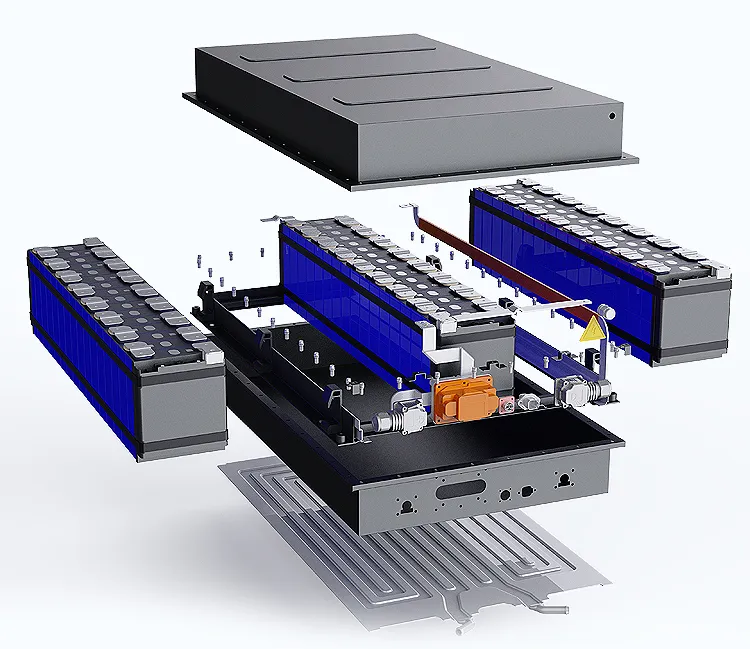

Redesigned liquid cooling system for improved thermal consistency and longer life.

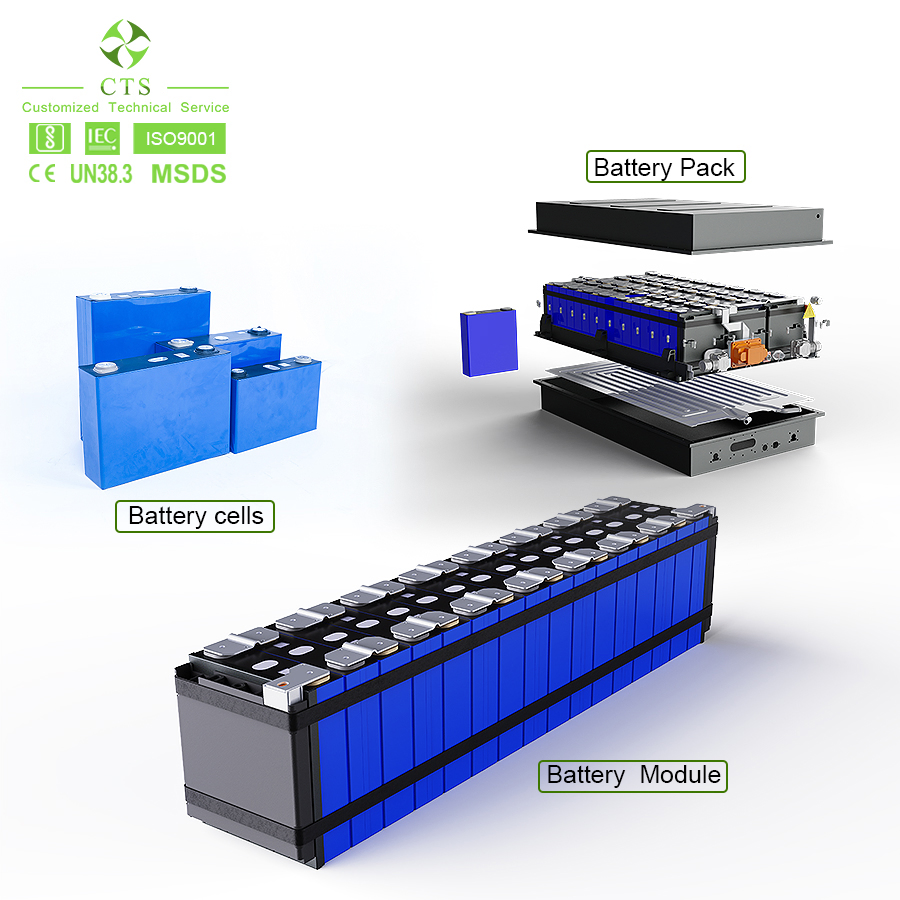

Reliable lifepo4 cells, multi-tiered safety system.

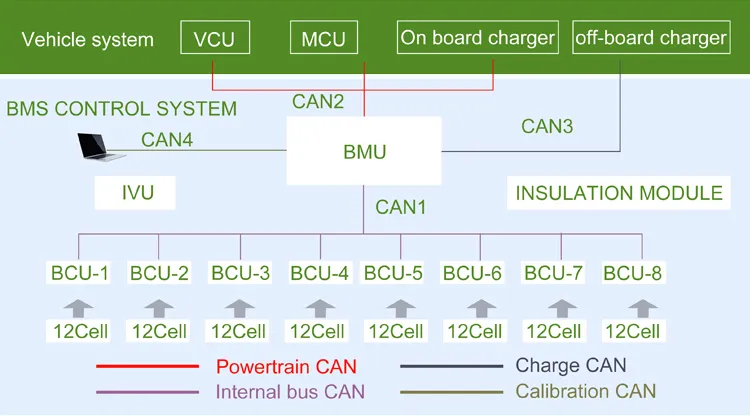

Real time dynamic calibration and vehicle operation condition consideration. Diagnosis for Insulation, water leakage, voltage range, and temperature sensor faults.

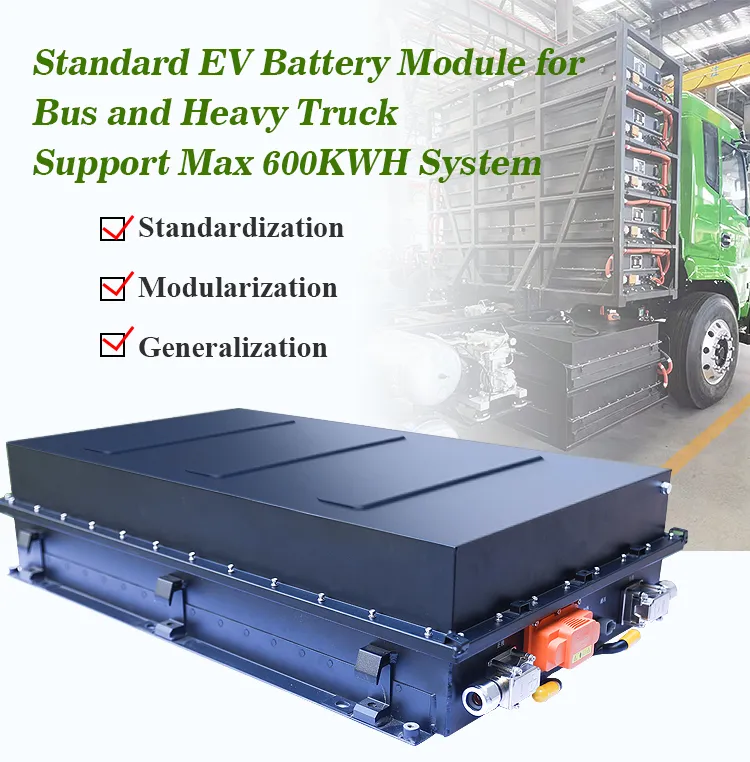

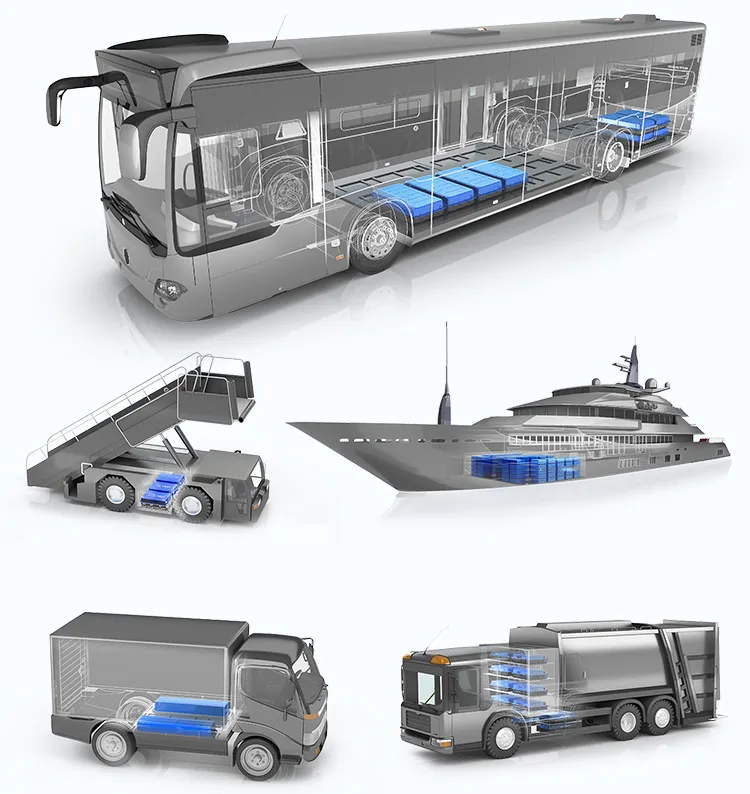

Our standard module is widely used in public buses, industrial vehicles like mining trucks, tunnel vehicles, large capacity AGV, and skyline cranes. We provide proper solutions for different market needs.

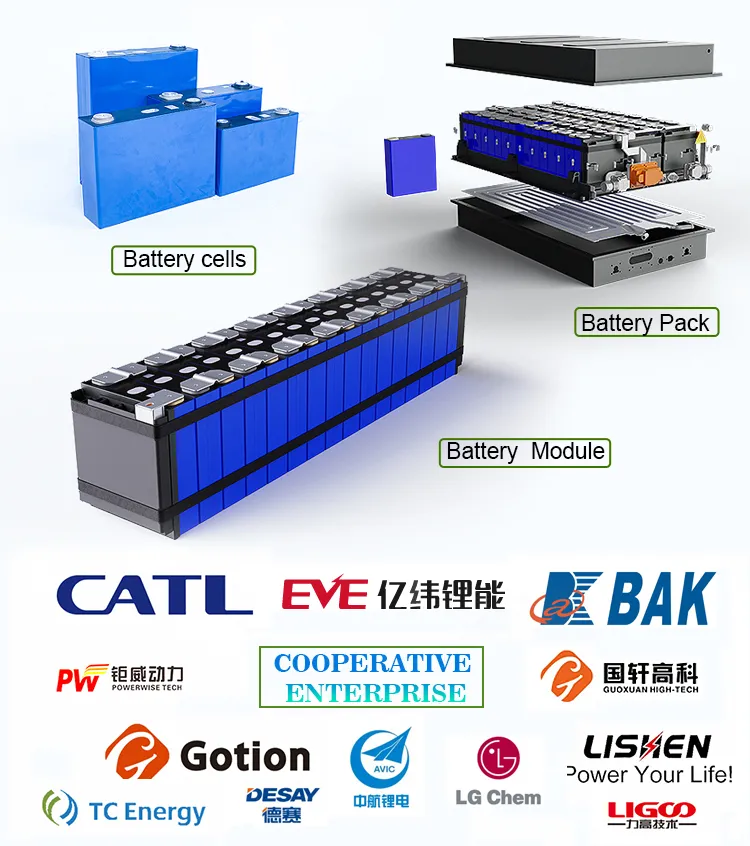

Focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, and smart home storage. With more than 30 types of cells, we produce battery packs from 12v-800v, 10-200ah for E-bikes, UPS, telecommunication stations, golf carts, and forklifts.
To ensure the best quality, we have passed ISO9001, ISO14001 and OHSAS18001 certifications. We pursue continuous innovation to meet development requirements for renewable energy and friendly environments.
