📋 Overview & Basic Info
Model NO.48V 300AH lithium battery pack
Rated Capacity300ah
Standard Voltage48V
Battery TypeLi-ion / LiFePO4
Cycle Life3000 Cycles
Protection LevelIP65
WeightApprox 130kgs
Warranty2 Years

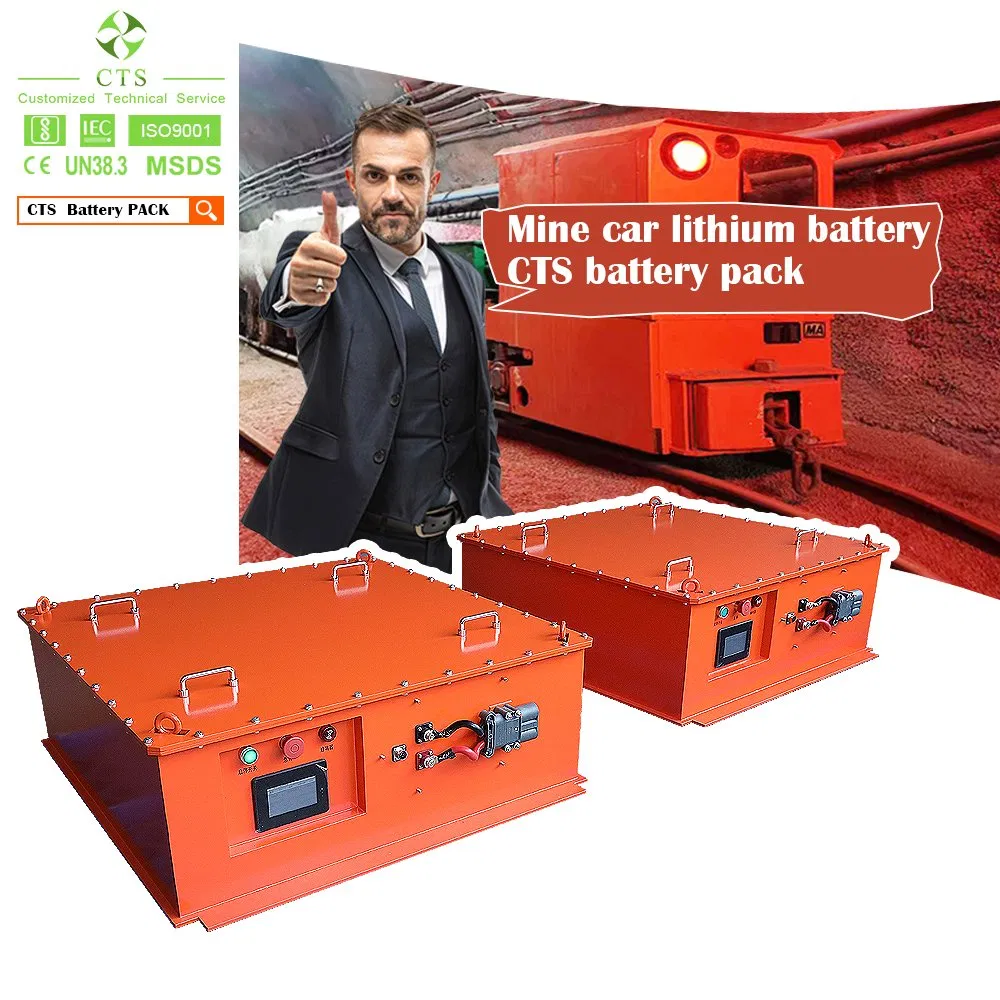

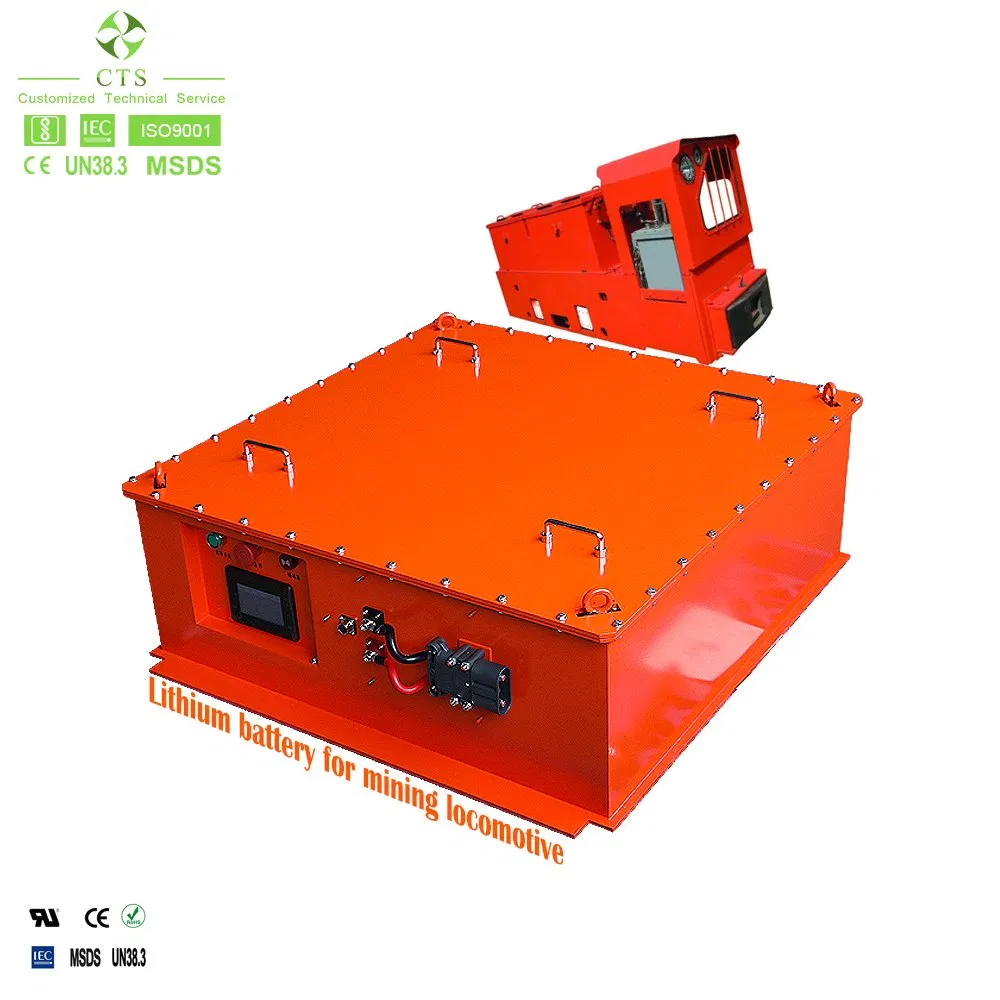

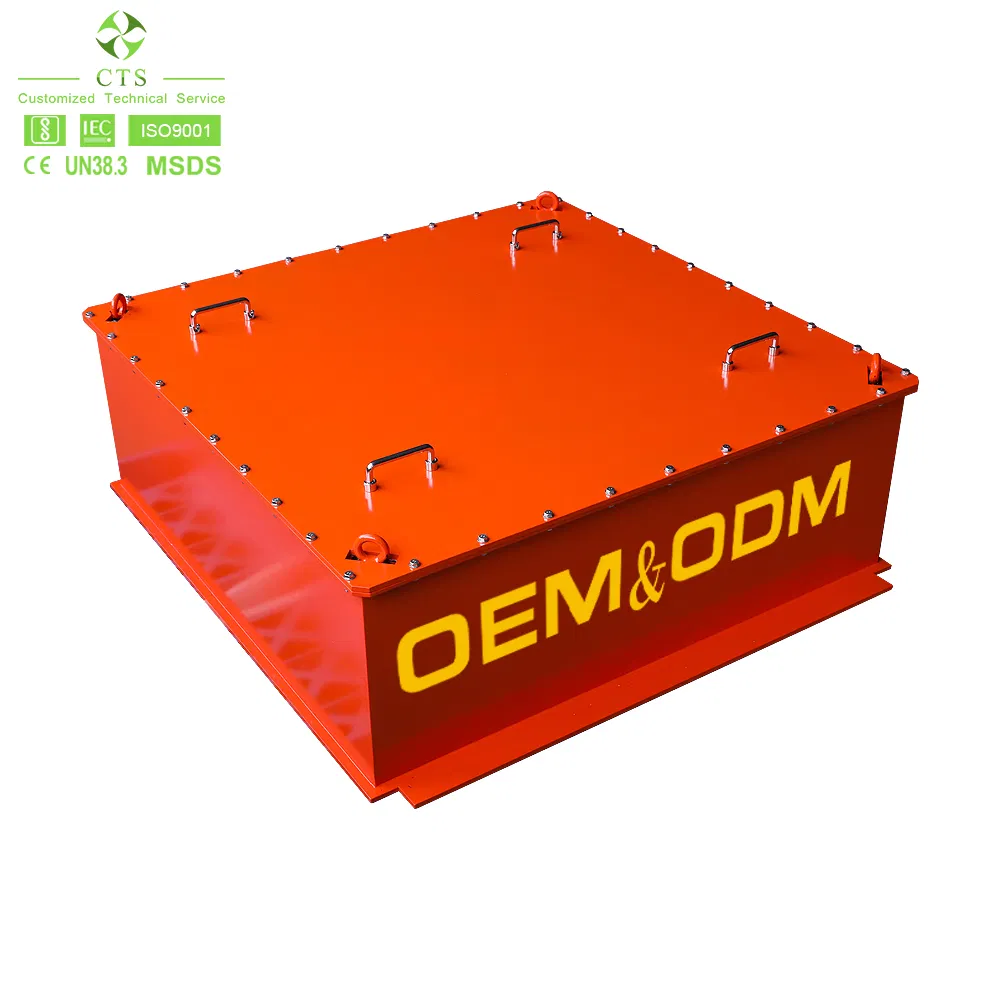

Popular Customized IP65 48V 300Ah LiFePO4 Battery

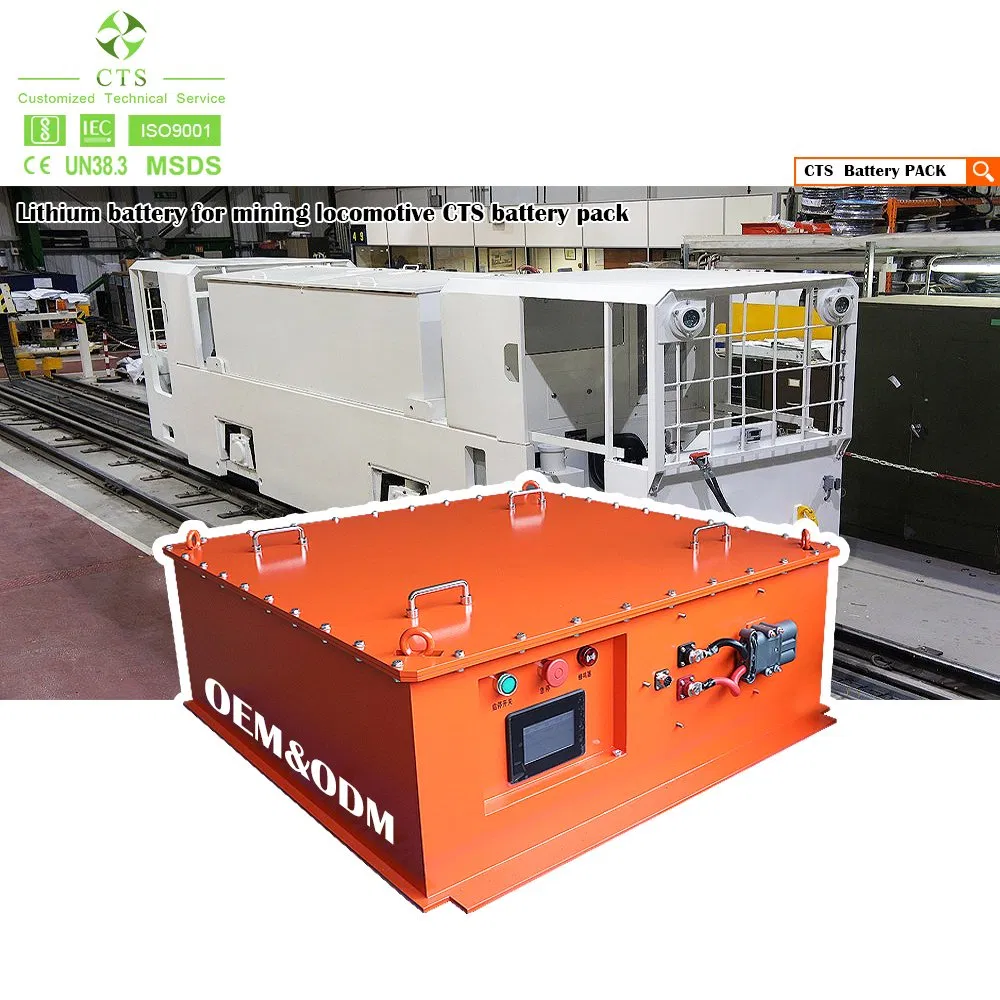

High-performance 15kWh lithium battery solution designed for Electric Tramcars, Tractors, and EVs.
🛡️ High Security and Reliability
✔

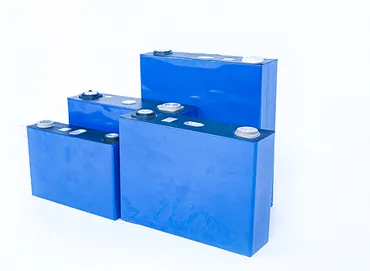

Grade A Cells: Utilizes top-tier lithium iron phosphate battery cells for maximum stability.
✔
Advanced System Integration: Professional process ensuring the safest lithium battery material and system.
📊 Technical Specifications
| 48V TRACTOR LITHIUM BATTERY PARAMETERS |
| Nominal Voltage | 48V |
| Nominal Capacity | 302 Ah |
| Nominal Power | 15.46 kWh |

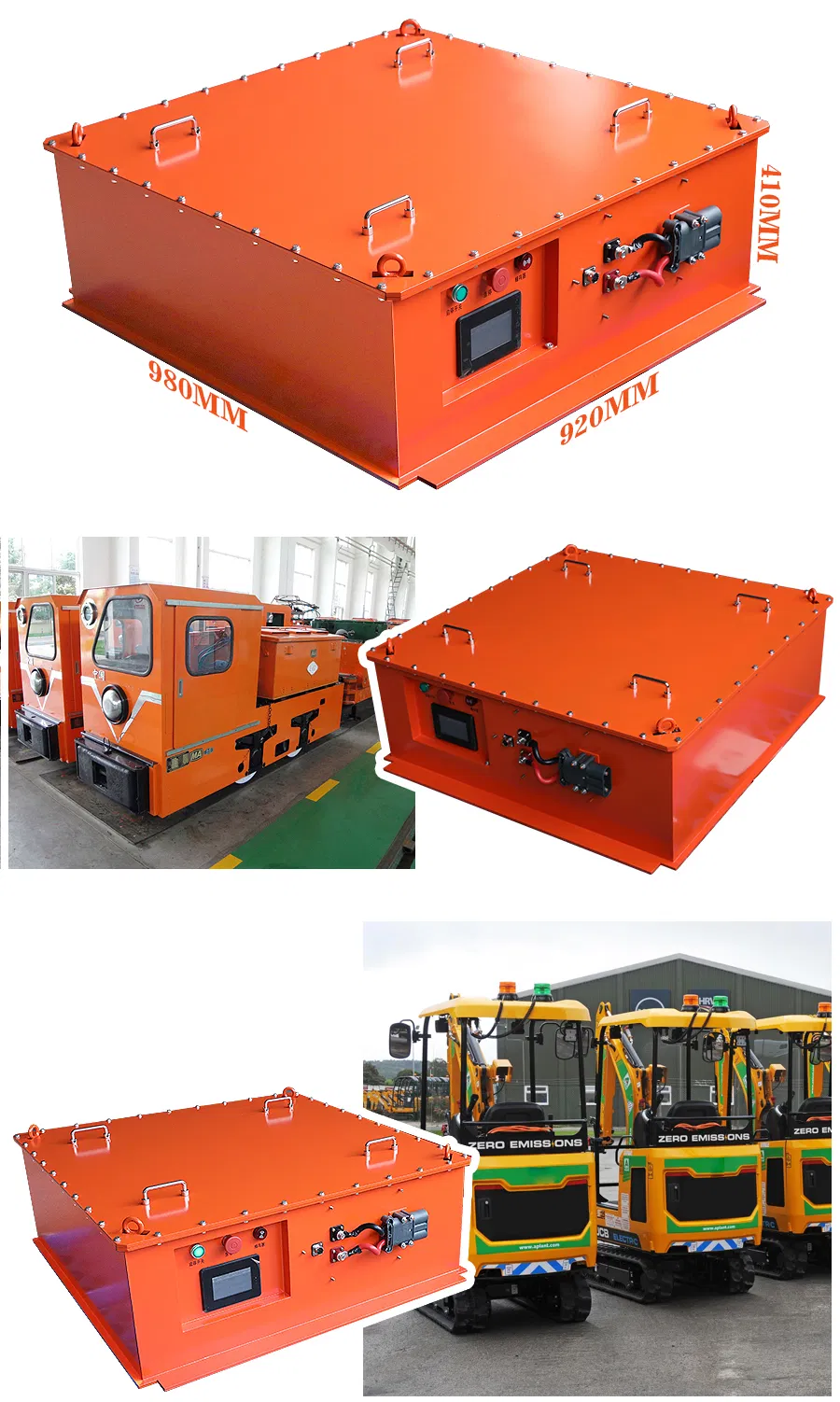

| Dimensions | 980*920*410mm |
| Charging Mode | Balanced, Intermittent, Continuous Floating |
| Max. Continuous Charge | 100A |
| Max. Continuous Discharge | 150A |
| Peak Discharge | 302A (10S) |
| Protection Rating | IP65 |
| Cycle Life | 3000 Cycles |
| Communication | RS485 / CAN |

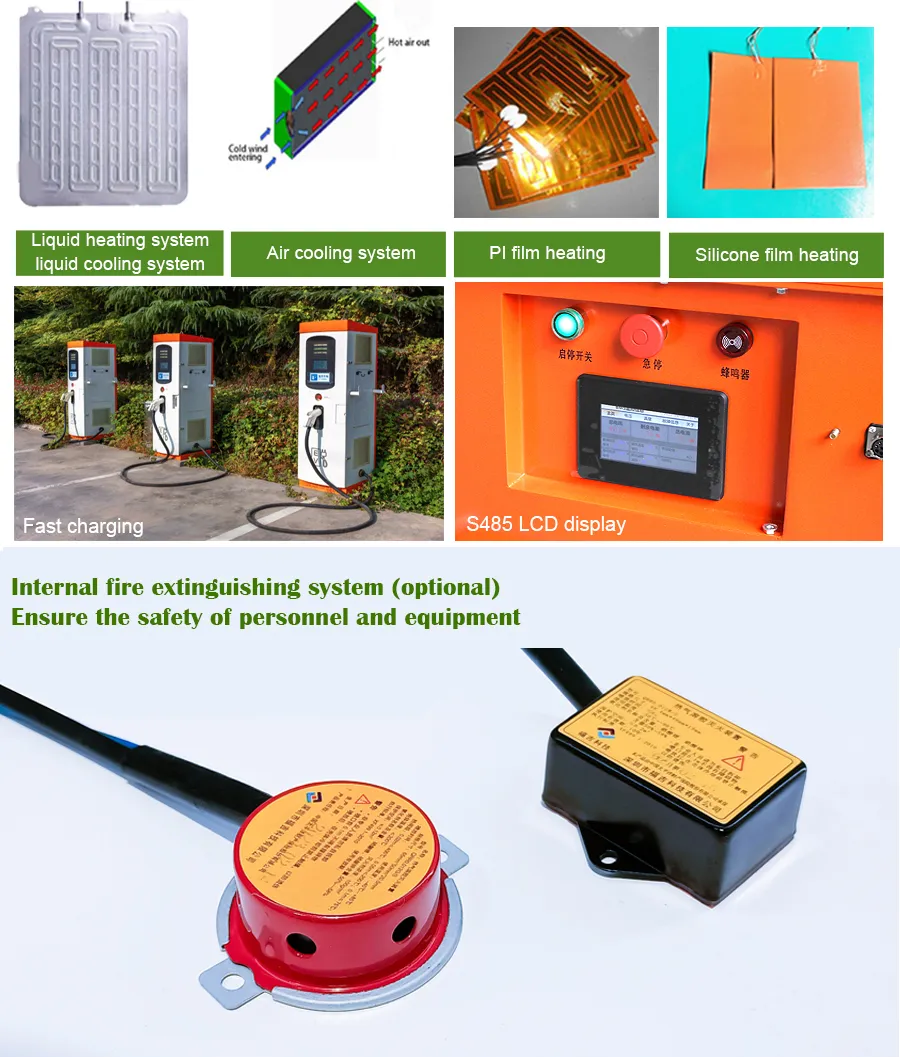

✨ Optional Advanced Functions
🔥 Thermal Management: Heating/Cooling systems to ensure efficiency in extreme temperatures.
⚡ Fast Charging: Supports 1-hour fast charging to minimize downtime.

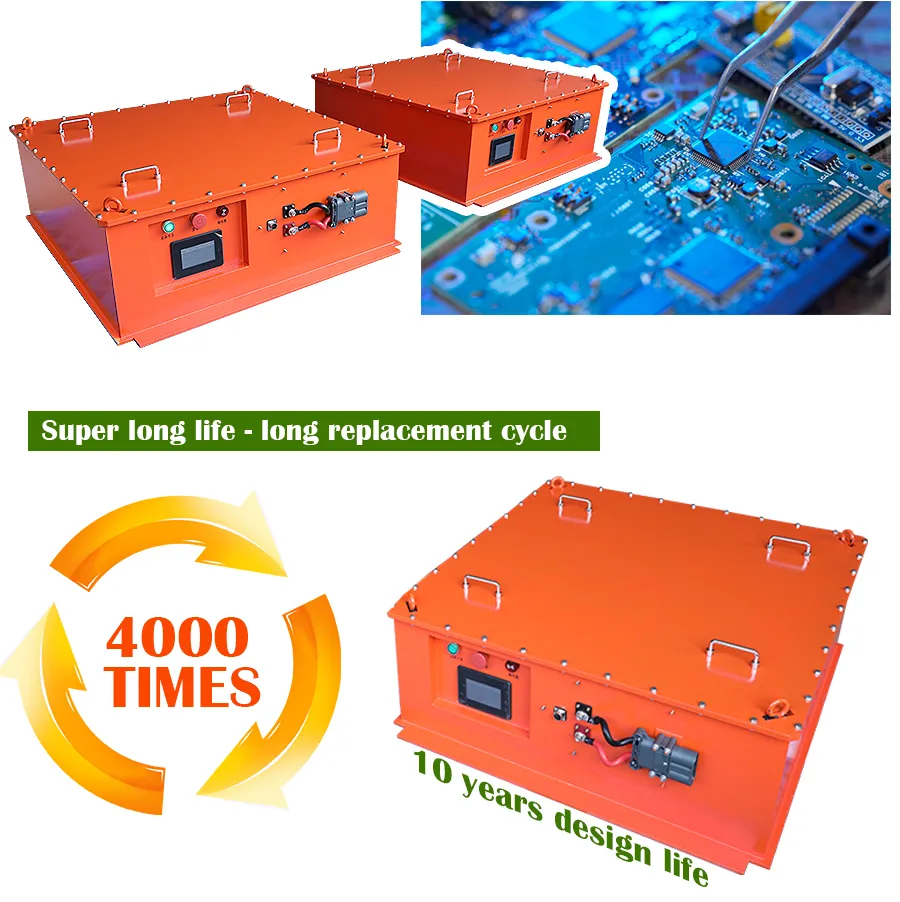

📱 Monitoring: RS485 LCD display for real-time battery status tracking.
🧯 Fire Safety: Internal fire extinguishing system for personnel security.
🏭 Customization Capabilities
Providing one-stop customization for lithium battery products across various sectors:
- Electric Vehicles & E-bikes
- Energy Storage Systems (ESS)
- Forklifts & Cleaning Cars
- Telecommunication Base Stations
- Electric Wheelchairs & Golf Carts
- Unmanned Airplanes (Drones)

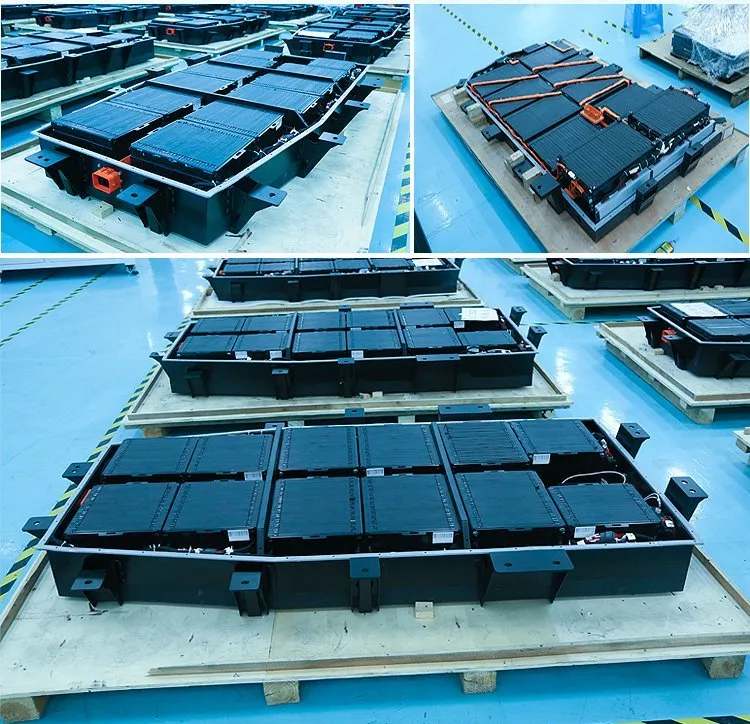

📦 Packaging & Shipping
1. Customized plywood case with foam padding for maximum safety.
2. 100% comprehensive testing conducted prior to shipment.

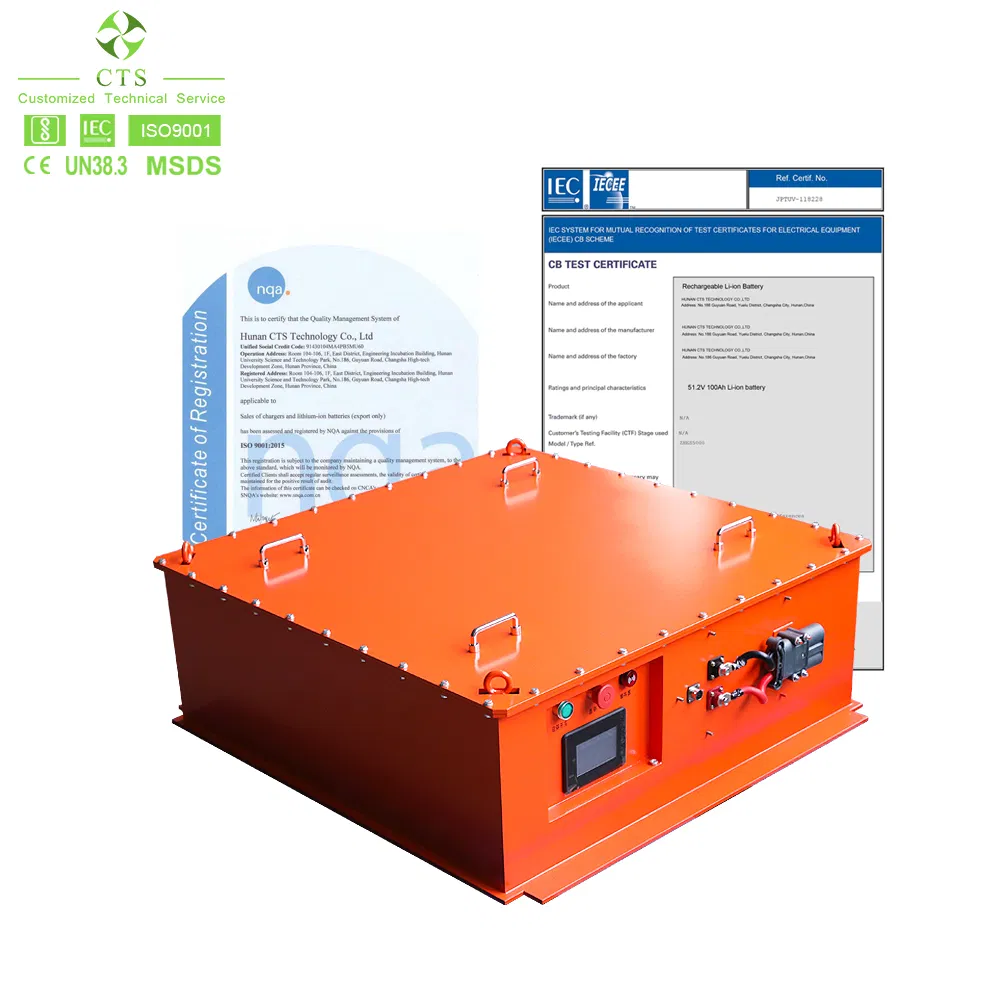

3. Full certification including MSDS and UN38.3 for smooth customs clearance.
❓ Frequently Asked Questions
Q1: What is the cycle life of this 48V 300Ah battery?
A: This LiFePO4 battery pack is designed for over 3000 cycles at standard discharge conditions, ensuring long-term reliability for your vehicle.
Q2: Is the battery pack waterproof?
A: Yes, the battery features an IP65 protection rating, making it resistant to dust and low-pressure water jets from any direction.
Q3: Does it support fast charging?
A: Yes, we offer an optional fast-charging configuration that can charge the battery in approximately 1 hour.
Q4: Can I monitor the battery status in real-time?
A: Absolutely. The system supports RS485 and CAN communication, and an optional LCD display can be installed to monitor voltage, capacity, and temperature.
Q5: How is the battery protected during extreme weather?
A: We provide optional internal heating and cooling systems to maintain optimal energy efficiency in both very low and very high-temperature environments.
Q6: Are your batteries certified for international shipping?
A: Yes, all our battery packs come with MSDS and UN38.3 certifications, which are essential for international transport and customs declaration.
