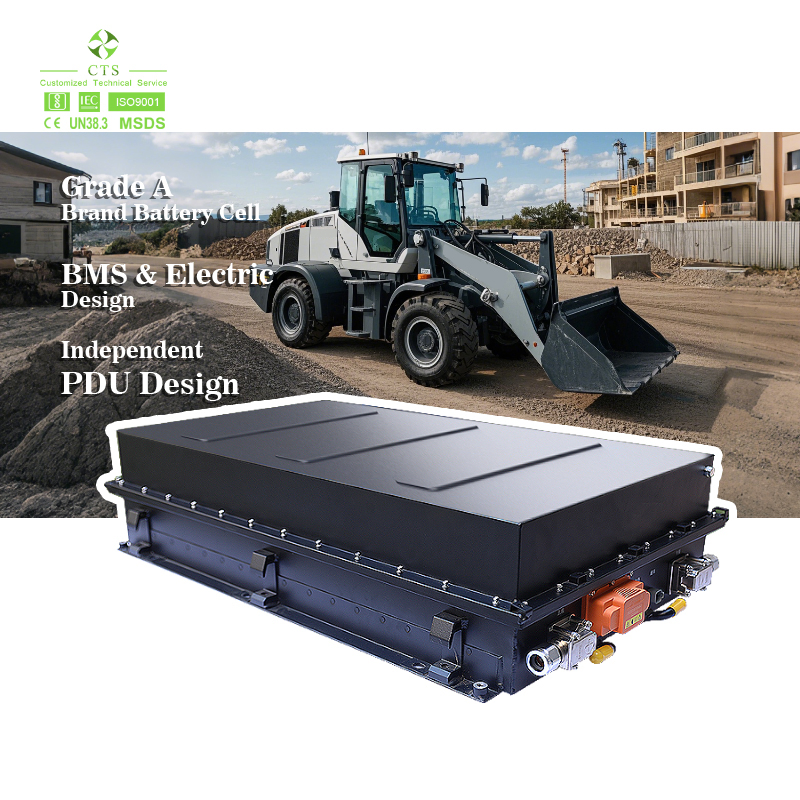

Designed for Electric Bus and Heavy Trucks, supporting systems up to 600KWH.
| NO. | Model Specification | 614.4V 230Ah (141.3KWh) | 614.4V 460Ah (282.6KWh) |
|---|---|---|---|
| 1 | Rated Voltage | 614.4V | 614.4V |
| 2 | Rated Capacity | 230Ah | 460Ah |
| 3 | Array Mode | 1P 192S | 2P 192S |
| 4 | Total Energy | 141.3kWh | 282.6kWh |
| 5 | Continuous Discharge | 230A Max @ 25ºC | 400A Max @ 25ºC |
| 6 | Peak Discharge (5s) | 500A | 800A |
| 7 | Recommended Charge | Max 100A | Max 100A |

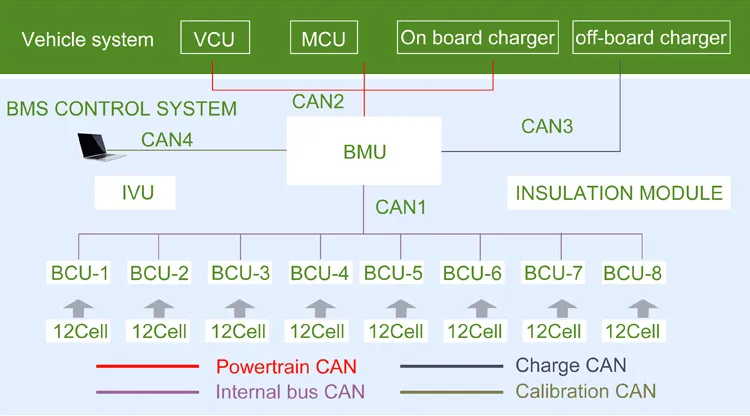

| 8 | Communication | CAN BUS | CAN BUS |
| 9 | Cooling Method | Liquid Cooling | Liquid Cooling |
| 10 | IP Rating | IP67 | IP67 |

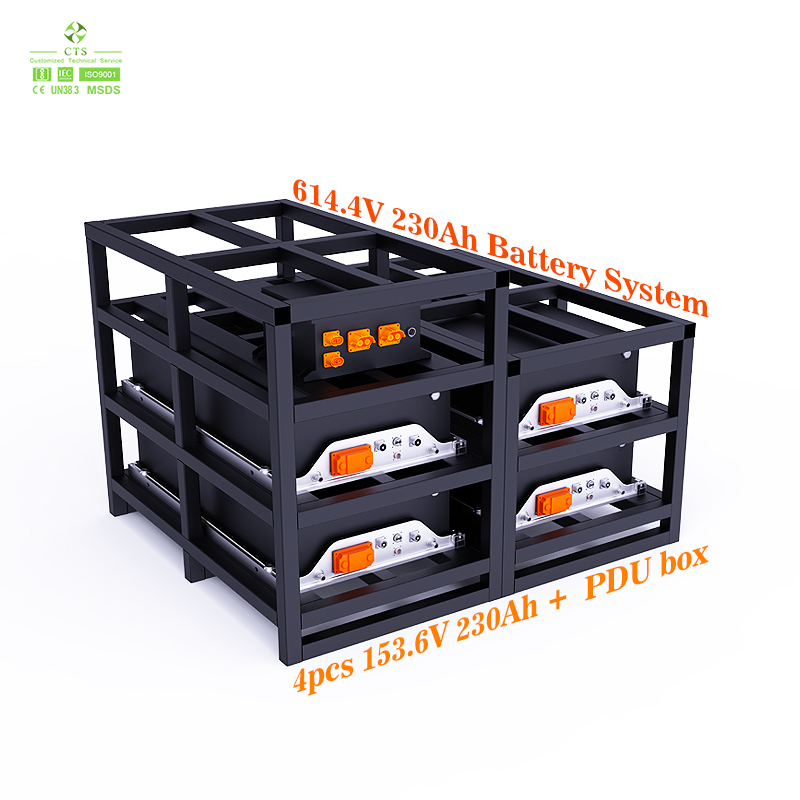

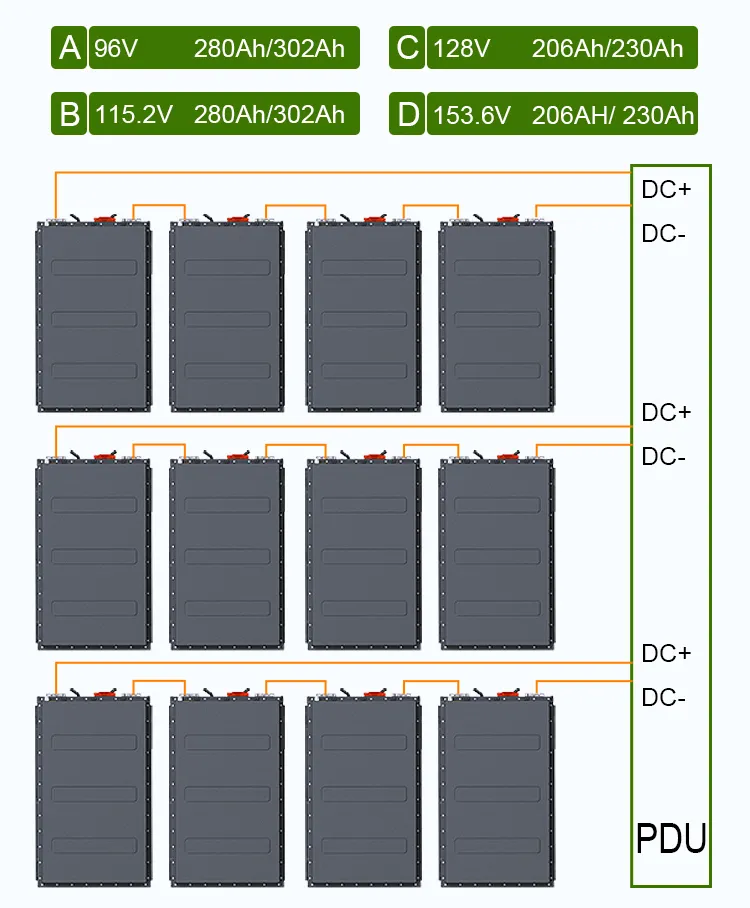

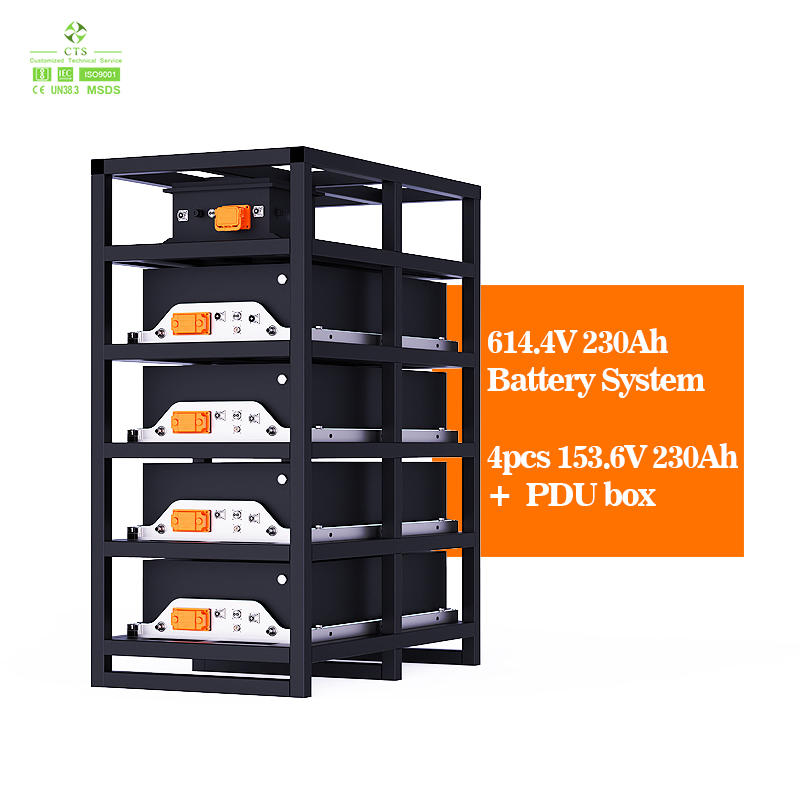

Supports maximum connection of 12 modules (4S3P) in one system, reaching up to 656V and 600KWH.

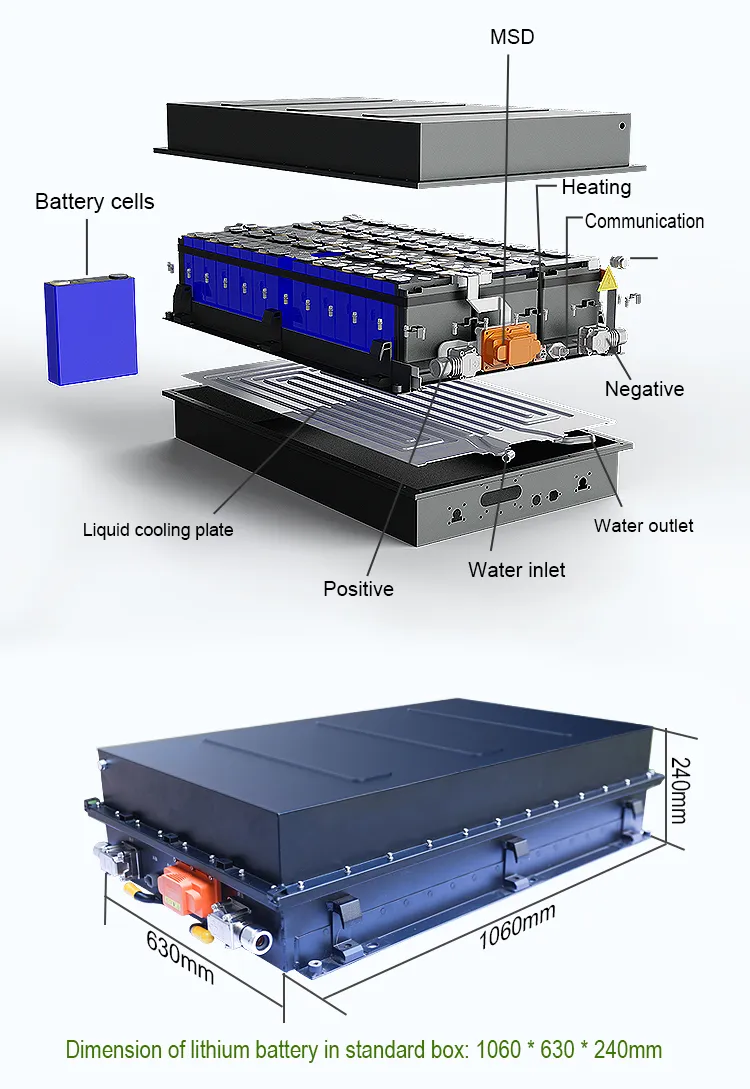

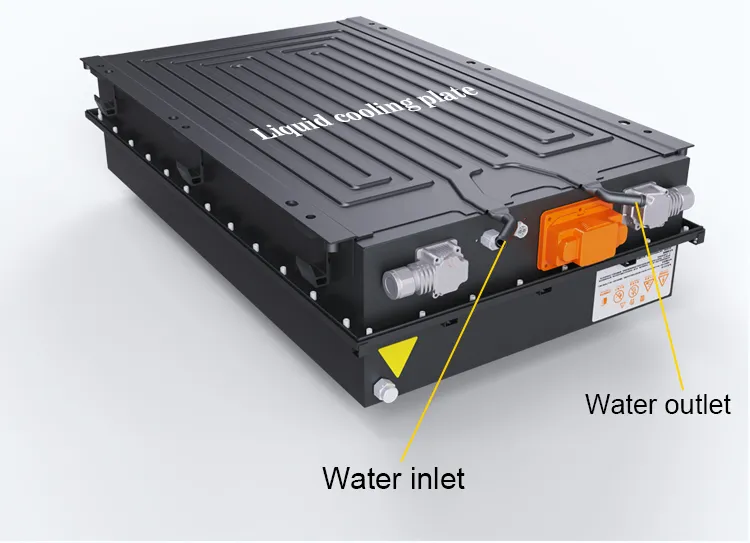

Redesigned liquid cooling system ensures improved thermal consistency and longer battery life.

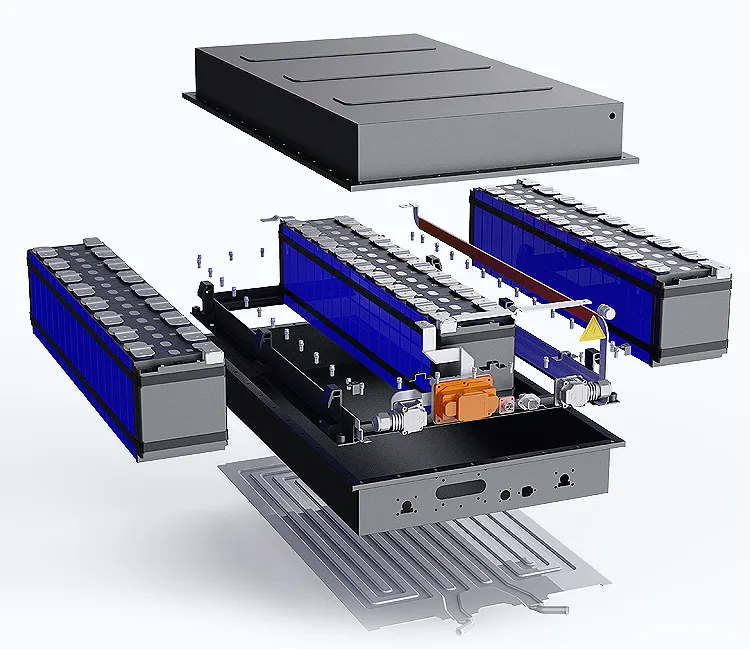

Reliable LiFePO4 cells integrated with a multi-tiered safety protection system.

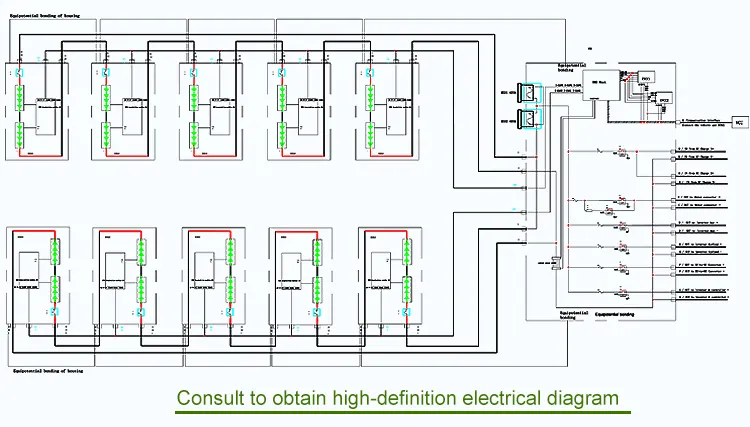

Two-way high voltage input with double gun charging capability. Multi-way output for motor driving and water cooling compressors.

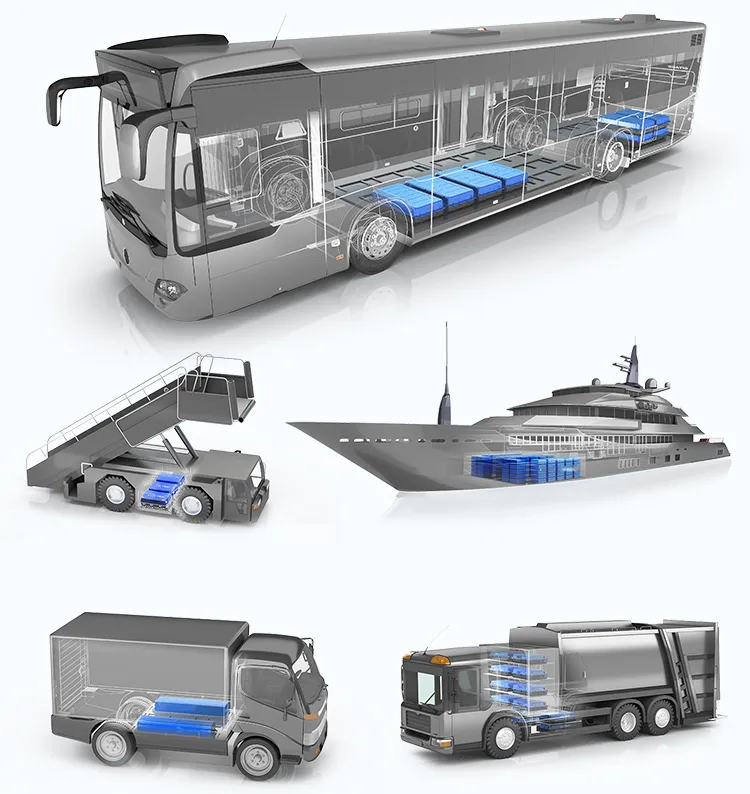

Our standard modules are widely used in public buses, industrial vehicles, mining trucks, tunnel vehicles, large capacity AGVs, and skyline cranes.

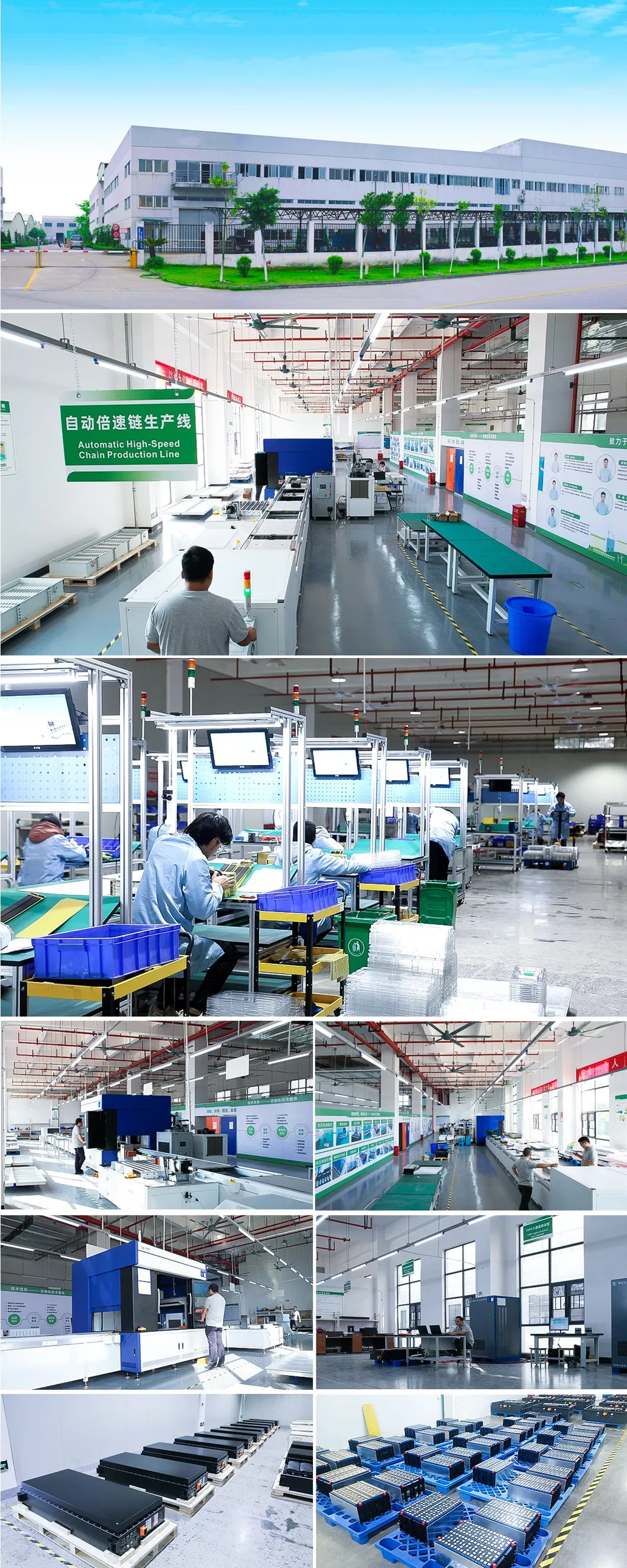

As an ISO 9001 and IATF 16949 certified manufacturer, we specialize in the R&D, production, and sale of lithium battery packs. With a 10,000m² facility and a dedicated team of engineers, we focus on high-end markets with an annual production capacity of 1GWH. Our batteries power over 200 electrification applications globally, including electric vehicles, boats, and energy storage systems.
Guided by quality management standards, every battery undergoes 100% OQC testing. Our products are certified with R100, IEC 62619, CE, MSDS, and UN38.3, serving customers in over 30 countries.
