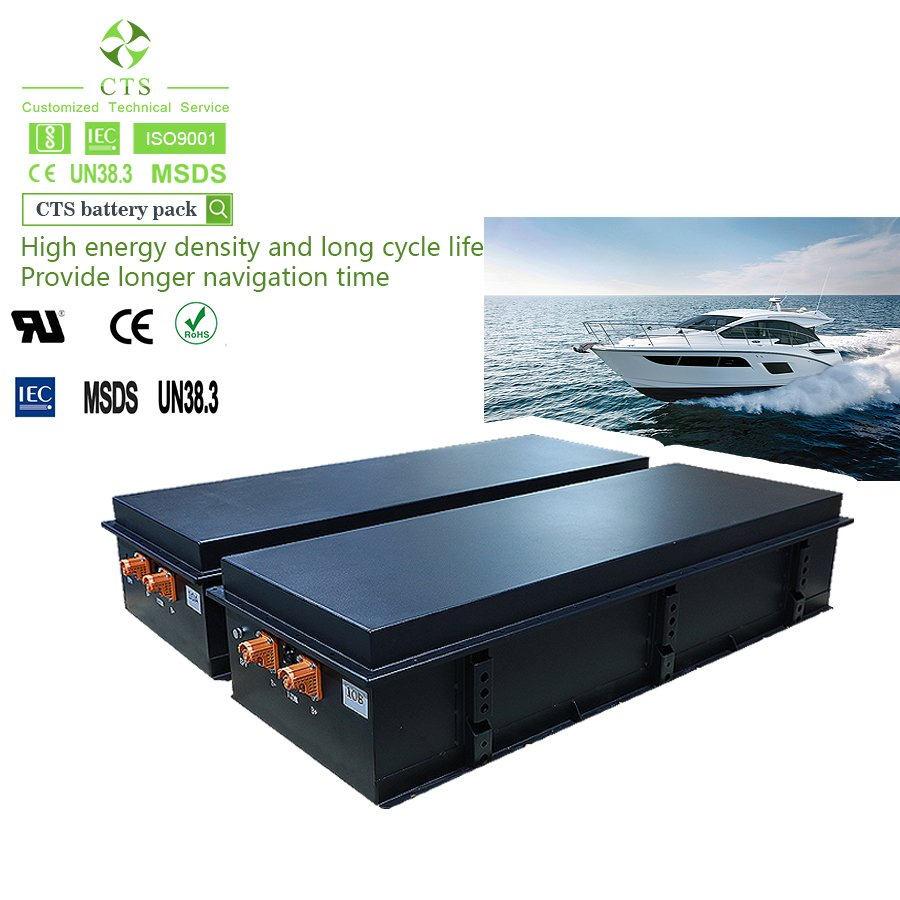

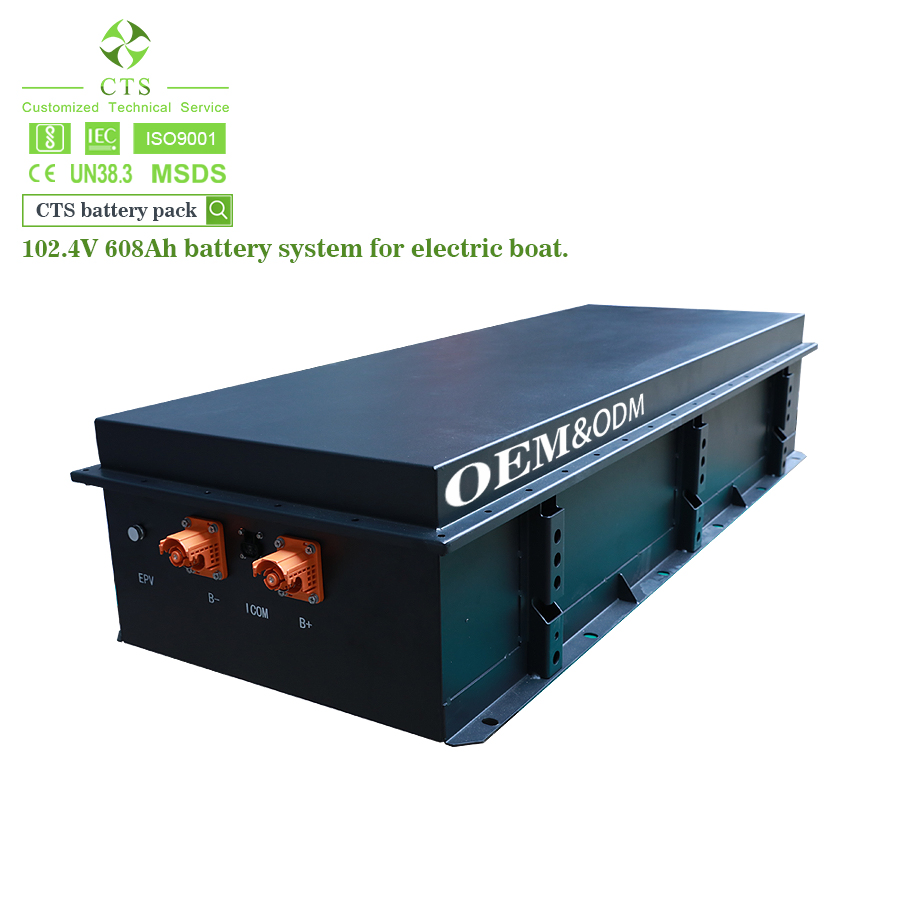

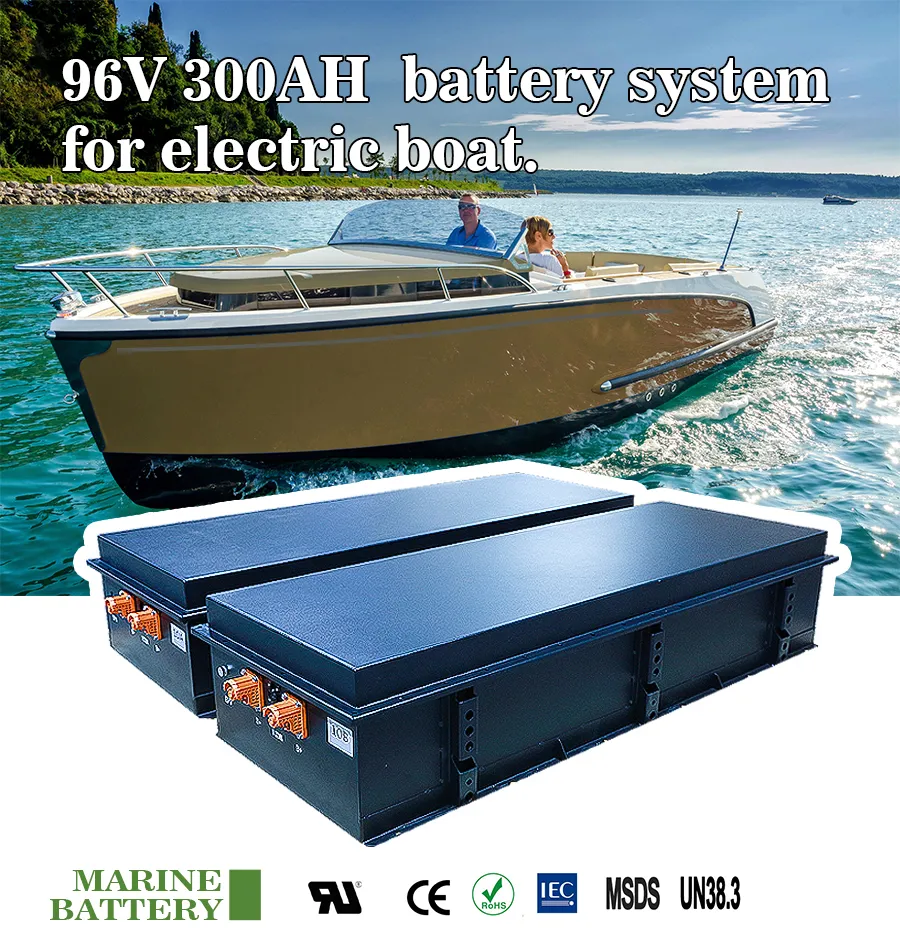

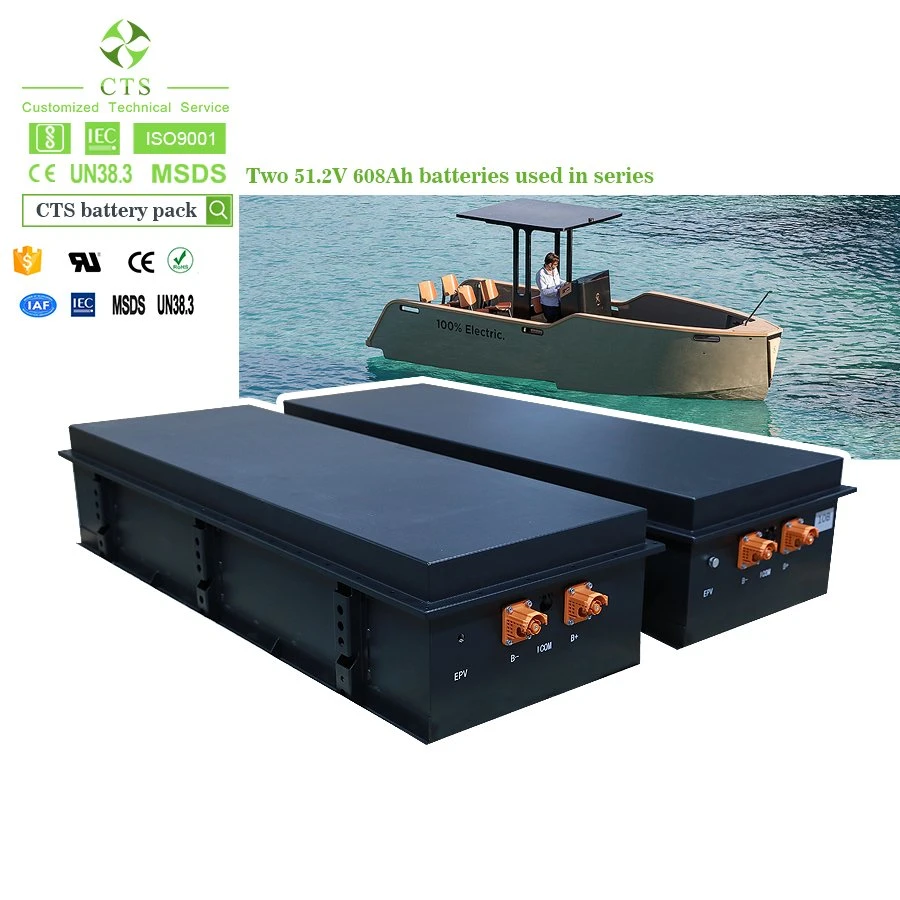

EV Lithium-ion Battery 102V LiFePO4 Pack
High-performance solution for Electric Boat, Yacht, and Marine Applications
| Parameter | Specification |
|---|---|

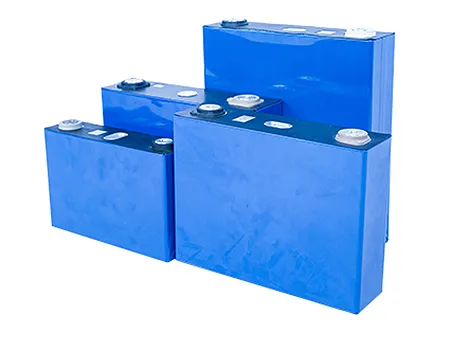

| Chemistry | Prismatic LiFePO4 |
| Rated Capacity | 304Ah |
| Rated Voltage | 96V |
| Energy | 29.18KWh |
| Internal Resistance | ≤30mΩ |
| PDU Components | BMS, 400A Relays, Fuses, COM Socket |
| Dimensions | L1300*W500*H380mm (Customizable) |
| Weight | 254Kg |
| Protection Rating | IP67 Stainless Steel Case |
| Max Cont. Discharge | 300A |
| Peak Discharge | 400A (60 seconds) |
| Operating Temp | Charge: 0~50ºC | Discharge: -20~60ºC |
LiFePO4 battery is an excellent option for electric boats due to its high energy density, long cycle life, and safety. It provides a reliable and eco-friendly power source for traveling longer distances.

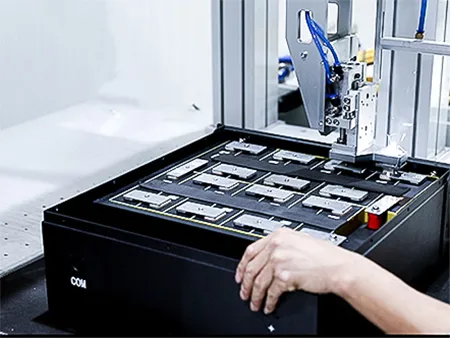

Strengthens connections and eliminates the risk of loose screws. This reduces internal resistance, improves current capability, and lowers power consumption.

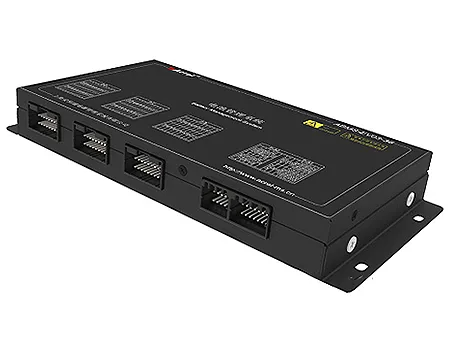

Includes overcharge, over-discharge, short-circuit, and over-temperature protection. Features cell balancing, SOC estimation, and communication interfaces (CAN/RS485).

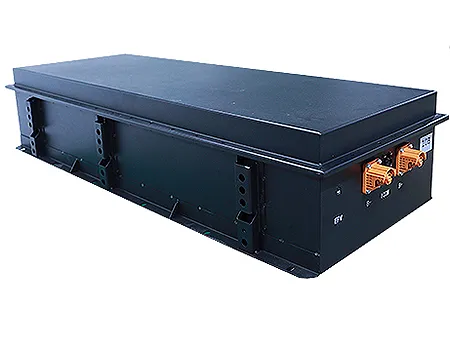

High resistance to corrosion (304/316 grade), specifically designed for harsh marine environments. Provides a rugged, long-lasting, and moisture-resistant enclosure.

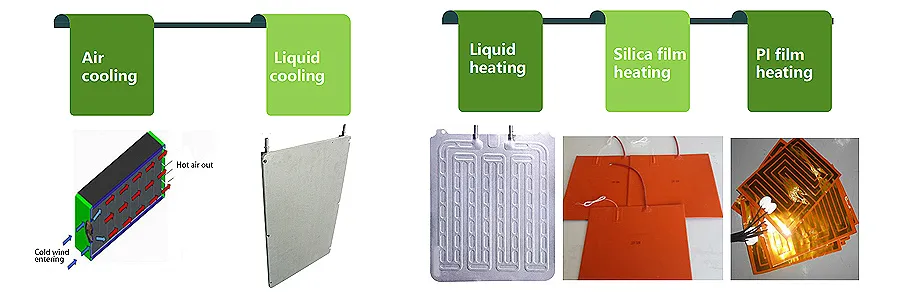

Optional Thermal Management: Liquid cooling and heating systems adapt the battery to various working temperatures, ensuring optimal performance and battery health in electric vehicles or marine systems.

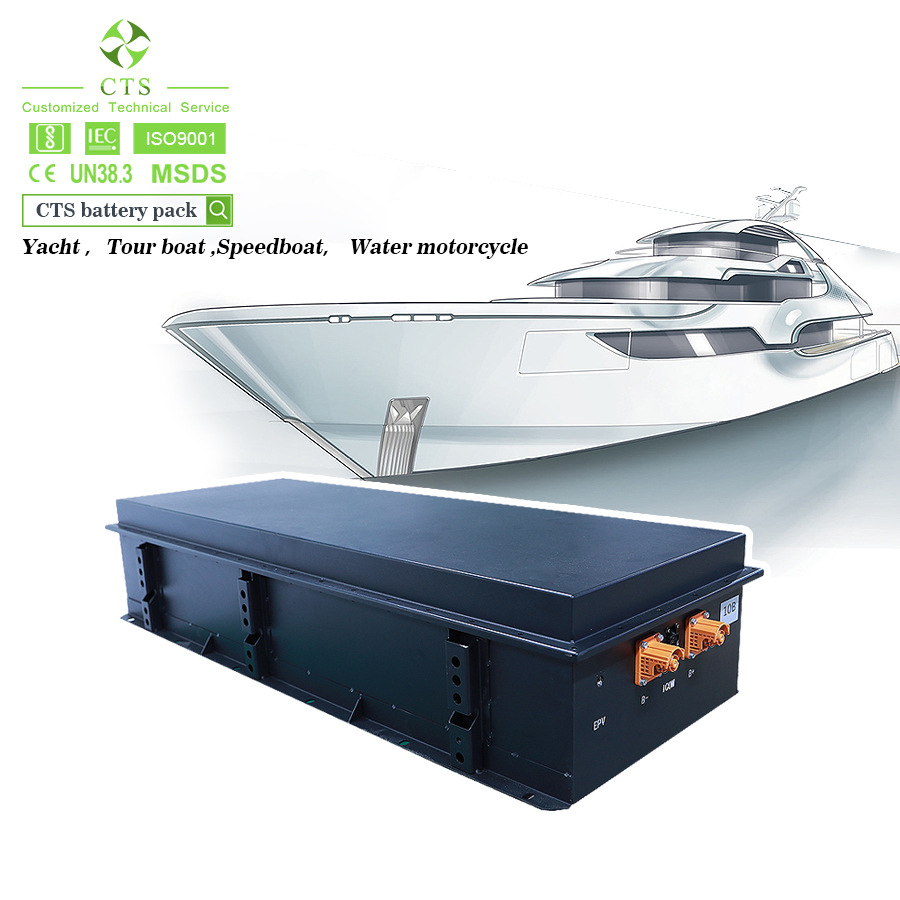

Our lithium battery solutions meet 90% of yacht, tour boat, and speedboat requirements. We offer one-stop services including matched OBC (On-Board Chargers) and charging piles based on ship size requirements.
Yes, our batteries use 304/316 stainless steel casings with an IP67 waterproof rating, making them highly resistant to corrosion in marine and chemical industries.
We provide 100% free technical support. Our professional technical team has over 10 years of experience in designing and implementing customized battery packs.
Absolutely. We can design and customize the battery system size, voltage (from 12V to 1000V), and capacity (from 10Ah to 1000Ah) based on your specific ship or vehicle requirements.
The smart BMS includes overcharge, over-discharge, over-temperature, and short-circuit protection, as well as cell balancing and real-time monitoring via CAN or RS485 interfaces.
Our LiFePO4 batteries are designed for a long cycle life, typically offering over 3000 cycles while maintaining excellent discharge performance.

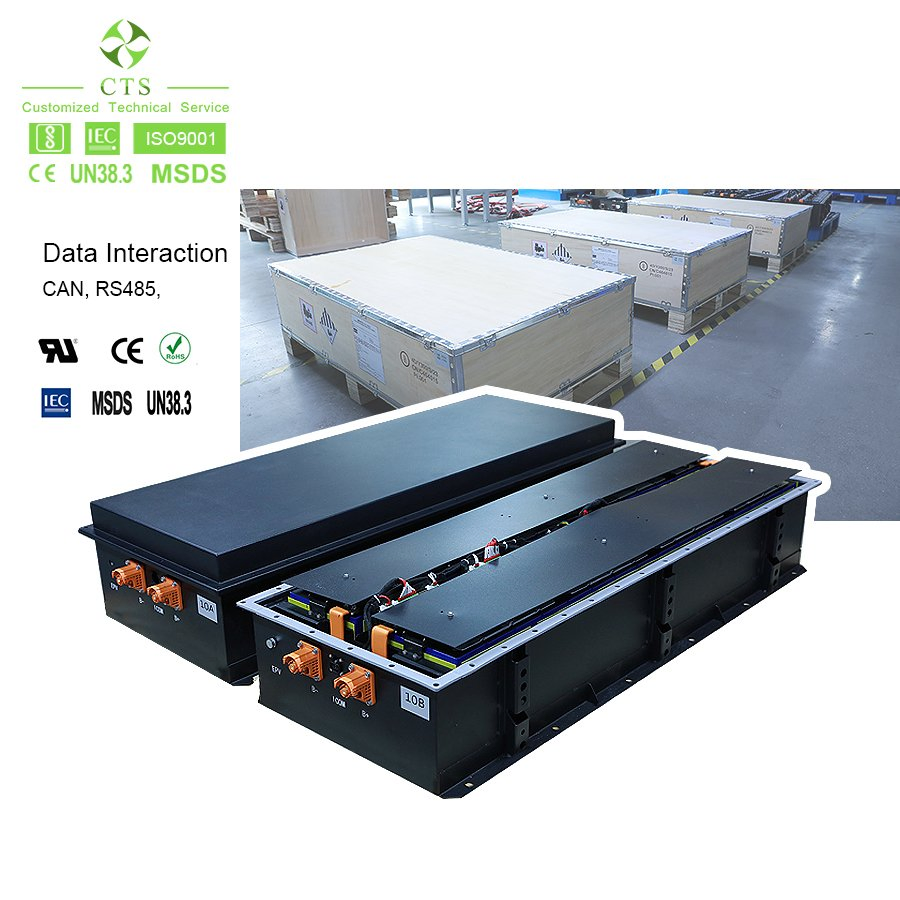

All battery packs are securely packed in professional wooden boxes to ensure safety during transit and meet international transport regulations.
