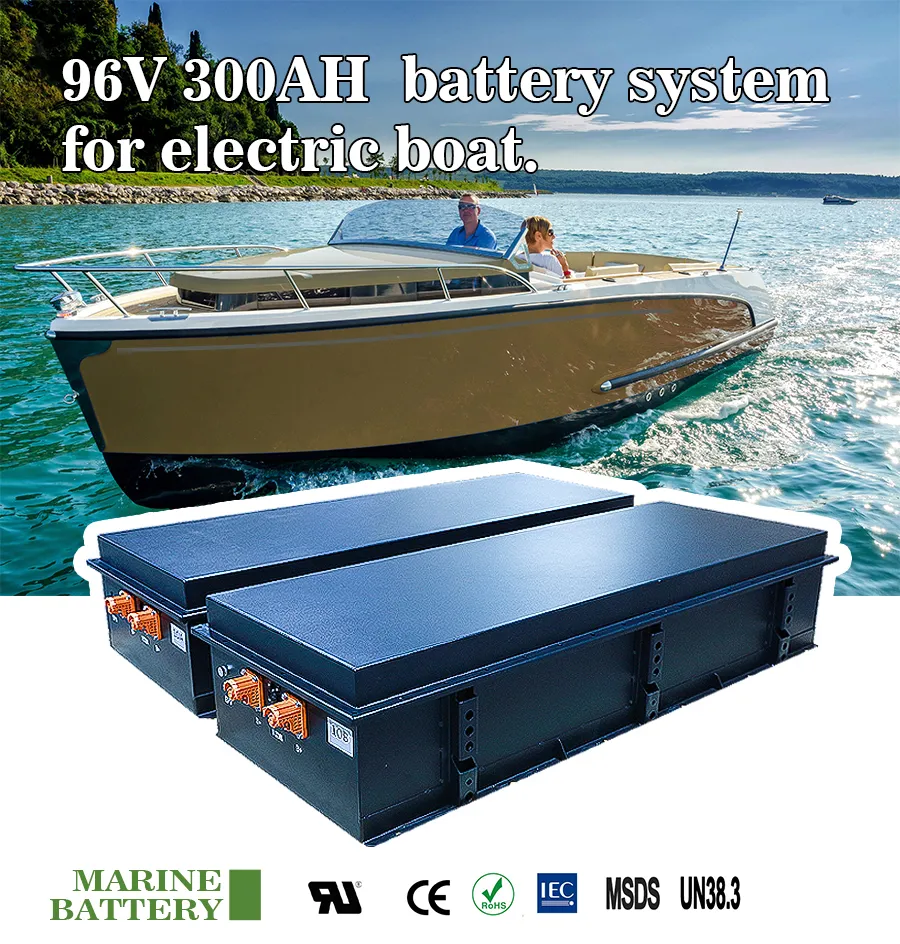

48V / 72V / 96V / 144V / 300V / 400V / 500V / 600V Marine Battery Solutions
100% After-Sales Guarantee | 100% Free Technical Support | Fast Delivery

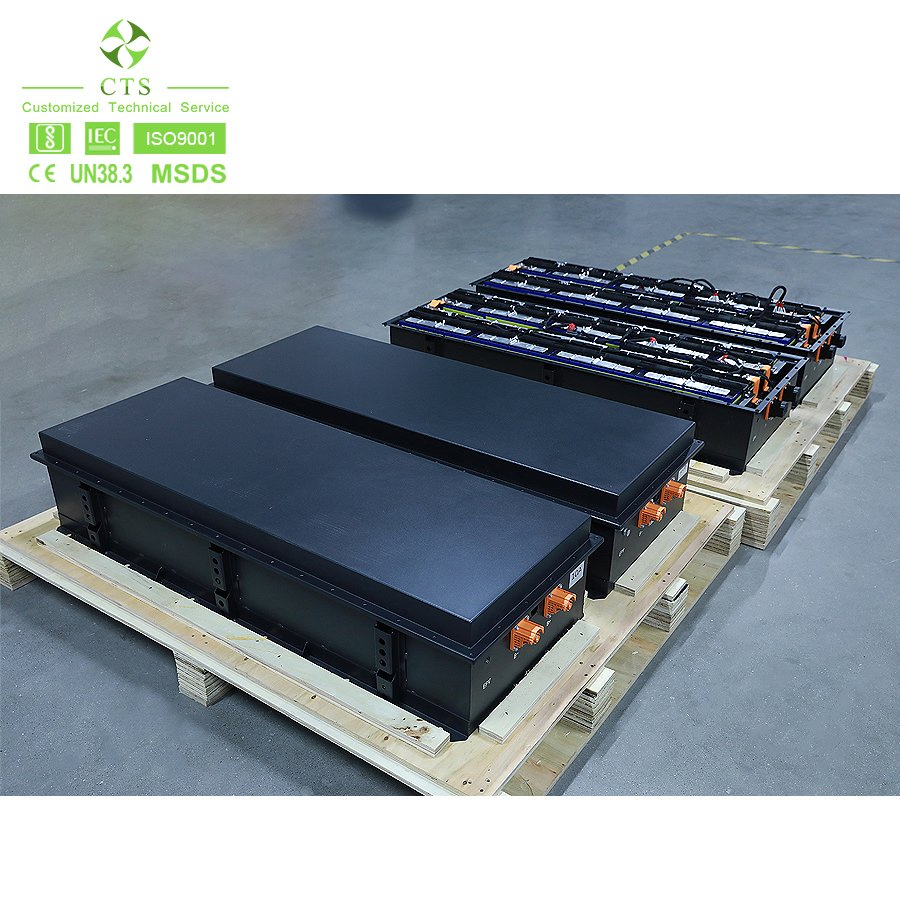

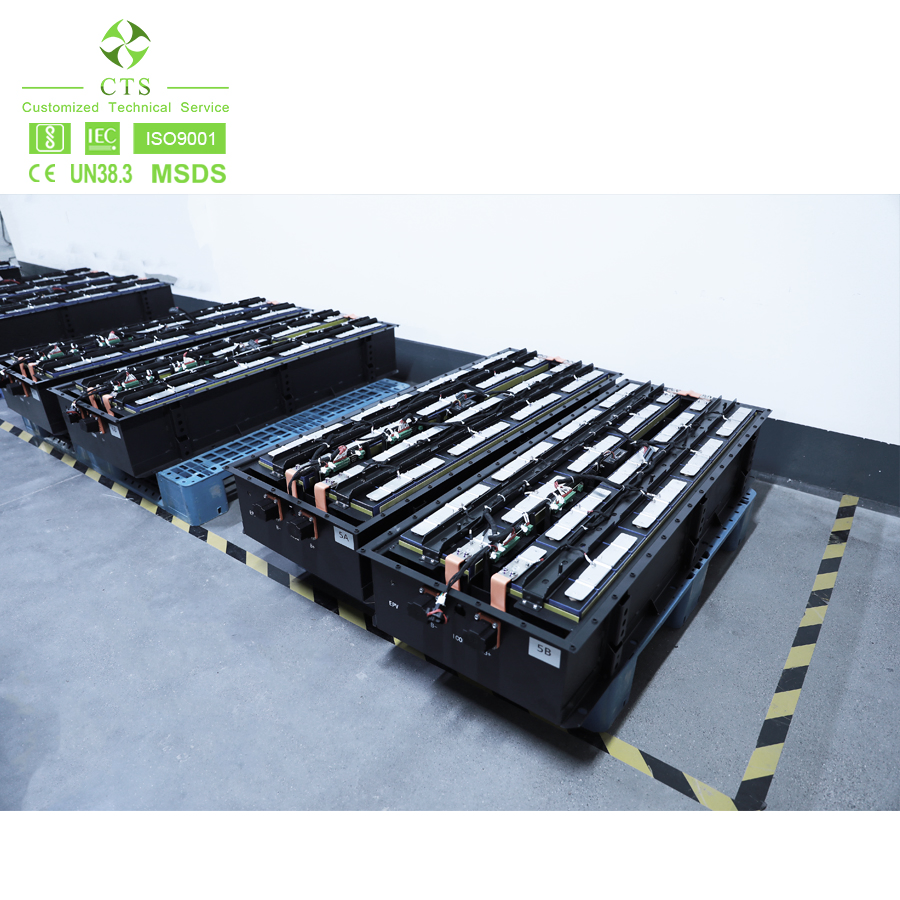

| Parameters of 96V 300AH Lifepo4 Battery Pack | |
|---|---|
| MODEL | 96300 |
| Cell Type - Chemistry | Prismatic- LiFePO4 |
| Rated Capacity | 304Ah |
| Rated Voltage | 96V |
| Energy | 29.18KWh |
| Resistance | ≤30mΩ |
| Self Discharge | <3% per month |
| PDU | BMS, 400A relays, fuses, COM socket |

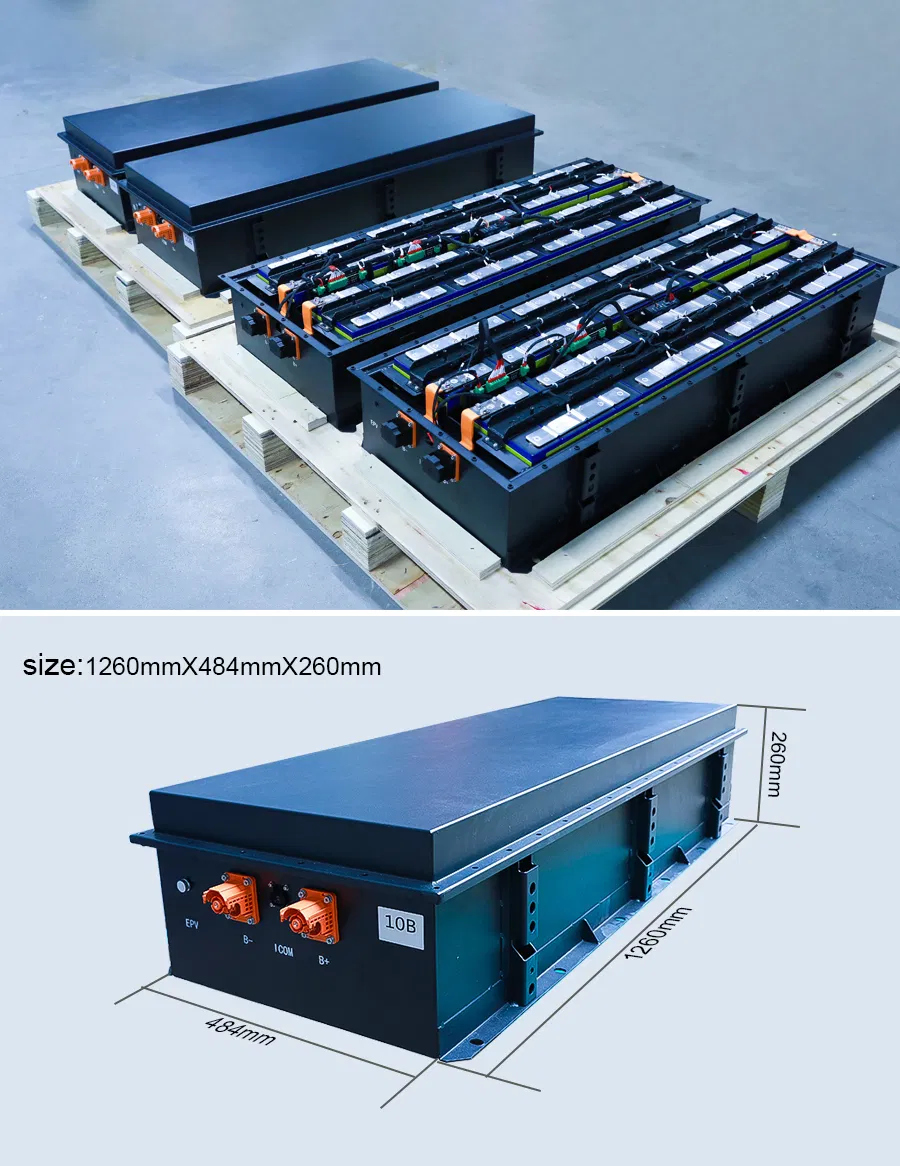

| Dimensions (L x W x H) | L1300*W500*H380mm (Customizable) |
| Weight | 254Kg |
| Enclosure Protection | IP67 stainless steel case |
| Max Continuous Discharging Current | 300A |
| Peak Discharge Current | 400A for 60 seconds |
| Charging Limited Voltage | 109.5V |
| Charge Temperature Range | 0~50ºC |
| Discharge Temperature Range | -20~60ºC |

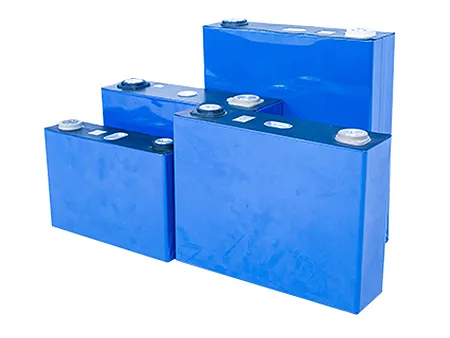

Most safe LFP battery technology: LiFePO4 battery is an excellent option for electric boats due to its high energy density, long cycle life, and safety. It provides an eco-friendly power source, allowing longer distances and smoother operation.

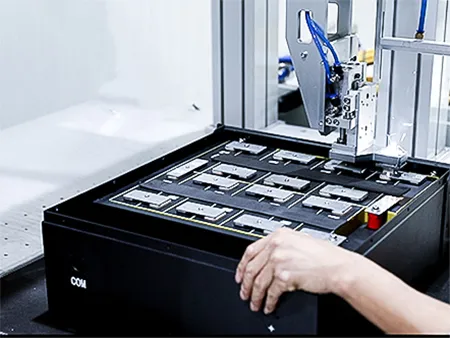

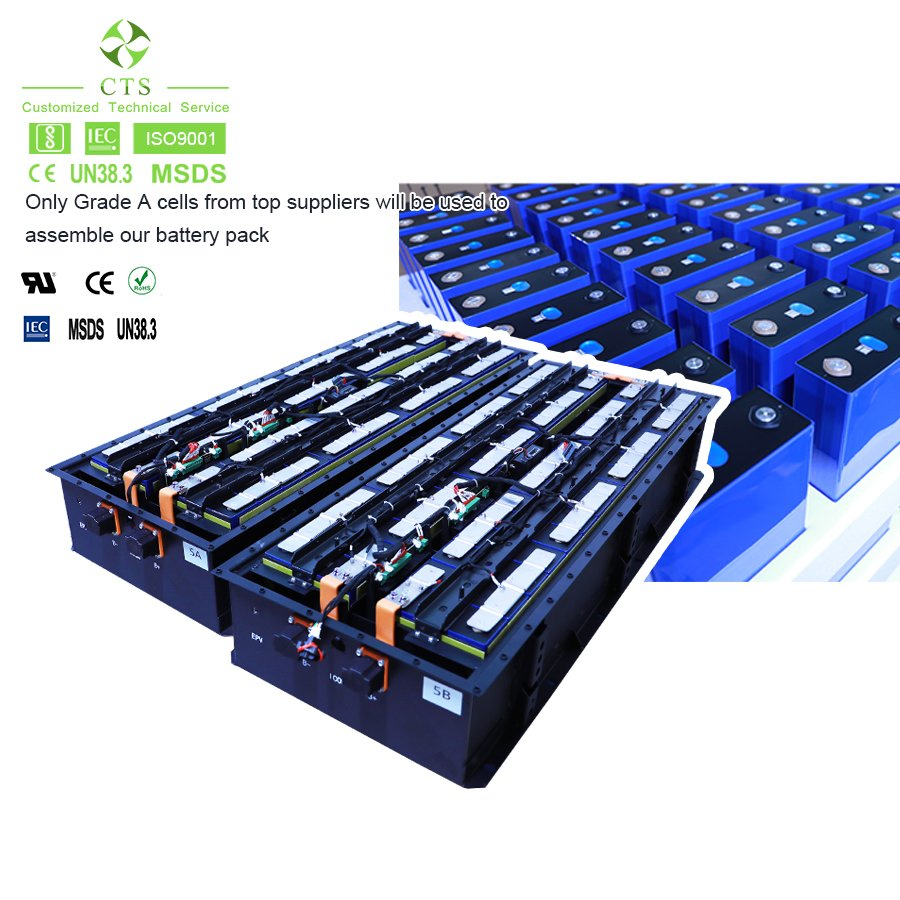

Laser Welding: Strengthens connections and eliminates screw-fall risks. Reduced internal resistance improves current capability and power consumption.

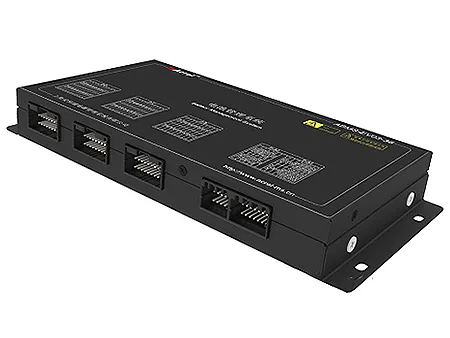

Smart BMS: Manages short-circuit, overcharge, over-discharge, and temperature protection. Supports CAN and RS485 communication interfaces.

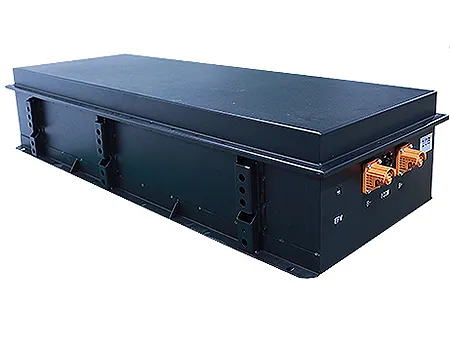

Stainless steel case with IP67: 304/316 stainless steel is highly corrosion-resistant, ideal for marine and harsh environments.

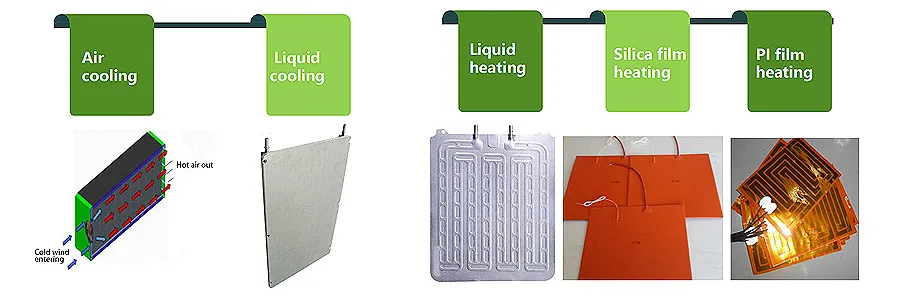

Optional thermal management system: Liquid cooling and heating systems adapt the battery to extreme working temperatures, ensuring optimal performance and longevity.

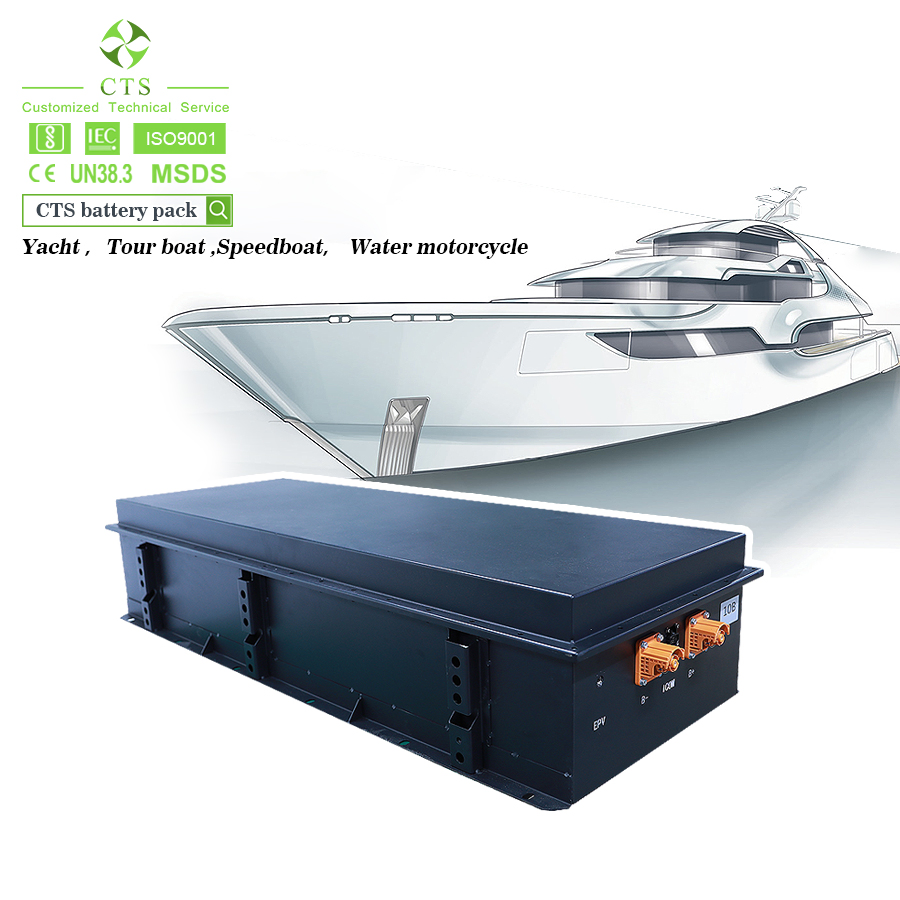

Our lithium batteries meet 90% of yacht, tour boat, and speedboat requirements. We offer one-stop services including matched lithium battery systems, OBC, and charging piles.
