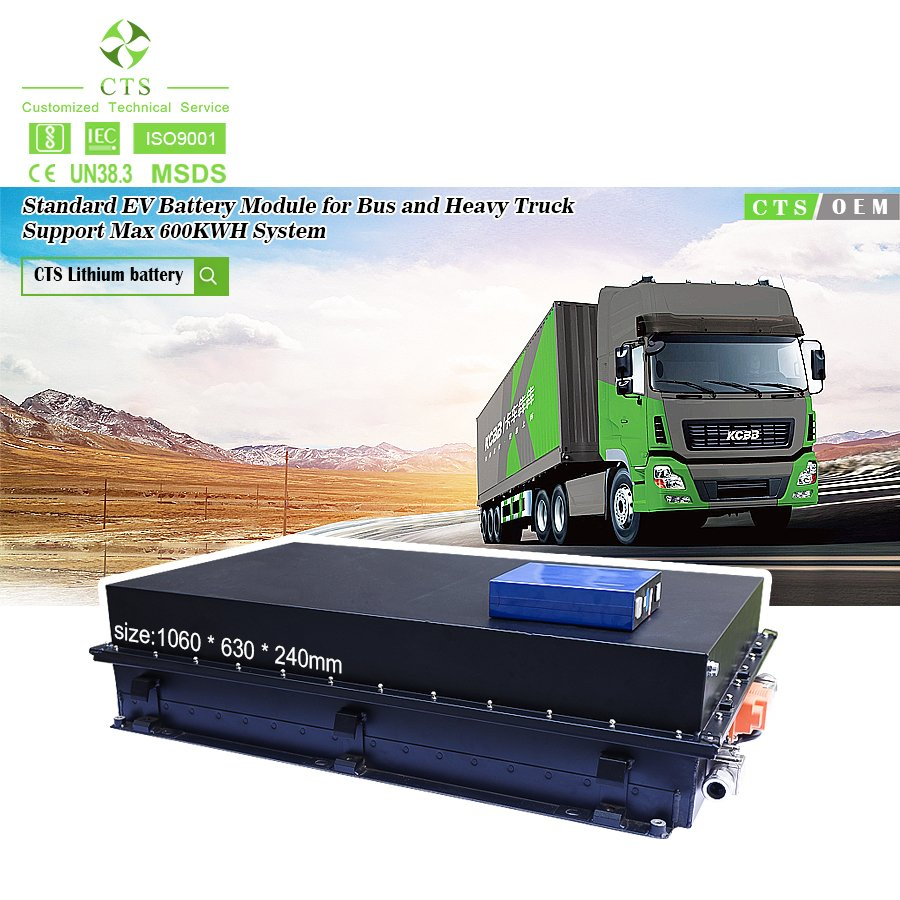

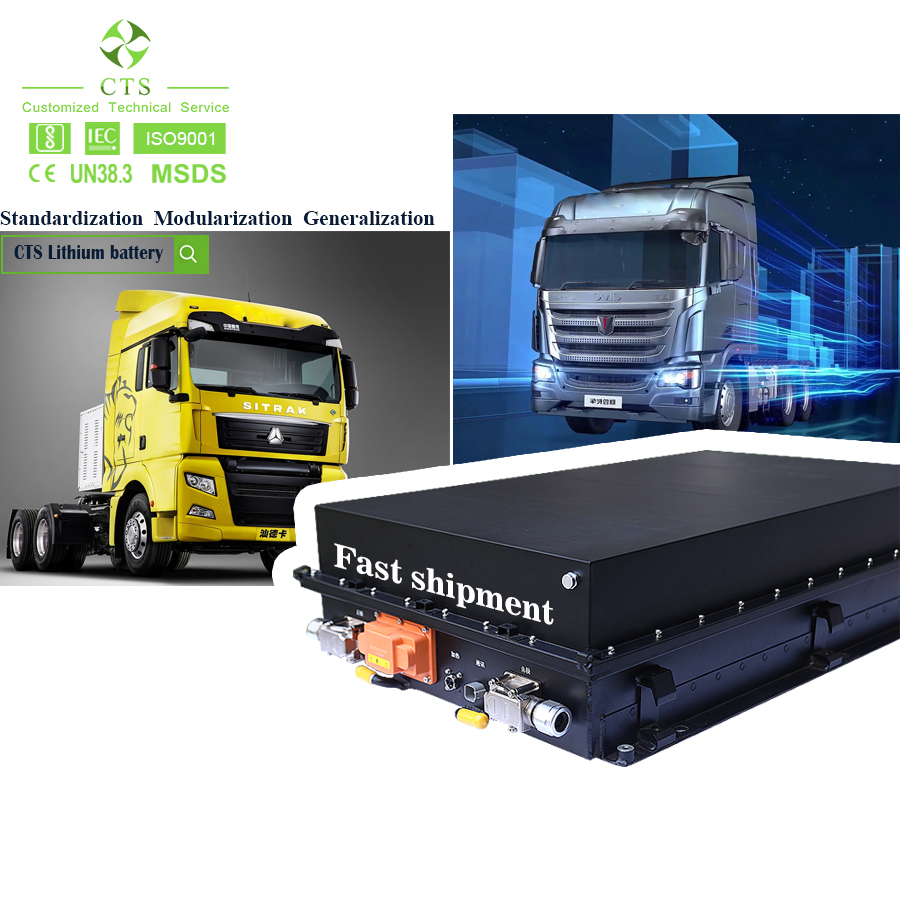

40kwh 60 Kwh Ev Car Battery Pack 240v 300v 400v 100ah 200ah for Electric Van Truck And Logistics Vehicle
| Parameters of 614v 100Ah Lifepo4 battery pack | |||
|---|---|---|---|
| No. | Items | Technical requirement | Note |
| 1 | Battery Type | Lifepo4 | - |
| 2 | Capacity(Ah) | 100 | @25ºC |
| 3 | Volatge | 614.4V | - |
| 4 | Power(kWh) | 61.44kWh | - |
| 5 | Weight(kg) | 558.55 | - |
| 6 | Working Voltage range | 480-700.8V | DC |
| 7 | Continuous discharge | 80A | @EOL, @25ºC |
| 8 | Peak discharge current | 200A | For 30 seconds |

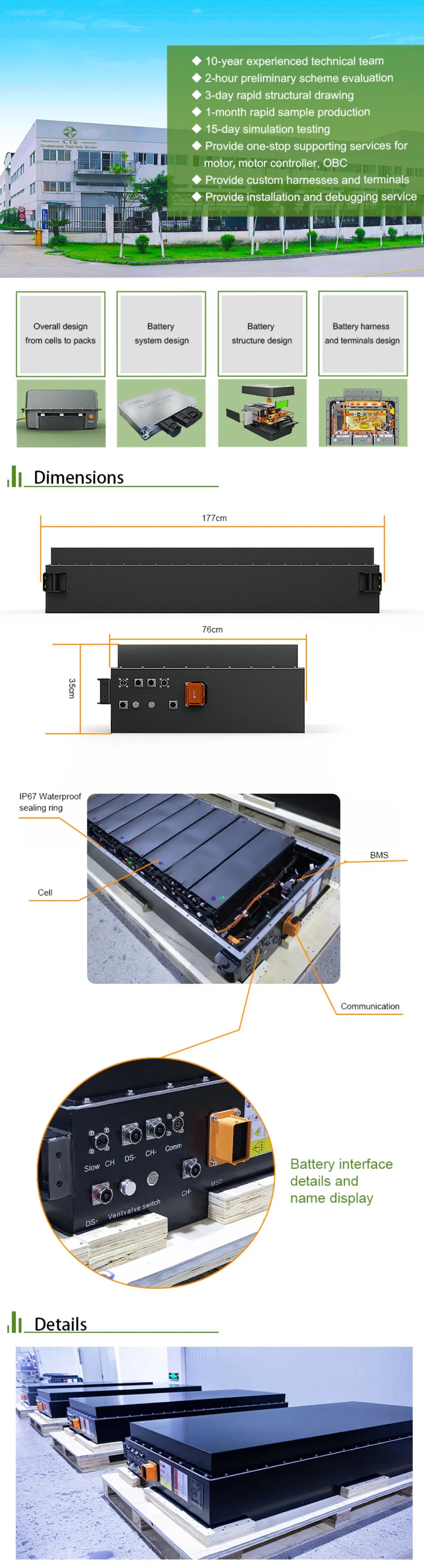

| 9 | Dimension (L/W/H) | 1780*720*345 mm | - |

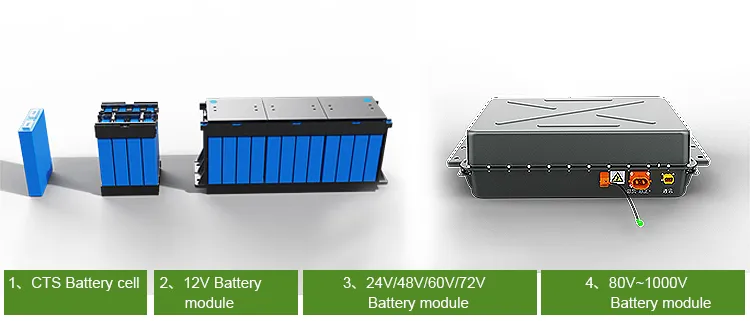

Systematic optimization of cell design and electrical components. Using high-strength steel/aluminum alloys and plastics to reduce volume and weight, combined with CAE structural simulation analysis to ensure strength and improve energy density. Standardized cells and BMS allow for flexible 12V-72V modules with excellent scalability.

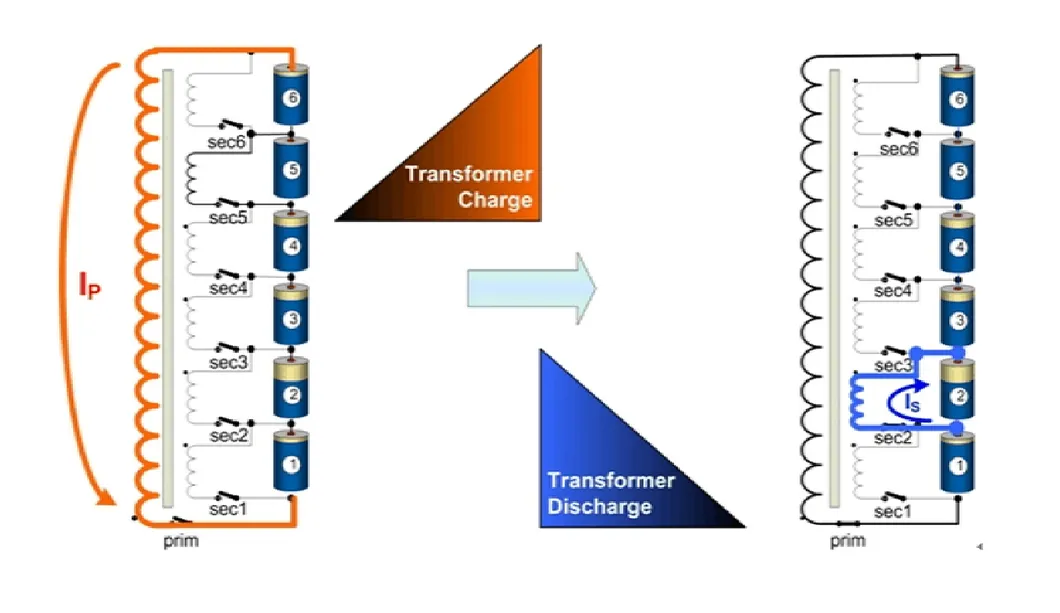

Advanced BMS development with passive balance by default. Active balance is optional. Supports modification of CAN/RS485 communication protocols and threshold parameters for voltage, current, and temperature protection.

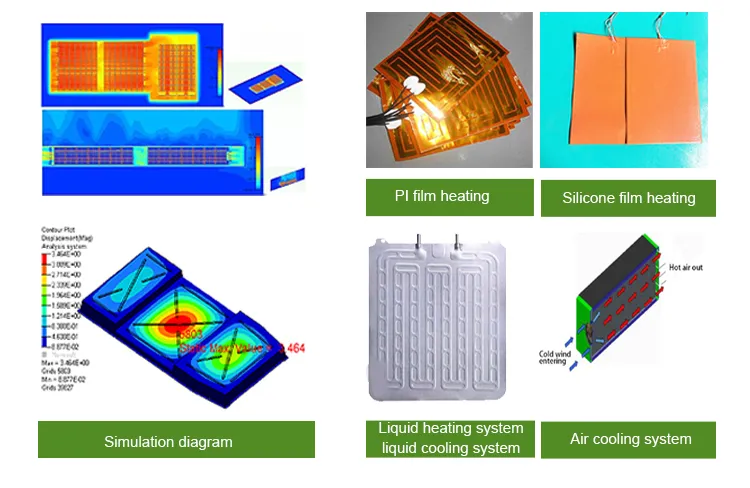

Utilizing CFD (Computational Fluid Dynamics) and CAE simulations. Solutions include air cooling, liquid heat/cooling systems, PI film heating, and silica gel film heating for optimal pack system performance.

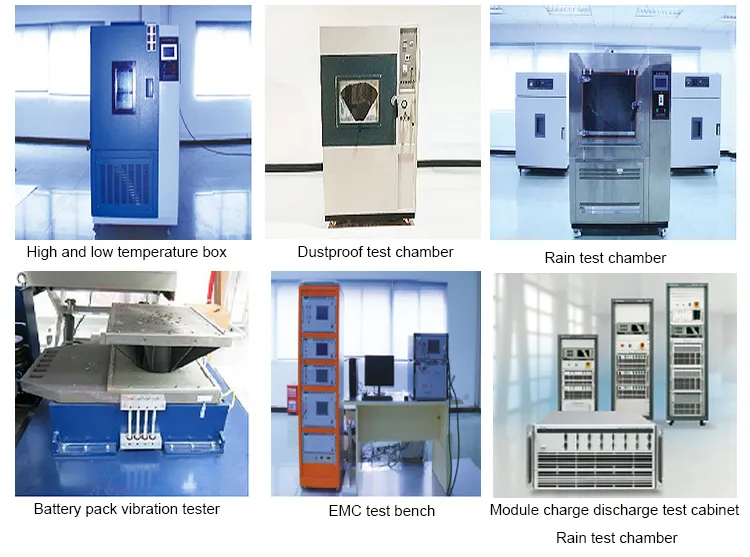

Laboratory verification for DV / PV stages. Includes temperature tests, mechanical tests, external environment simulation, electrical safety, battery performance, and abuse testing.

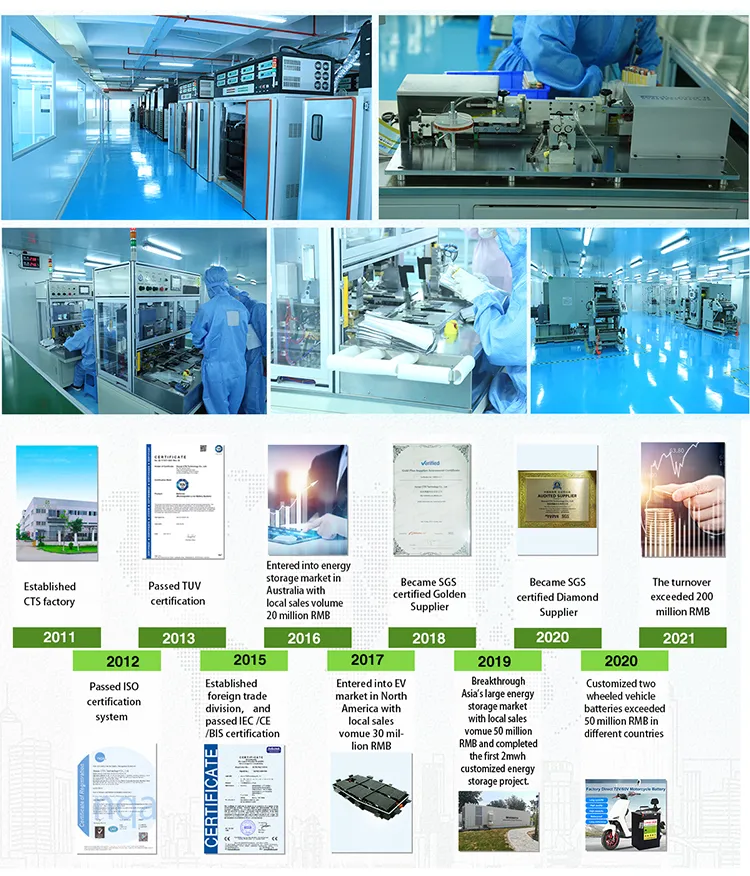

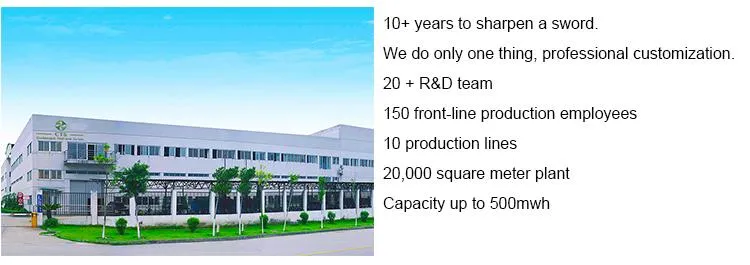

Focused on one-stop customization of lithium battery products since 2011, covering electric vehicle batteries, large energy storage, and smart home systems. With over 30 types of cells, we provide OEM battery packs from 12v-800v, 10-200ah.
Applications include: E-bike, UPS, energy storage systems, telecommunication base stations, golf carts, fork lifts, and electric wheelchairs. Our production involves advanced automation and technology to ensure top-tier quality standards.
