Material
Carbon Tool Steel
Processing Method
Punching and Shearing Mould
Process Combination
Single-Process Mould
Manufacturing Technology
Automation Technology
Driving Motor Type
Reaction Type
Mold Cavity Technology
CNC Milling
Milling Speed
Normal Speed
Parts Detection Method
Measurement of Three Axis NC
After-sales Service
Available
Package Size
180.00cm * 80.00cm * 70.00cm
Lead Time
70 days (1 - 1 Sets)

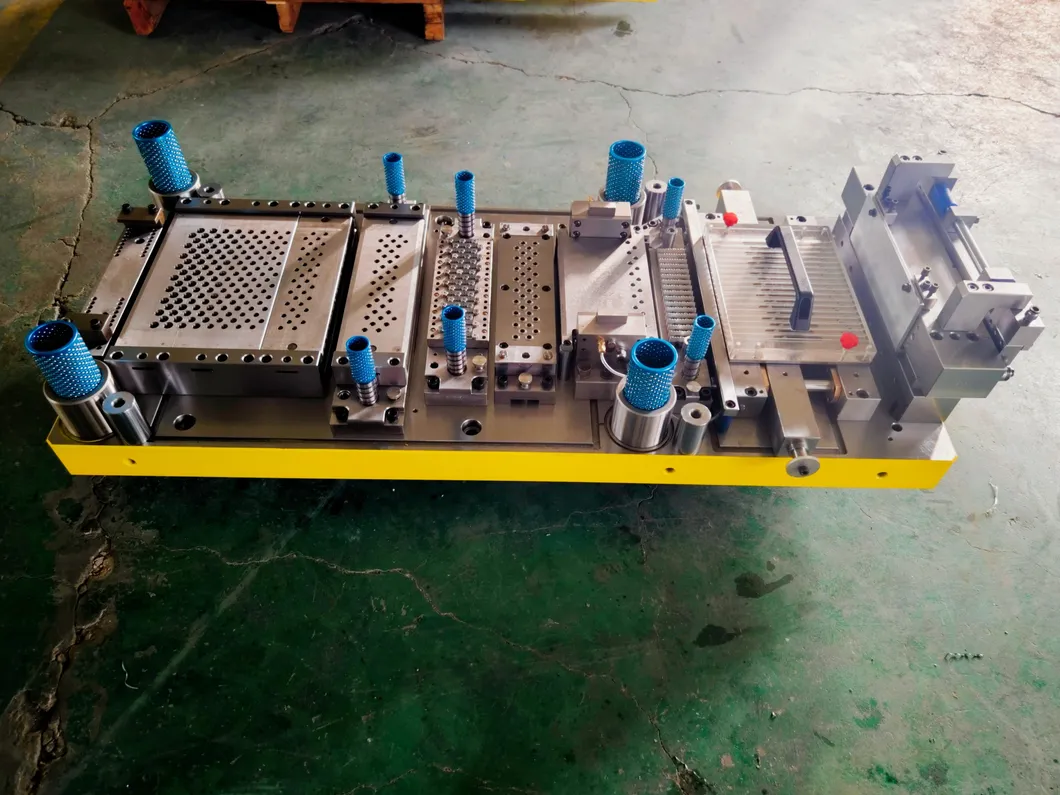

In Press Line · Open Style

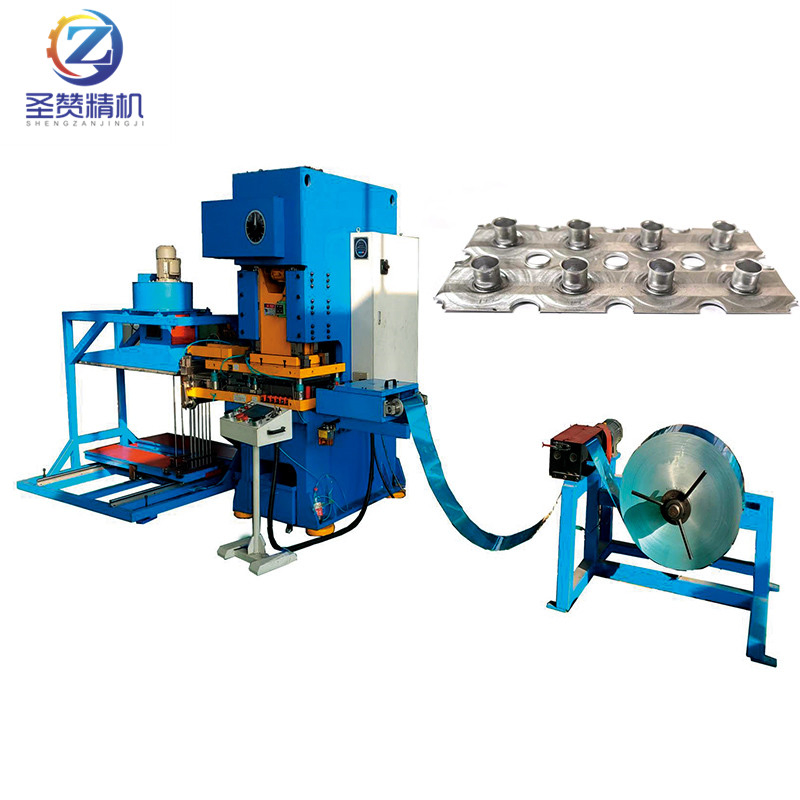

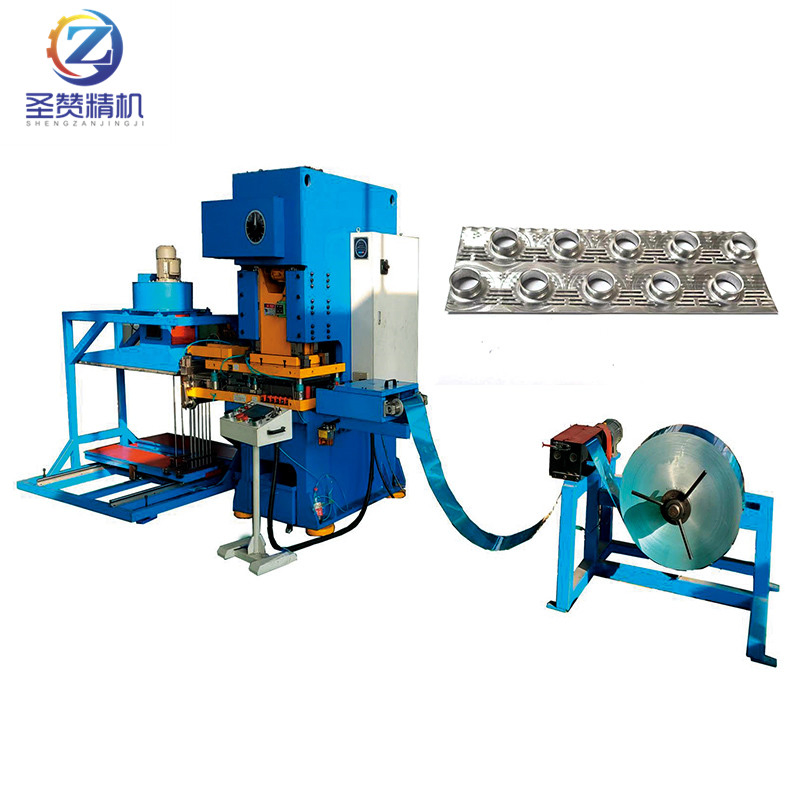

1. TKMD series and TKMS series closed fin press line are special production lines for fin production in the refrigeration industry, composed of closed high-speed precision press, decoiler, oil tank, pulling device, sucker, stacker, and integrated systems.
2. Frequency conversion control is adopted.
3. Main engine features hydraulic lifting and hydraulic overload functions.
4. Equipped with a quick fin die changing device.
5. Utilizes human-machine interface, PLC, and rotary encoder centralized control.

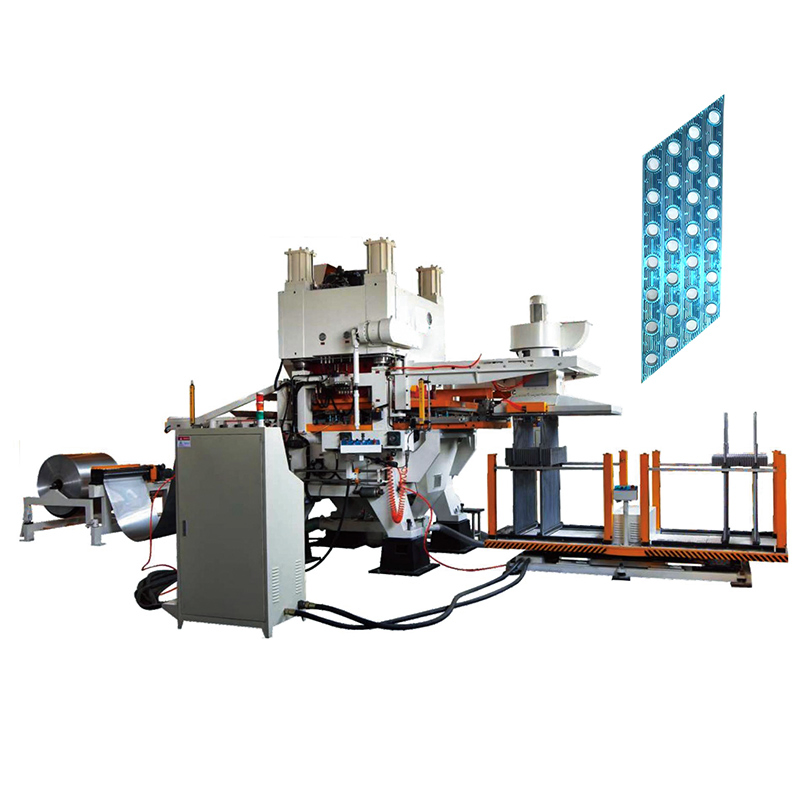

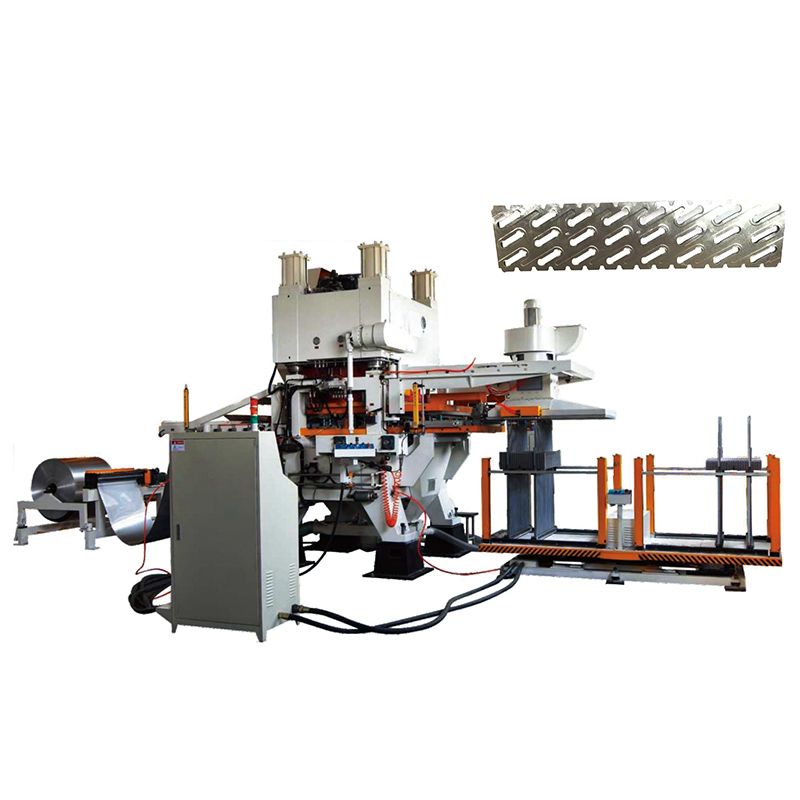

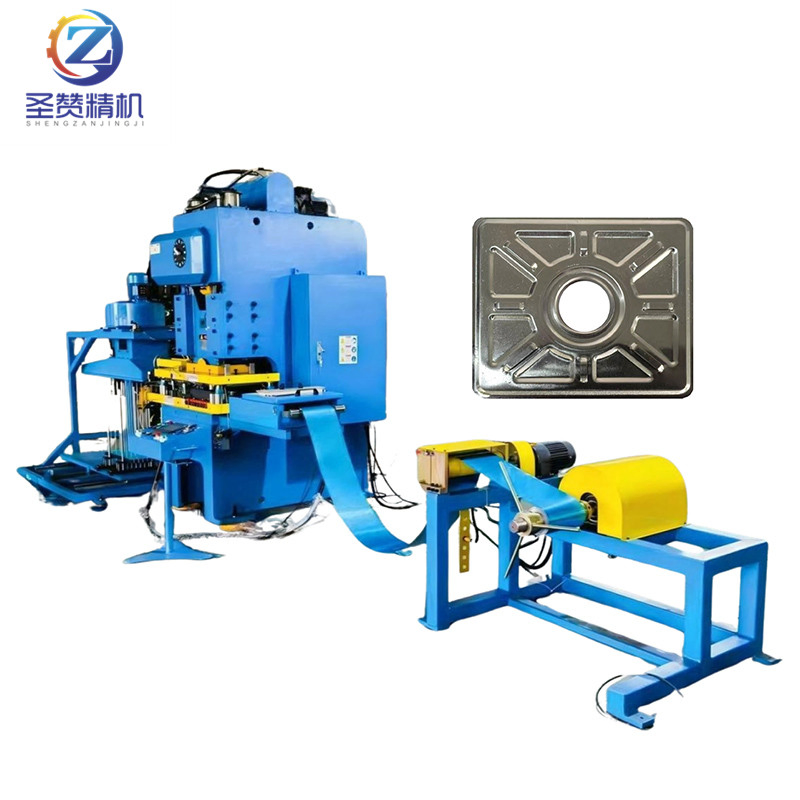

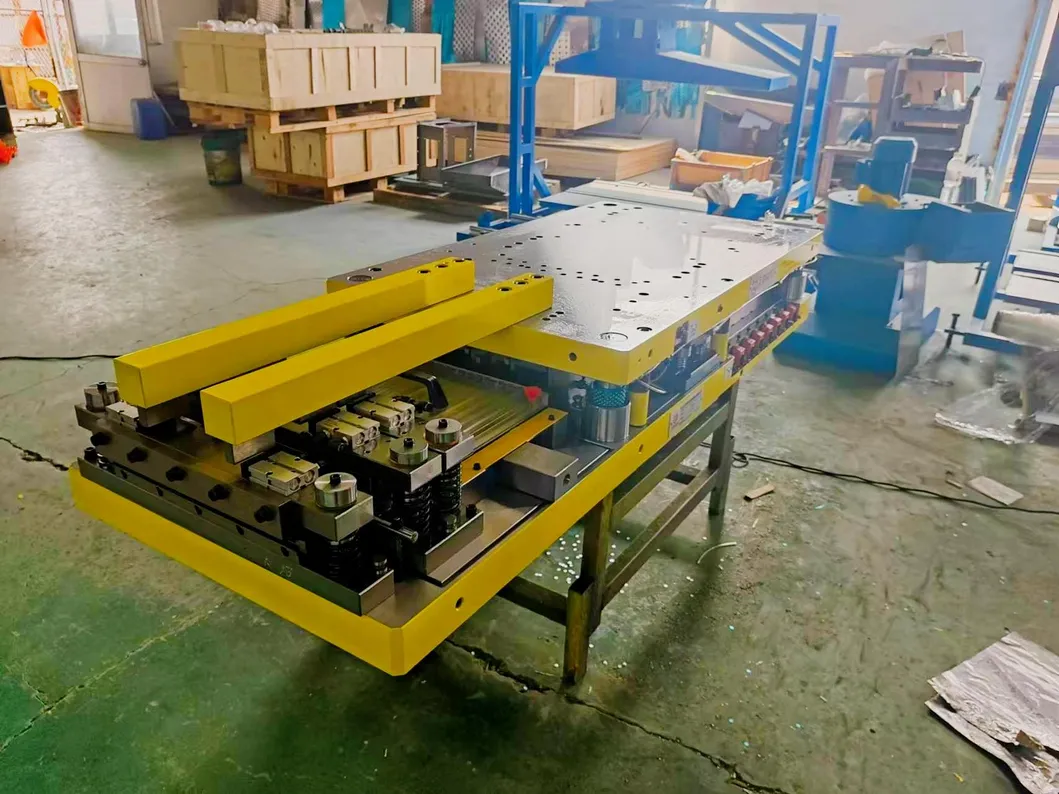

In Stamping Line · Closed
1. Composition: Aluminum foil decoiler, oil tank, feeding equipment, closed high-speed precision press, sucker and collector, and advanced control systems.
2. The slide has hydro-lifting function for convenient die installation.
3. Speed and vacuum sucker controlled by inverter.
4. Collector features protecting systems for faults, material or oil shortage.
5. Hydraulic rapid-die changing device for efficiency.
6. Touch screen and PLC control ensuring reliable automation.

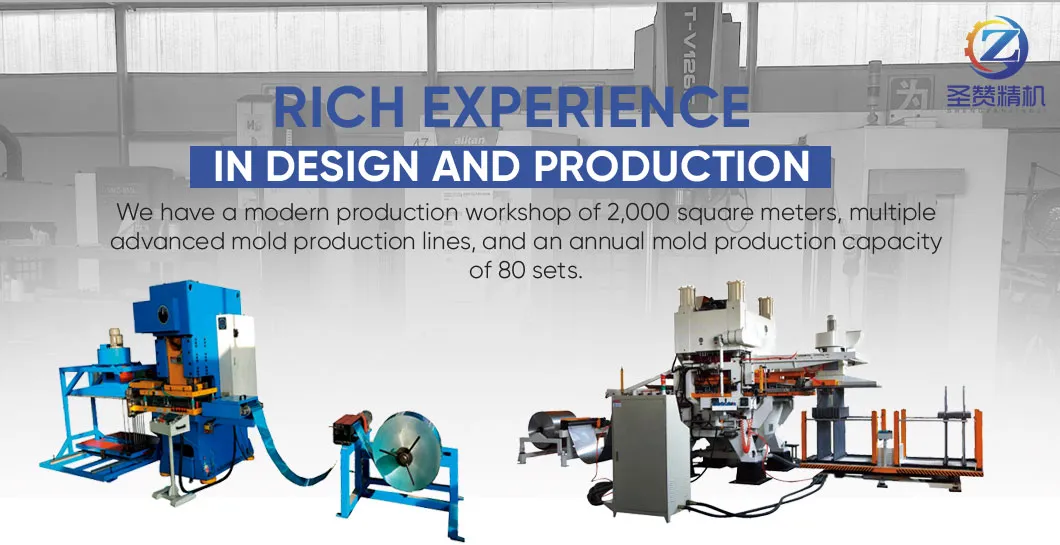

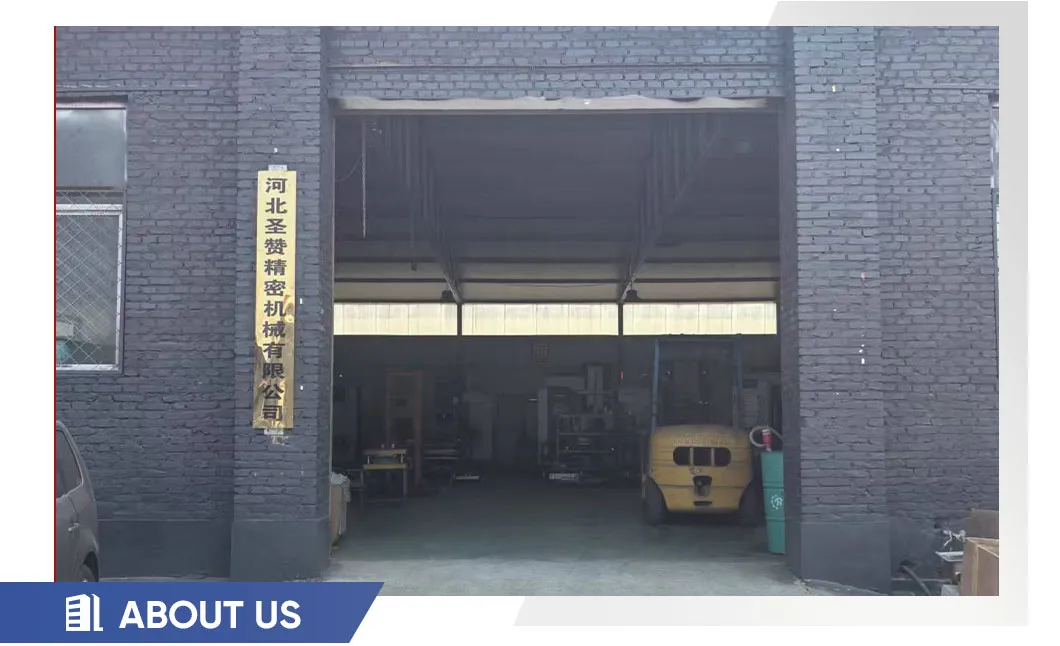

Established in 2019, we are a modern company engaged in the production of precision molds, covering multiple industries such as air conditioners, refrigerators, HVAC, semiconductors, communications, computers, and motors.
With technological advantages, we have developed high-life, high-quality, and high-speed "three-high" molds in many fields, including air conditioner fin molds, integrated circuit lead frame molds, and semiconductor rib cutting molds. Our finned molds can reach a punching speed of 250-350 times per minute. Under normal production conditions, through reasonable maintenance, their service life can reach 15-25 years or more.
?
Frequently Asked Questions
What types of fin production are our fin molds suitable for?
Our fin molds are suitable for the production of fins made of various materials such as copper and aluminum, meeting the requirements of industries like air conditioning and radiators.
How long is the expected service life of the fin mold?
The punching speed can reach 250-350 times per minute. With normal production conditions and reasonable replacement of spare parts, the service life can exceed 15-25 years.
How do you ensure the precision of the fins produced?
We employ high-precision processing equipment and advanced simulation software during design. Tolerances are strictly controlled, and products undergo multiple inspections to ensure high-precision standards.
Is the installation of fin molds complicated?
We provide detailed installation instructions and guides. For experienced users, it is straightforward. We can also provide on-site guidance by professional personnel if needed.
What is required for daily maintenance?
Keep the mold clean from debris and oil stains. Regularly inspect components like the punch and die for wear, and ensure moving parts are lubricated as per regulations.
Can you provide customized molds for special requirements?
Yes, we have a professional R&D and design team capable of creating personalized mold solutions based on your specific product requirements and production processes.
