| Model NO. | custom |
| Material | Carbon Tool Steel |
| Processing Method | Punching and Shearing Mould |
| Technics | Cutting Die |
| Process Combination | Single-Process Mould |
| Manufacturing Technology | Automation Technology |
| Mold Cavity Technology | CNC Milling |

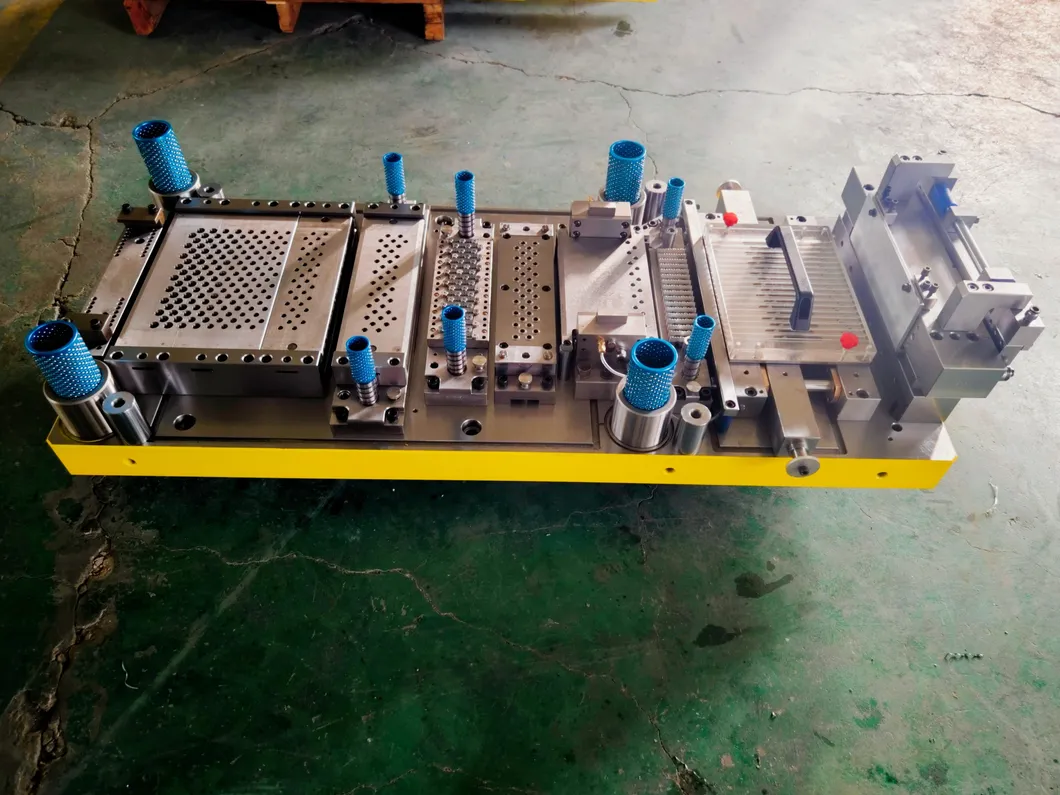

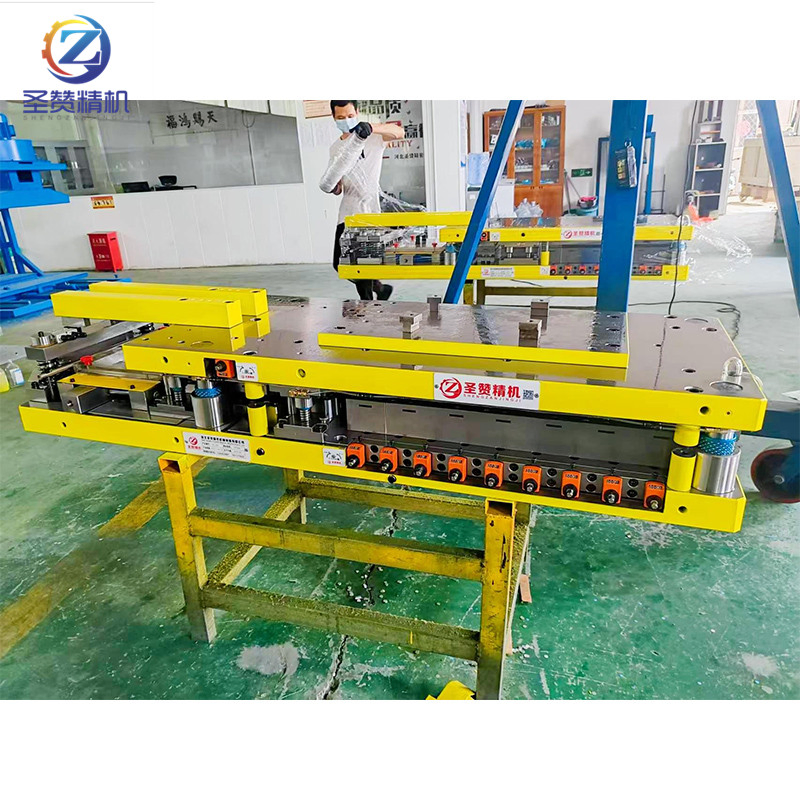

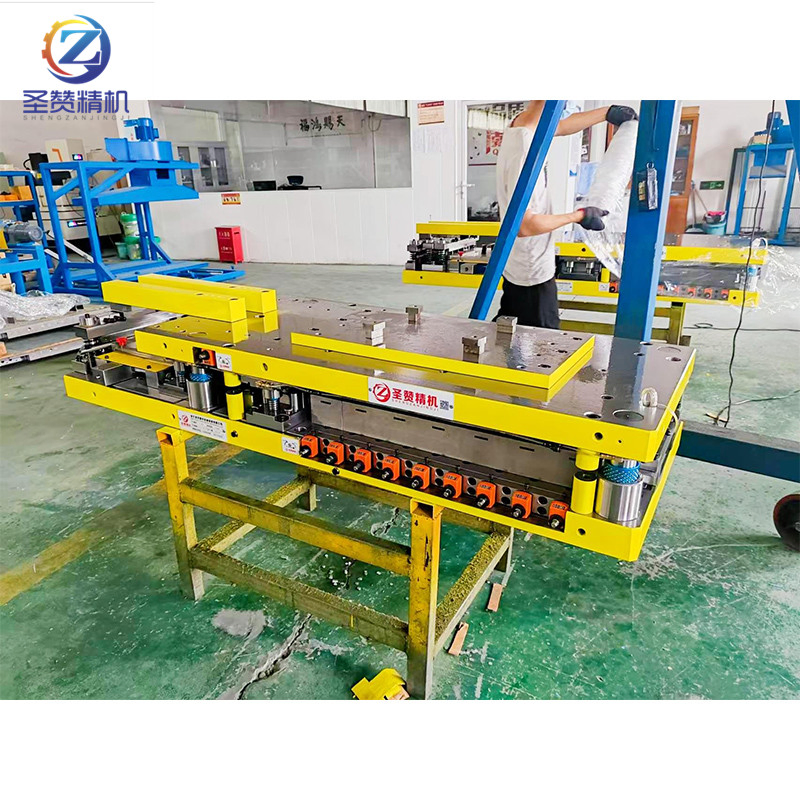

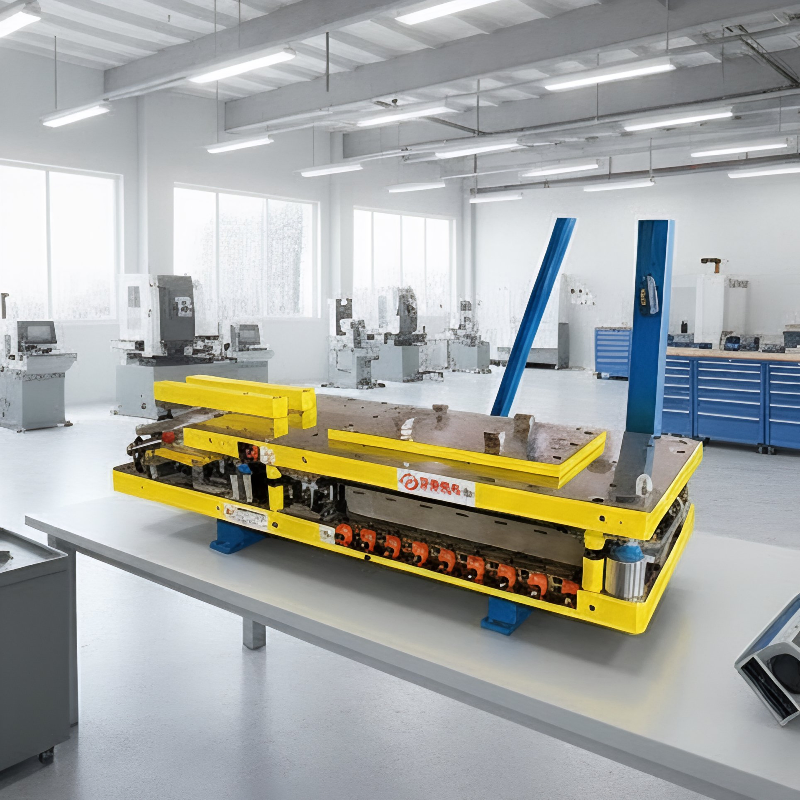

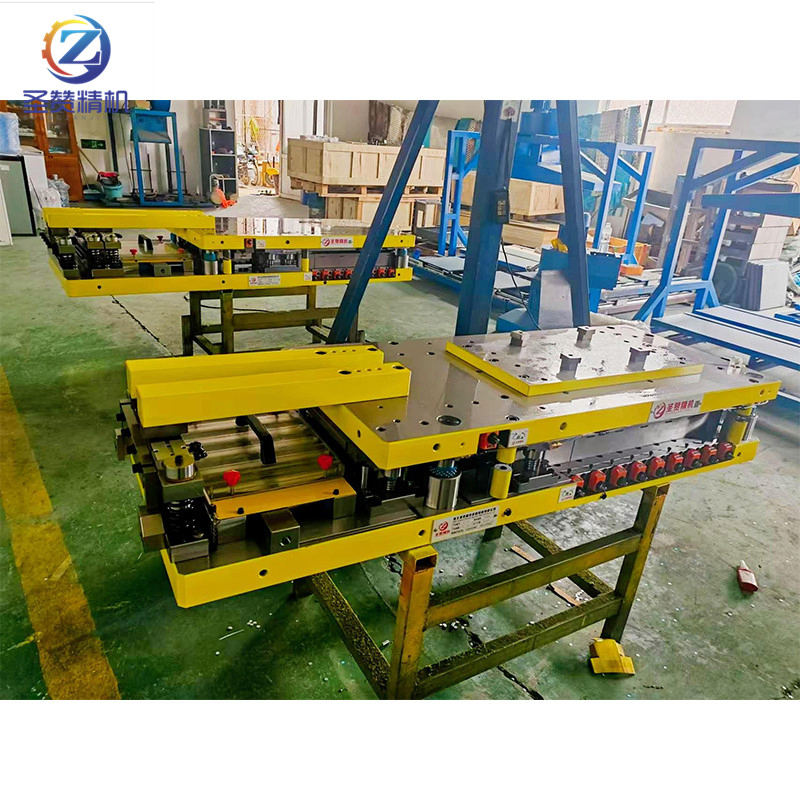

| Product Name | Fin Die |
| Flanging Height | 1.8mm-6/1.2-3mm |
| Speed | 120-200 / 180-300 |
| Production Capacity | 100 Sets/Year |
| Package Size | 180.00cm * 80.00cm * 70.00cm |
| Package Gross Weight | 900.000kg |
| Lead Time | 70 days (1 - 1 Sets) / To be negotiated (> 1 Sets) |

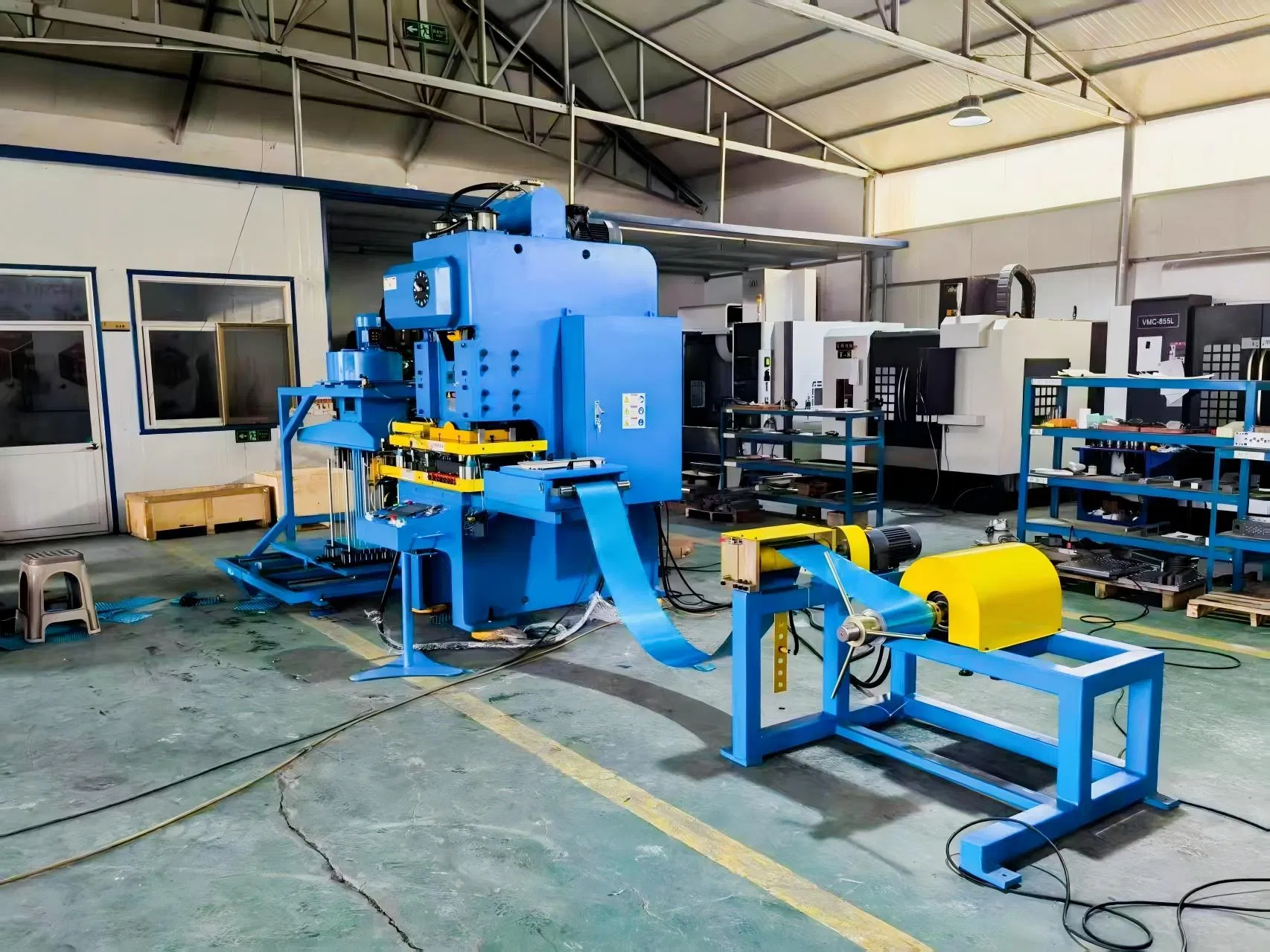

1. TKMD series and TKMS series closed fin press line are special production lines for fin production in the refrigeration industry, which are composed of closed high-speed precision press, decoiler, oil tank, pulling device, sucker, stacker, electrical system, pneumatic system and hydraulic system.
2. Frequency conversion control is adopted.
3. The main engine has the functions of hydraulic lifting and hydraulic overload.
4. Adopt quick fin die changing device.
5. Adopt human-machine interface and PLC for reliable automatic production.
1. Composition: Aluminum foil decoiler mechanism, oil tank, feeding equipment, closed high-speed precision press, sucker and collector, electric control system, hydraulic rapid-dies changing device.
2. High and reliable technology with Patent IP/2P/3P/4P changing system.
3. Collector has protecting system for fault operation and material shortage warming.
4. Touch screen and PLC electrical control system ensuring reliable automatic stamping.

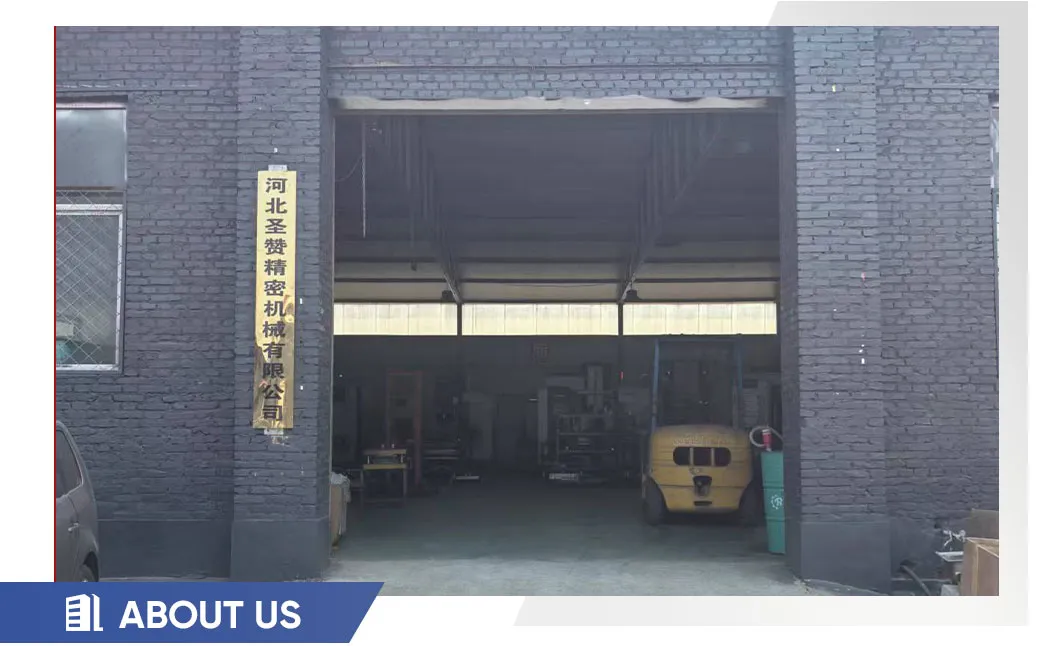

Established in 2019, this is a modern enterprise engaged in the production of precision molds, covering multiple industries such as air conditioners, refrigerators, HVAC, semiconductors, communications, computers, and motors.

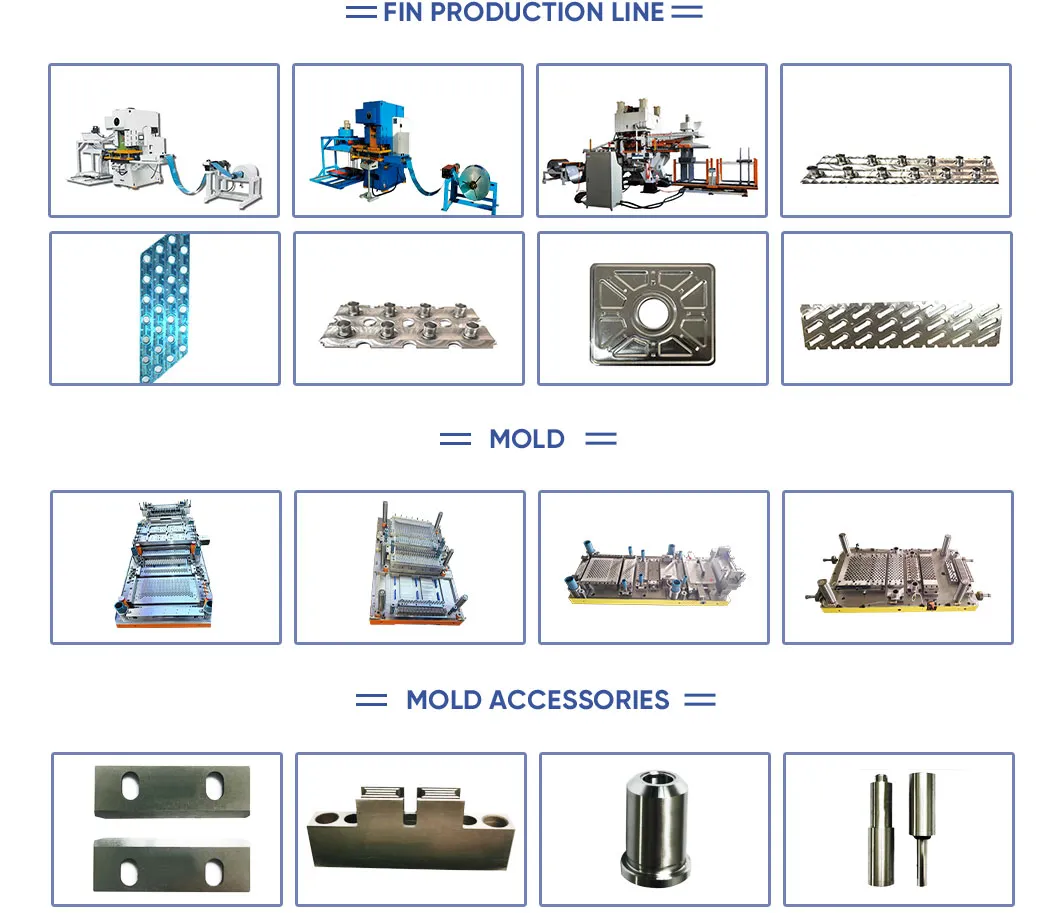

With technological advantages, the company has developed high-life, high-quality, and high-speed "three-high" molds, including air conditioner fin molds, refrigerator fin molds, integrated circuit lead frame molds, and motor connector molds.
The finned molds can reach a punching speed of 250-350 times per minute. Under normal production conditions, through reasonable replacement of spare parts, their service life can reach 15-25 years or more. Due to excellent quality and mature design, products are distributed to more than fifty cities and regions.
