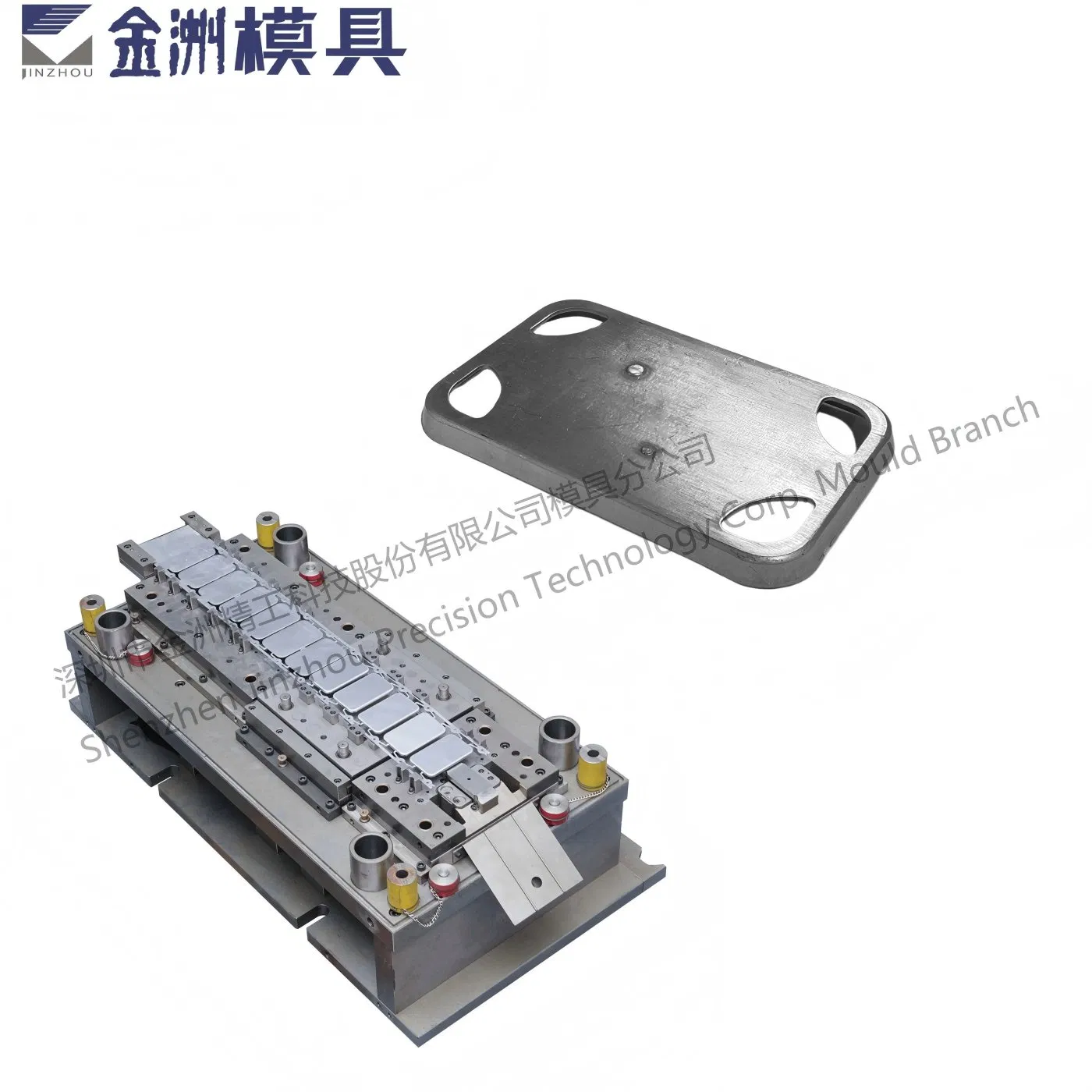

Precision Stacked Fin Stamping Die for Aluminum Thermal Systems
This groundbreaking tooling system integrates innovative S-Turbulator™ rib technology to craft self-locking corrugated fins using a continuous progressive stamping process. This leads to an impressive 30% faster assembly of high-density fin packs for aluminum heat exchangers.
Designed for 0.08-0.3mm AA4343 alloy, it boasts ±0.01mm laser-guided accuracy at a remarkable 300 strokes/minute. The die features hybrid fin geometries (Hex-cell/Wave-louver) to enhance thermal turbulence, offering brazing-ready mirror surfaces (Ra≤0.2μm) that eliminate any need for post-processing.

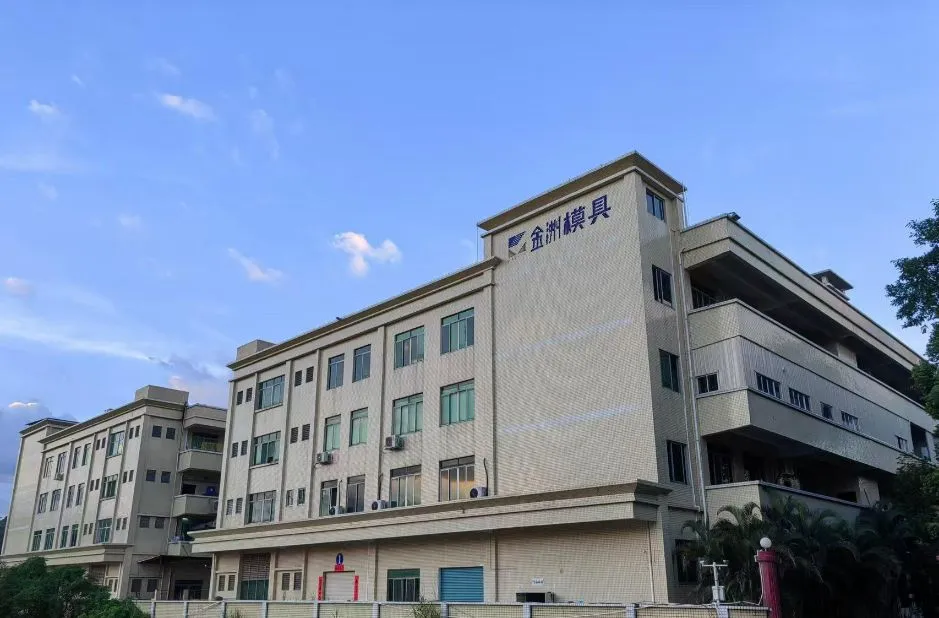

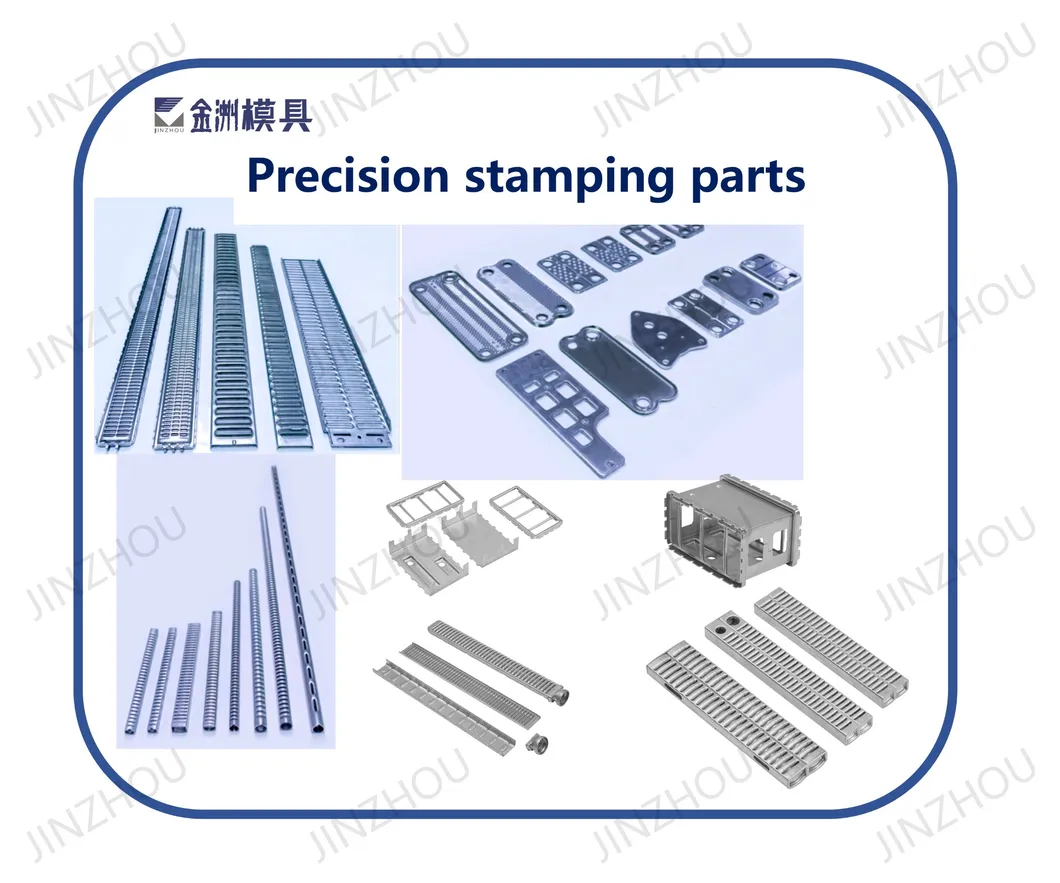

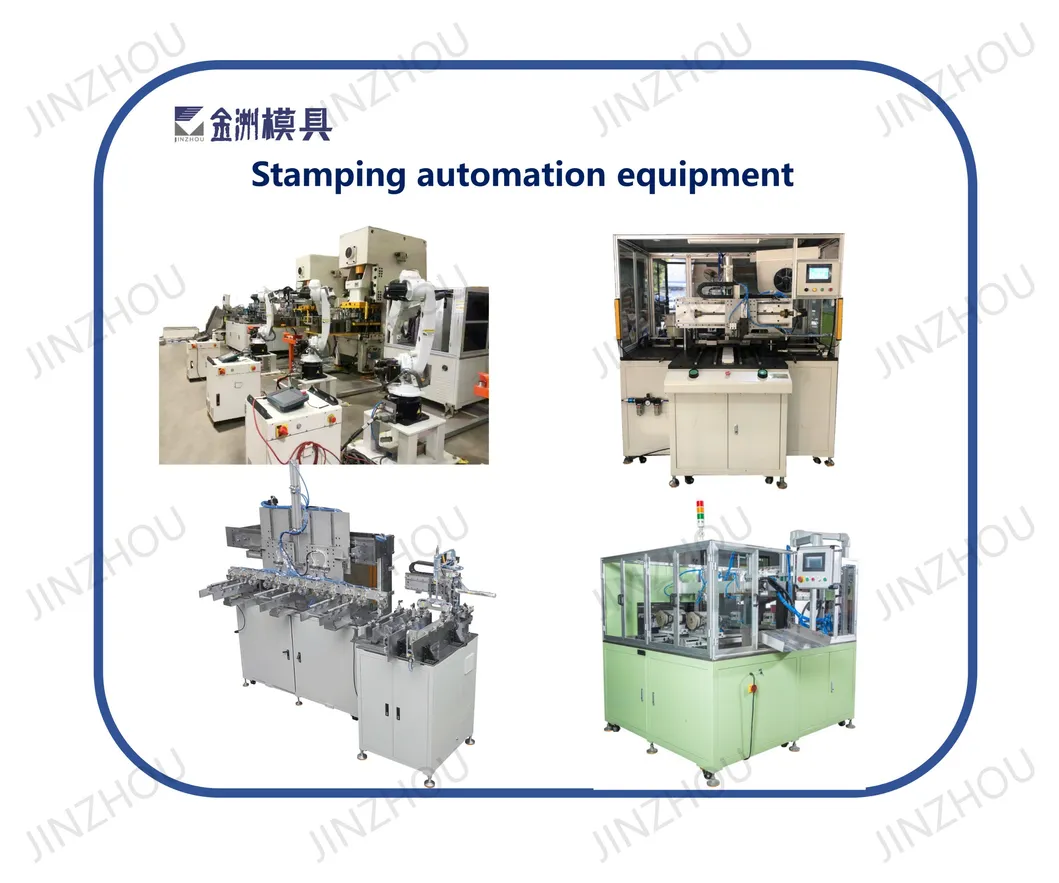

We stand at the forefront of innovation as a high-tech enterprise, specializing in the production of precision stamping molds for automotive heat exchange systems, alongside groundbreaking stamping automation equipment and precision stamping products. Backed by a team of seasoned engineering and technical experts, we excel in mold design and manufacturing. Achieved ISO9001, ISO14001, and IATF16949 system certifications.
