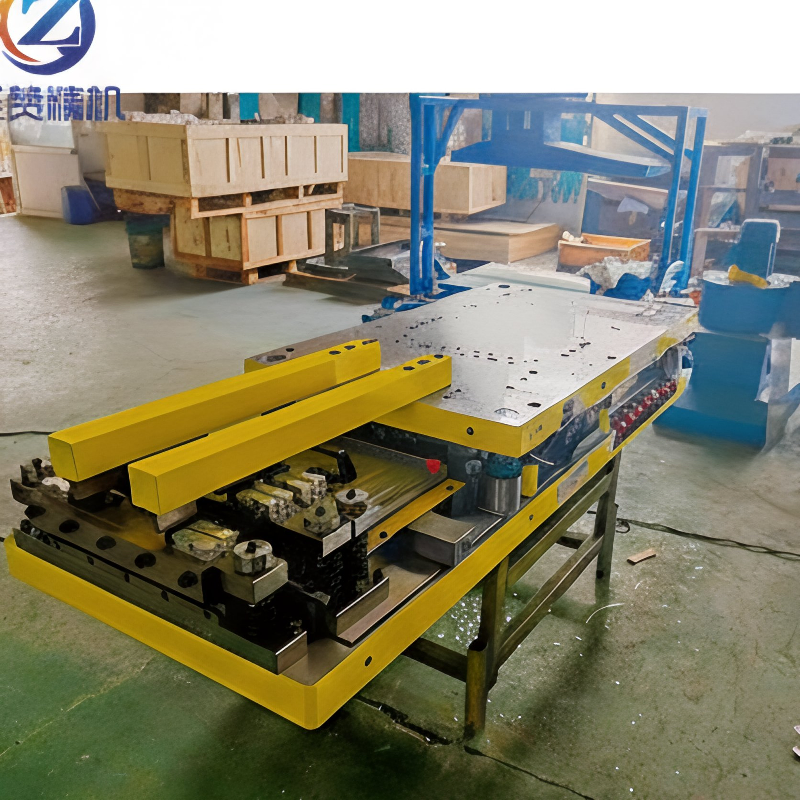

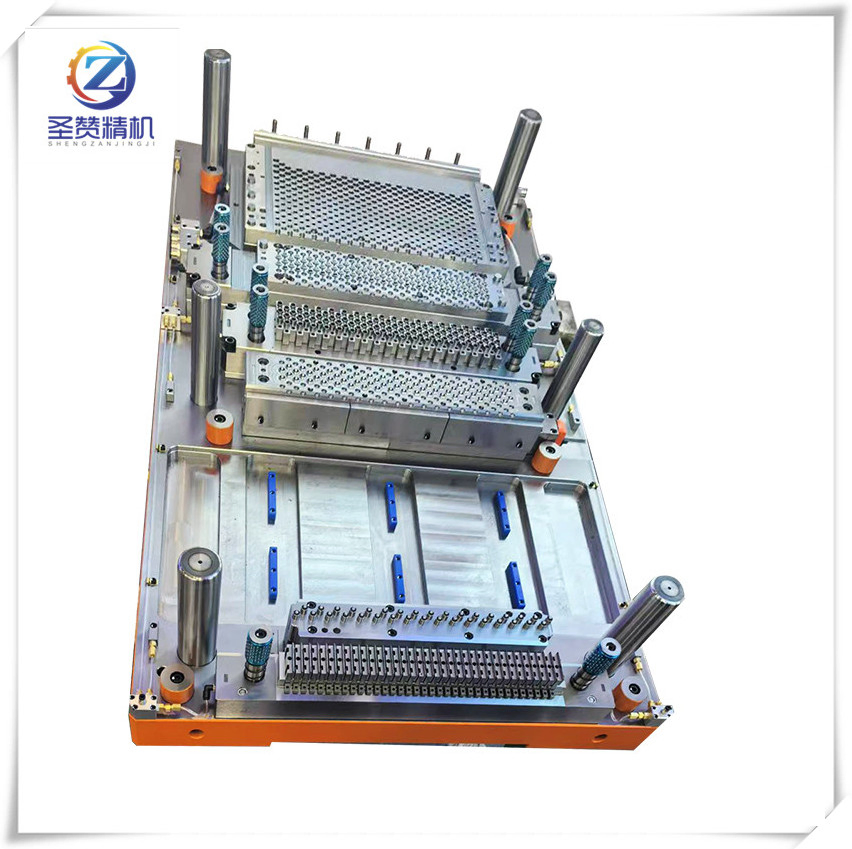

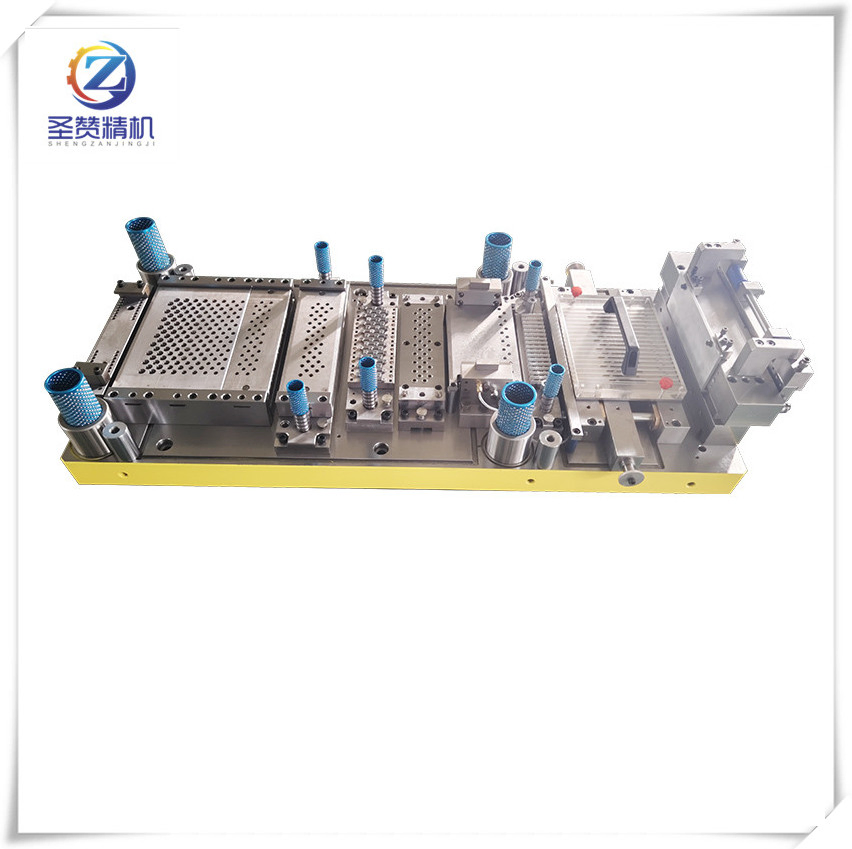

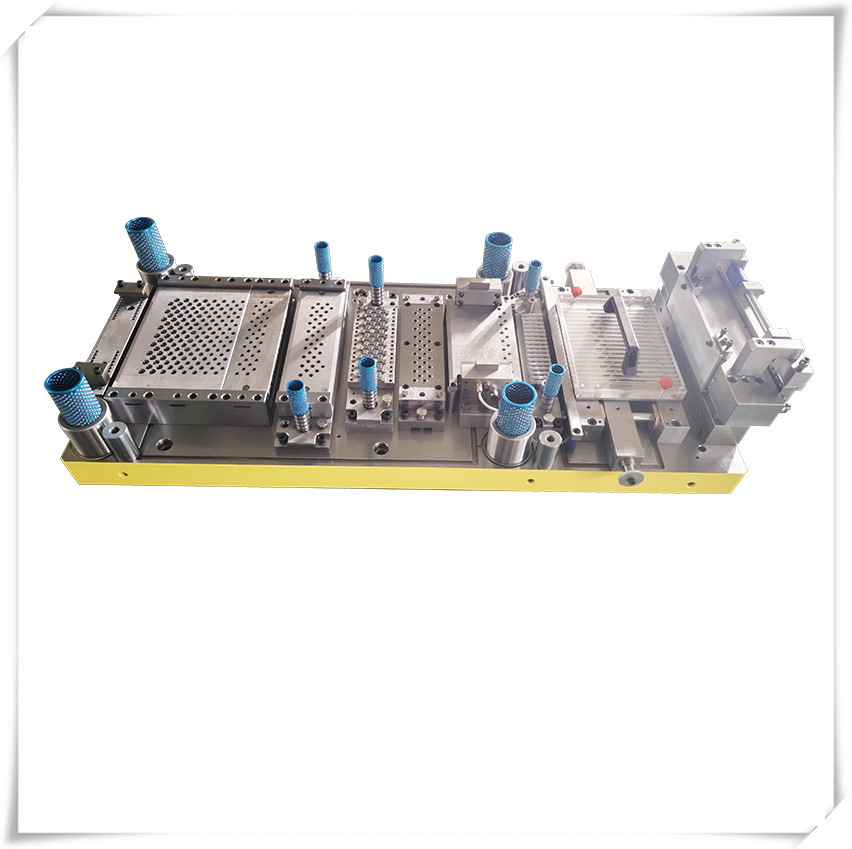

Durable Steel Stamping Die for Automotive Component Production

1 / 5

Durable Steel Stamping Die for Automotive Component Production

Customization:	Available
Warranty:	Avaliable
Application:	Household Appliances, Hardware

Send Inquiry

Product Description

Basic Specifications

Model NO.

custom

Material

Carbon Tool Steel

Processing Method

Punching and Shearing Mould

Technics

Cutting Die

Manufacturing

Automation Technology

Mold Cavity

CNC Milling

Product Name

Fin Die

Speed

120-200 / 180-300

Flanging Height

1.8mm-6 / 1.2-3mm

Capacity

100 Sets/Year

Product Introduction

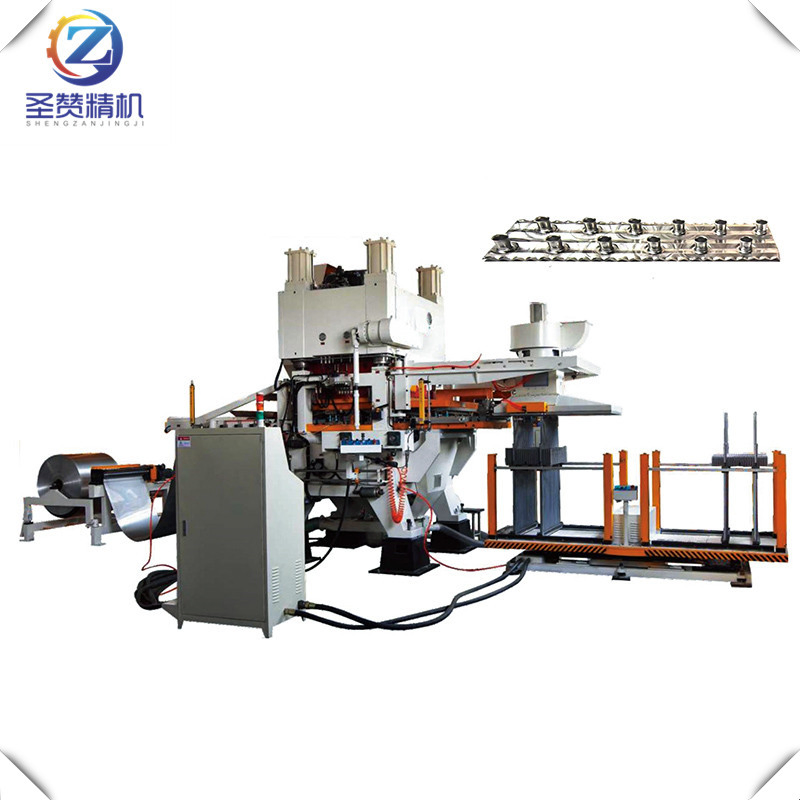

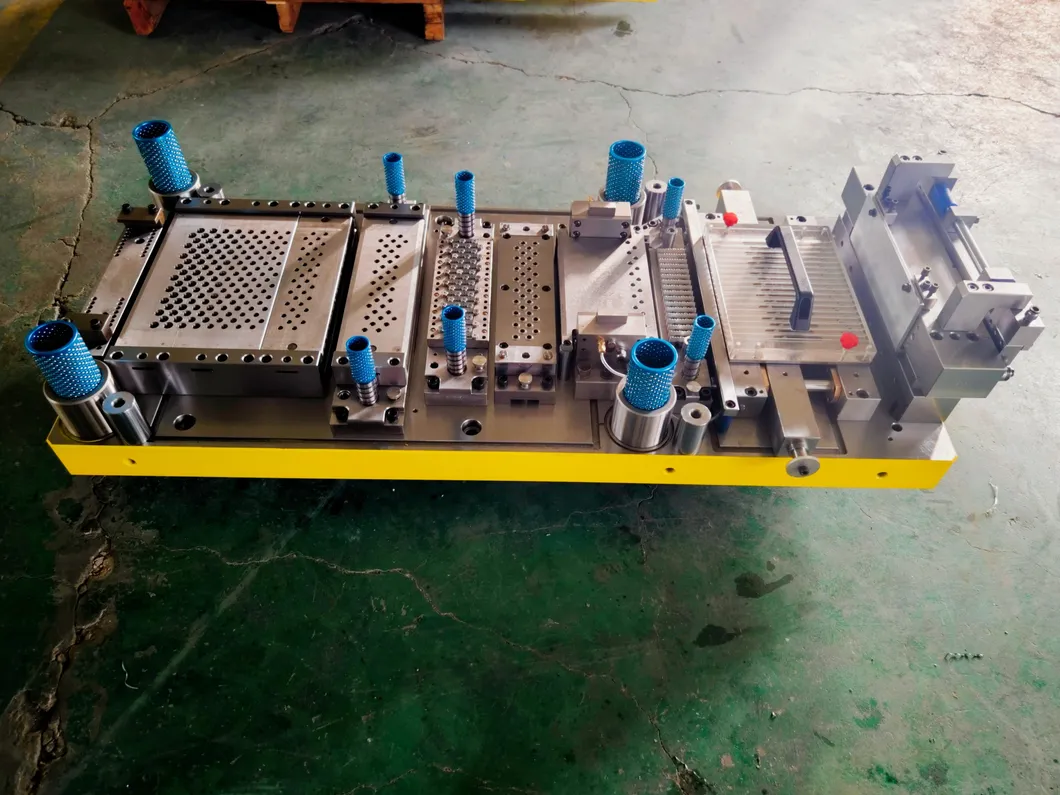

🚀 in Press Line · Open Style

✔ Closed fin press line specialized for refrigeration industry fin production.

✔ Features frequency conversion and hydraulic lifting functions.

✔ Integrated quick fin die changing device for maximum efficiency.

✔ PLC and rotary encoder electrical centralized control system.

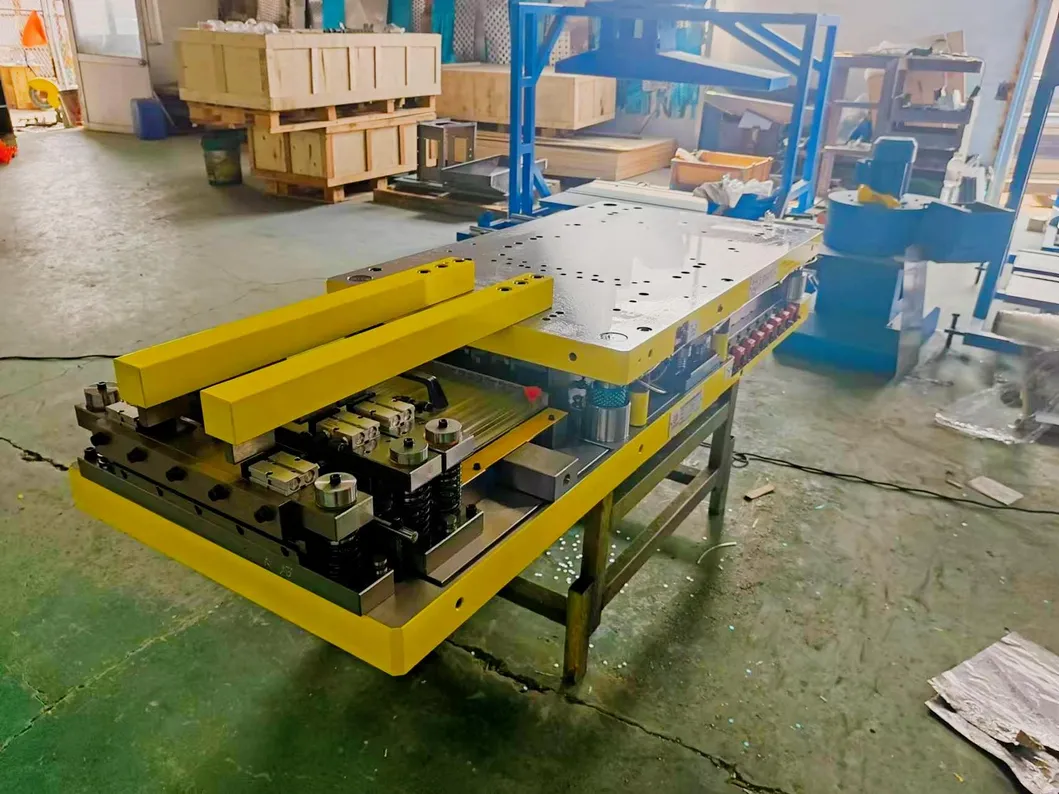

🛡️ in Stamping Line · Closed

✔ Advanced aluminum foil decoiler and closed high-speed precision press.

✔ Hydro-lifting slide for convenient die installation commissioning.

✔ Comprehensive protection system for oil/material shortage warnings.

✔ Reliable automatic stamping with Touch Screen interface.

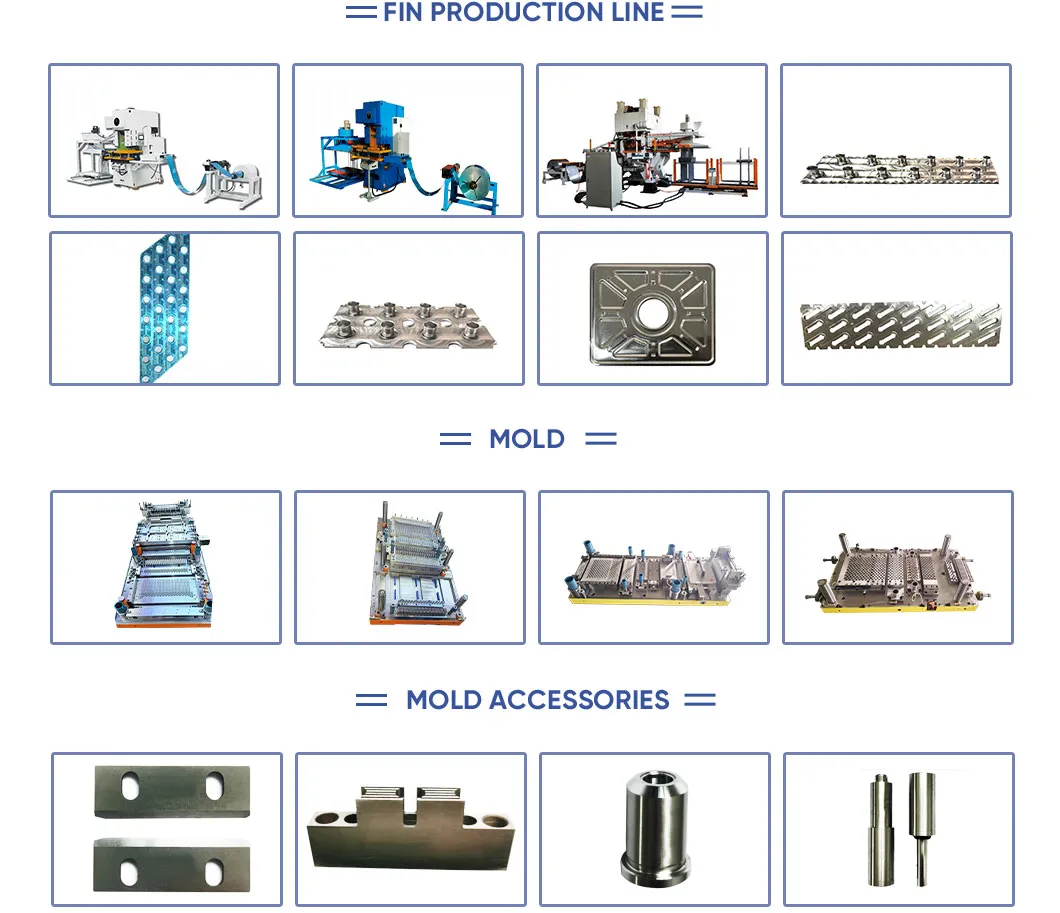

Main Product Display

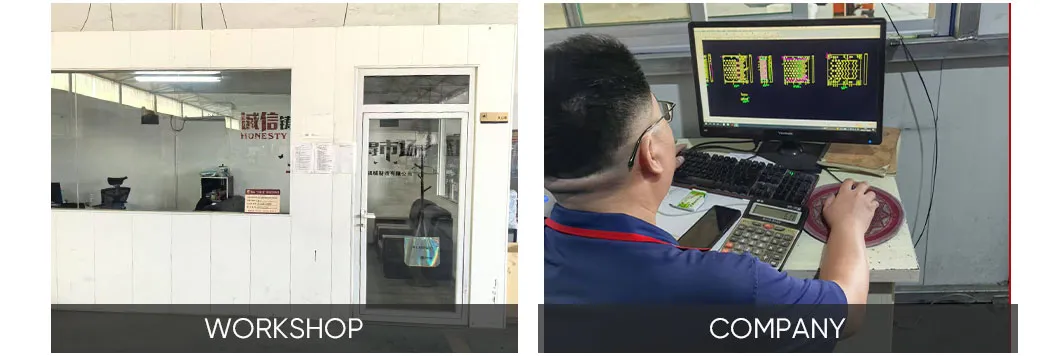

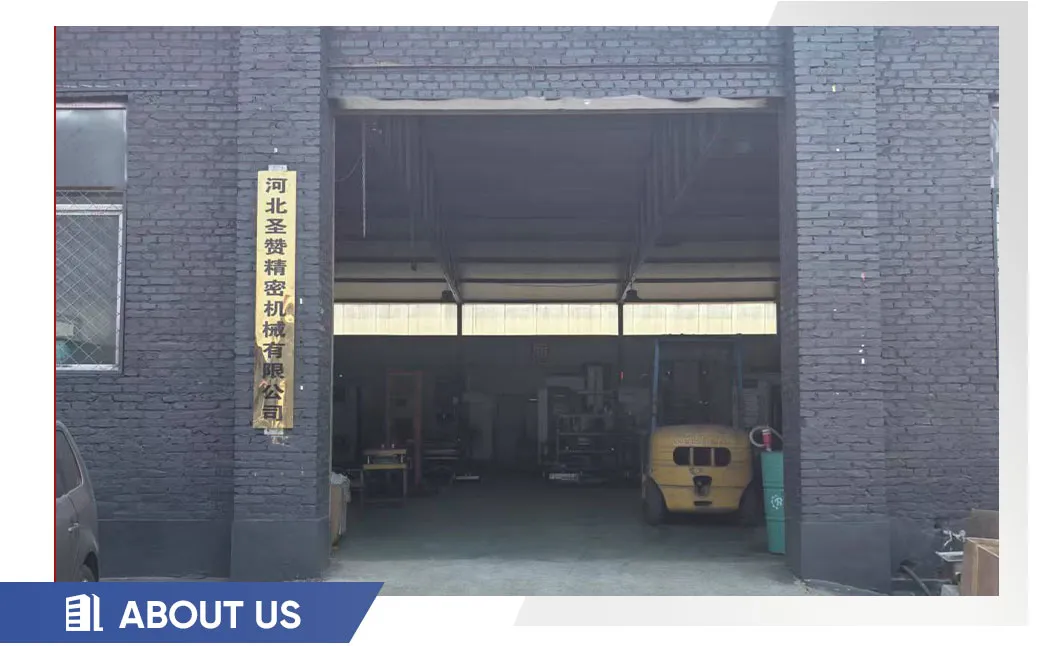

Company Overview

We are a modern company established in 2019, specializing in precision molds for air conditioners, refrigerators, HVAC, semiconductors, and motors. By leveraging technological advantages, we develop high-life, high-quality, and high-speed "three-high" molds.

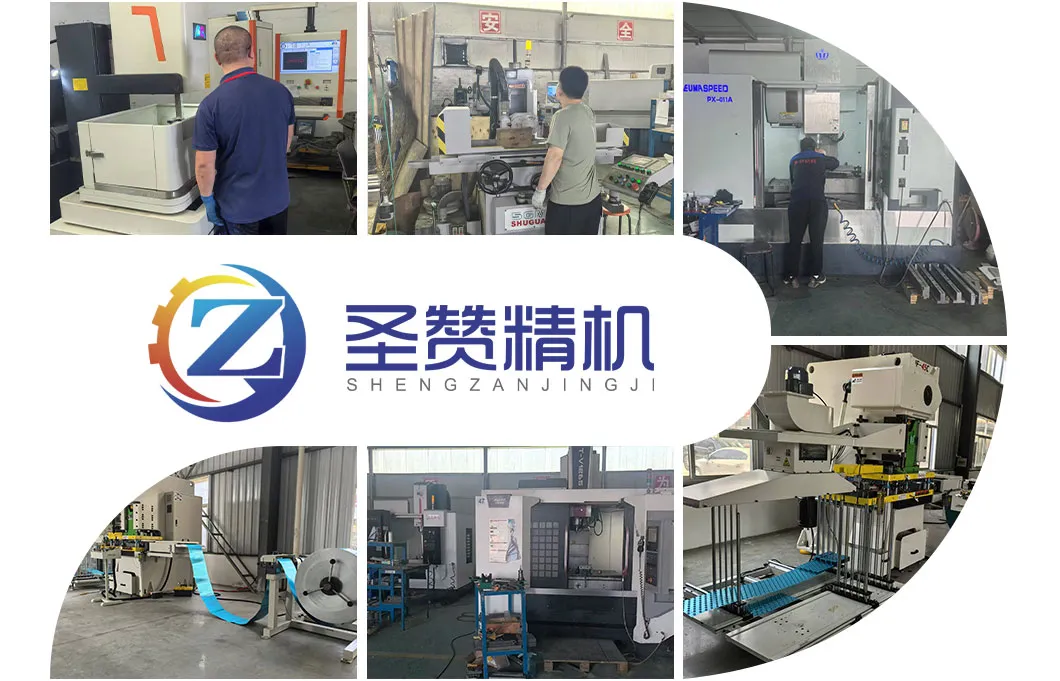

Our finned molds reach punching speeds of 250-350 times per minute. With proper maintenance, their service life can extend to 15-25 years. We have successfully achieved a technological revolution from CAD to CAM, ensuring competitive and high-precision manufacturing.

Advantages & Certificates

Packaging & Shipping

Frequently Asked Questions

What materials are your fin molds compatible with?

Our fin molds are designed for various materials including copper and aluminum fins, meeting requirements for air conditioners, radiators, and HVAC industries.

What is the expected service life of the fin molds?

With a punching speed of 250-350 times per minute and regular replacement of spare parts, the service life can exceed 15-25 years under normal conditions.

How do you ensure high-precision production?

We utilize advanced CNC milling, precise simulation software during design, and multiple inspection procedures to ensure strict tolerance control for shape and size.

Is the installation process complex?

We provide detailed operation guides. While users with mold experience can install them independently, we also offer professional on-site installation guidance services if needed.

What maintenance is required for daily operation?

Keep the mold clean from debris and oil stains, regularly inspect component wear (punches/dies), and follow lubrication schedules for moving parts to extend service life.

Do you offer customized mold designs?

Yes, our professional R&D team can provide personalized design and manufacturing based on your specific product requirements and production processes.
