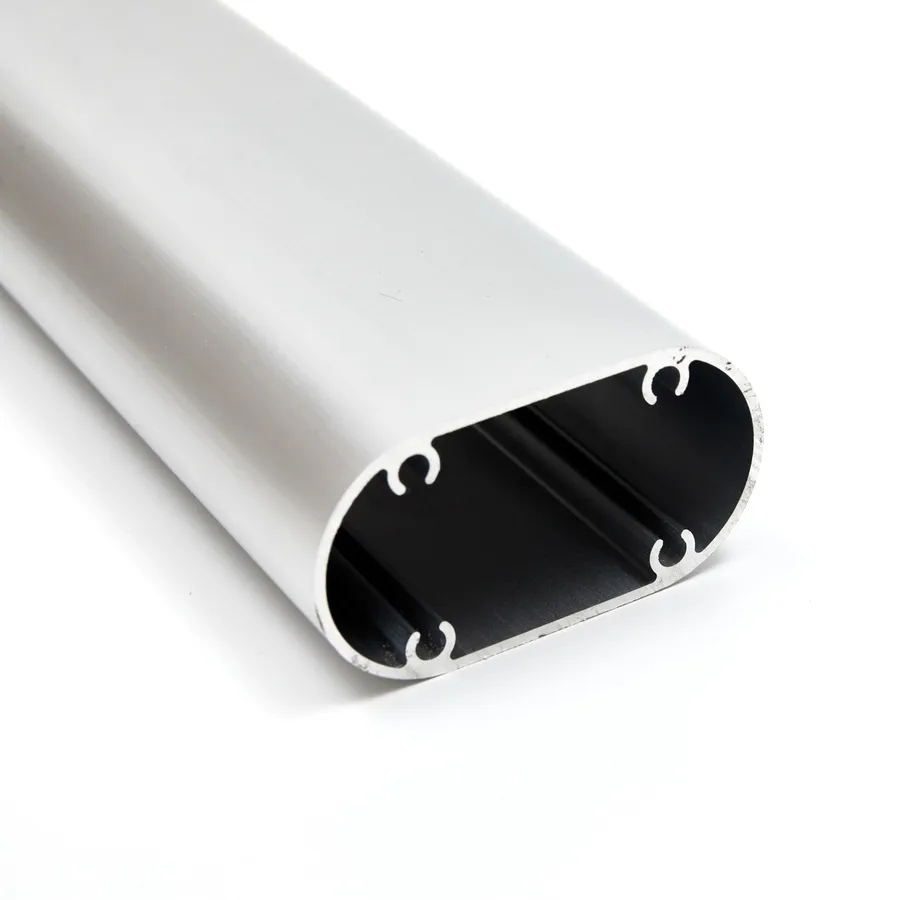

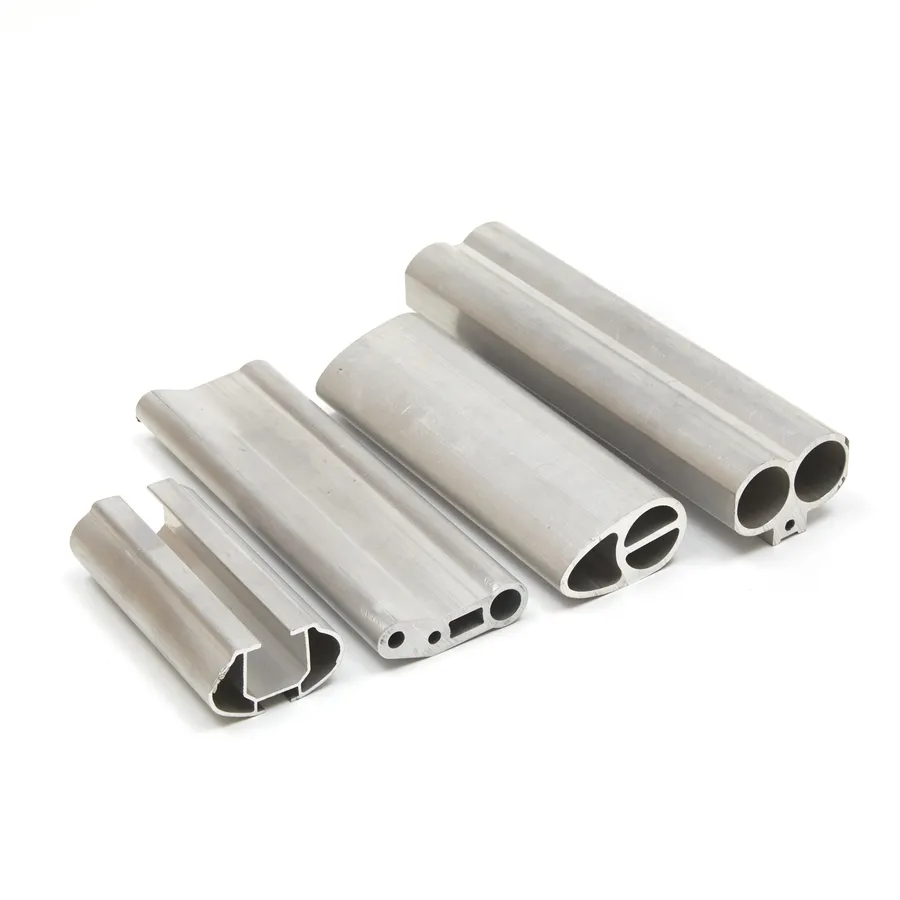

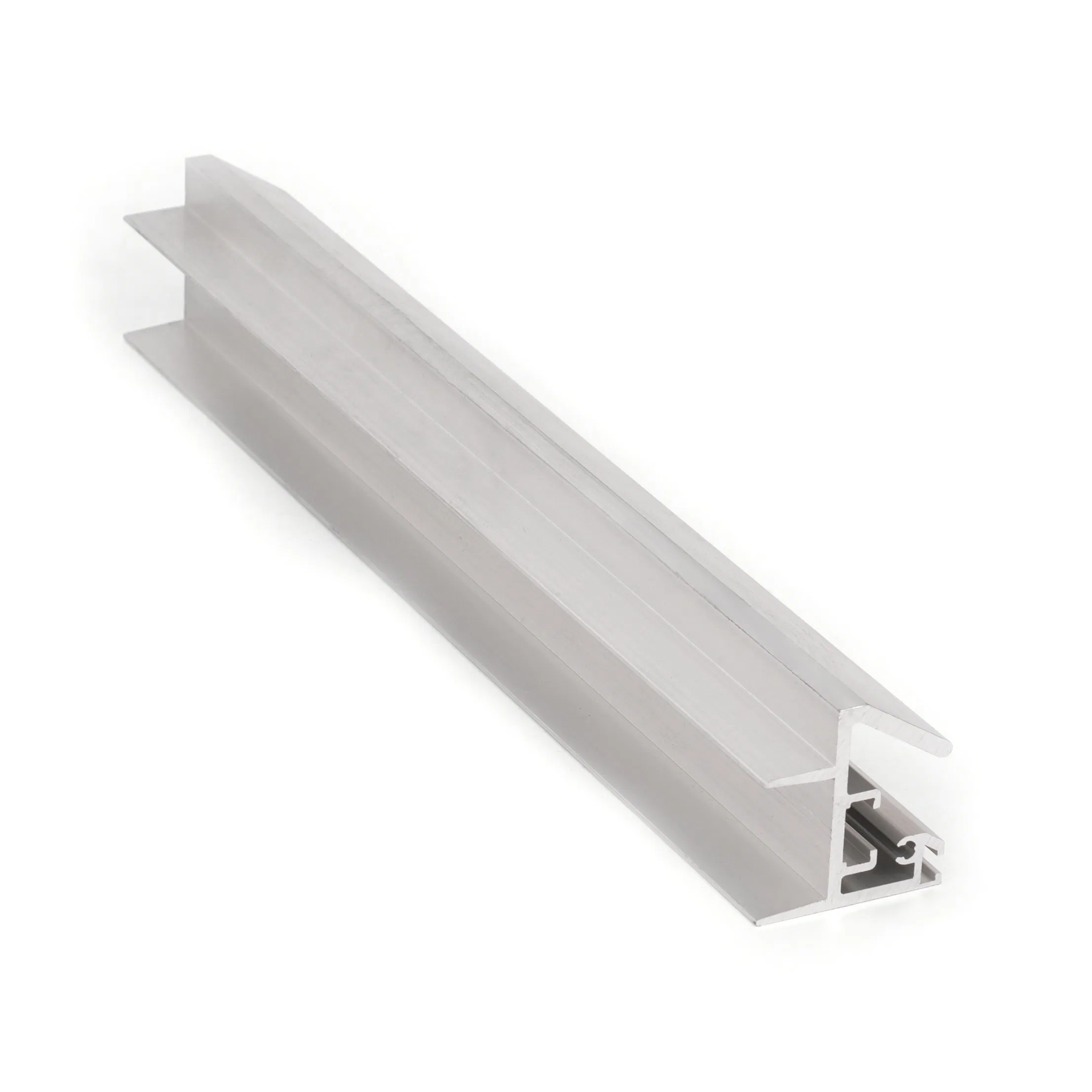

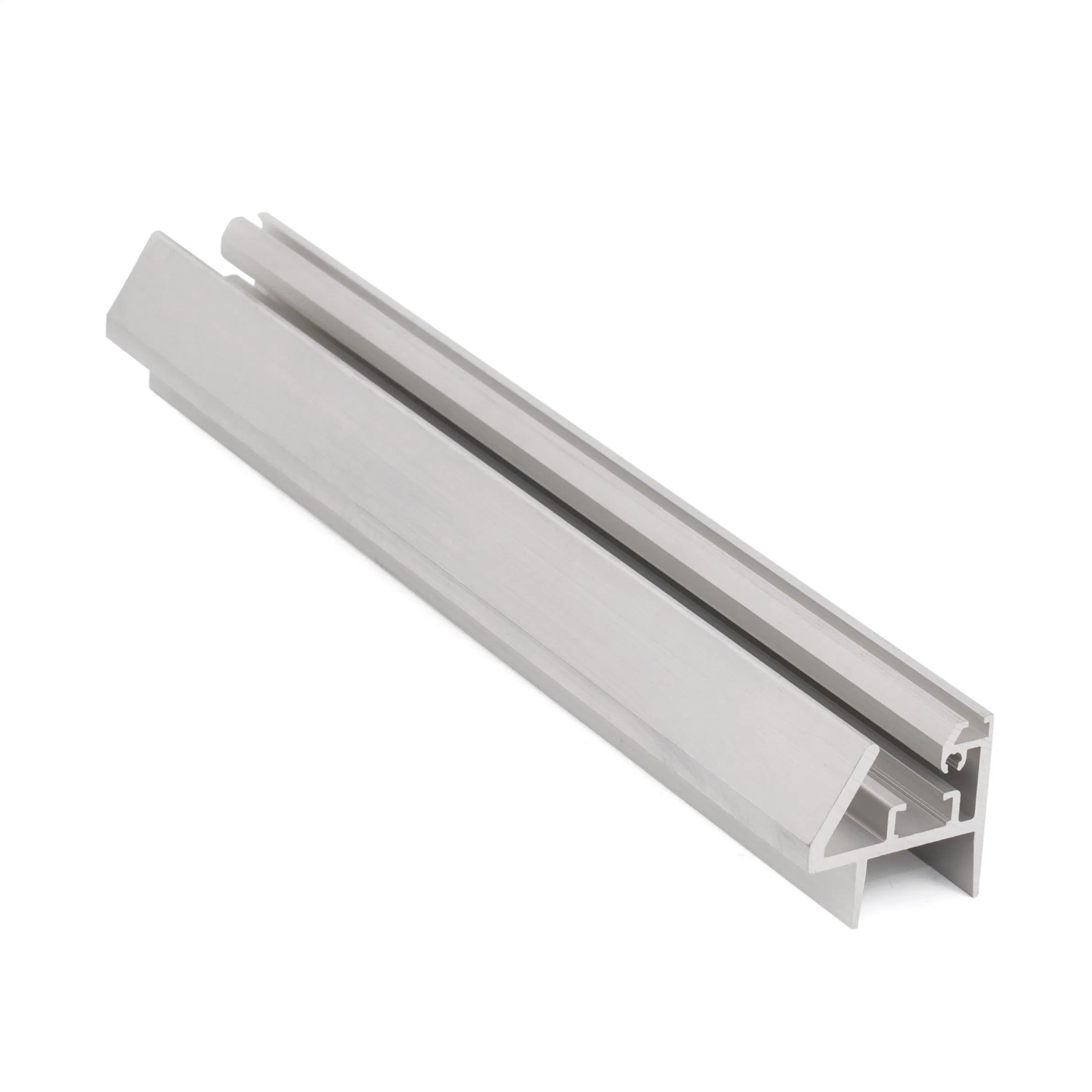

Threaded Metric Protective Film Epoxy Coated Aluminum Tubing
With a continuous improvement process and commitment to excellence, we provide industry aluminum profiles and building aluminum profiles, including aluminum tubes, heatsinks, T-slot profiles, orbital profiles, and custom window/door profiles.
| Item | Specifications |
|---|---|
| Material | Alloy 6063, 6061 |
| Temper | T3, T4, T5, T6 |
| MOQ | 200kg. Typically 12-24 tons for containers. |
| Profile Type | Heat sinks for medical equipment, LED, CPU Coolers, and industrial use. |
| Processing | Extruding, Precise cutting (0.2mm tolerance), Bending, CNC Milling, Tapping. |
| Standard | China GB/T6892-2006, Europe EN12020, American AAMA611-98. |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | Rest |
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| 6063 | T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |

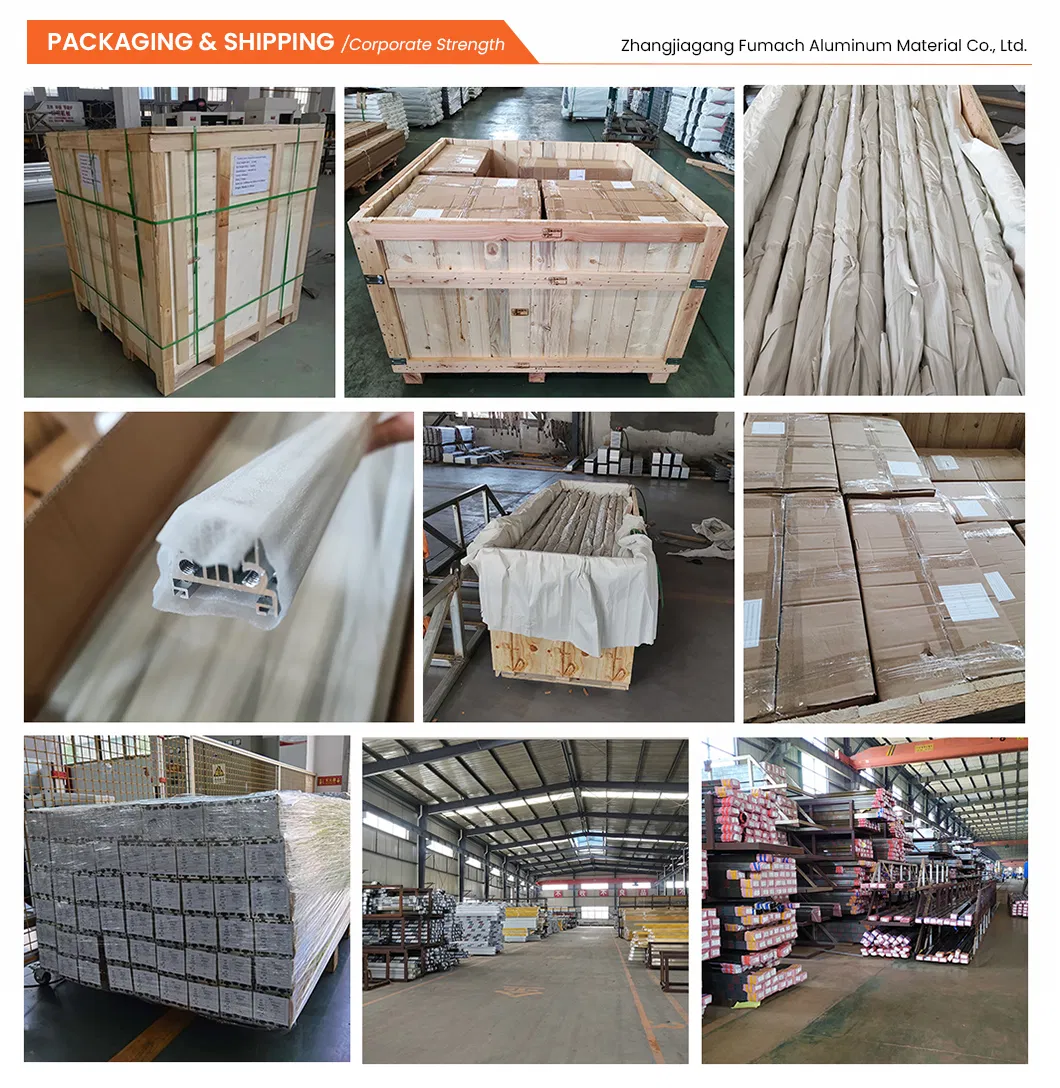

Design → Die Making → IQC → Extruding → Cutting → Heat Treatment → Hardness Test → Surface Treatment → Coating Test → Finish Processing → Packing → Shipping

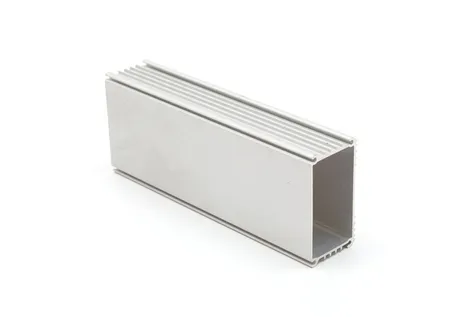

Ideal for frameworks, supports, and reinforcements in construction. Corrosion resistance makes them perfect for outdoor structures exposed to adverse weather.

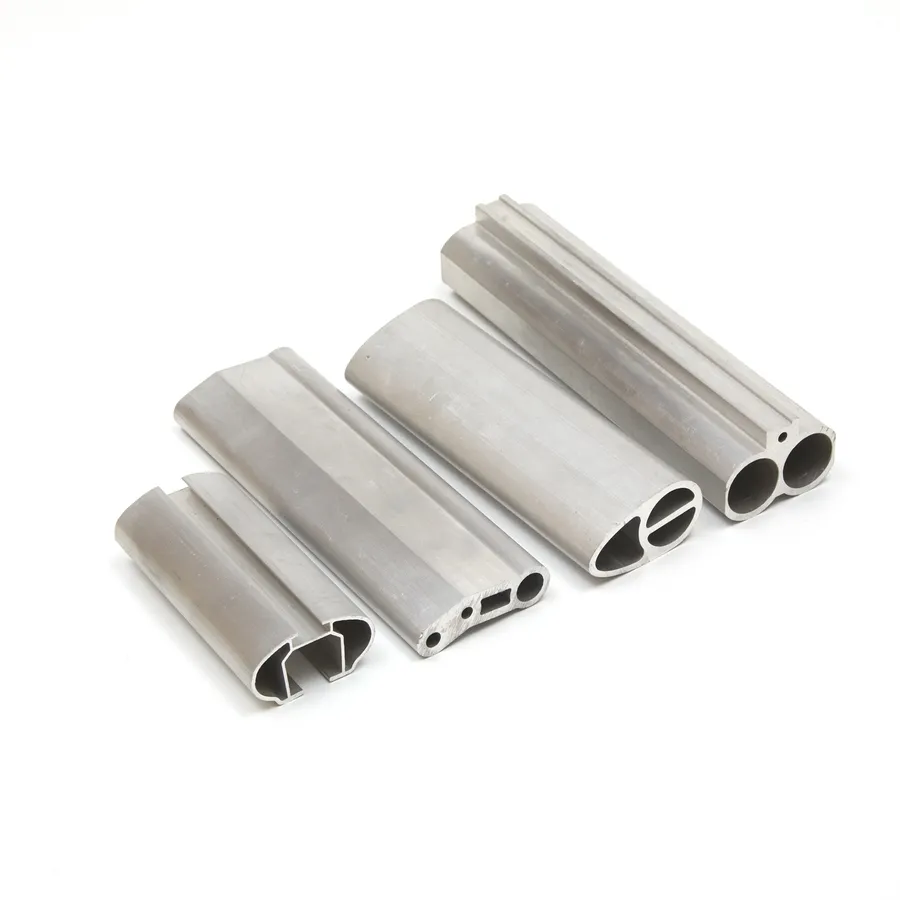

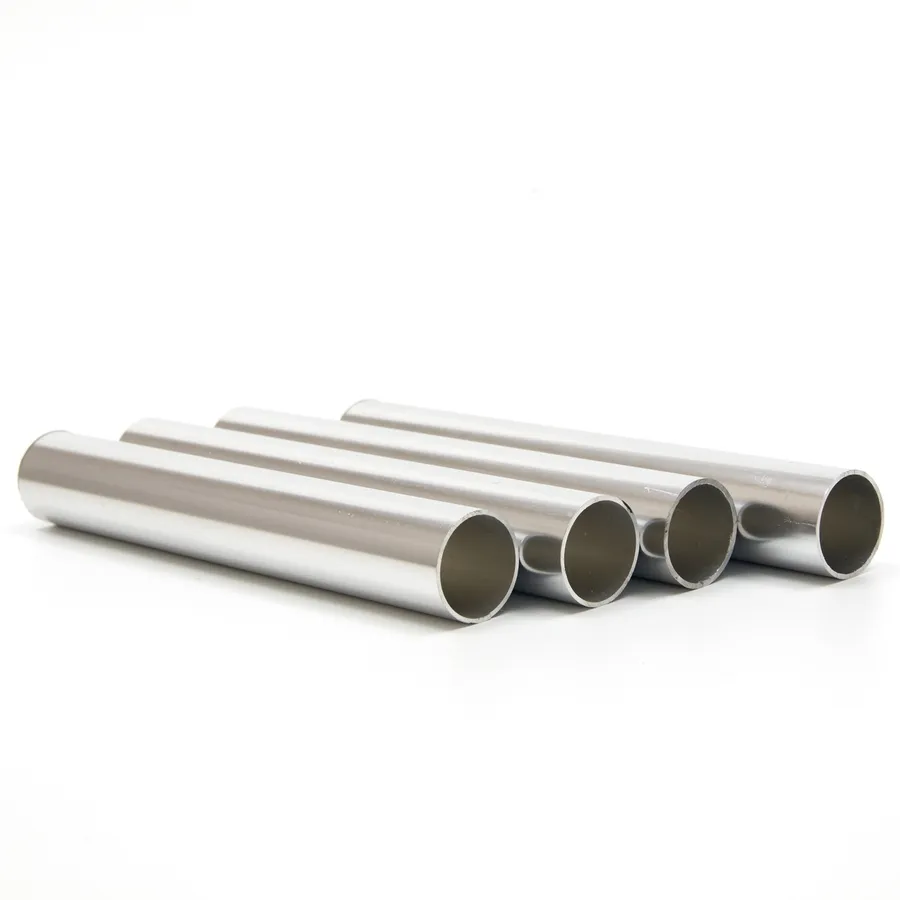

Circular pipes help spread loads uniformly, providing vital strength and flexibility. Perfect for carrying fluids and gases safely.

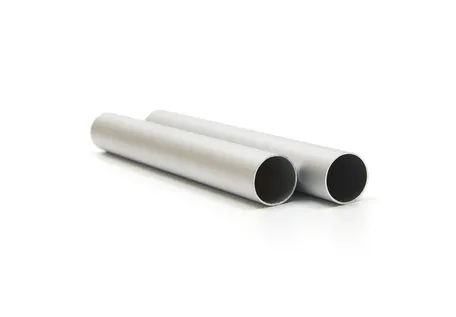

Aluminum's barrier properties protect contents from light, moisture, and pollution, serving cosmetics, pharmaceuticals, and food industries.

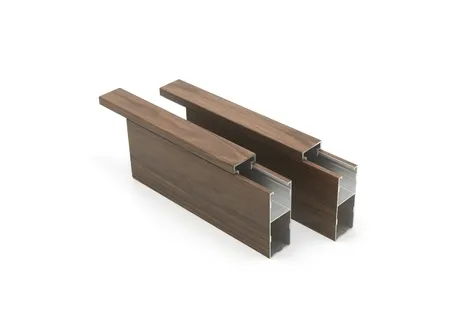

Used in bicycles, camping equipment, and outdoor gear. Lightweight nature ensures a balance of strength and mobility.

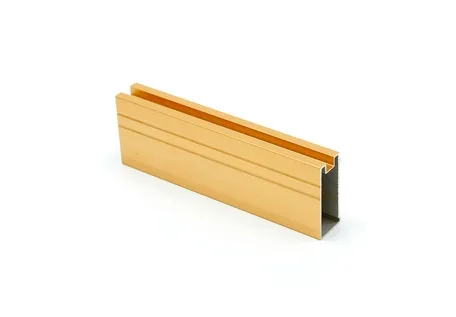

Thicker walls provide heavy-duty support for structural purposes, while thinner walls offer flexibility for lightweight applications like weathervanes.
