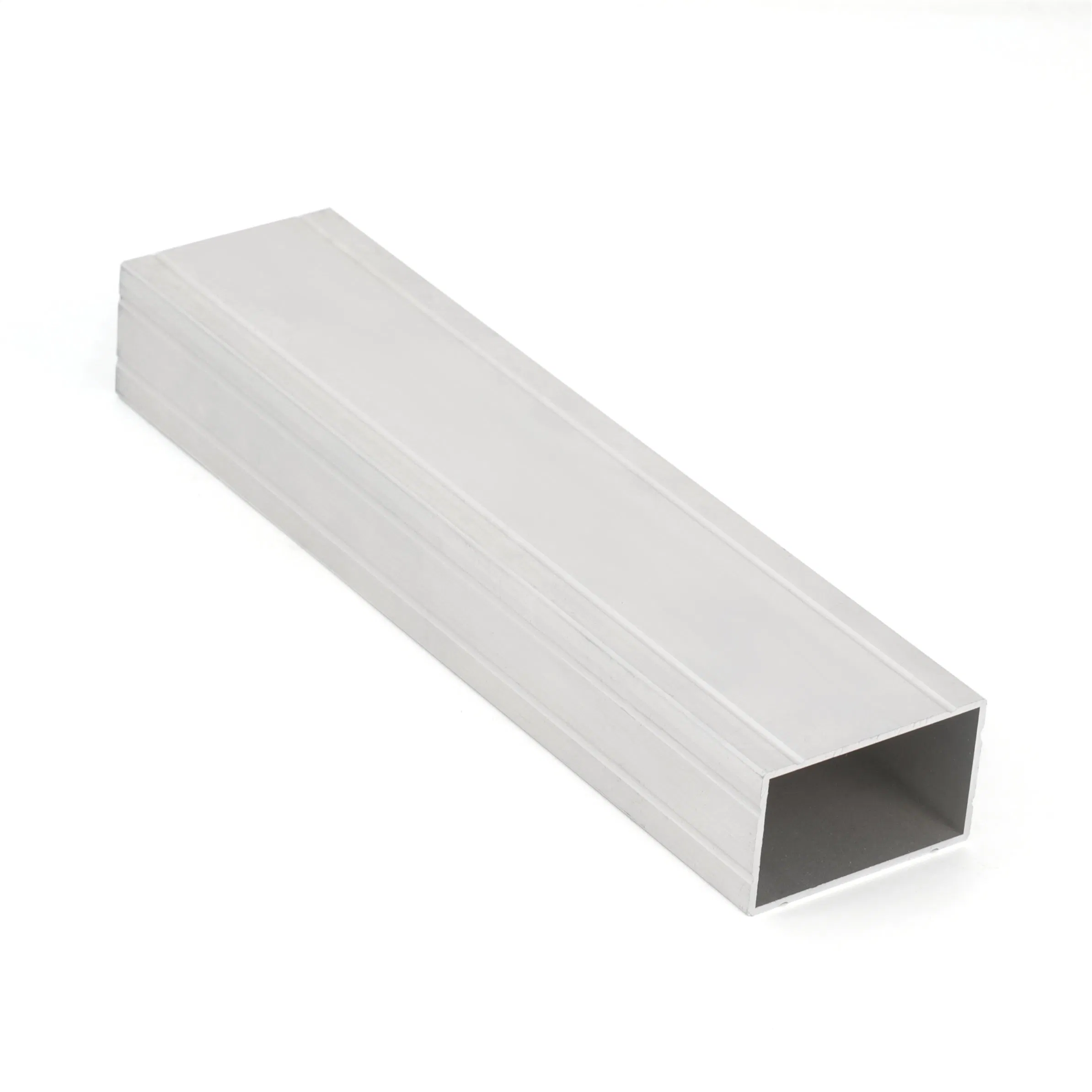

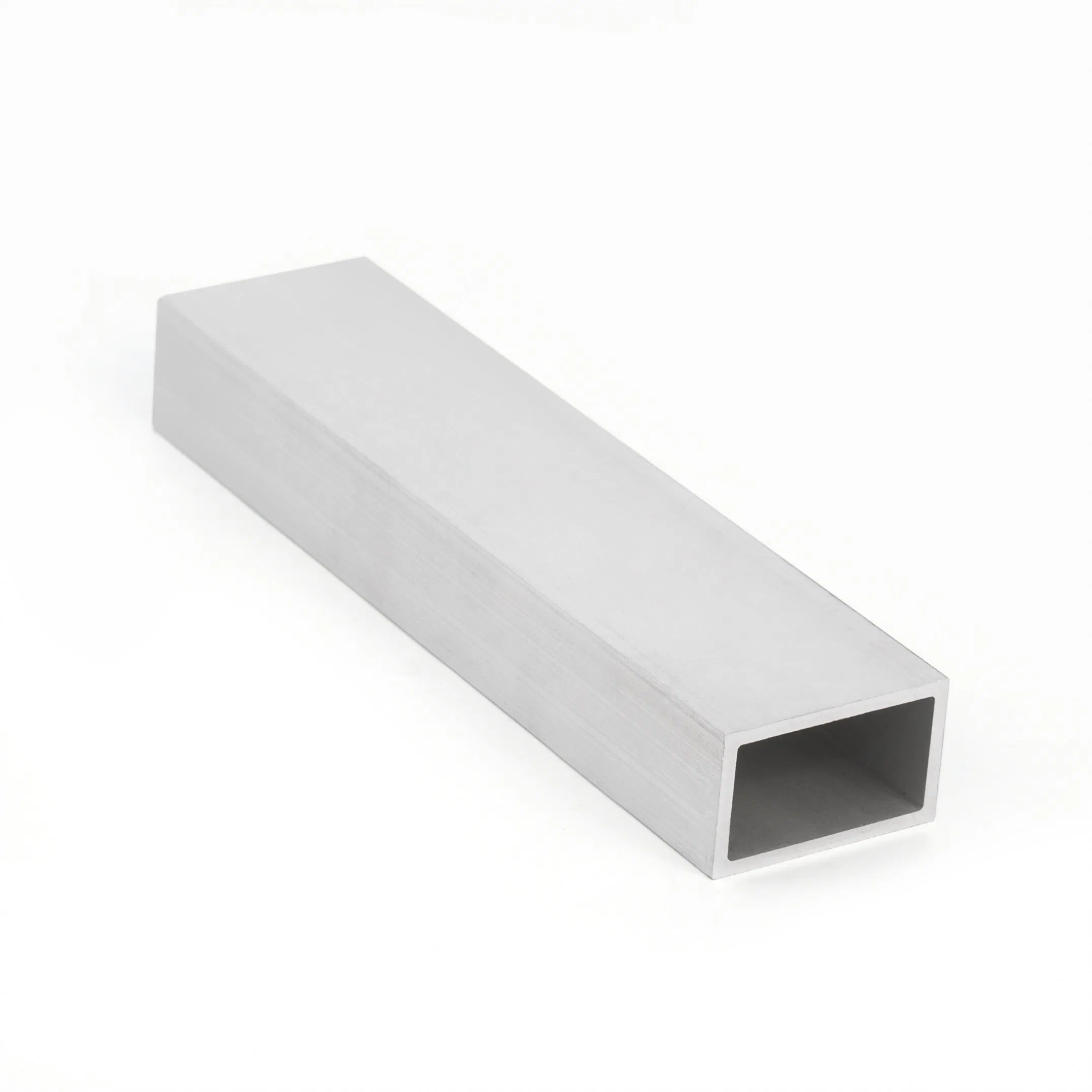

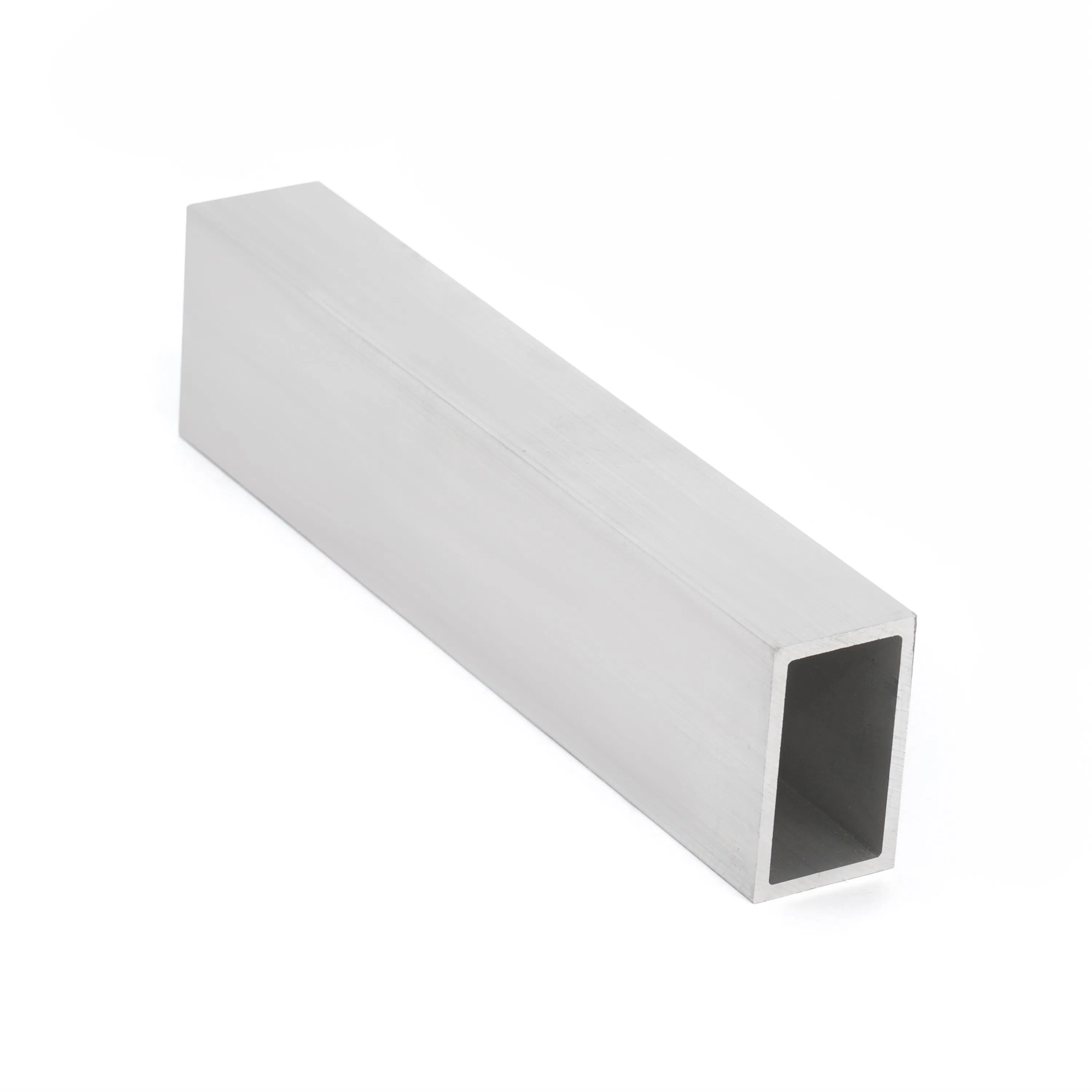

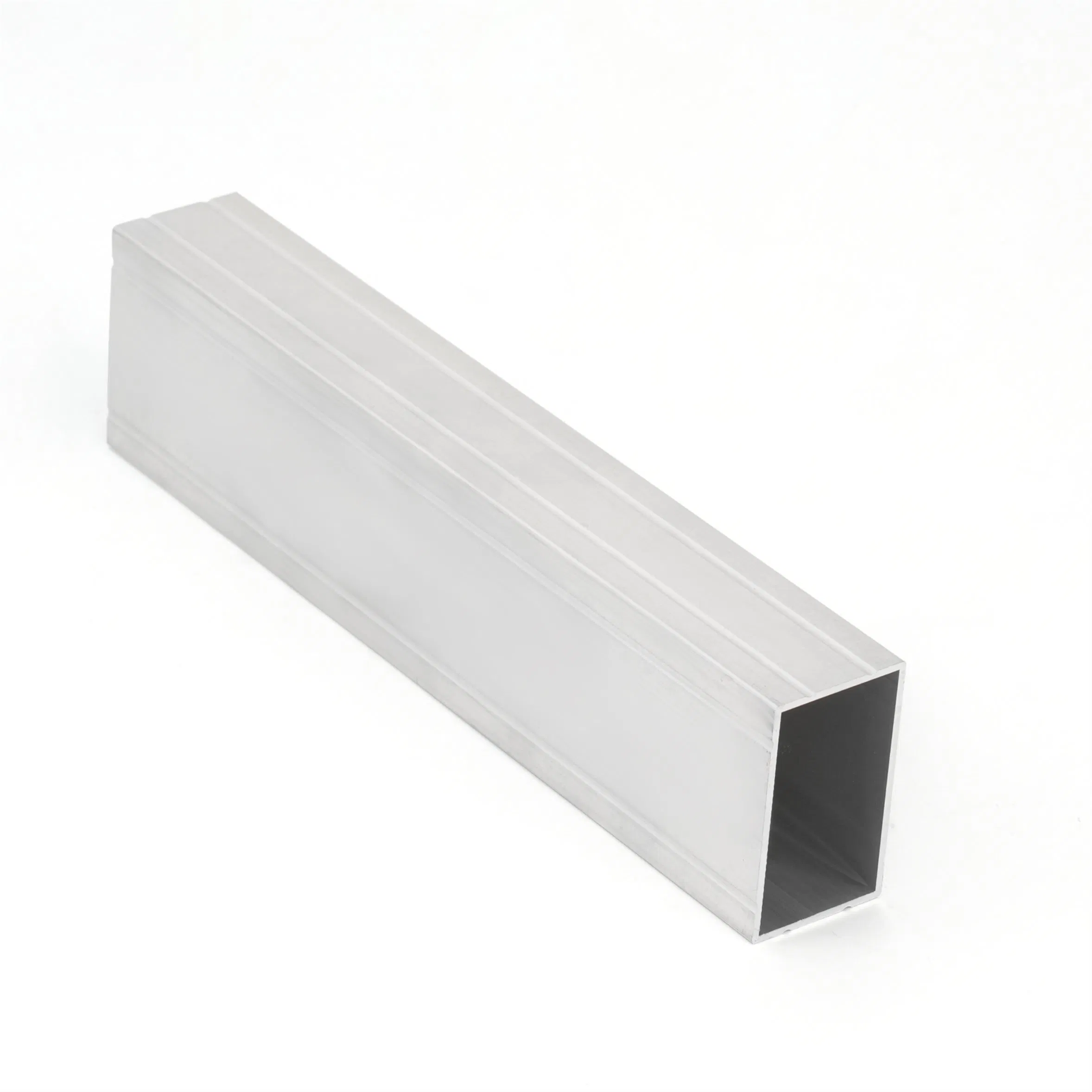

Medical Equipment CNC Machining Rectangular Custom Aluminum Tubing Stockist

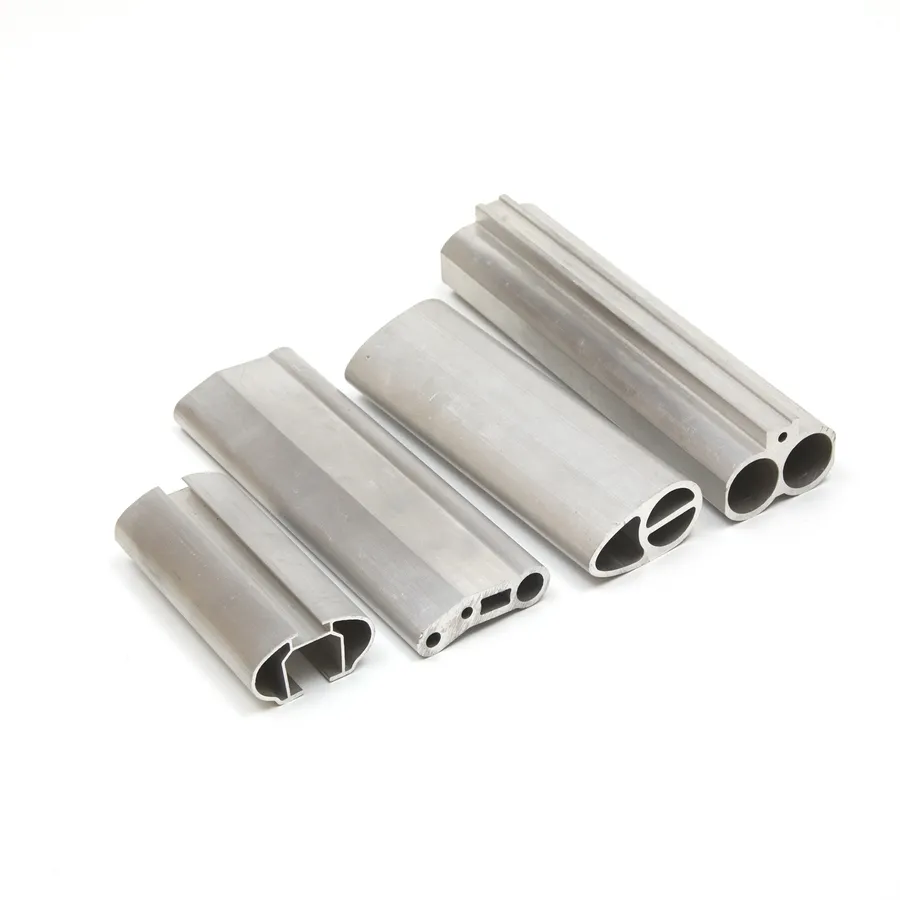

With our continuous improvement process and commitment to excellence, we are a leading and professional Aluminum extrusion profile factory. Our main products include industry aluminum profiles and building aluminum profiles, such as aluminum tubes, aluminum heatsink profiles, aluminum shells, T-slot profiles, orbital profiles, and window/door profiles.
| Technical Specifications | |
|---|---|
| Item | Aluminum Round Tube |
| Material | Alloy 6063, 6061 |
| Temper | T3, T4, T5, T6 |

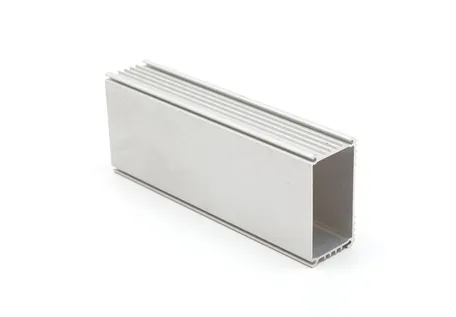

| Profile Type | Aluminum Extrusion Heat sink for medical equipment, LED Heat sink, CPU Cooler, LED Lamp, Notebook cooler, etc. |
| Processing | Extruding, Precise cutting, Straight rectification, Bending, Drilling, Tapping, Stamping, CNC milling, CNC lathe. (Tolerance: 0.05mm - 0.2mm) |
| Certificate | ISO14001:2004, ISO9001:2000 |
| Standard | China GB/T6892-2006, Europe EN12020, American AAMA611-98 |
Chemical Composition (%)
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | Rest |
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| 6063 | T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |

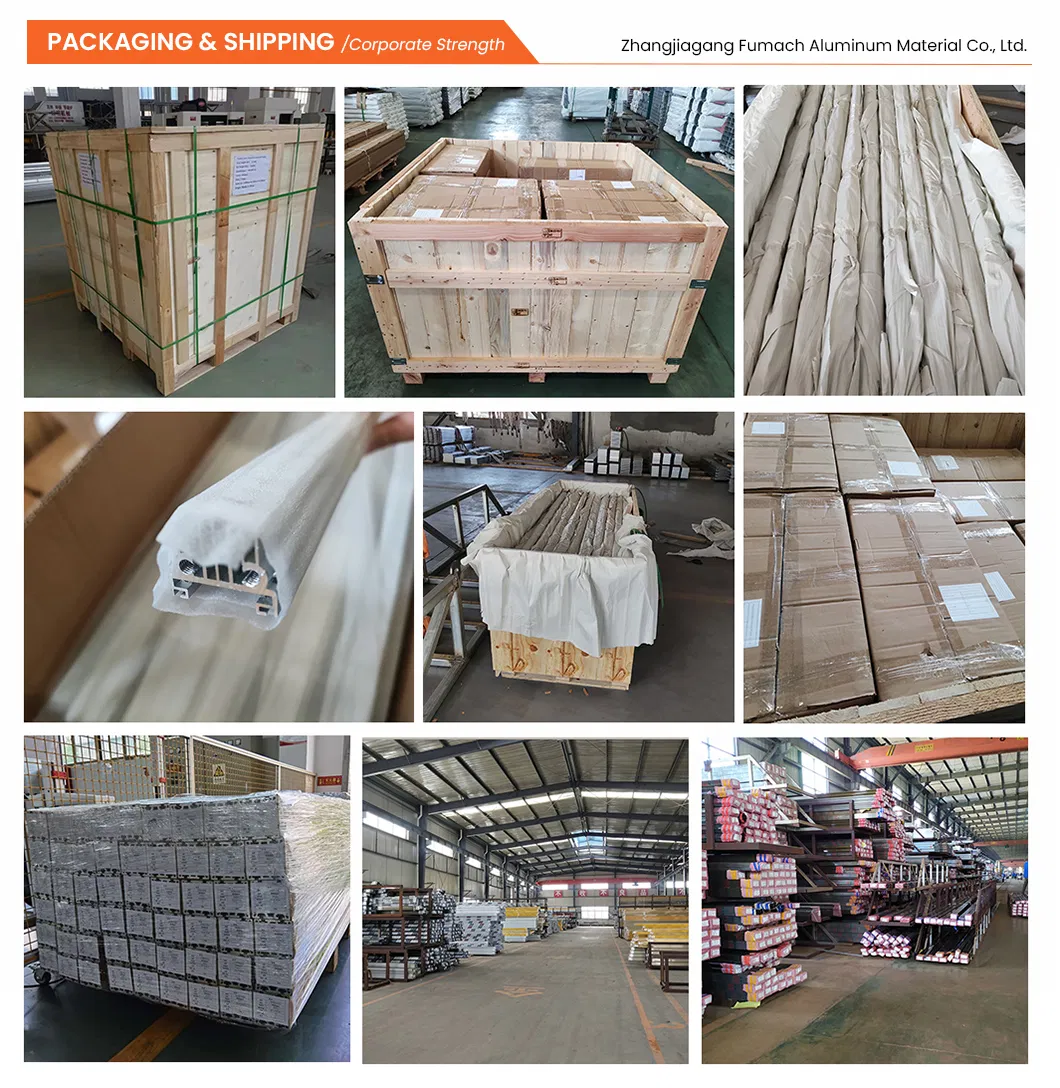

Product design → Die Making → IQC → Extruding → Cutting → Heat Treatment → Harder Test → Surface Treatment → Coating Test → Finish Processing → Packing → Shipping → After Sale Service

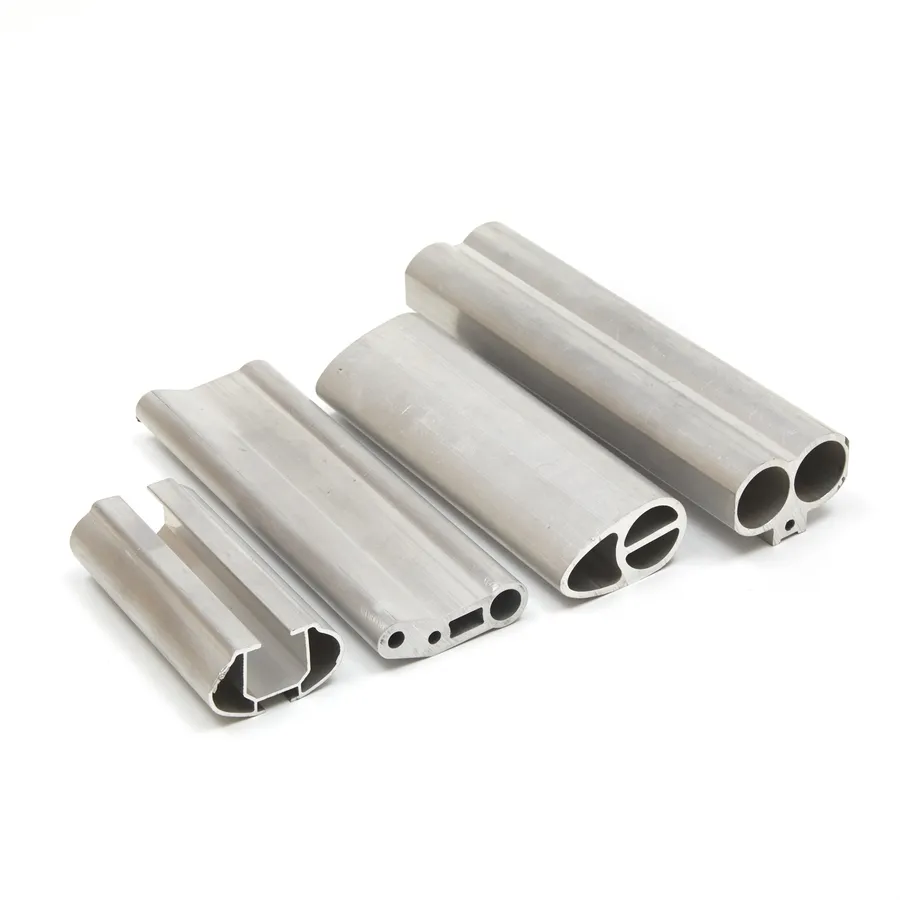

Aluminum tubes are cylindrical tubes made from aluminum alloys, commonly used in aerospace, automotive, and construction. Known for high strength-to-weight ratio, corrosion resistance, and recyclability. Available in 6061, 6063, and 7075 alloys.

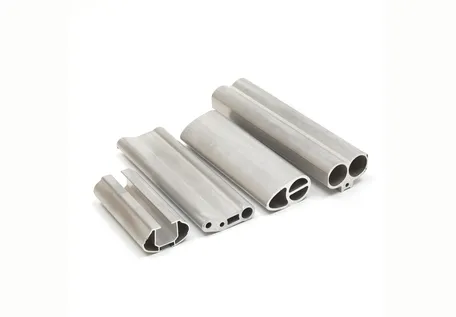

Ideal for frameworks, supports, and reinforcements in construction. Corrosion resistance makes these tubes perfect for outdoor building projects exposed to adverse weather.

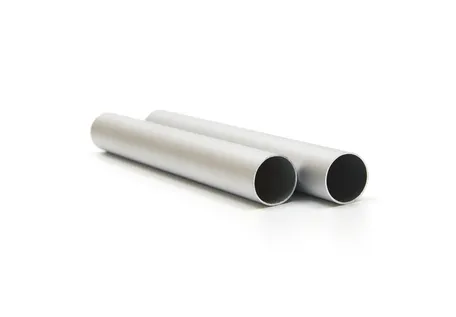

The circular cross-section helps spread loads uniformly, vital for strength and flexibility. Highly recommended for carrying fluids and gases.
Aluminum's barrier properties protect contents from light, moisture, and pollution. Excellent for cosmetics, pharmaceuticals, and food products.

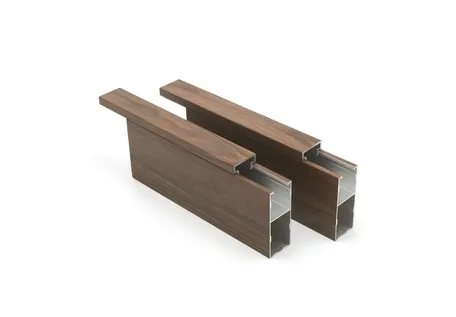

Used in designing bicycles, camping equipment, and outdoor gear. Lightweight nature ensures a perfect balance of strength and mobility.

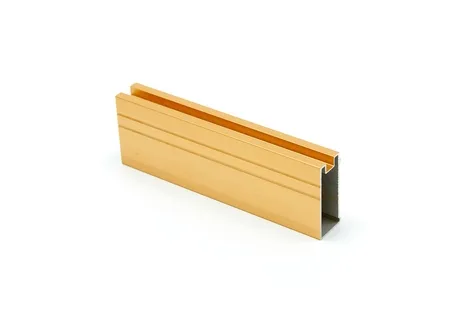

Thickness varies by use. Thicker walls offer structural support for adverse elements, while thinner walls provide flexibility for decorative or light functional uses.
