Premium 6061 Heat-Treated Aluminum Tubing for Precision Engineering

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

Aluminum Tube

Surface Treatment

Anodized

Grade

6000 Series

Alloy

Temper

T3 - T8

Product Name

Aluminum Tube

Length

1-6 Meters/Customizable

Hardness

T3-T8

Type

Seamless, Extruded

Al (Min)

97.5%

Wall Thickness

1-65mm/Customizable

Standard

ASTM, AISI, JIS, En, GB, etc.

Diameter

6-640mm/Customizable

Deep Process

CNC, Drilling, Milling, Cutting, Welding, Bending

Origin

China

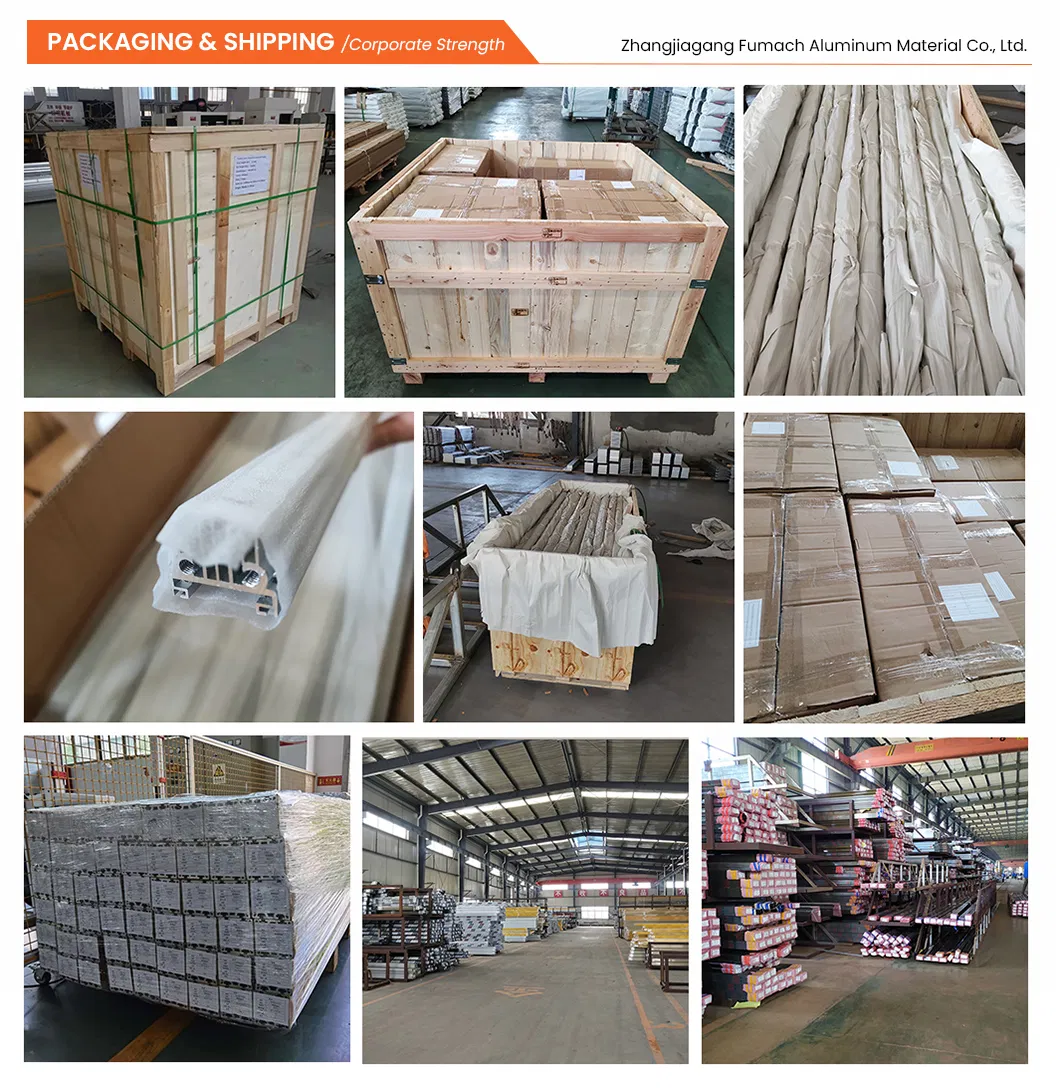

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

25.000kg

Transport Package

Standard Packaging or Customized

Product Description

⚙️

6061 Custom Heat-treated Precision-engineered Welded Seamless Aluminum Tubing

With a continuous improvement process and commitment to excellence, we provide a wide range of industrial and building aluminum profiles including heatsinks, shells, T-slot profiles, orbital profiles, and window/door solutions.

Technical Specifications

Item	Description
Material	Alloy 6063, 6061
Temper	T3, T4, T5, T6
Profile Type	Aluminum Extrusion Heat sink for medical equipment, LED, CPU Cooler, Notebook cooler, etc.
Processing	Extruding, Precise cutting, Straight rectification, Bending, Drilling, Tapping, CNC mill/lathe.
Tolerance	Length: 0.2mm, Hole: 0.05mm
Certificates	ISO14001:2004, ISO9001:2000

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile strength	Yield strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Workflow & Advantages

Flowchart: Product design → Die Making → IQC → Extruding → Cutting → Heat Treatment → Harder Test → Surface Treatment → Coating Test → Finish Processing → Packing → Shipping

✓ Engineering design and support.

✓ Deep processing: cutting, punching, drilling, milling.

✓ High-quality inspection system throughout production.

Detailed Applications

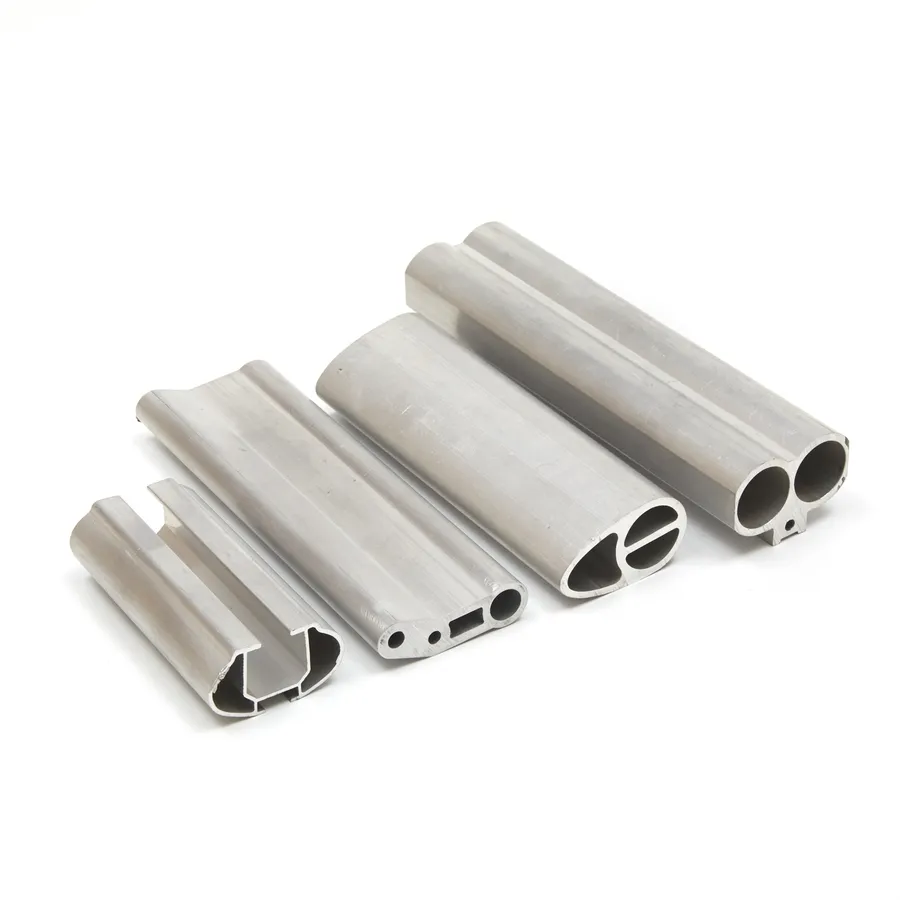

ALUMINUM TUBE OVERVIEW

Commonly used in aerospace, automotive, and construction. Known for high strength-to-weight ratio, corrosion resistance, and recyclability. Available in 6061, 6063, and 7075 alloys.

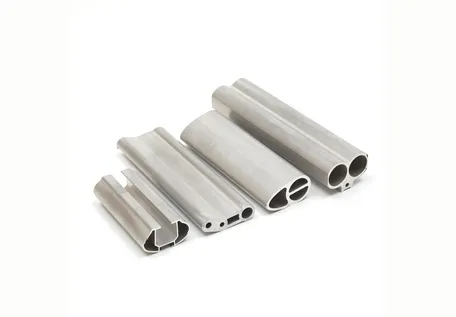

Structural Applications

Ideal for frameworks, supports, and reinforcements. Corrosion resistance makes them perfect for outdoor building projects.

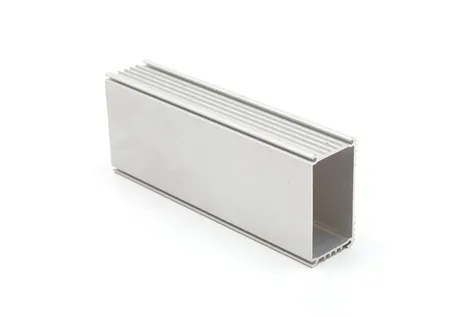

Circular Cross-Section

Circular designs help spread load uniformly, vital for strength. Excellent for carrying fluids and gases.

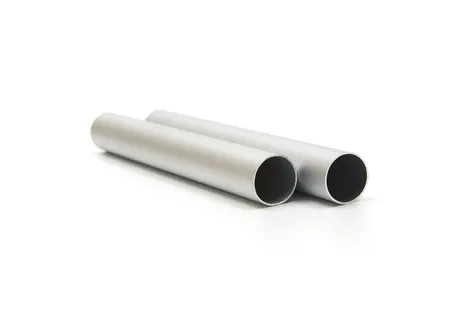

Packaging Solutions

Used in cosmetics, pharmaceuticals, and food products. Barrier properties protect contents from light and moisture.

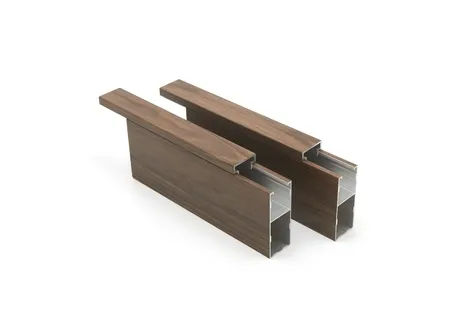

Recreational Products

Used for bicycles, camping equipment, and outdoor gear due to lightweight strength and mobility.

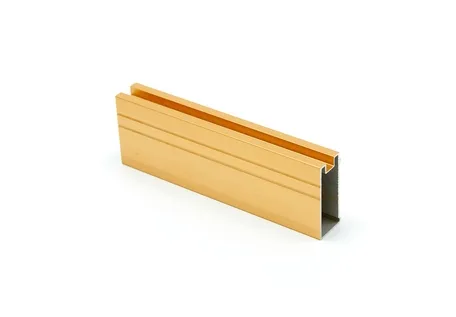

Varying Wall Thickness

Thicker walls provide strong support for structural purposes, while thinner walls offer flexibility for specialized uses like weathervanes.

Frequently Asked Questions

How long does it take to get a sample?

Samples are typically ready in 7-10 days. Customers should provide PDF or AI files for custom requests and cover transportation and sample costs.

What surface finishes do you provide?

We offer various finishing services including anodizing, brushing/wire-drawing, sandblasting, silk-screen printing, and painting.

What colors are available for anodized aluminum?

Standard colors include silver, black, blue, red, green, and gold. Other custom colors can also be accommodated upon request.

What are the primary applications for your aluminum tubes?

Our tubes are widely used in industrial frameworks, automotive components, medical equipment heatsinks, LED lighting, and outdoor recreational products.

What is your typical delivery timeframe?

Standard delivery times are generally between 7-10 days after the receipt of the deposit.

Do you offer custom processing services?

Yes, we provide deep processing including CNC milling, drilling, precise cutting, bending, tapping, and stamping to meet specific technical requirements.
