Semi-Automatic Radiator Tank Clinching Machine
Semi-Automatic Radiator Tank Clinching Machine
Semi-Automatic Radiator Tank Clinching Machine
Semi-Automatic Radiator Tank Clinching Machine
Semi-Automatic Radiator Tank Clinching Machine
1 / 5
Semi-Automatic Radiator Tank Clinching Machine
Semi-Automatic Radiator Tank Clinching Machine
Semi-Automatic Radiator Tank Clinching Machine
Semi-Automatic Radiator Tank Clinching Machine
Semi-Automatic Radiator Tank Clinching Machine

Semi-Automatic Radiator Tank Clinching Machine

Customization: Available
After-sales Service: Available
Warranty: One Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
YZJ-120A
Suitable Radiator Core Width
450-1000mm
Suitable Header Plate Length
20-1000mm
Suitable Header Plate Width
30-120mm
Servo Motor Power
0.75kw X 2
Clinching Speed
1-20 Times Per Minute
Machine Weight
About 3200kg
Origin
China
Production Capacity
10 Sets Per Month
Product Description

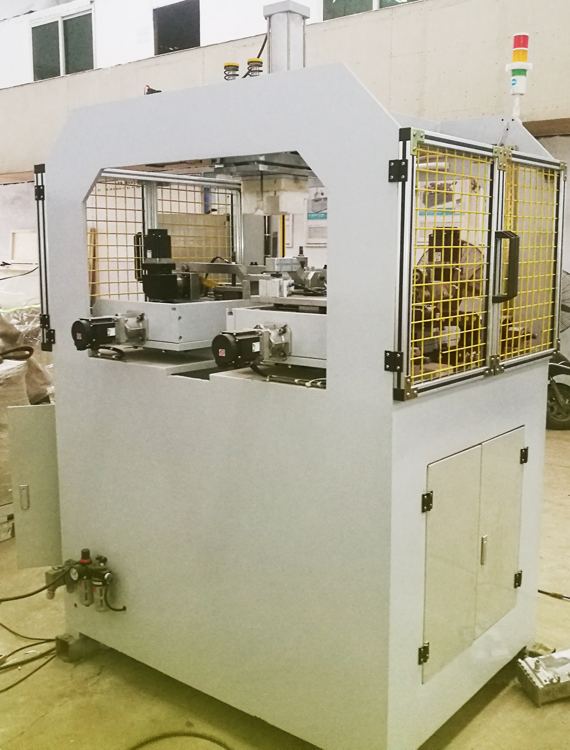

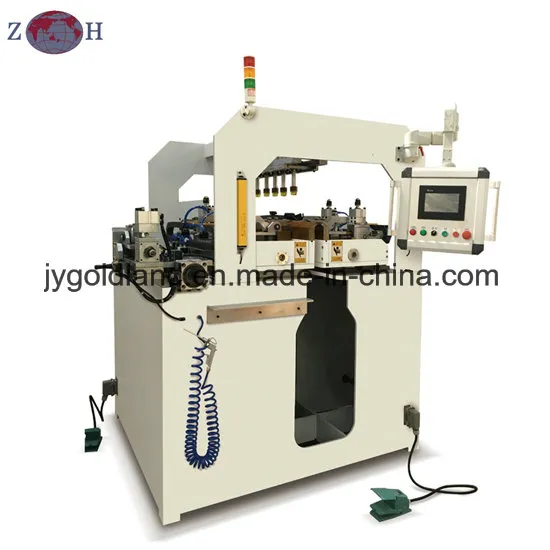

This semi-automatic radiator tank clinching machine is our state-of-the-art design for clinching plastic tanks with header plates of radiators.

This machine features two working stations. After finishing clinching the long edge of the tank on the main station, the workpiece should be manually moved to the auxiliary station for clinching the short edge. This machine processes high automation and is suitable for most types of existing water tanks.

Main Features
  • PLC control, HMI operation, servo driven, and automatic clinching.
  • Automatic leaving gap for tank mouth with idle stroke quick moving, suitable for various plastic tank clinching.
  • Technological parameters can be preset and displayed on HMI.
  • Quick and easy changing of clinching tools for different sized tanks.
  • Multiple units of radiator tank parameters can be saved and recalled.
  • Both auto and manual control methods available (Auto for production, Manual for sampling & testing).
  • Comprehensive safety measures: alarming lamp, actions interlock, and safety grating ruler.
  • Real-time HMI display of working conditions.
Main Technical Data
Item Data
Suitable core width450-1000mm
Suitable header plate width30-120mm
Suitable header plate length20-1000mm
Clinching pitchAdjustable, default 10mm
Clinch speed1-20 times per minute
Deformation after clinchingLess than 0.5mm
Tool changeover timeLess than 10min
Servo motor power0.75kW x 2
Air source0.6MPa, 0.01m3/min
Machine dimensionAbout 2300 x 2200 x 1700mm
Machine weightAbout 3200kg
Main Configuration
  • PLC & HMI: Delta from Taiwan
  • Servo Motor & Driver: Delta from Taiwan
  • Contactor & Circuit Breaker: Schneider
  • Approaching Switch: Omron from Japan
  • Linear Guide & Ball Screw: TBI from Taiwan
  • Pneumatic Components: AIRTAC from Taiwan
Product Gallery
Semi-Automatic Radiator Tank Clinching Machine Overview
Radiator Tank Clinching Detail
Clinching Machine Components
Radiator Core Processing
Machine Structure
Control System

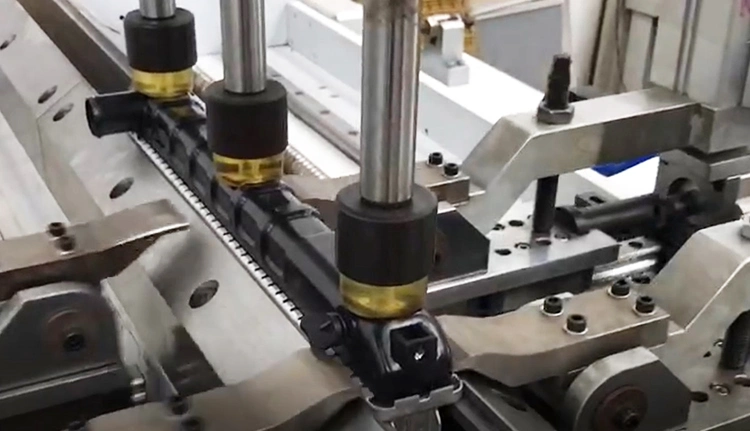

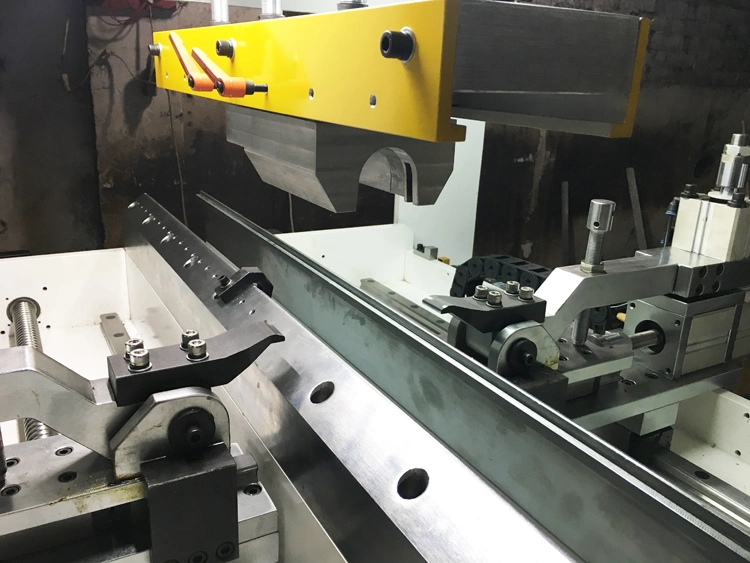

Clinching Tooling

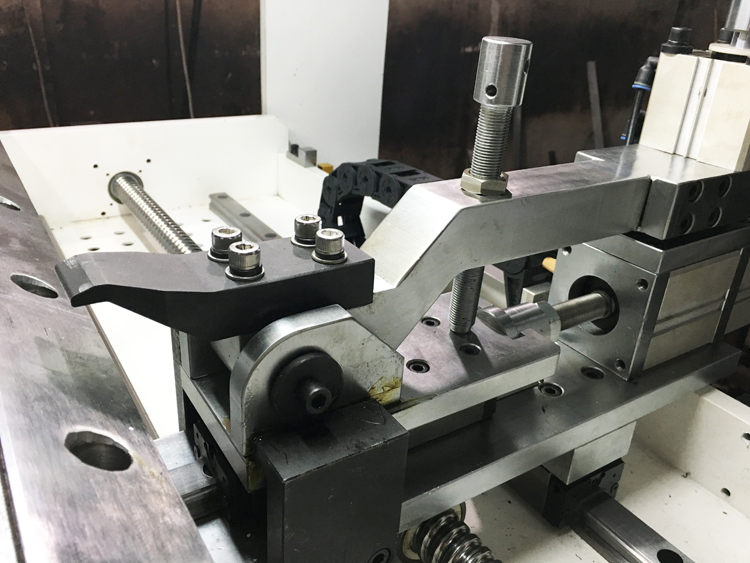

Working Station Detail
Side View of Machine
Header Plate Support
Finished Radiator
Machine Operation
Frequently Asked Questions
What types of radiator tanks can this machine process?
It is designed for clinching plastic tanks to aluminum radiator header plates, suitable for most existing water tank designs.
How long does it take to change the tools for different radiator sizes?
The tool changeover process is quick and easy, typically taking less than 10 minutes for another size tank.
Does the machine support custom clinching pitches?
Yes, the clinching pitch is adjustable via the HMI system, with a default setting of 10mm.
How is the deformation controlled during the clinching process?
The precision servo drive and PLC control ensure that the deformation of the core and header plate is kept under 0.5mm.
Can the machine store different product parameters?
Yes, the HMI allows you to save and recall parameters for many different radiator units, speeding up the setup for recurring orders.
What safety features are included?
The machine is equipped with alarming lamps, action interlocks, and a safety grating ruler to ensure the operator's protection during operation.
