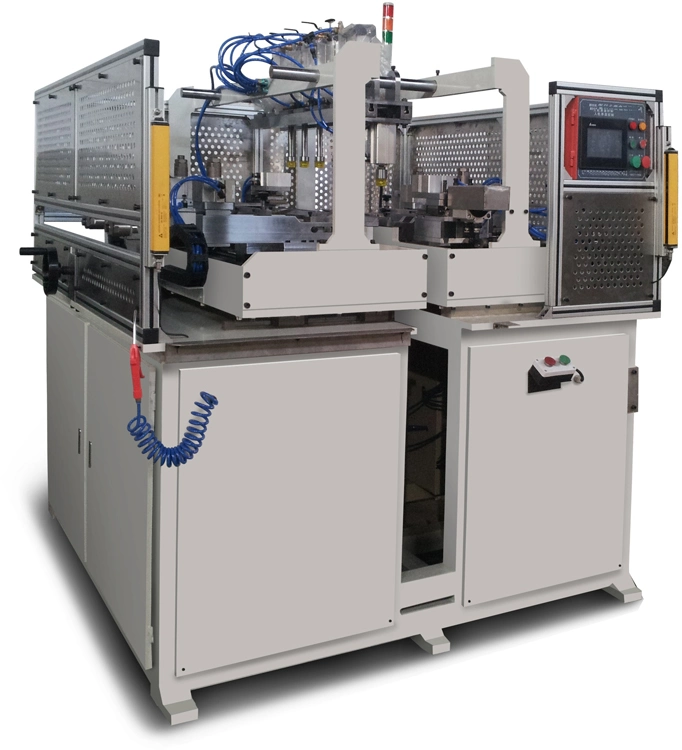

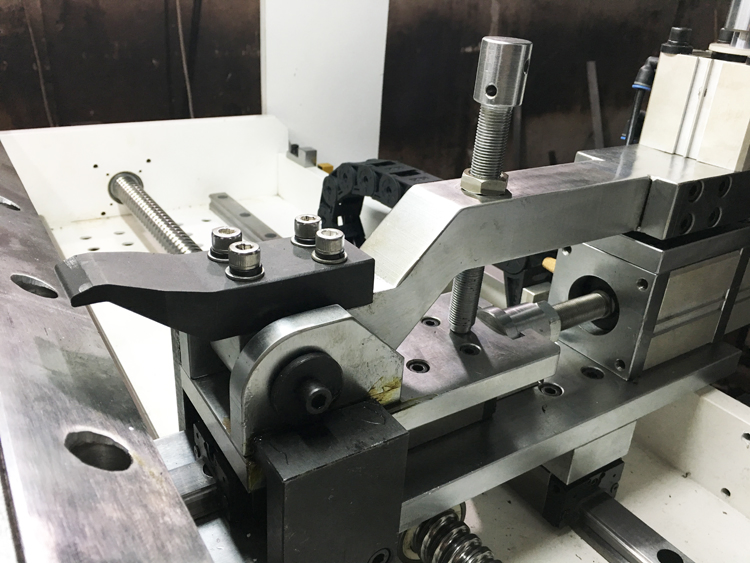

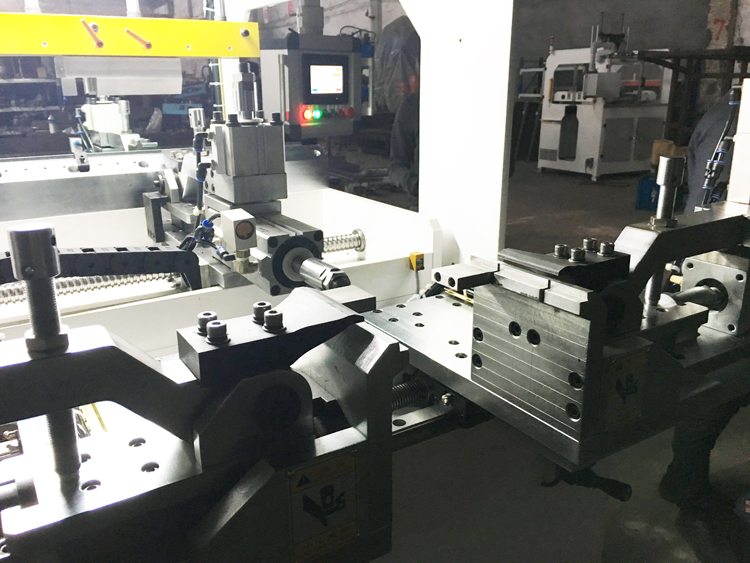

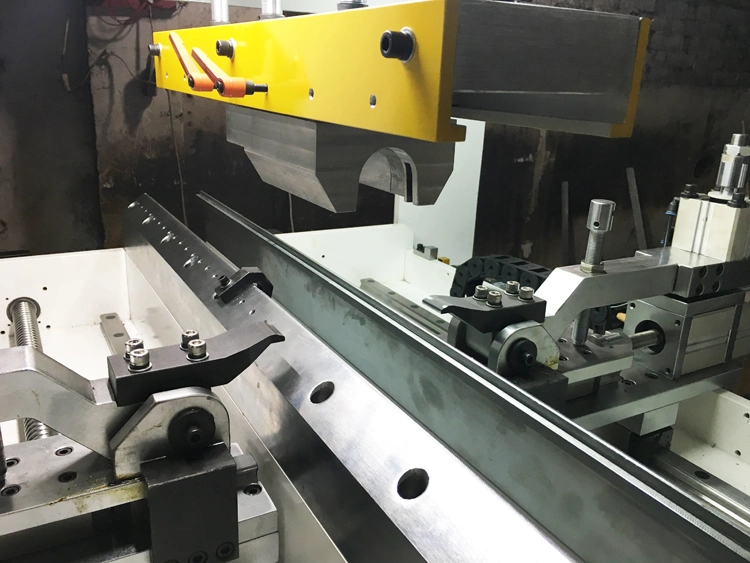

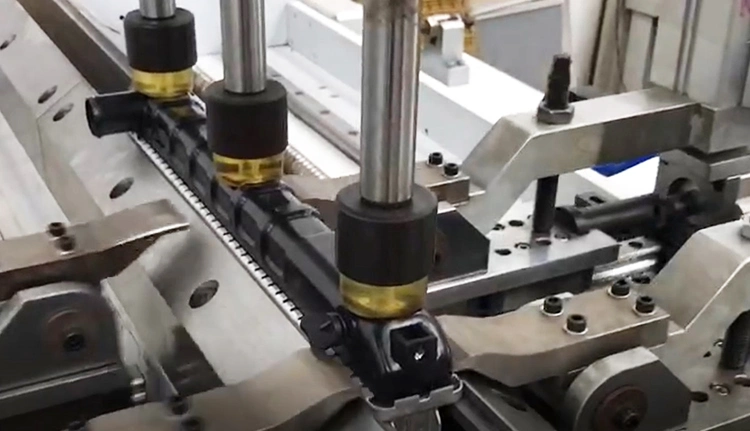

This full-automatic radiator plastic water chamber clinching machine is our state-of-the-art design for crimping plastic water tank with header plate of radiator. This machine has only one working station, both two long edges and two short edges of header plates will be clinched in one cycle automatically. This machine processes high automation, suitable for most type of existing water tanks.
| Item | Data |
|---|---|
| Suitable core width | 450-1000mm |
| Suitable header plate width | 30-140mm |
| Suitable header plate length | 200-1000mm |
| Clinching pitch | Adjustable, default 10mm |
| Clinch speed | 1-20 times per minute |
| Deformation after clinching | Less than 0.5mm |
| Tool changeover time | Less than 10min |
| Servo motor power | 0.75kW x 2 |
| Air source | 0.6MPa, 0.01m3/min |
| Machine dimension | About 2300 x 2200 x 1700mm |
| Machine weight | About 3200kg |
