| Model NO. | YZJ-120A |
| Suitable Radiator Core Width | 450-1000mm |
| Suitable Header Plate Length | 20-1000mm |
| Suitable Header Plate Width | 30-120mm |
| Servo Motor Power | 0.75kw X 2 |
| Clinching Speed | 1-20 Times Per Minute |
| Machine Weight | About 3200kg |
| Specification | 2300 x 2200 x 1700mm |
| Origin | China |
| Production Capacity | 10 Sets Per Month |

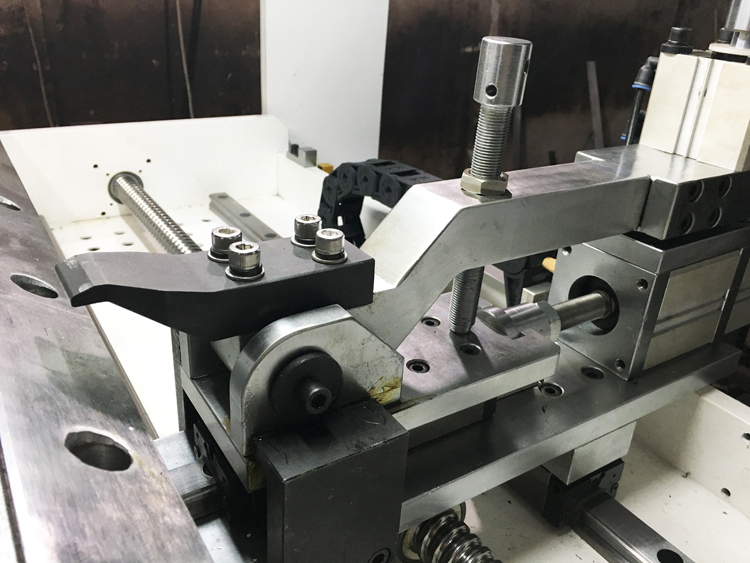

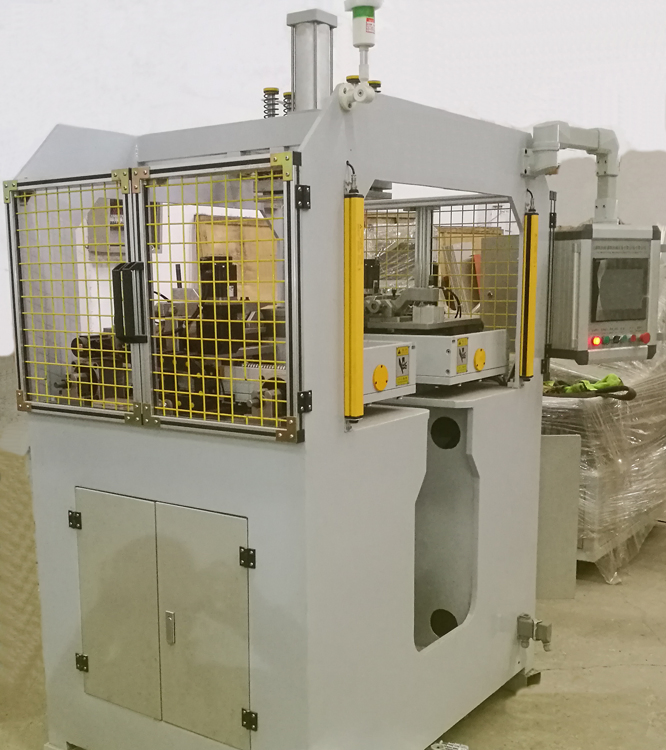

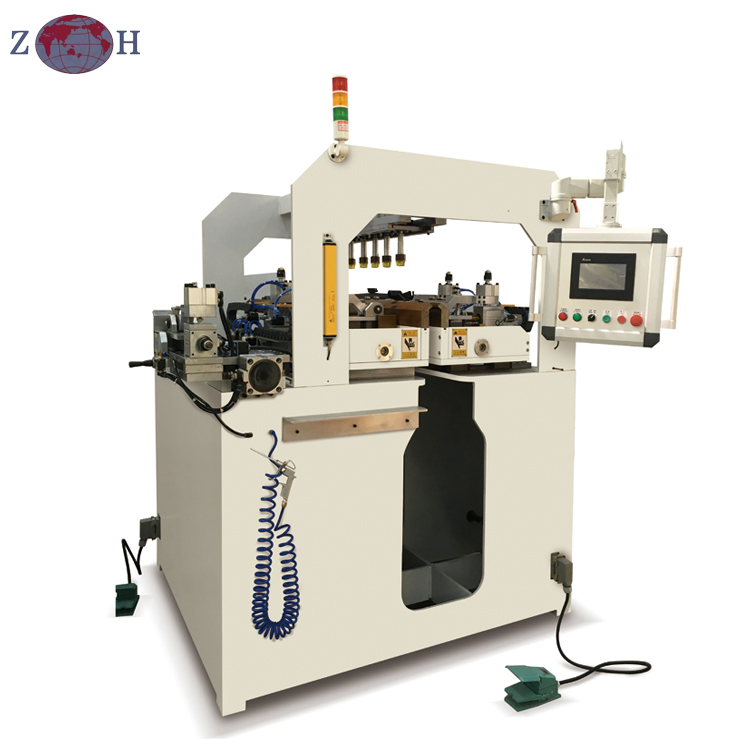

This semi-automatic radiator tank crimping machine is a state-of-the-art design for crimping plastic water tanks with radiator header plates. It features two working stations: after finishing the long edge on the main station, the workpiece is manually moved to the auxiliary station for the short edge. This machine offers high automation and is compatible with most existing water tank types.
| Item | Data |
|---|---|
| Suitable Core Width | 450-1000mm |
| Suitable Header Plate Width | 30-120mm |
| Suitable Header Plate Length | 20-1000mm |
| Clinching Pitch | Adjustable, default 10mm |
| Clinch Speed | 1-20 times per minute |
| Deformation after Clinching | Less than 0.5mm |
| Tool Changeover Time | Less than 10min |
| Servo Motor Power | 0.75kW x 2 |
| Air Source | 0.6MPa, 0.01m³/min |
| Machine Dimension | About 2300 x 2200 x 1700mm |
