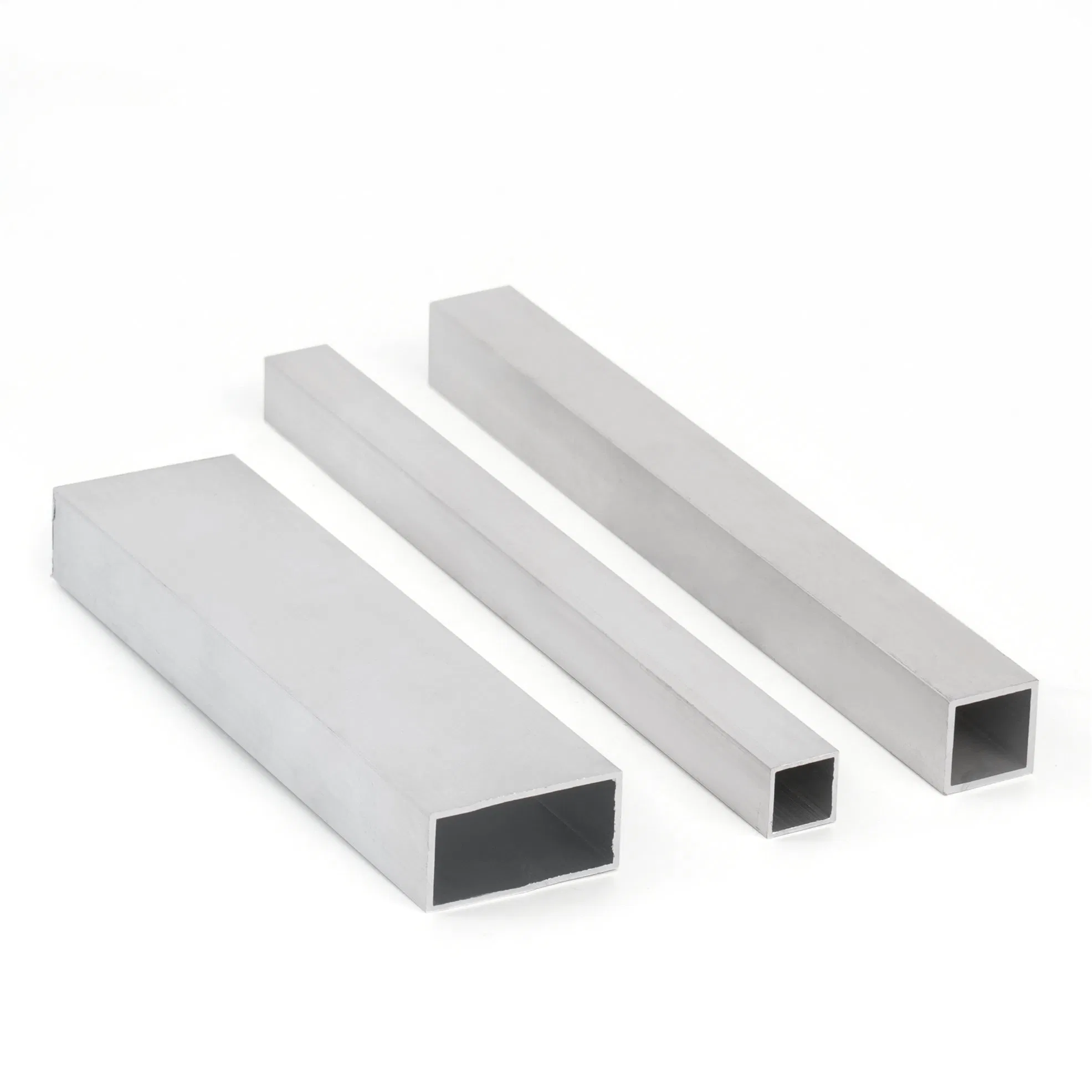

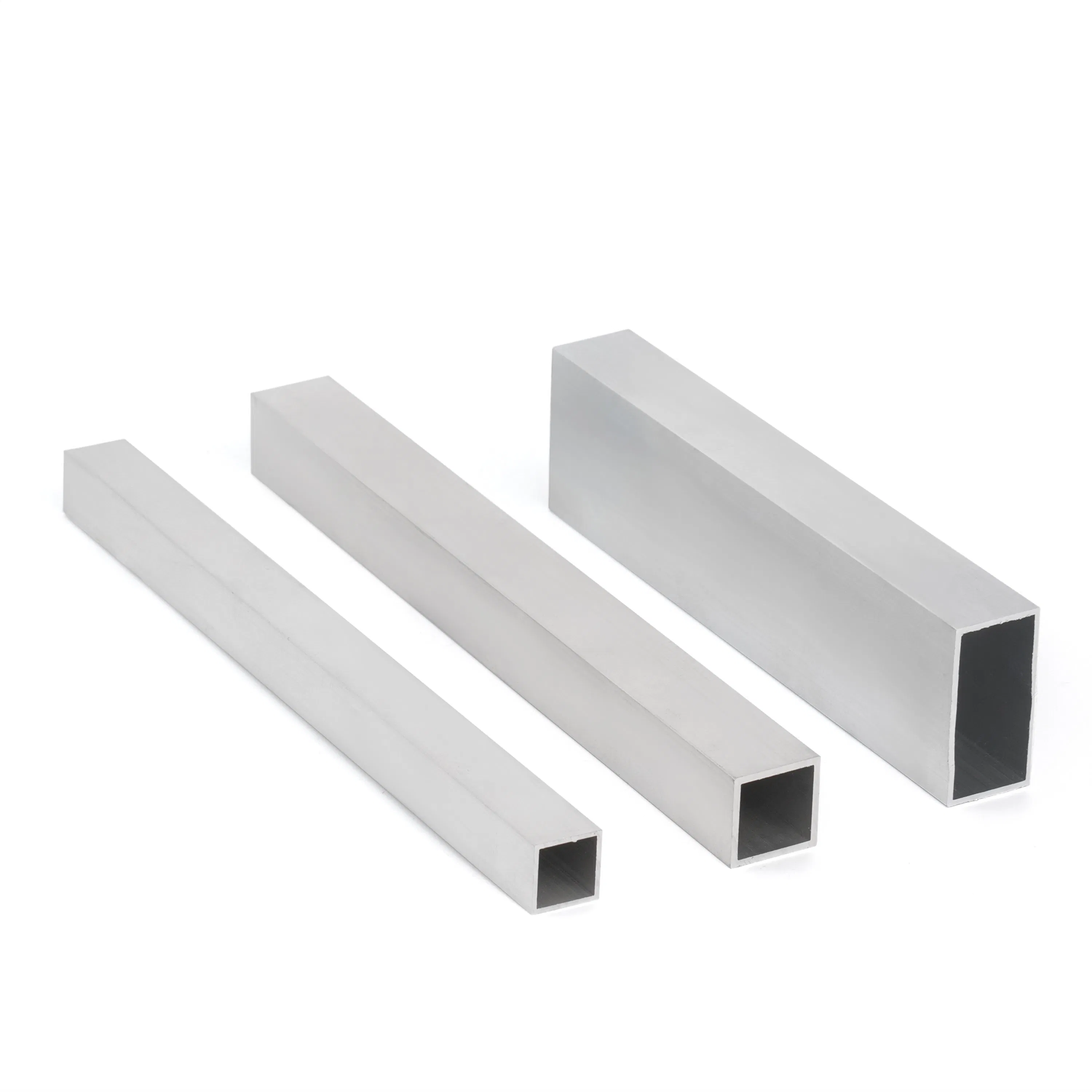

Powder-Coated Recyclable Customizable Electronic Enclosures Rectangular Aluminum Tubing

!

Basic Information

Model NO.

Aluminum Tube

Surface Treatment

Anodized

Grade

6000 Series

Alloy

Temper

T3 - T8

Length

1-6 Meters/Customizable

Type

Seamless, Extruded

Al (Min)

97.5%

Wall Thickness

1-65mm/Customizable

Diameter

6-640mm/Customizable

OEM/ODM

Accept

Origin

China

i

Product Description

Powder-coated Recyclable Customizable Electronic Enclosures Rectangular Aluminum Tubing

With a continuous improvement process and commitment to excellence, we provide professional aluminum extrusion profiles. Our main products include industry and building aluminum profiles such as aluminum tubes, heatsink profiles, shells, T-slot profiles, orbital profiles, and window/door profiles.

Available Options:

Standard molds available for immediate use.
Custom drawing service: opening new molds (negotiable based on order quantity).
High precision machining including CNC milling, drilling, and bending.

T

Technical Specifications

Item	Details
Material	Alloy 6063, 6061
Temper	T3, T4, T5, T6
MOQ	200kg (Usually 12-24 tons for containers)
Profile Type	Heat sink for medical equipment, LED, CPU Cooler, notebook cooler, etc.
Processing	Extruding, Precise cutting (0.2mm tolerance), Bending, Drilling, Tapping, CNC Mill/Lathe.
Standard	GB/T6892-2006, EN12020-1,2(2001), AAMA611-98

D

Material Data

1) Chemical Composition (%)

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.25	Rest

2) Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

★

Competitive Advantages

Production Flow: Product design → Die Making → IQC → Extruding → Cutting → Heat Treatment → Hardness Test → Surface Treatment → Coating Test → Finish Processing → Packing → Shipping.

Core Strengths:

Full engineering design and support.
Deep processing: punching, drilling, milling, and fabrication.
Strict quality policy: Zero defect tolerance throughout production.

✔

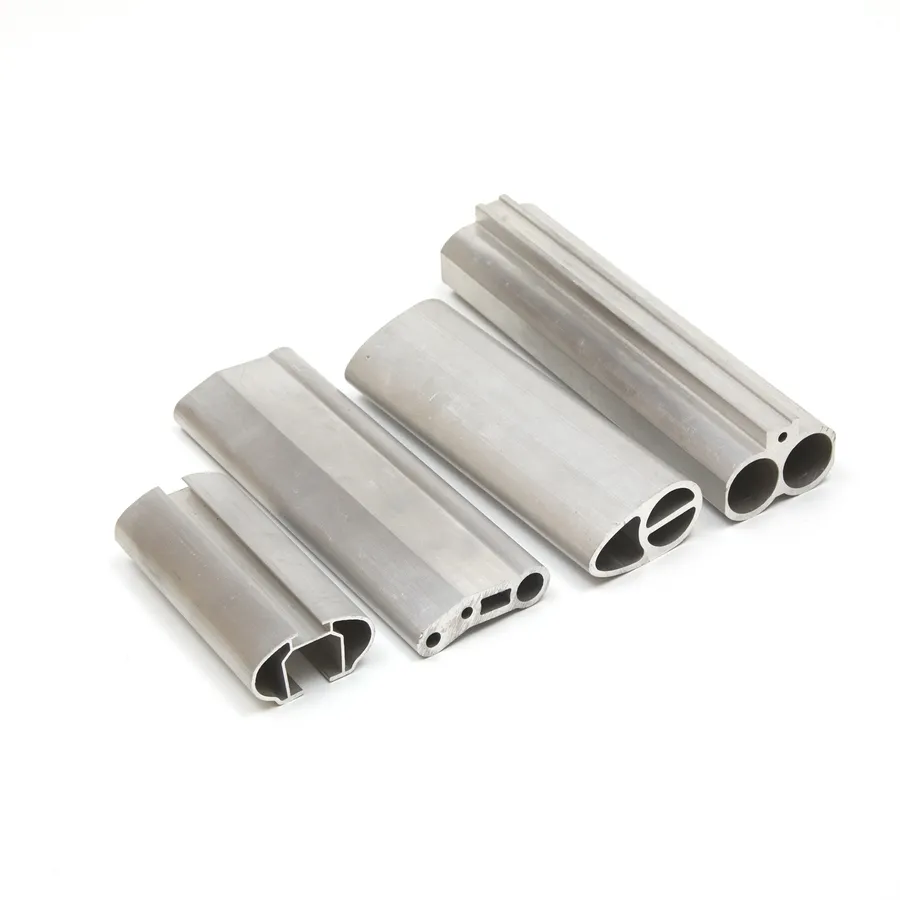

Detailed Photo Analysis

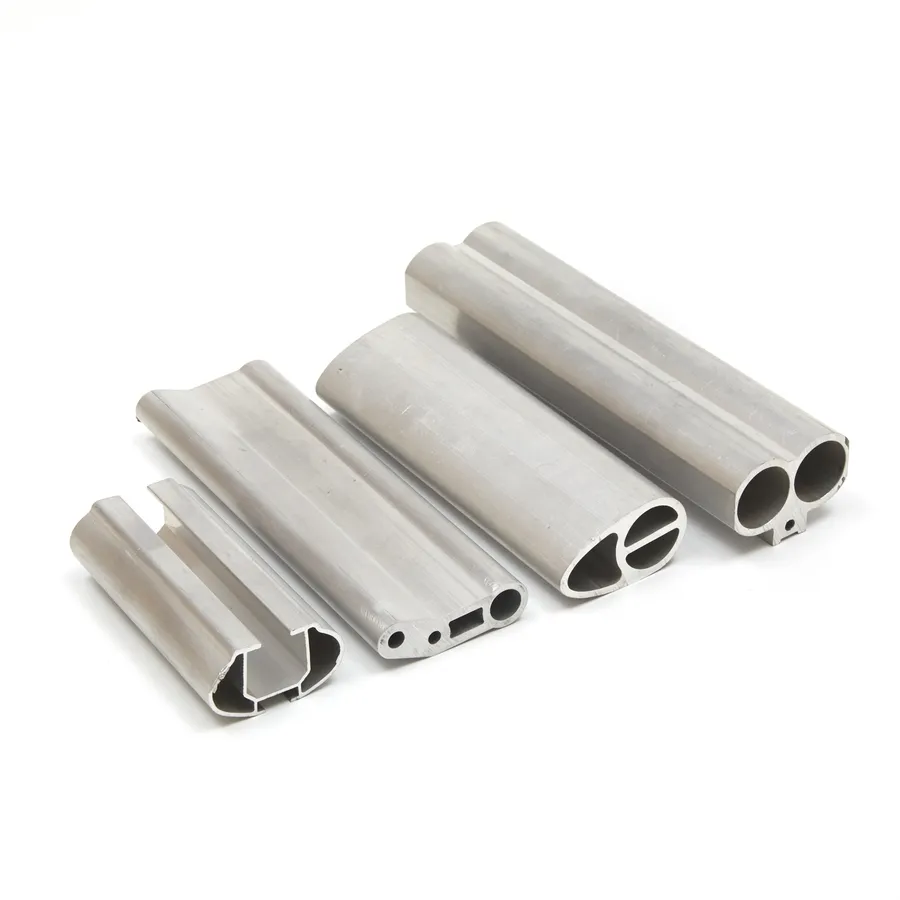

ALUMINUM TUBE ADVANTAGES

Aluminum tubes are known for their high strength-to-weight ratio, corrosion resistance, and recyclability. Common alloys like 6061 and 6063 offer excellent surface finishes and durability for aerospace, automotive, and construction industries.

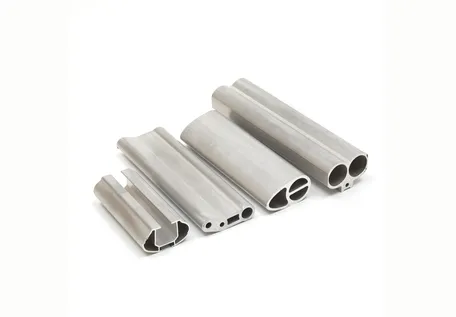

STRUCTURAL APPLICATIONS

Ideal for frameworks, supports, and reinforcements. Resistance to corrosion makes these tubes perfect for outdoor building projects exposed to adverse weather.

CIRCULAR CROSS-SECTION

Circular cross-sections help spread loads uniformly, vital for strength and flexibility, and ideal for carrying fluids or gases.
