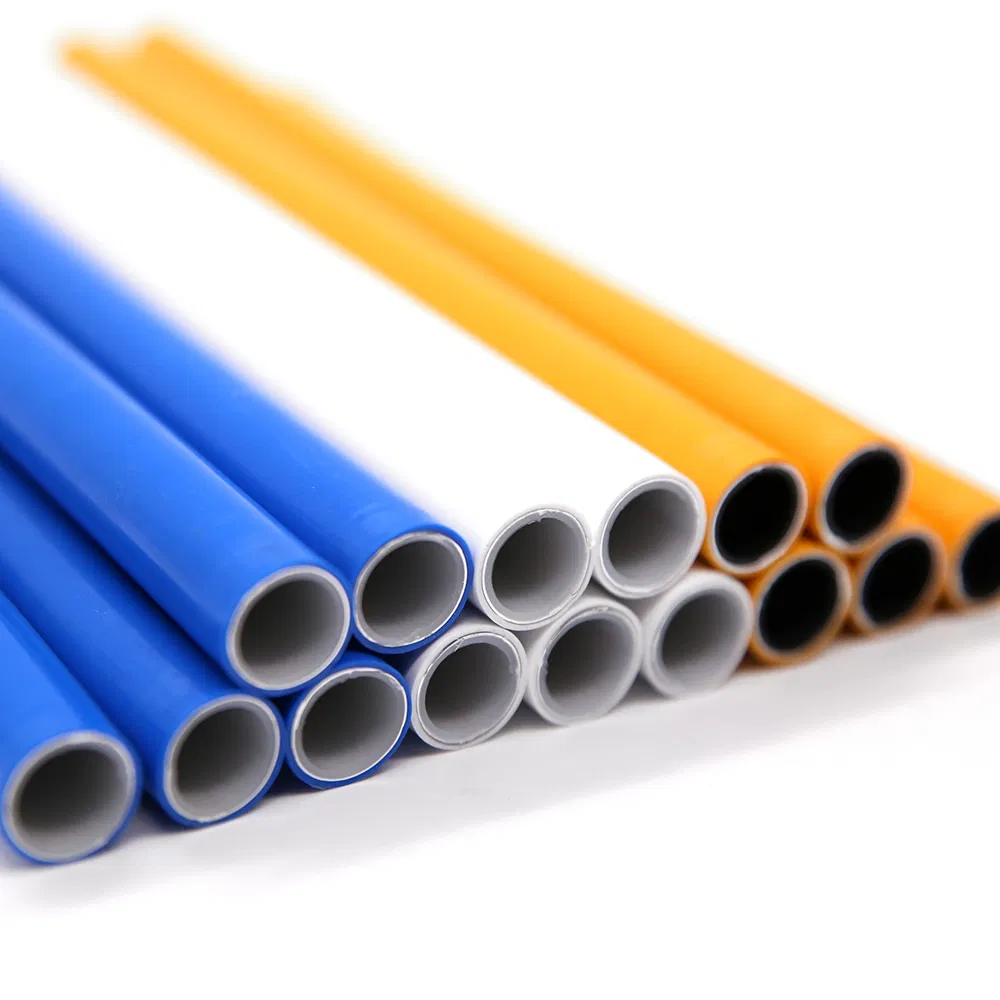

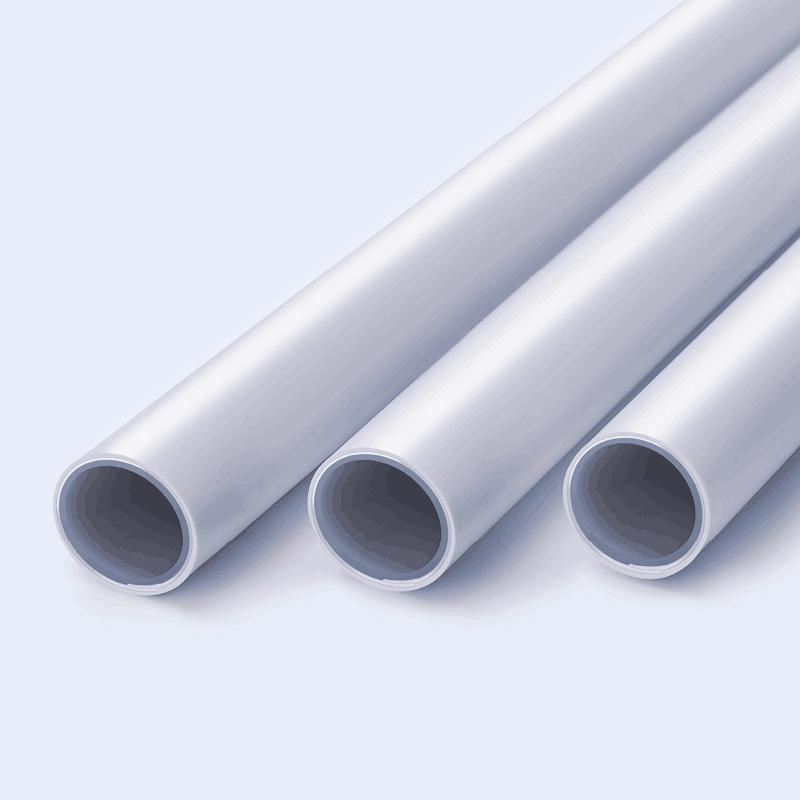

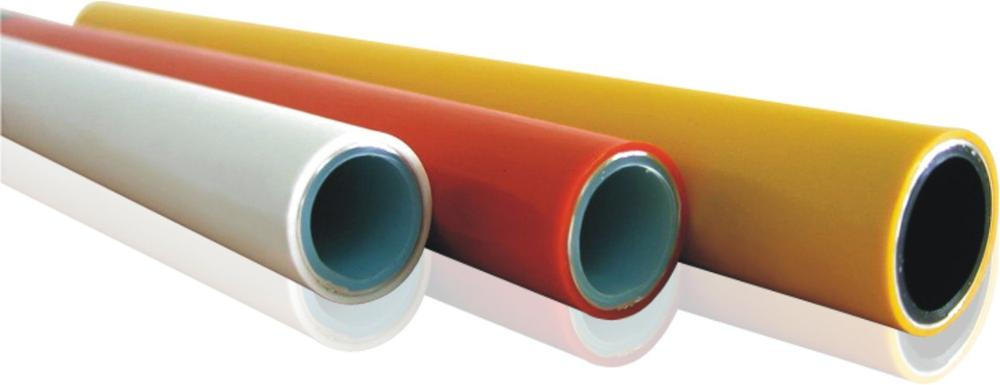

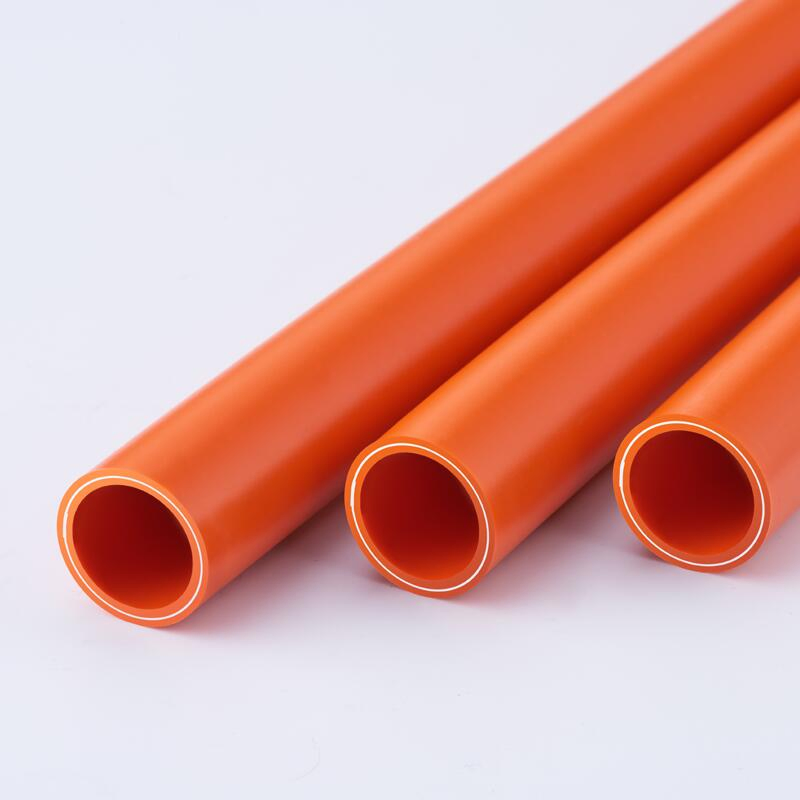

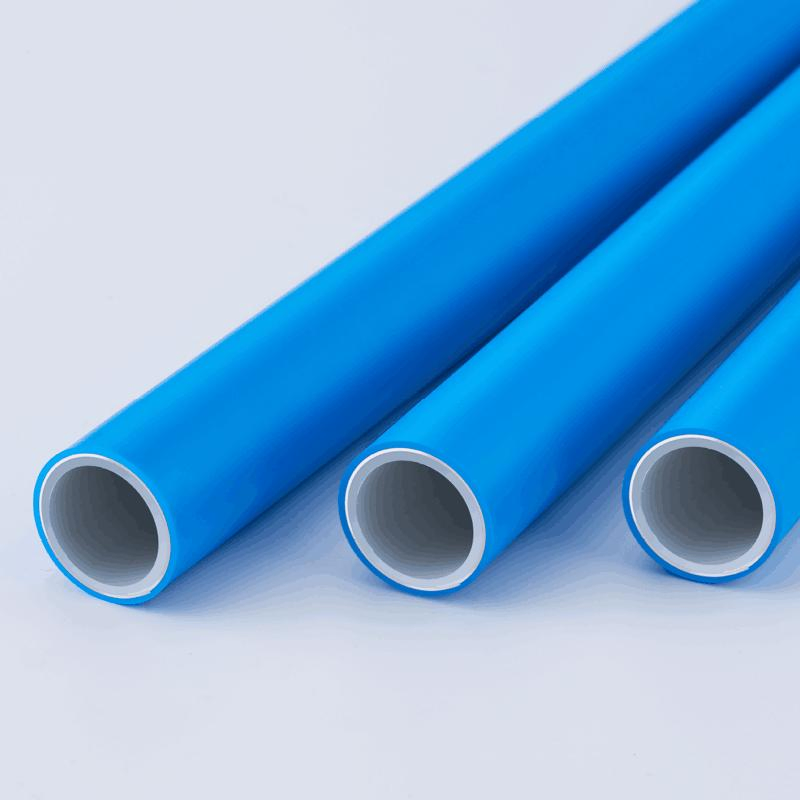

5 Layers Pex-Al-Pex Plastic Tubing for Radiant Floor Heating

Basic Information

Model NO.

16mm-63mm

Material

PEX-Al-PEX

Compound Material

Aluminium Plastic Compound Pipe

Temperature

-20℃-95℃

Usage

Water Supply and Floor Heating

Installation

Clamping Type Installation

Length

50 Meters or Customized

Capacity

50,000,000m/Year

Product Description

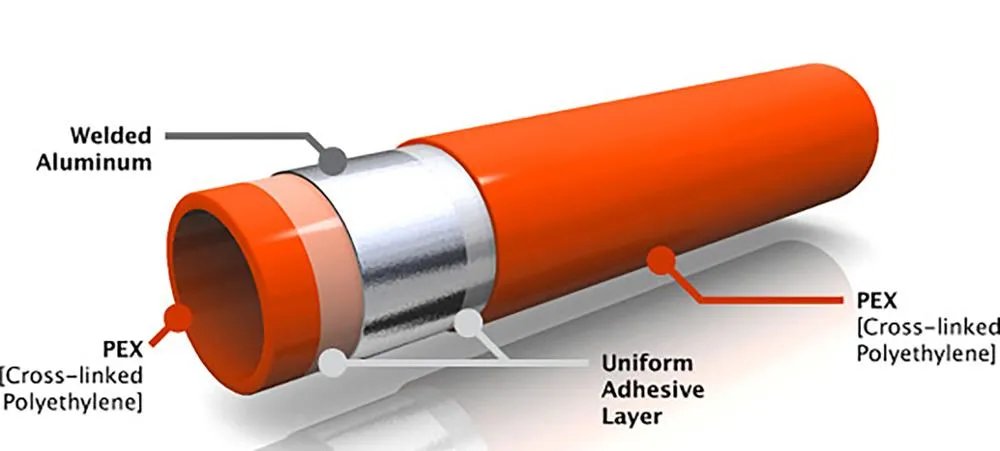

The PEX-AL-PEX pipe is a high-performance composite pipe consisting of five layers. An aluminum layer is pressed between inner and outer layers of PEX (silane crosslinking polyethylene), combining the superior strength of metal with the exceptional durability of plastic.

It can withstand working temperatures up to 95°C and a pressure of 1.25MPa, making it ideal for high-temperature radiation heating and demanding water distribution systems.

Product Type	Size (mm)	OD (mm)	Tolerance (mm)	Wall Thickness	Tolerance (mm)
Butt-Weld PEX-AL-PEX	16*2.0	16	+0.3	2.0	+0.2
	20*2.0	20	+0.3	2.0	+0.2
	26*3.0	26	+0.3	3.0	+0.2
Lap-Weld PEX-AL-PEX	16*2.0	16	+0.3	2.0	+0.2
	20*2.0	20	+0.3	2.0	+0.2
	26*3.0	26	+0.3	3.0	+0.2

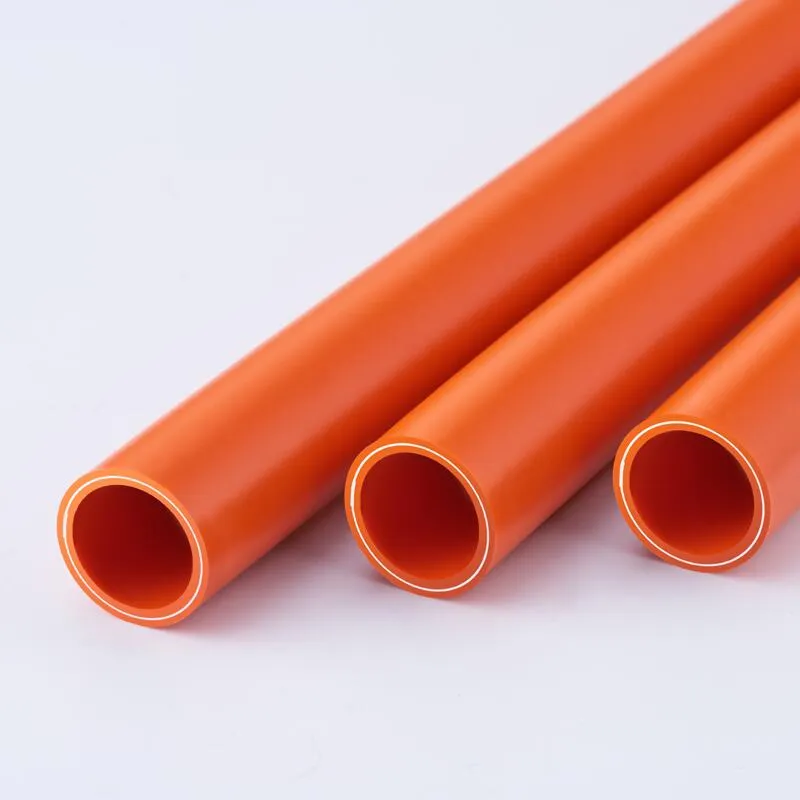

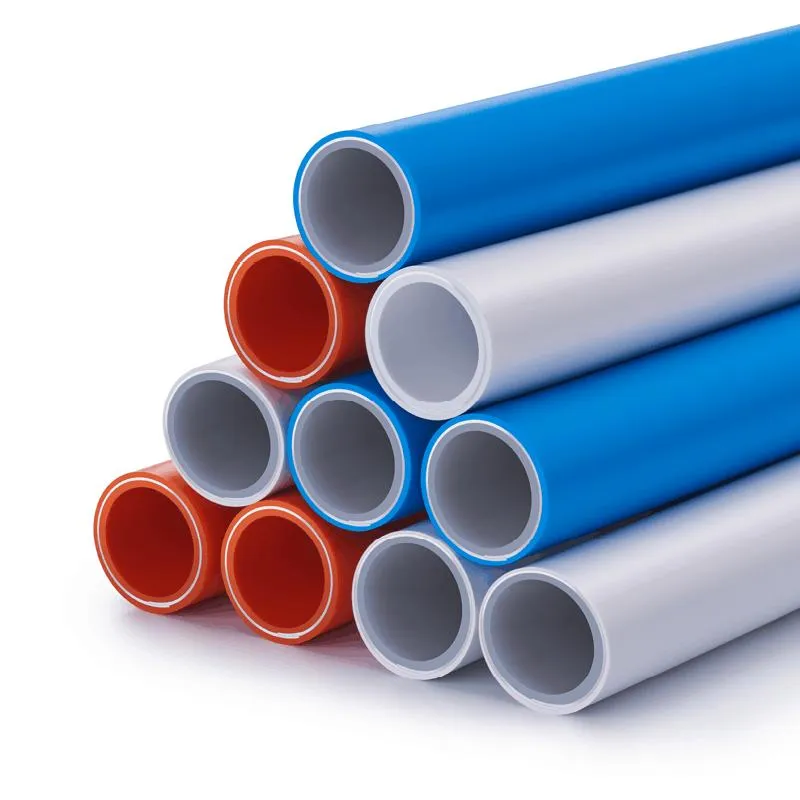

Key Features

Advanced Material: Outer and inner layers are made of silane crosslinking polyethylene (PEX).
Structural Reinforcement: Intermediate aluminum layer retains shape and increases load-bearing capacity.
High Resistance: Capable of handling up to 95°C temperature and 1.25MPa working pressure.
Precision Manufacturing: Uniform aluminum thickness ensures consistent hoop stress and reliable fitting connections.
Superior Finish: Features smooth inner walls, uniform wall thickness, and excellent roundness for optimal flow.

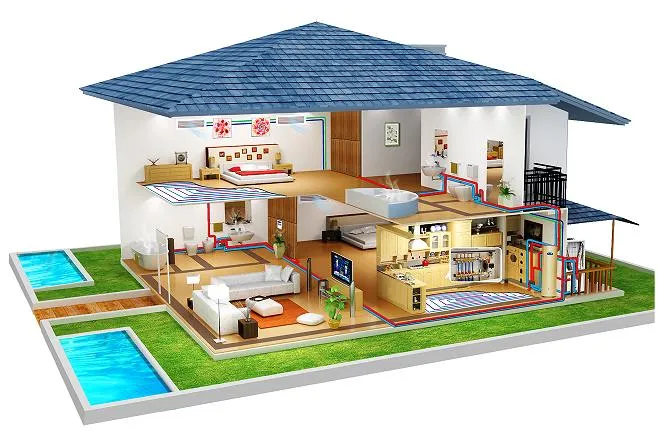

Product Application

Domestic and production hot/cold water supply.
Radiant floor and wall heating installations.
Snow-melting systems for airports, parks, and buildings.
Solar energy water heater connections.
Natural gas and coal gas transportation.
Central air conditioning and fan coil systems.
Industrial fluid cooling and oil transportation.

Manufacturing & Quality Control

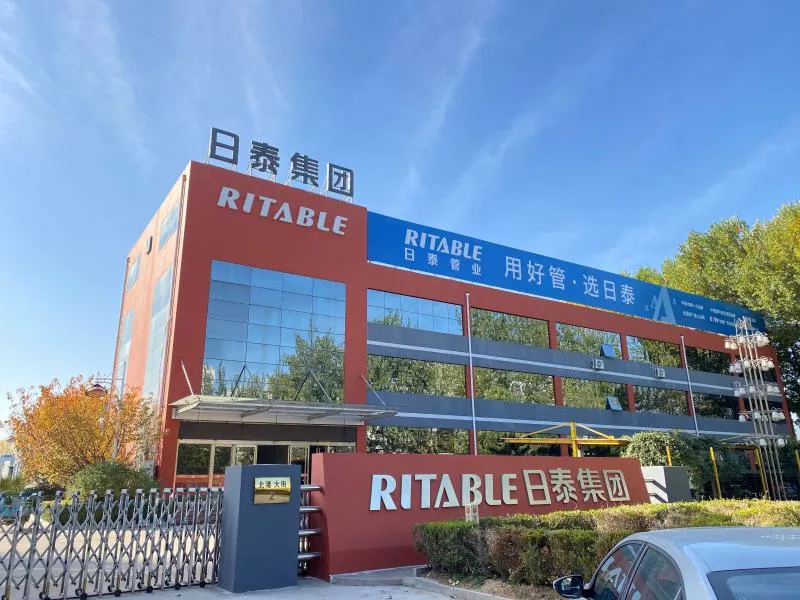

Our production facility operates nearly 100 modern production lines using high-quality imported raw materials. We maintain a rigorous three-level inspection system: raw material analysis, online production monitoring, and finished product testing.

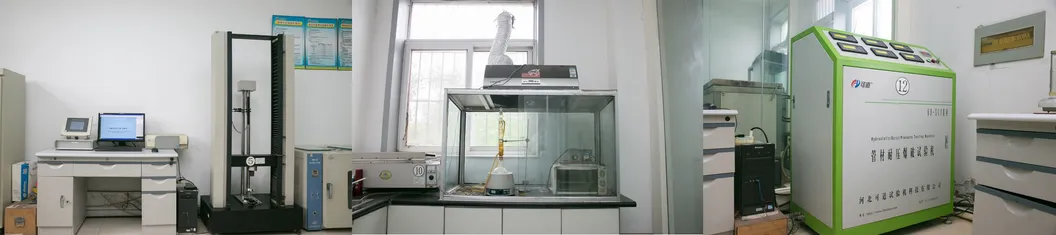

Laboratory Testing:

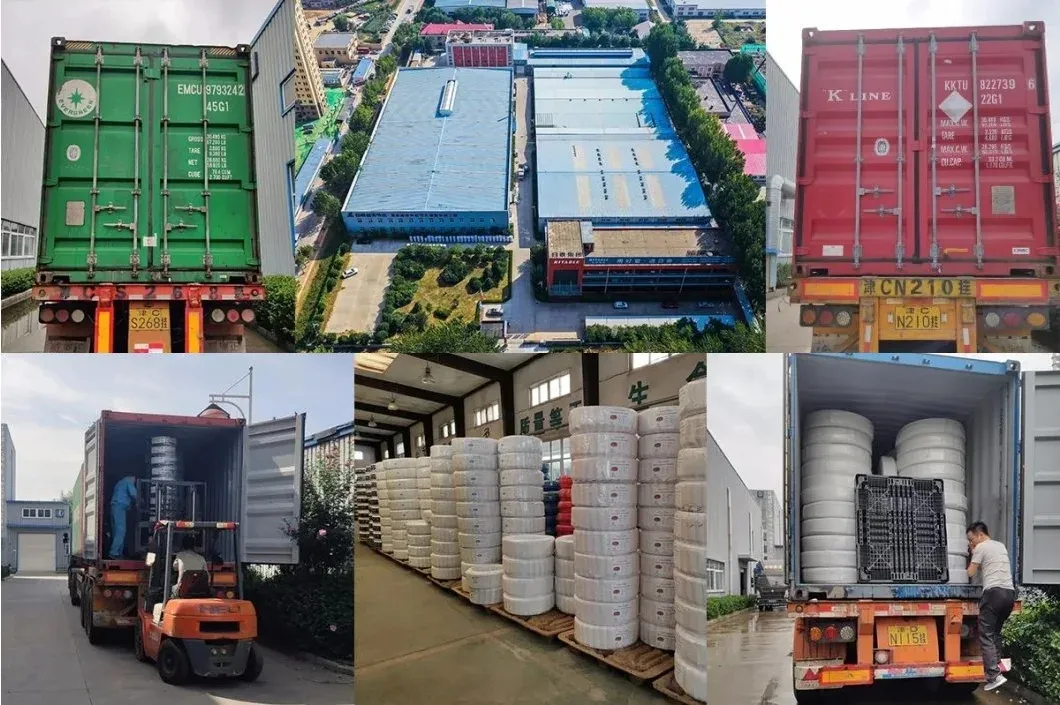

Packaging & Shipping

Standard packing includes coils of 50m, 100m, 200m, 300m, or 500m. Each coil is protected in PP woven bags. Customized packaging solutions such as plastic bags or carton boxes are available upon request.

Frequently Asked Questions

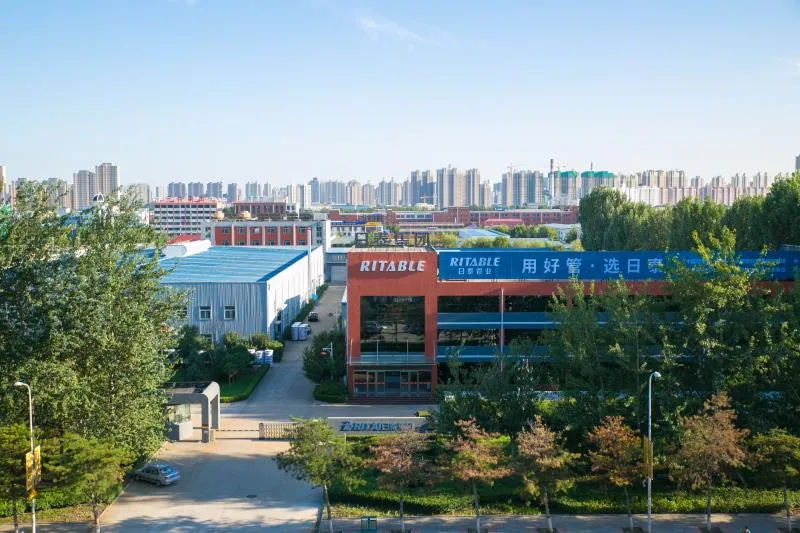

Where is your production facility located?

Our factory is conveniently located within 2.5 hours of Beijing by high-speed train, allowing for efficient logistics and visits.

Can you provide samples for quality testing?

Yes, we can arrange free samples to help you better understand our product quality before placing an order.

What are the standard payment terms?

We typically accept T/T payments, and L/C is also an acceptable payment method for our clients.

What is the typical delivery timeframe?

For small quantity orders, production takes approximately 15 days. For high-volume orders, the lead time is around 30 days.

Do you offer OEM services?

Yes, we provide professional OEM services and can manufacture products according to specific client requirements. We serve many partners across Europe and Southeast Asia.

What certifications do your products hold?

Our systems are ISO 9001, ISO 14001, and OHSAS18001 certified, ensuring high standards in quality and environmental management.
