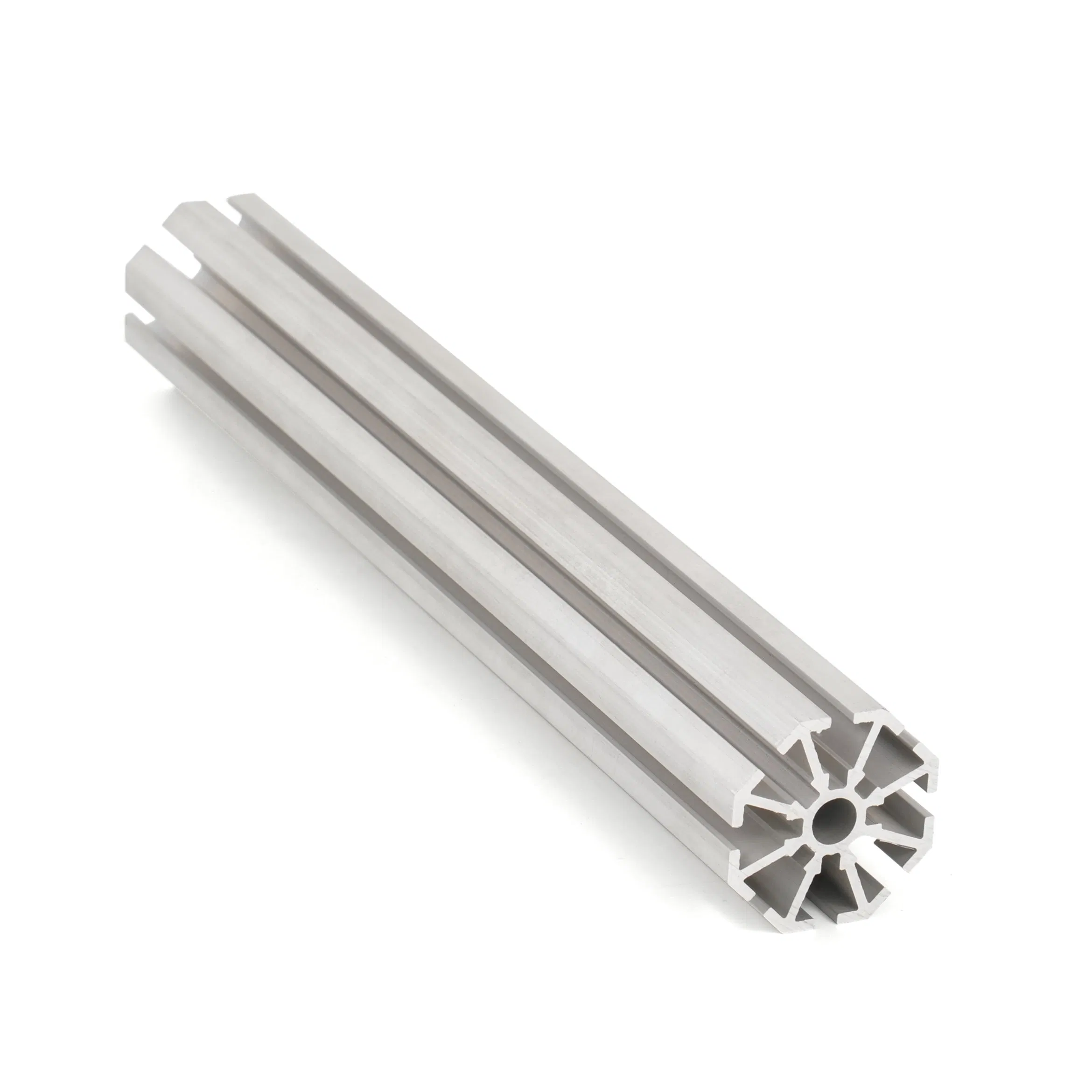

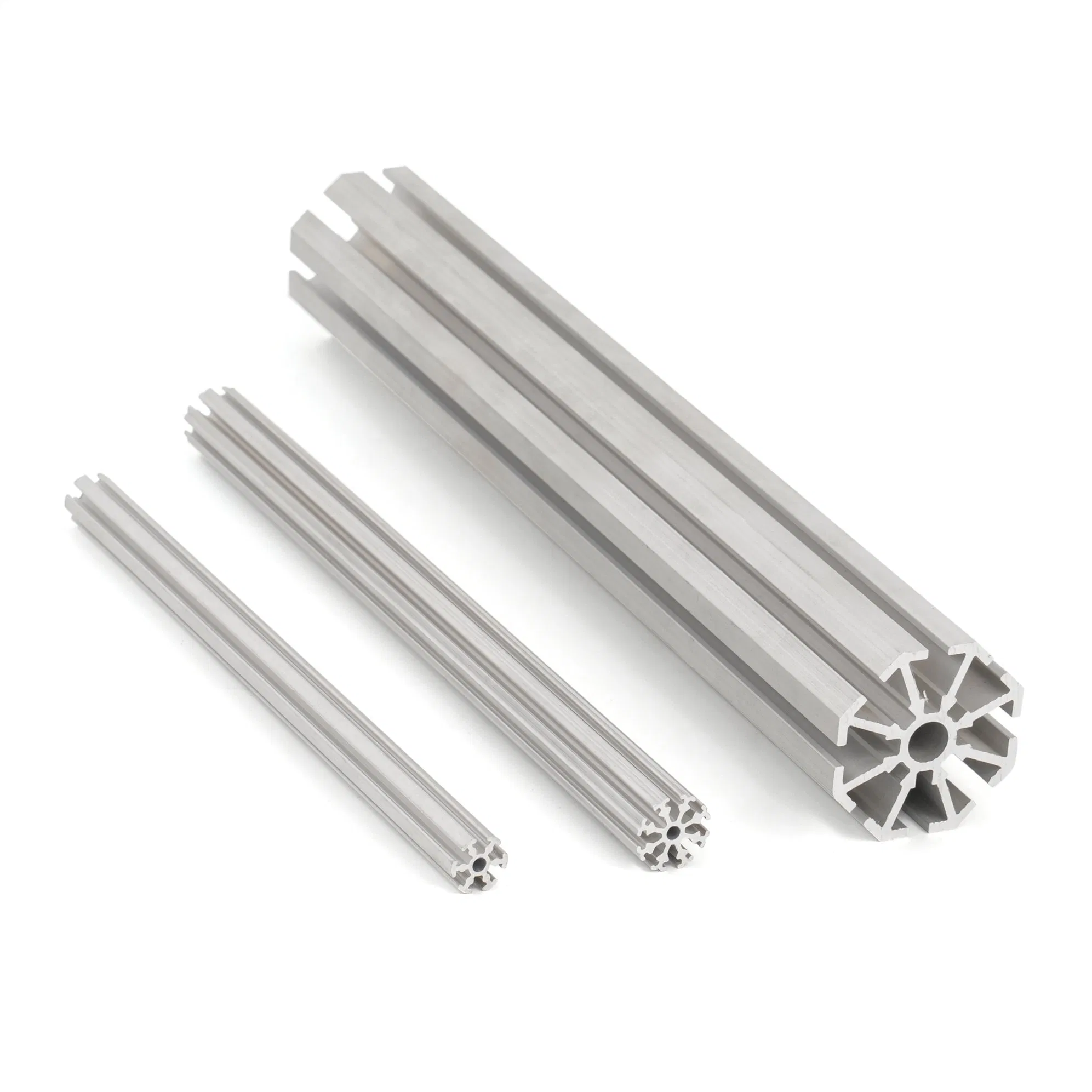

Precision Medical-Grade Surgical Equipment Polished HVAC Aluminum Tubing

Specifications & Basic Info

Model NO.

Aluminum Tube

Surface Treatment

Anodized

Grade

6000 Series

Alloy

Temper

T3 - T8

Length

1-6 Meters/Customizable

Al (Min)

97.5%

Wall Thickness

1-65mm/Customizable

Diameter

6-640mm/Customizable

Processing

Bending, Welding, Punching, CNC

Product Description

📌

Precision Medical-grade Surgical Equipment Polished HVAC Aluminum Tubing
High-quality industry and building aluminum profiles focusing on professional extrusion processes.

Our capabilities include a wide range of products such as aluminum tubes, heatsink profiles, T-slot profiles, orbital profiles, and window/door profiles. We utilize advanced molds and support custom drawings to meet specific industrial needs.

Feature	Details
Material	Alloy 6063, 6061
Temper	T3, T4, T5, T6
MOQ	200kg (Customizable for containers)
Profile type	Heat sinks for medical, LED, CPU cooling, etc.
Processing	Extruding, Precise cutting, Bending, Drilling, Tapping, CNC mill/lathe
Tolerance	Length: 0.2mm, Hole: 0.05mm

Technical Data

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	Rest

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

Detailed Gallery

⚙️

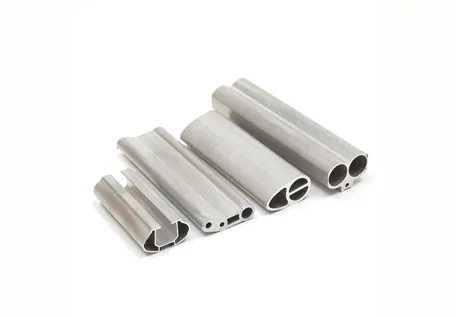

Structural Applications
Ideal for frameworks, supports, and reinforcements in construction due to high corrosion resistance and strength-to-weight ratio.

📦

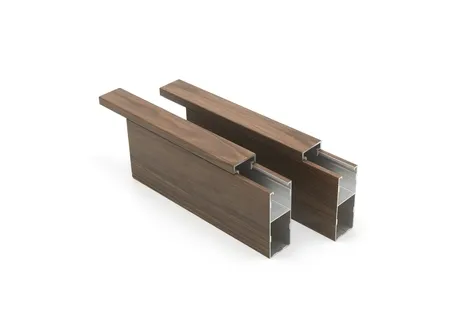

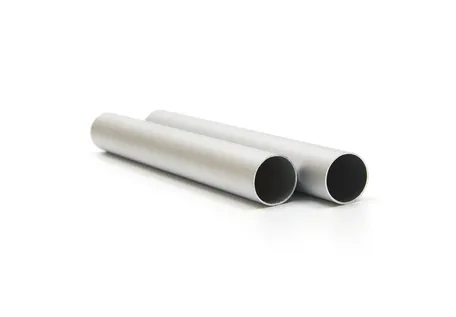

Packaging & Recreation
Used in medical, pharmaceutical, and recreational products like bicycles and camping gear for its barrier properties and lightweight nature.

Production Workflow

Product Design ➔ Die Making ➔ IQC ➔ Extruding ➔ Cutting ➔ Heat Treatment ➔ Hardness Test ➔ Surface Treatment ➔ Coating Test ➔ Finish Processing ➔ Packing ➔ Shipping

Frequently Asked Questions

Q1. How long and how to get a sample from us? If you need an Aluminum Heat Sink to test, we can make it as per your request. Please provide PDF or AI files. Sample costs and transportation freight are covered by the buyer.

Q2. What kind of finishing can you offer? We offer anodizing, brushed/wire-drawing, sandblasting, silk-screen printing, and painting.

Q3. Which machines do you have for finishing? We utilize dedicated anodizing equipment, brushing machines, sandblasting machines, and silk-screen printing facilities.

Q4. What colors are available for anodizing? Standard colors include silver, black, blue, red, green, and gold. Other custom colors are also acceptable upon request.

Q5. What is the typical delivery time? Generally, delivery takes 7-10 days after receiving the initial deposit.

Q6. What aluminum alloys do you primarily use? We primarily work with high-grade 6000 series alloys, including 6061, 6063, 6060, and 6005, tailored to specific mechanical requirements.
