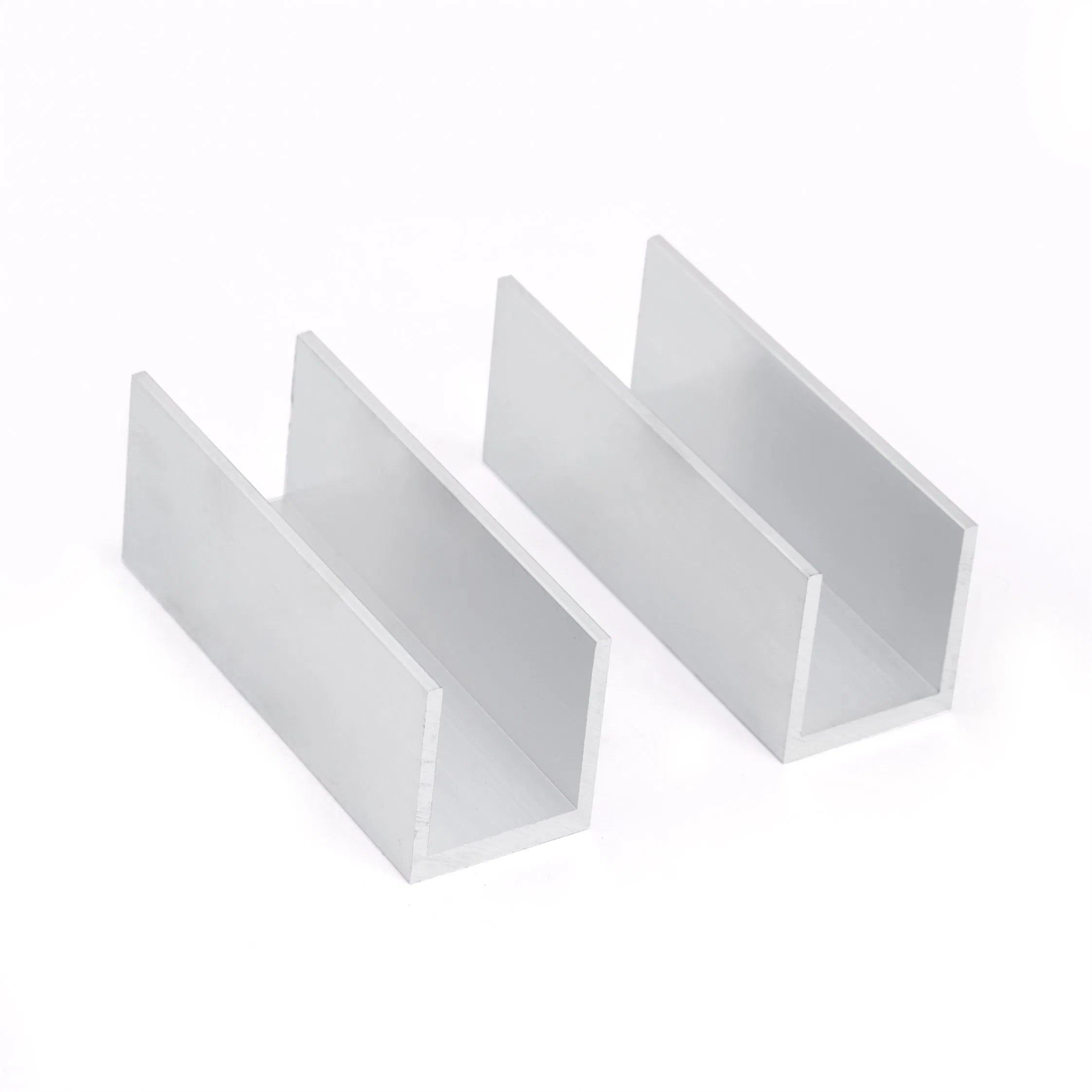

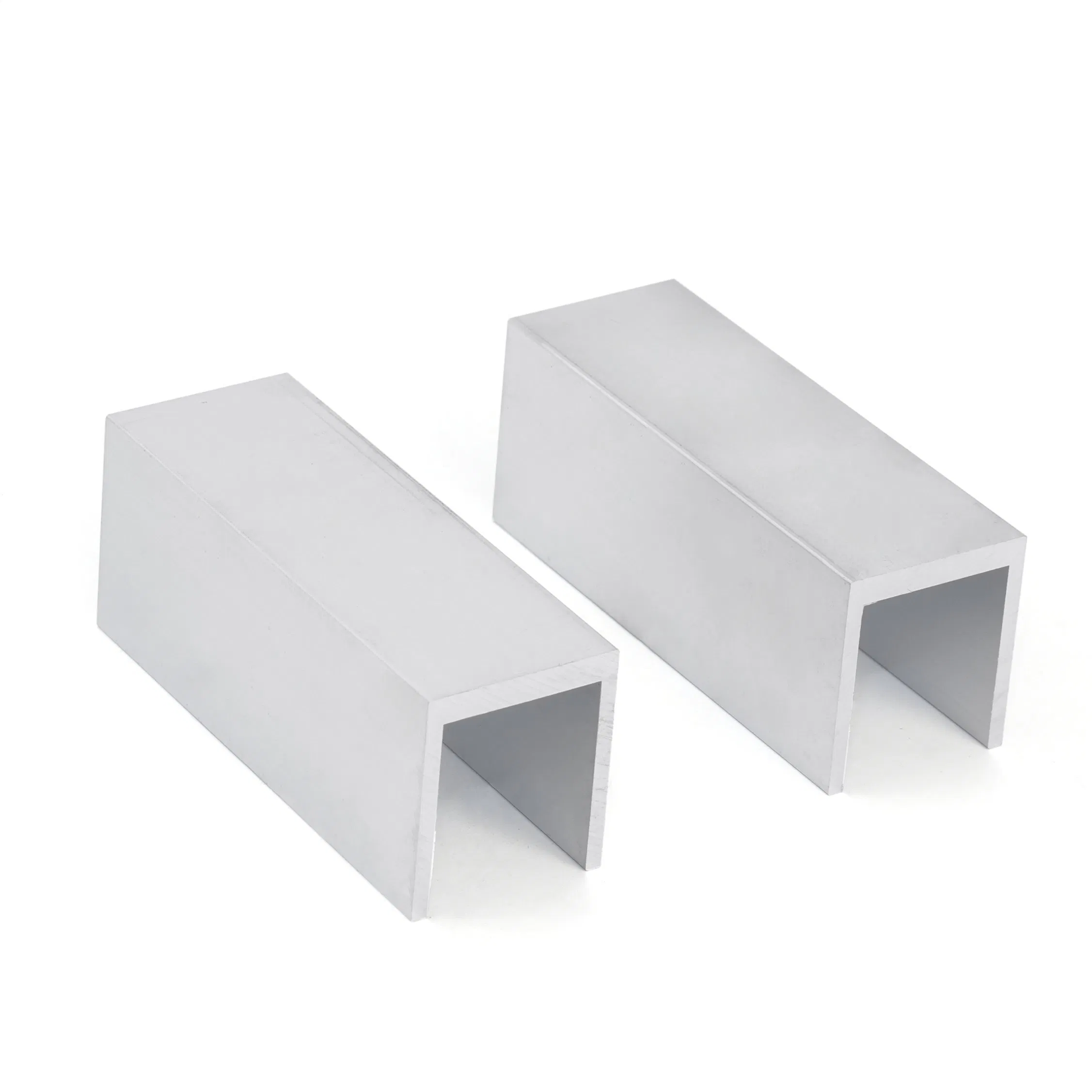

Beveled Customizable High-Tolerance CNC-Machined Profiles Alloy Aluminum Tubing

1 / 5

Beveled Customizable High-Tolerance CNC-Machined Profiles Alloy Aluminum Tubing

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📌 Basic Information

Model NO.

Aluminum Tube

Surface Treatment

Anodized

Grade

6000 Series

Alloy

Temper

T3 - T8

Length

1-6 Meters/Customizable

Type

Seamless, Extruded

Wall Thickness

1-65mm/Customizable

Diameter

6-640mm/Customizable

Processing Service

Bending, Decoiling, Welding, Punching, Cutting

Capacity

500,000 pieces/Year

Standard

ASTM, AISI, JIS, En, GB, etc.

📘 Product Description

Beveled Customizable High-tolerance CNC-machined Profiles Alloy Aluminum Tubing

With continuous improvement processes and a commitment to excellence, we specialize in aluminum extrusion profiles, including industrial and building profiles. Our portfolio features aluminum tubes, heatsinks, T-slot profiles, orbital profiles, and custom window/door solutions.

⚙️

Manufacturing Flexibility:
1. Utilization of existing molds.
2. Custom drawings and mold development (negotiable based on quantity).
3. High-precision CNC machining: length tolerance up to 0.2mm, hole tolerance up to 0.05mm.

Item	Specifications
Material	Alloy 6063, 6061
Temper	T3, T4, T5, T6
MOQ	200kg (Standard containers: 12-24 tons)
Applications	Medical equipment, LED Heat sinks, CPU Coolers, Notebook coolers
Processing	Extruding, Precise cutting, Bending, Drilling, Tapping, Stamping, CNC Milling/Lathe
Standards	GB/T6892-2006, EN12020, AAMA611-98

📊 Technical Data & Properties

1) Chemical Composition (%)

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	Rest

2) Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

🔄 Production Flow

Design → Die Making → IQC → Extruding → Cutting → Heat Treatment → Hardness Test → Surface Treatment → Coating Test → Finish Processing → Packing → Shipping

🖼️ Detailed Photos

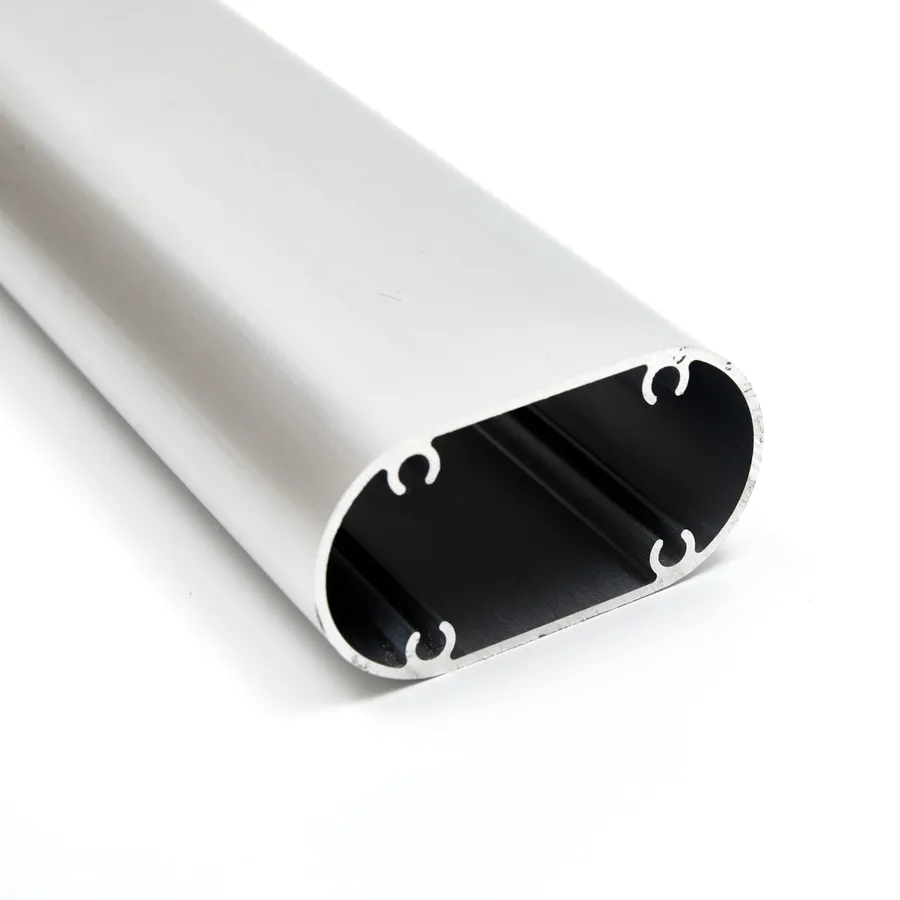

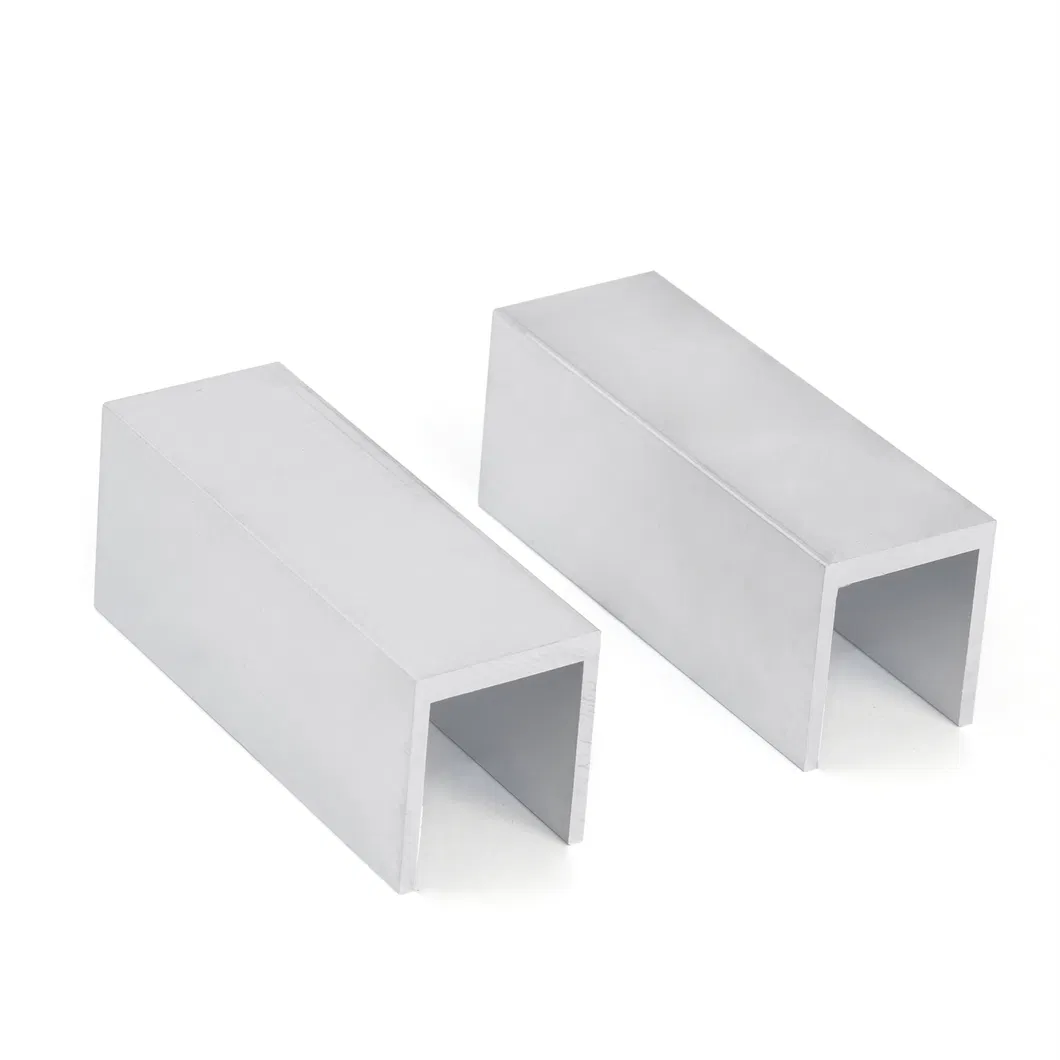

Aluminum Tube: High strength-to-weight ratio and corrosion resistance for aerospace and automotive.

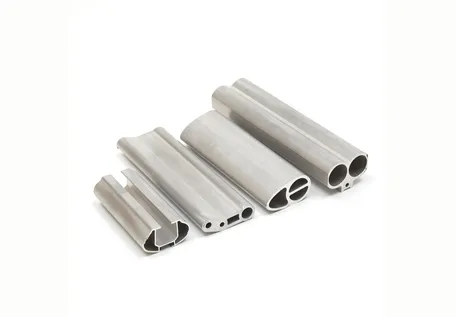

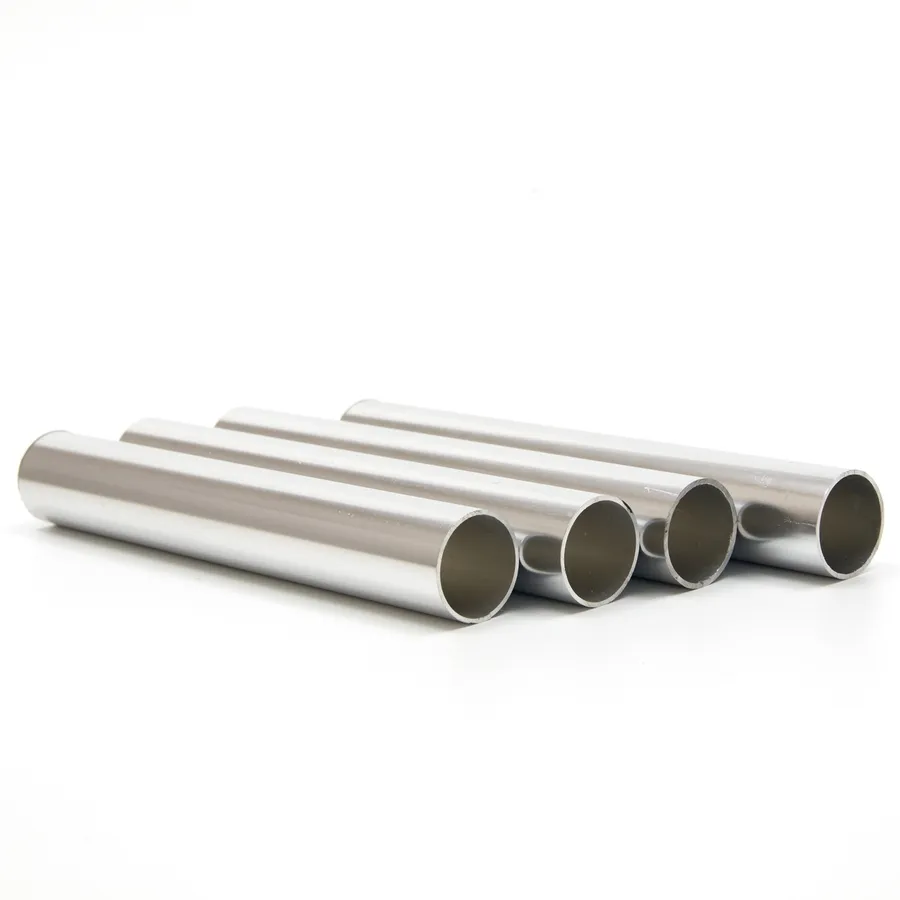

Structural Apps: Ideal for frameworks, supports, and outdoor construction projects.

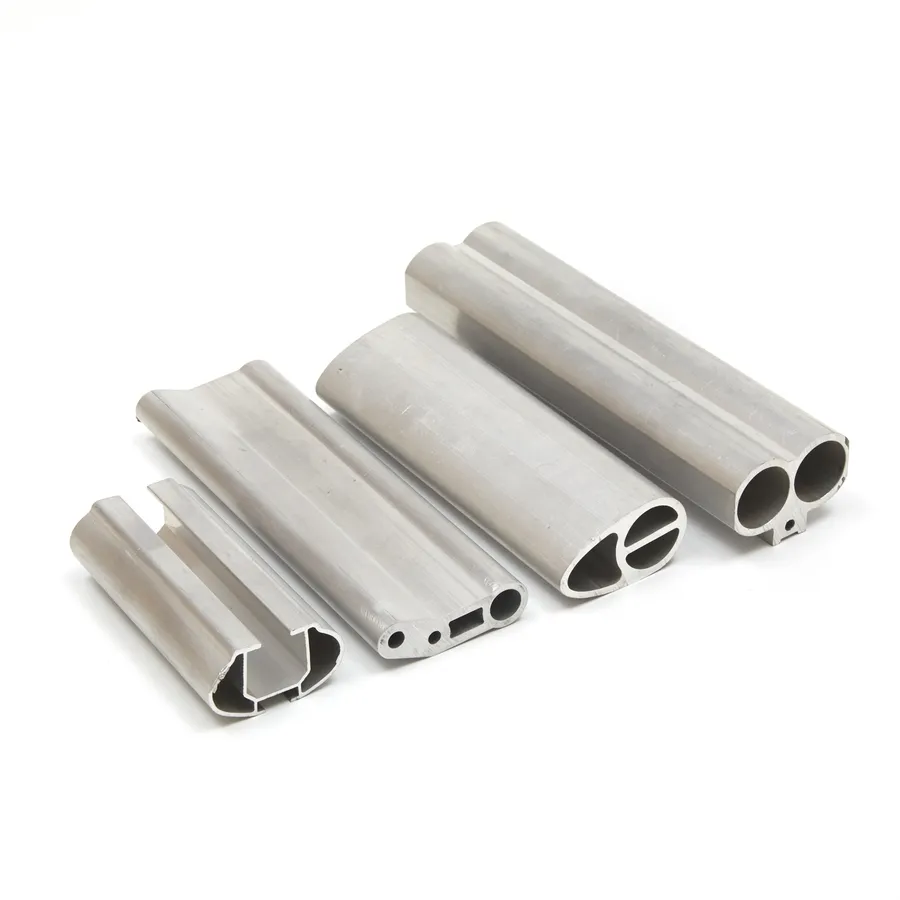

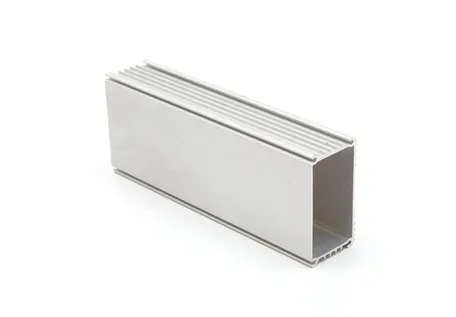

Fluid Handling: Circular cross-sections help spread load uniformly for fluid and gas transport.

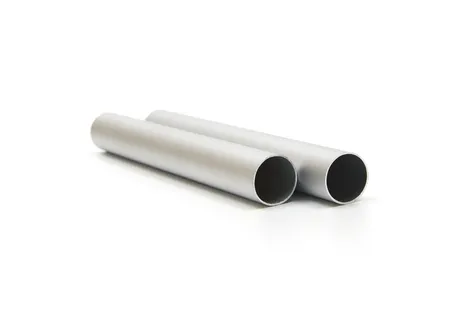

Packaging: Barrier properties protect cosmetics and pharmaceuticals from moisture and light.

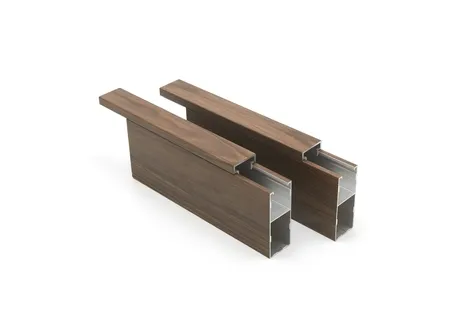

Recreation: Used in bicycles and camping gear for lightweight mobility.

❓ Frequently Asked Questions

Q1: How long does it take to receive a custom sample? Samples are typically prepared within 7-10 days upon receiving requirements or technical drawings (PDF/AI).

Q2: What surface finishes can you provide? We offer a wide range of finishes including anodizing, brushing, wire-drawing, sandblasting, silk-screen printing, and painting.

Q3: Which colors are available for anodized aluminum? Standard colors include silver, black, blue, red, green, and gold. Other custom colors can be matched upon request.

Q4: What are your machining tolerances? With our high-precision CNC equipment, we achieve length tolerances of 0.2mm and hole tolerances of 0.05mm.

Q5: What is the standard lead time for bulk orders? General delivery time is approximately 7-10 days after receiving the deposit, depending on the order volume.

Q6: What quality control measures are in place? We maintain a strict quality policy: no acceptance of defective parts, no production of defective parts, and no shipping of defective parts. Every step is inspected from extruding to final packaging.
