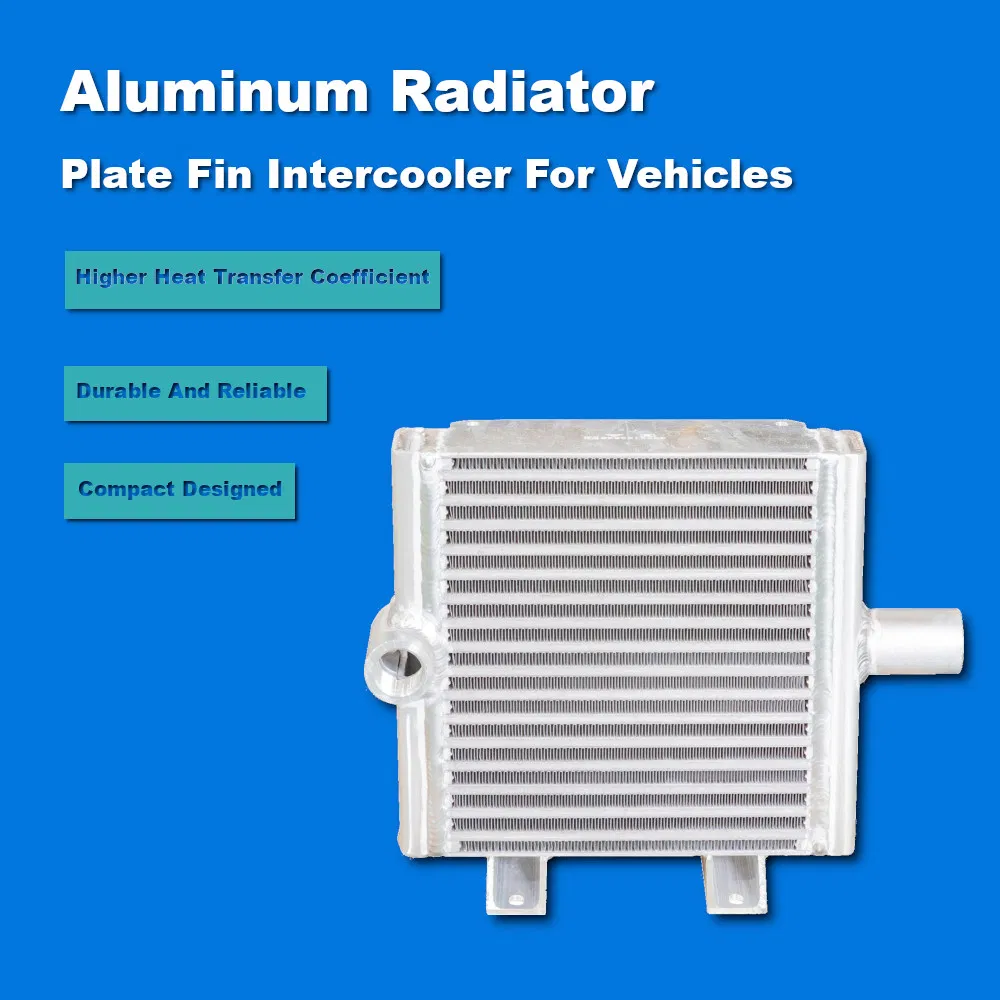

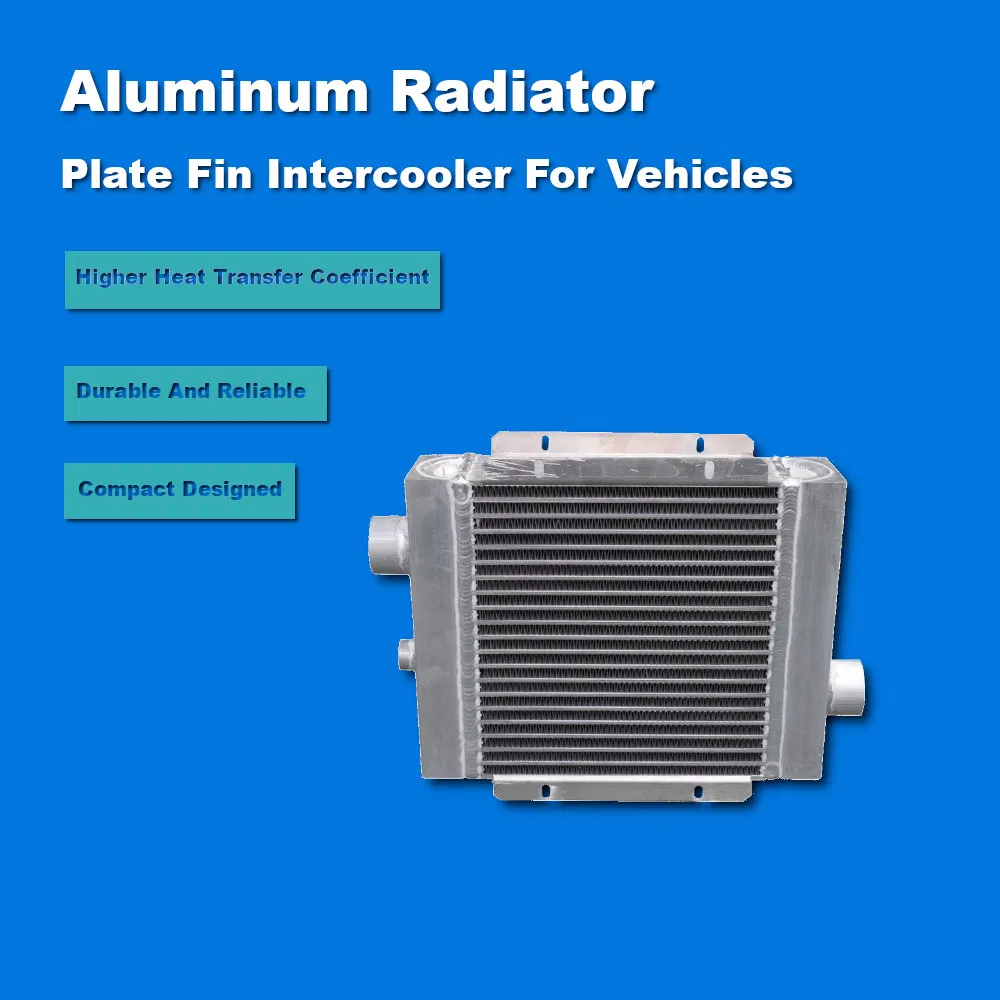

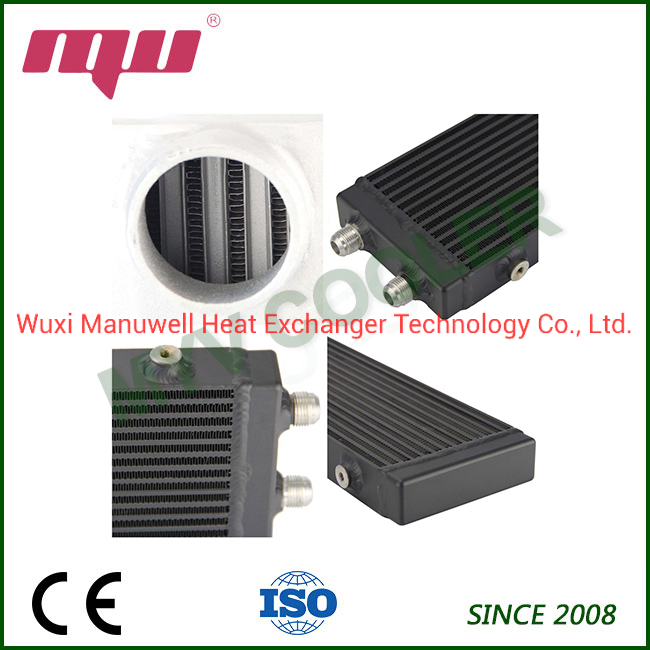

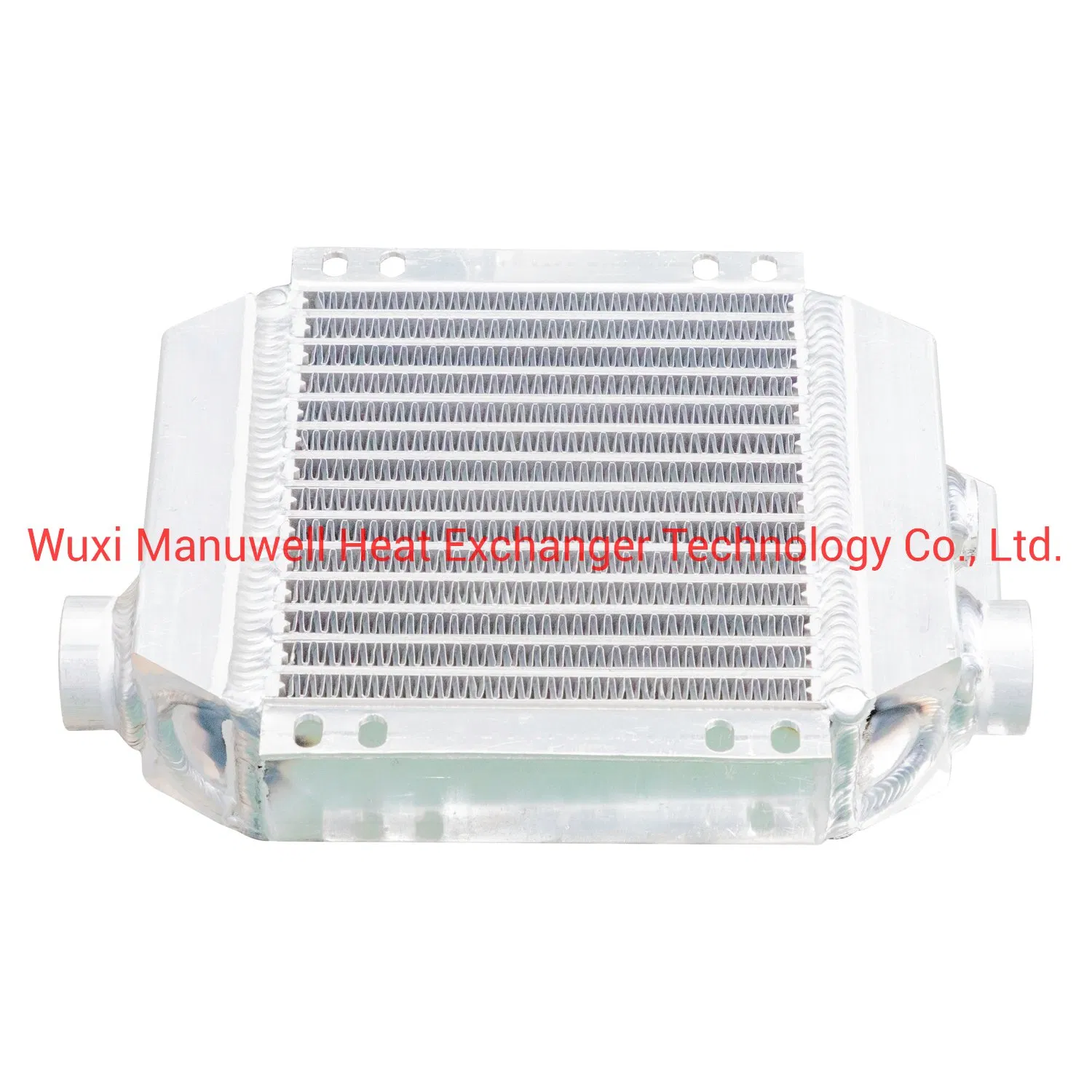

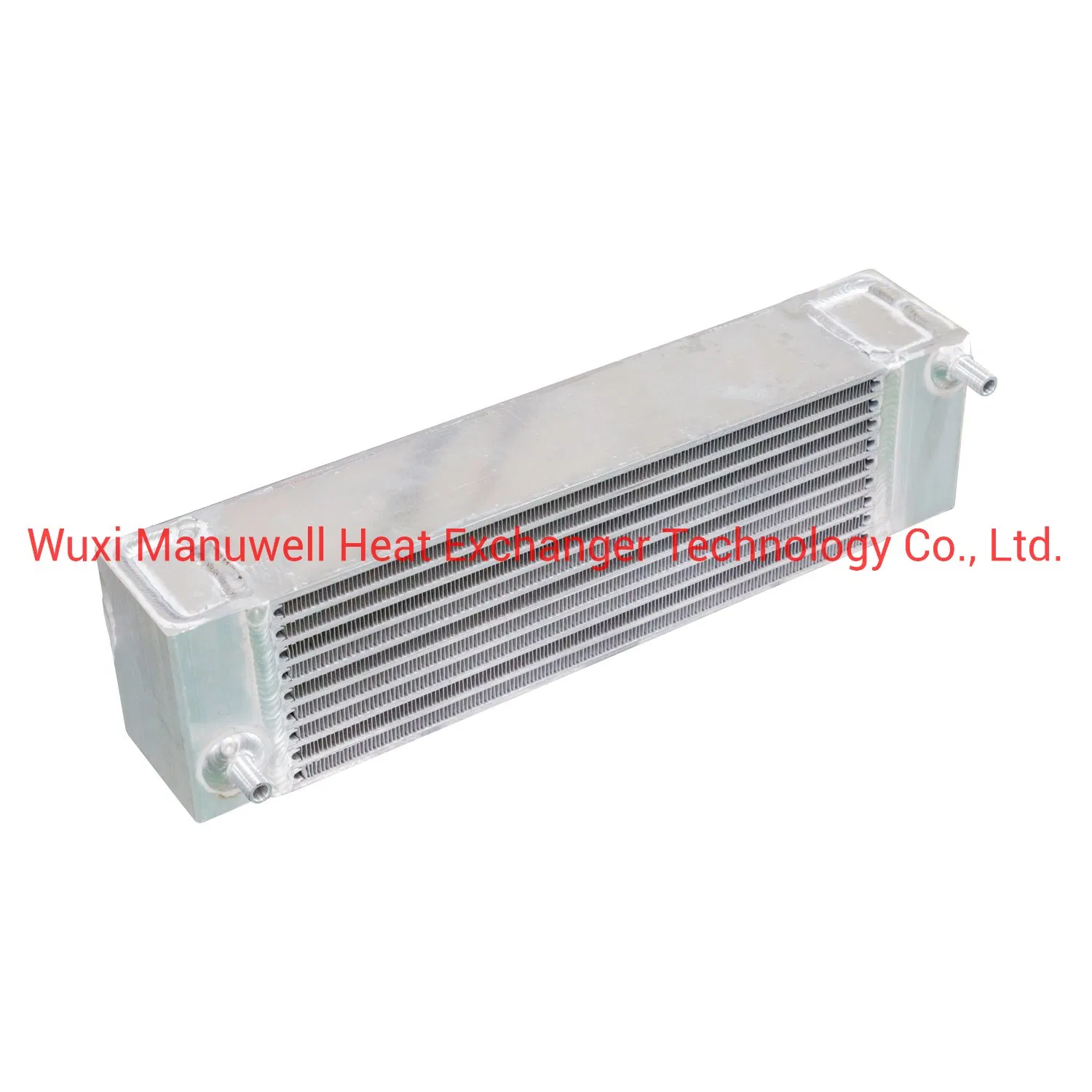

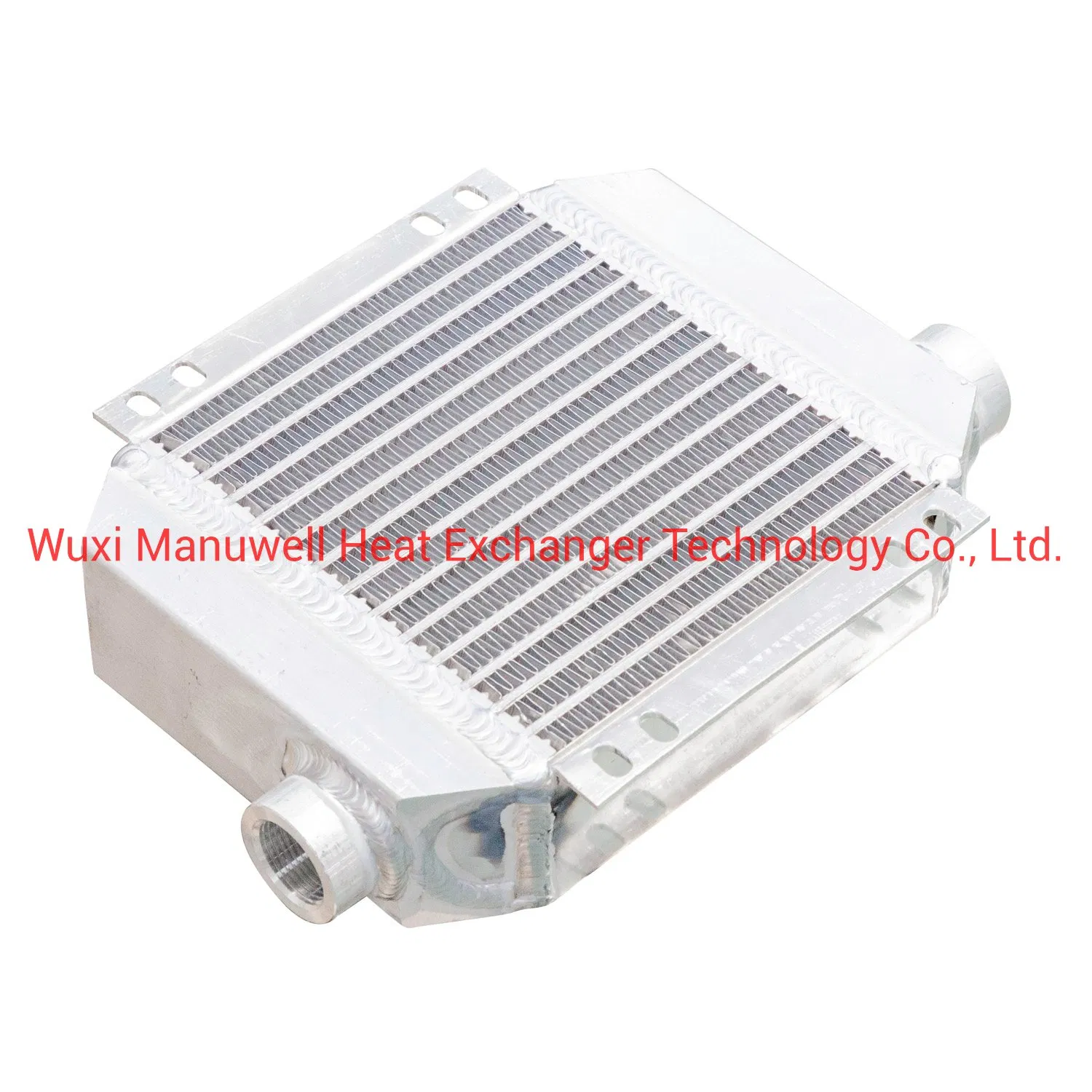

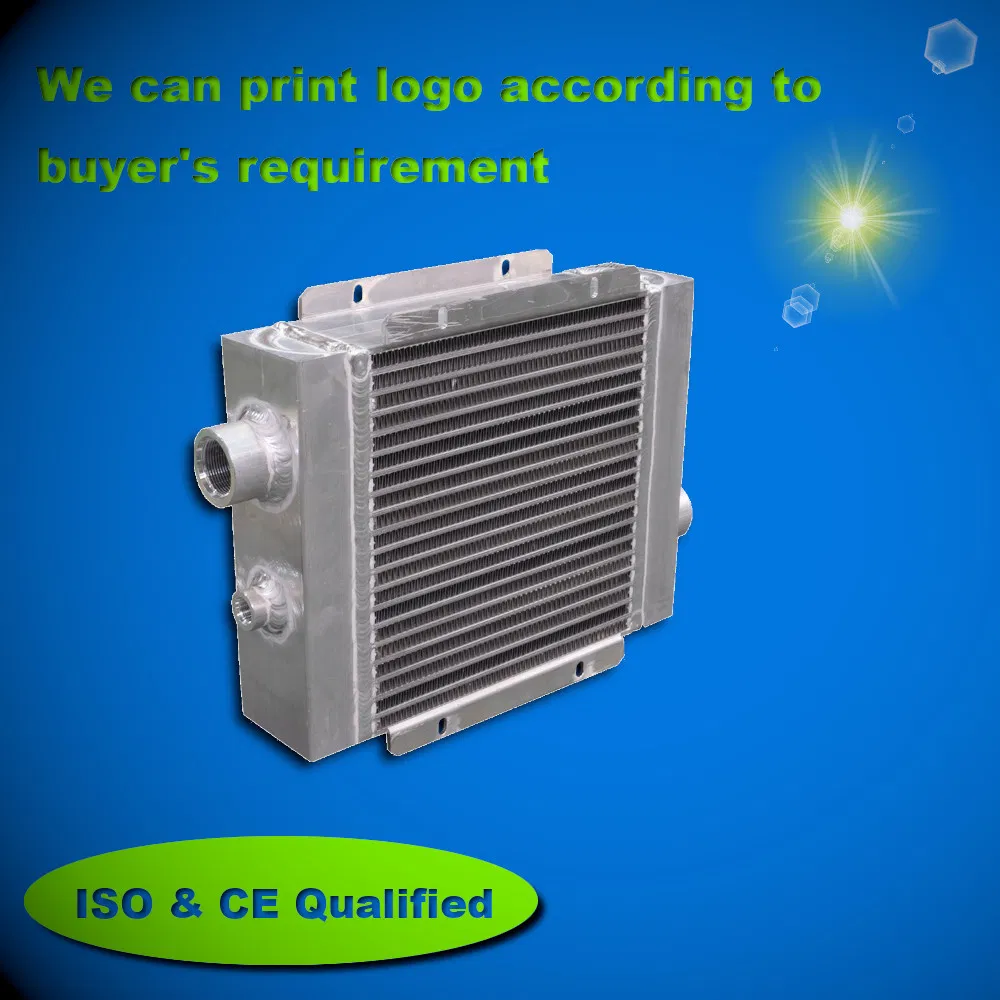

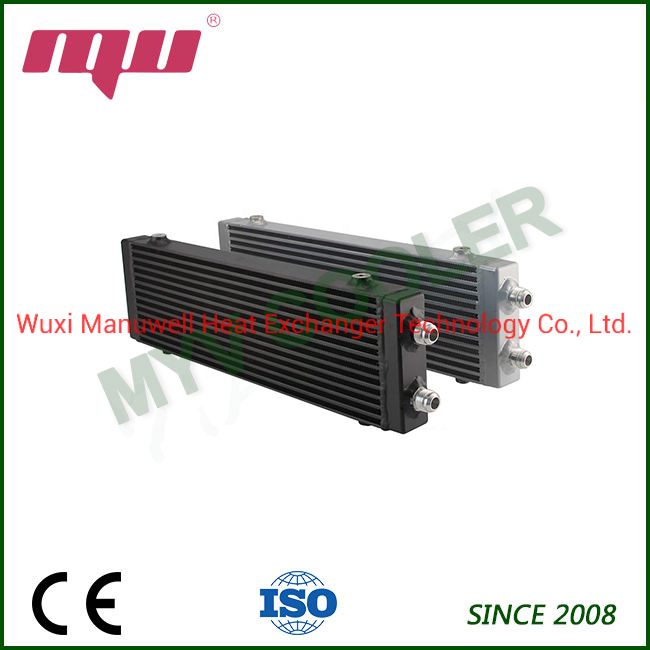

High Performance Aluminum Plate Fin Heat Exchanger Hydraulic Oil Cooler Core

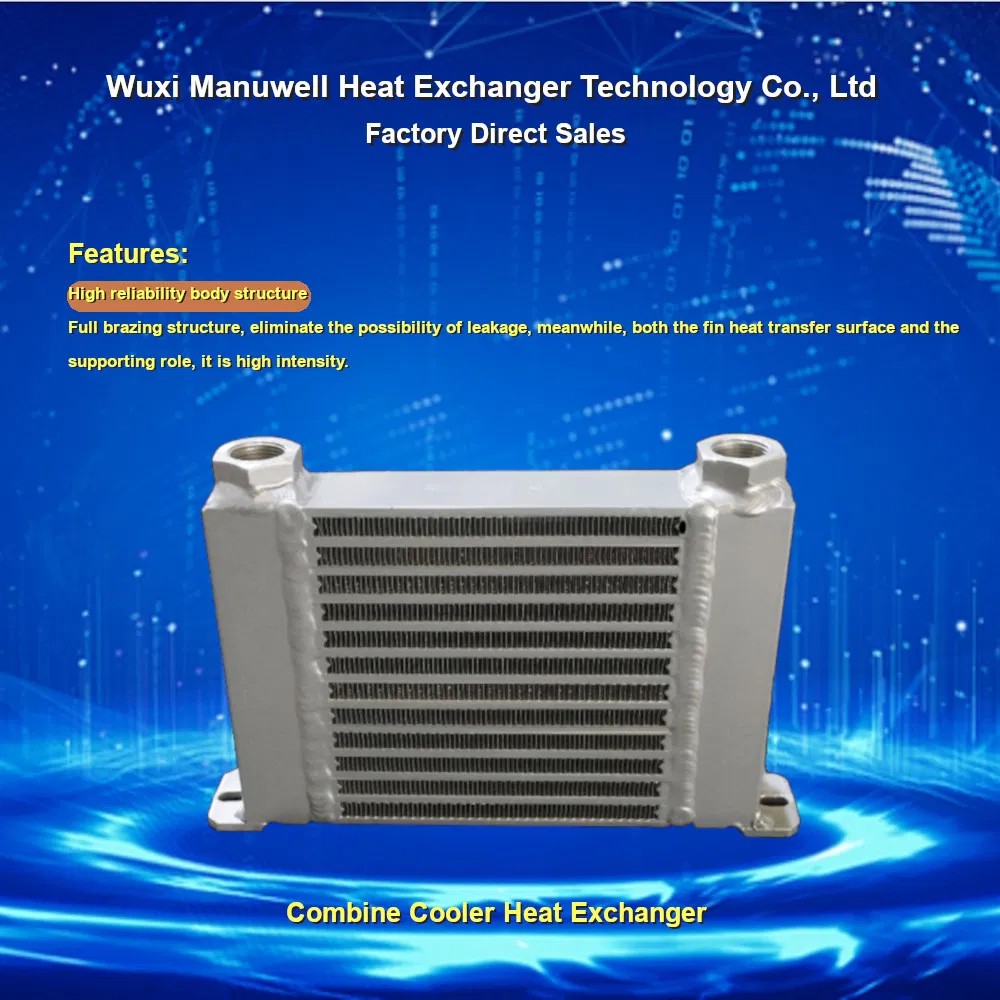

Aluminum Plate Fin Combined Heat Exchanger Oil Cooler is engineered from high-quality aluminum alloy, offering lightweight construction, superior seismic strength, and exceptional heat transfer efficiency. Utilizing high-efficiency fins within the structure maximizes the heat transfer area and increases the total heat transfer coefficient.

Key Advantages

• Higher Heat Transfer Coefficient: Materials selected for maximum thermal conductivity.

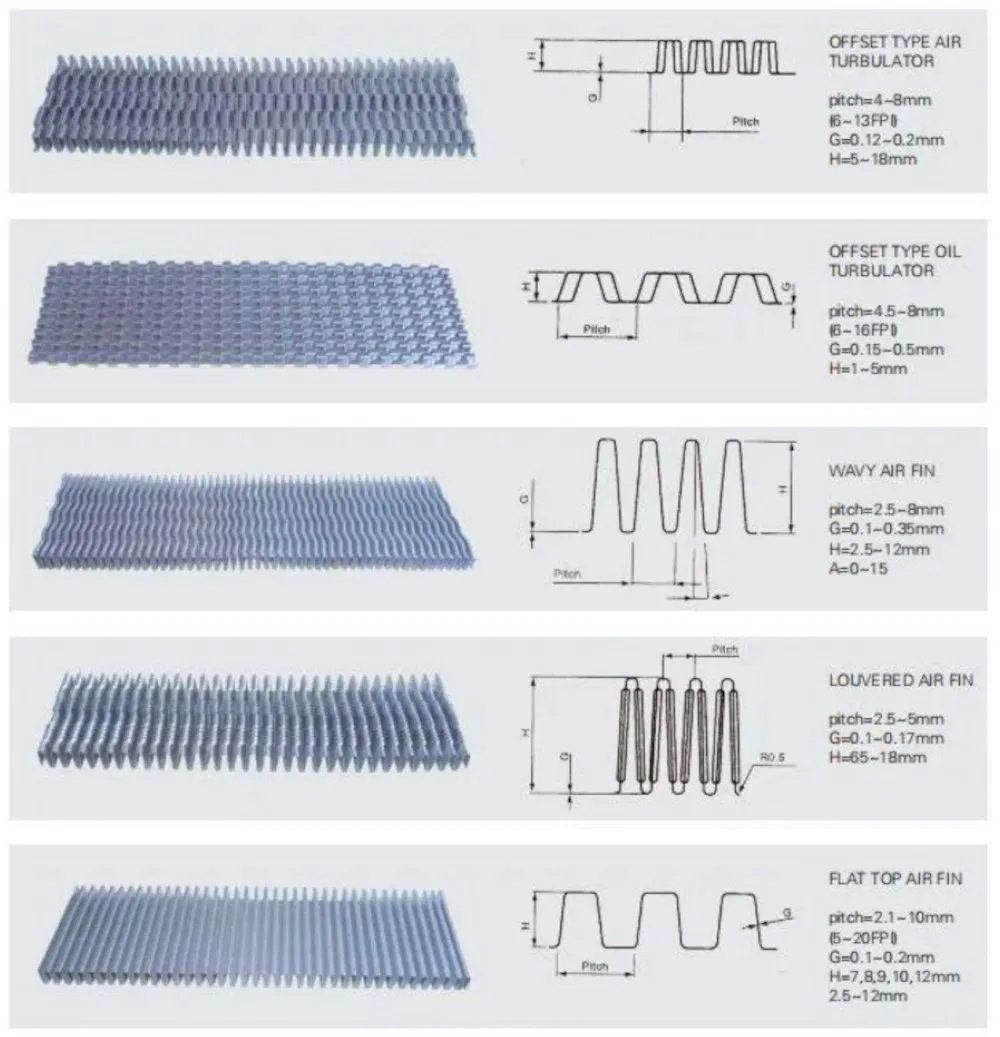

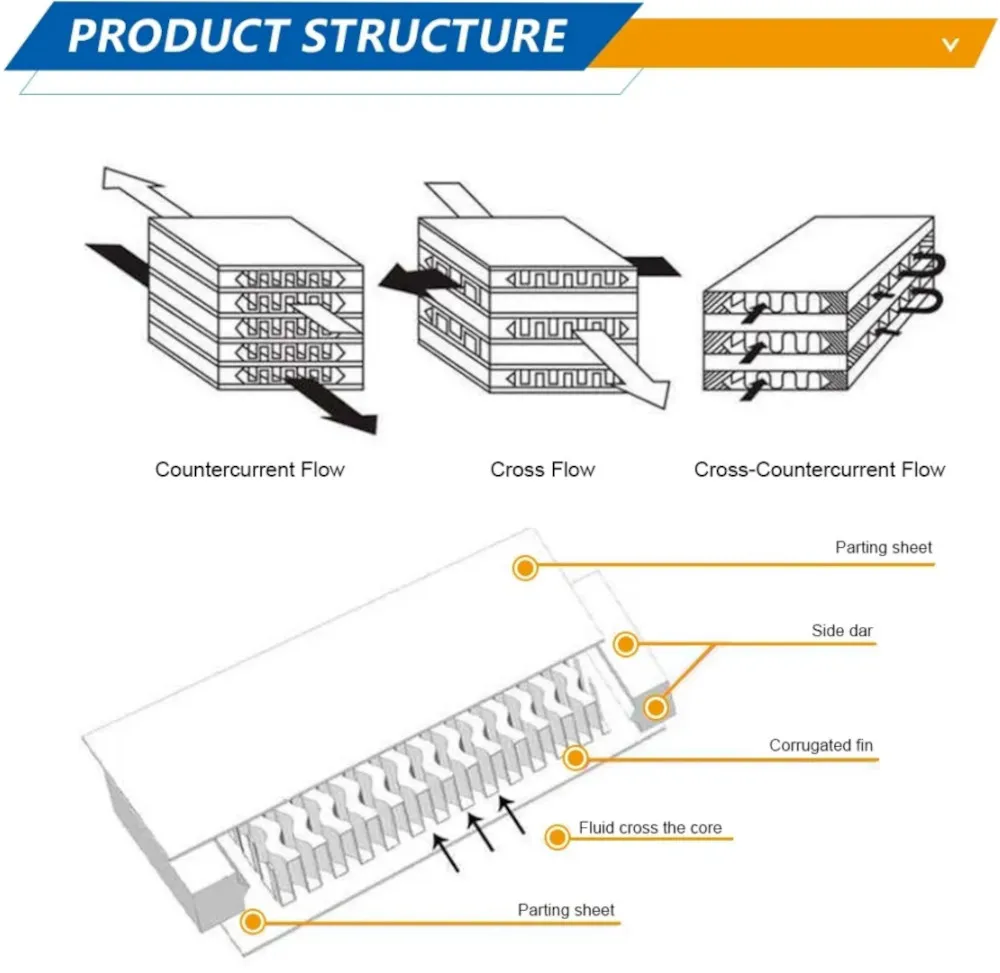

• Compact Design: Small plate spacing and corrugated surfaces significantly increase the effective heat transfer area per unit volume.
• Durable & Reliable: Simple structure with low heat loss, flexible assembly, and long service life.
• Easy Maintenance: Convenient installation and disassembly for operational efficiency.

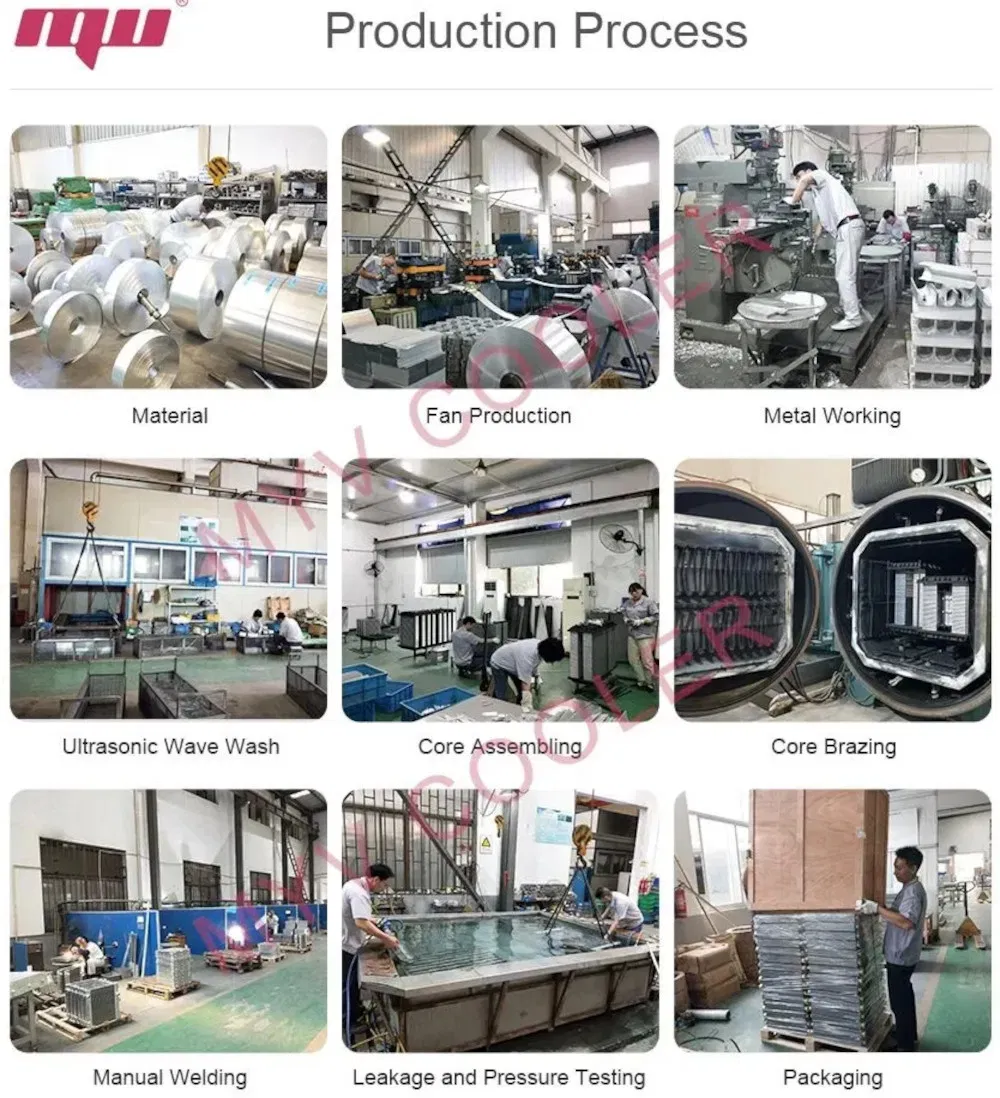

Production Process

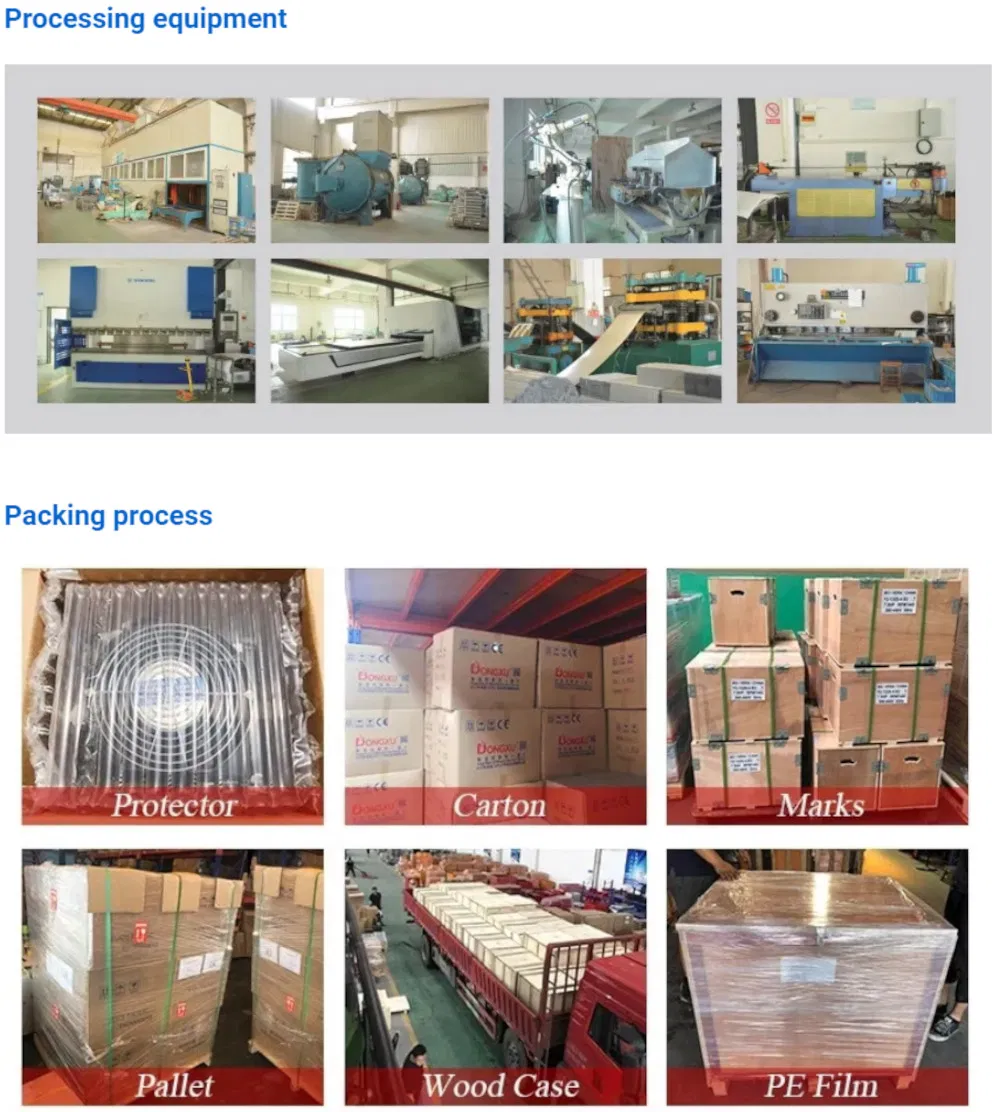

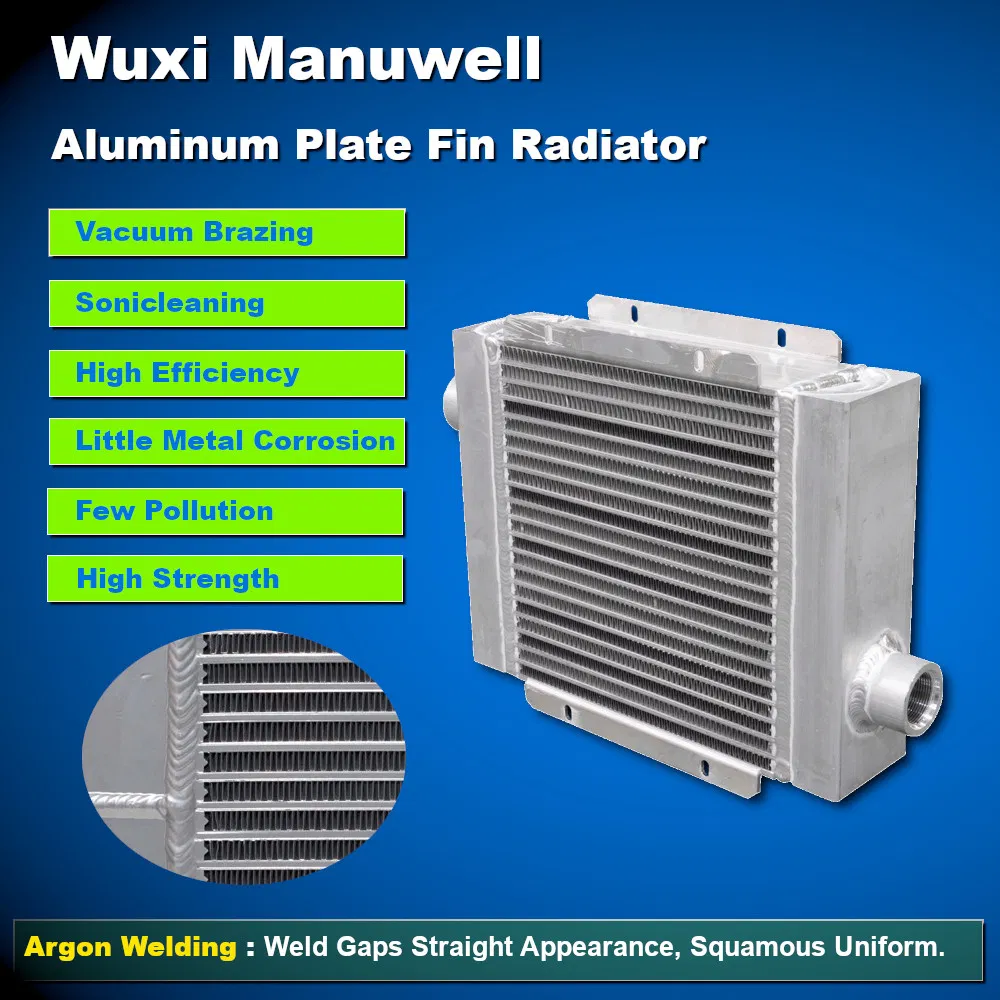

Blanking > Fin punching > Cleaning > Core components > Vacuum brazing > Parts processing > Welding > Pressure testing > Drying > Overall inspection > Painting > Packaging

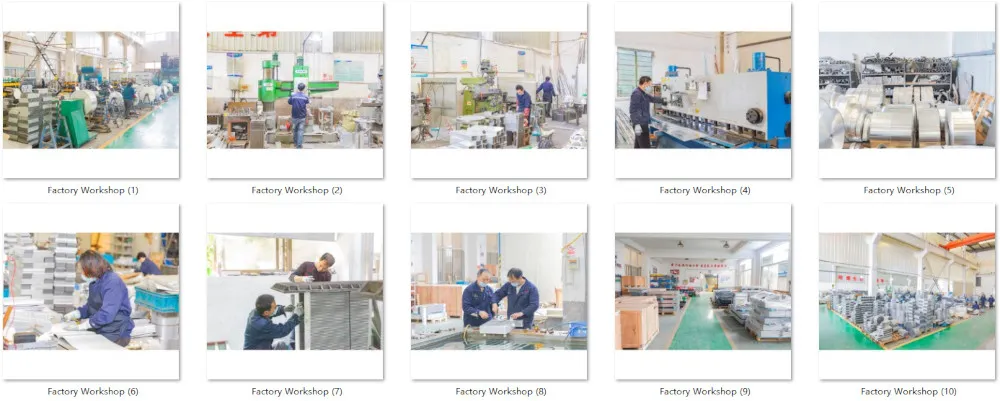

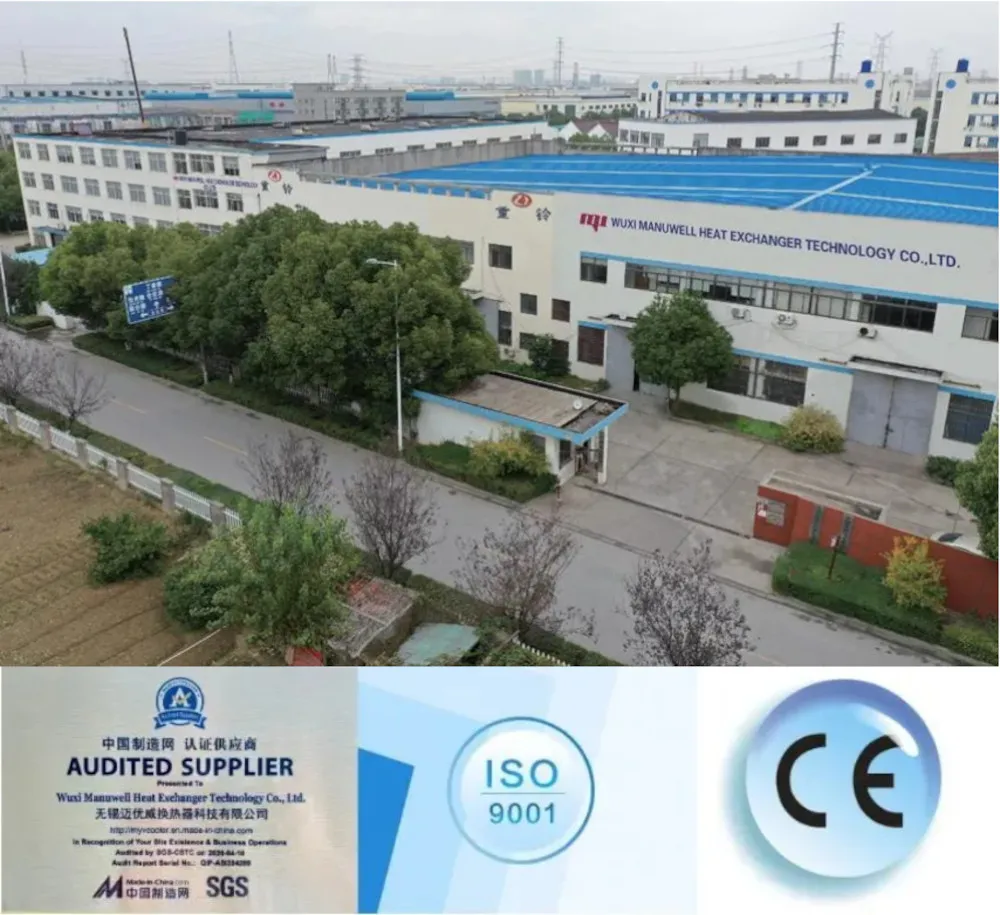

• Professional factory specializing in aluminum bar and plate heat exchangers.
• Strict Quality Control throughout the entire manufacturing process.
• Comprehensive general inspection on fixing before final packing.
• Products certified under ISO 9001 and CE standards.
• Extended service life for all bar and plate heat exchanger units.
• Customizable designs and acceptance of minimum orders to meet specific requirements.
• Full order tracking and updates from collection to transport information.

Our products are widely utilized across various industries, including hydraulic systems, lubrication systems, air compressors, engineering and construction machinery, power systems, transmission oil cooling, marine applications, and vehicle engine water tanks. They are also standard components for mobile crane heat exchangers.
