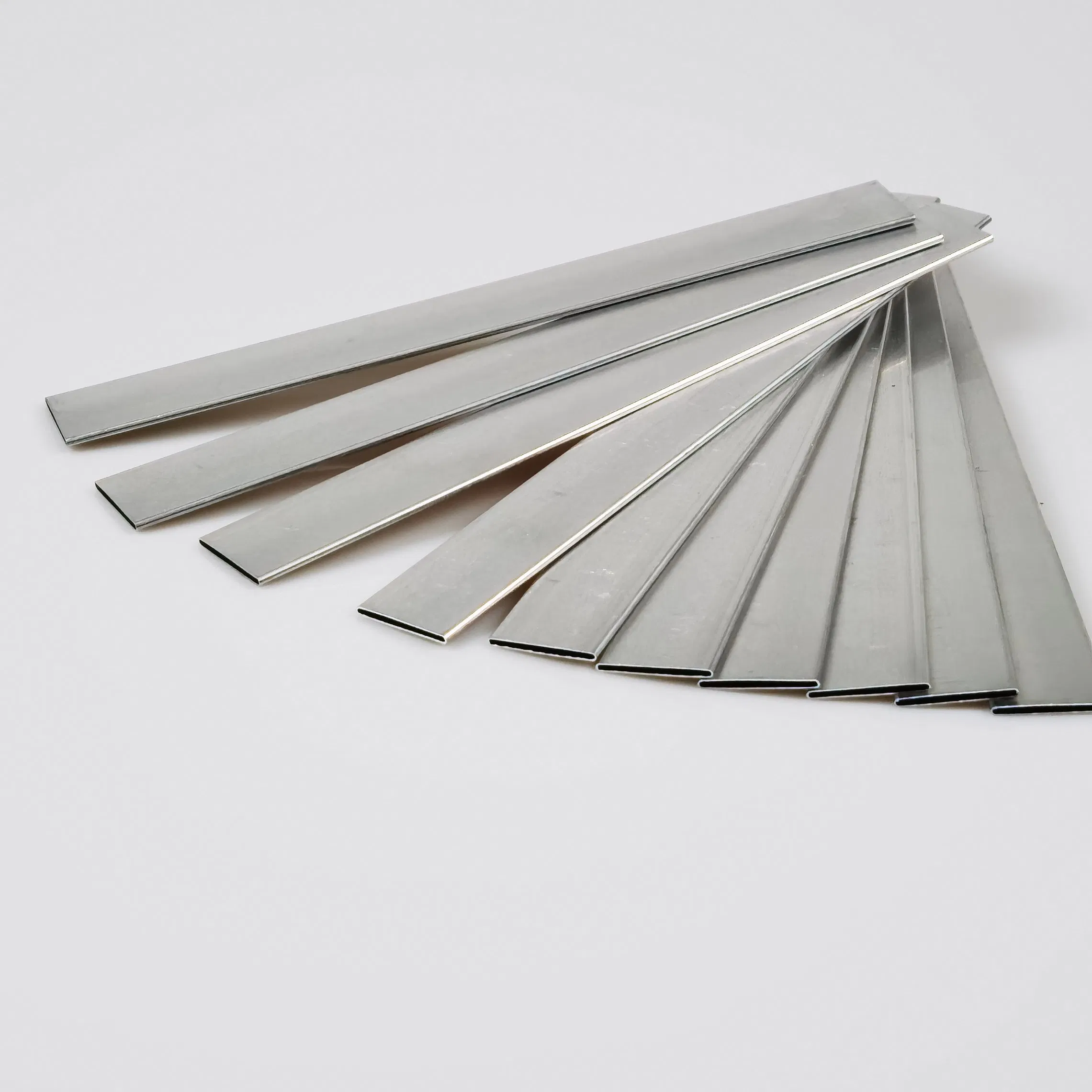

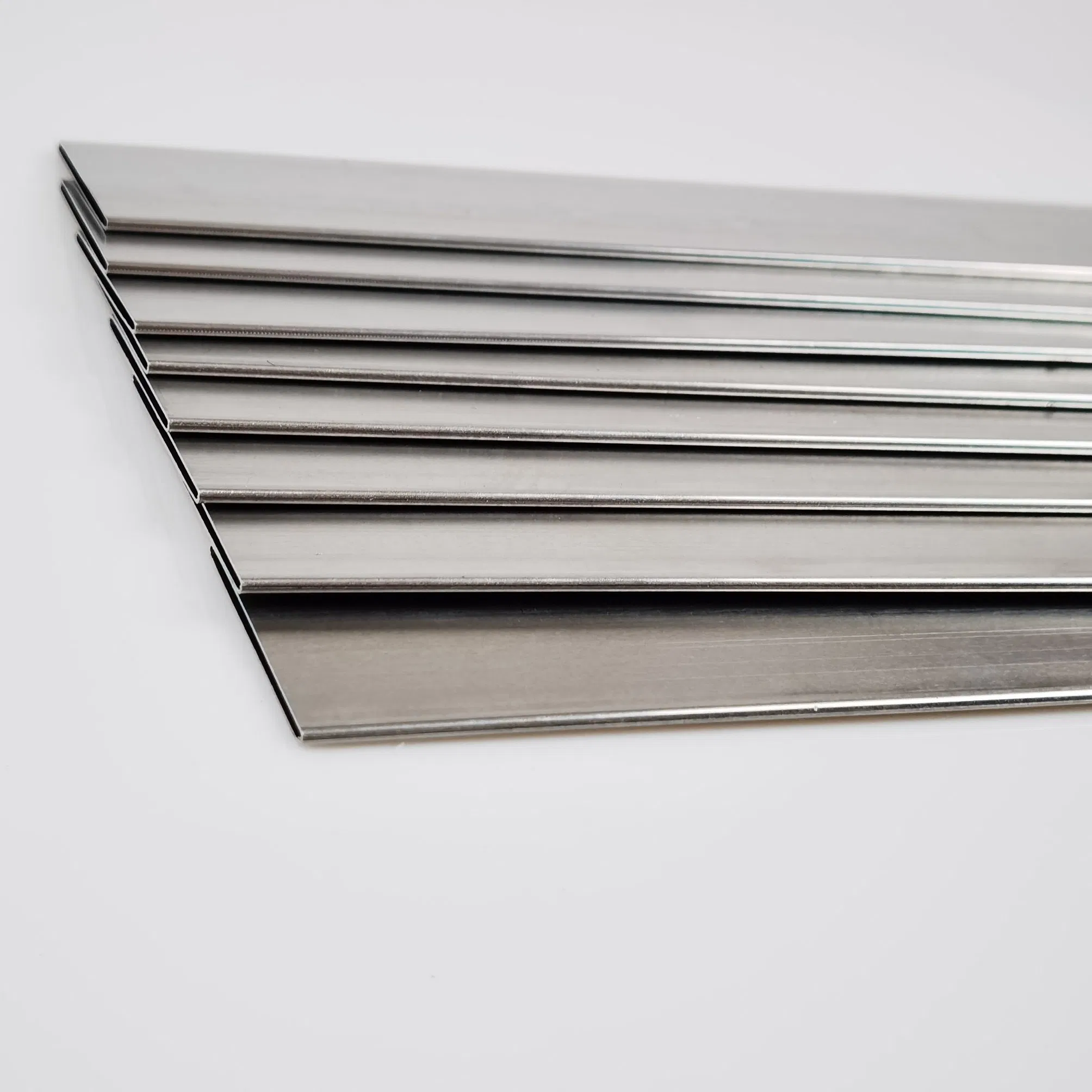

Factory Direct High Frequency Welded Aluminum Radiator Flat Tube

Basic Product Information

Engine Type

Many Types

Component

Radiator

Body Material

Aluminium

Cold Style

Water-cooled

Certification

ISO9001, TS16949, CCC

Structure

Sealed Type

Cooling Fluid

Alcohol

Radiator Type

Direct-flow

Core Type

Tube-fin

Origin

China

Capacity

600mt/Month

Specification

80*70*60cm

Packaging & Delivery

Package Size

305.00cm * 55.00cm * 45.00cm

Gross Weight

1100.000kg

Transport

Wooden Pallet

Product Description

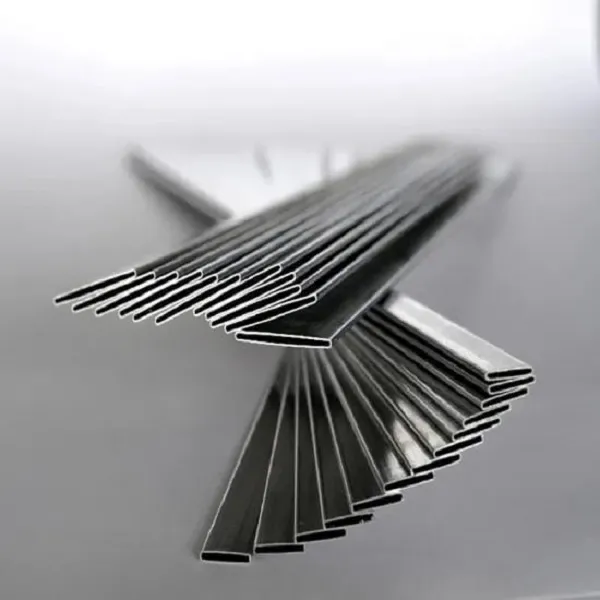

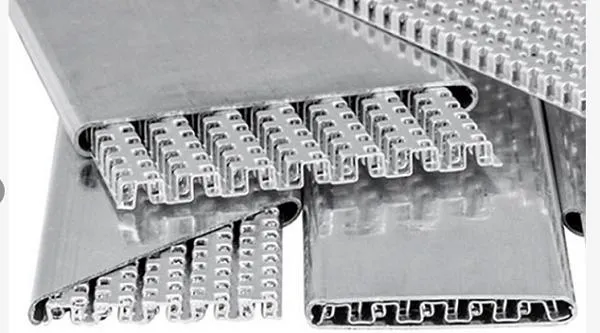

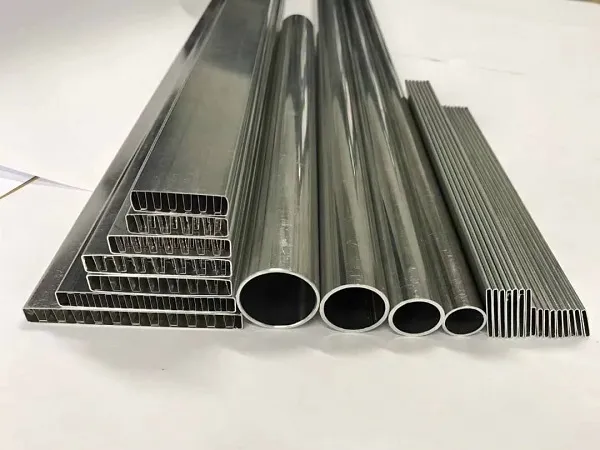

High Frequency Welded Radiator Tube

1

Product Introduction: The manufacturing method involves shaping a flat aluminum strip into a tube, then connecting the edges through high-frequency welding without filler material. The size is then precisely adjusted to meet exact tolerances.

High frequency welded radiator tube is a composite pipe. Unlike extruded tubes, these can feature weldable layer materials of various aluminum alloys. Typically, the core material is 3003, with cladding alloys 4343 or 4045, widely used for furnace or flame brazing with superior corrosion resistance.

Technical Parameters (Specification)

Height * R * Thickness (mm)
12 * 1.5 * 0.26/0.28	42 * 2.0 * 0.35/0.40
12 * 1.71 * 0.26/0.28	22 * 1.5 * 0.30/0.32
12 * 2.0 * 0.26/0.28	20 * 2.0 * 0.30/0.32
13 * 1.75 * 0.26/0.28/0.30	32 * 2.0 * 0.30/0.32/0.35/0.40
14.55 * 1.5 * 0.26/0.28/0.30	25 * 2.0 * 0.30/0.32/0.40
25.5 * 2.0 * 0.28/0.30	14.55 * 2.0 * 0.26/0.28/0.30
16 * 1.4 * 0.26/0.30/0.32	25.5 * 1.75 * 0.28/0.30
16 * 1.5 * 0.26/0.28/0.30/0.32	26 * 1.2 * 0.28/0.30
16 * 1.71 * 0.28/0.30/0.32	26 * 1.4 * 0.26/0.30/0.32
16 * 1.8 * 0.28/0.30/0.32	26 * 1.5 * 0.30/0.32
16 * 2.0 * 0.28/0.30/0.32/0.35	26 * 1.6 * 0.30/0.32
16 * 2.5 * 0.28/0.30	26 * 2.0 * 0.30/0.32/0.35/0.40
16.5 * 1.75 * 0.28/0.30	27 * 1.5 * 0.30
18 * 1.5 * 0.30/0.32	27 * 1.2 * 0.30
18 * 1.6 * 0.30/0.32	32 * 1.75 * 0.28/0.30

Features & Applications

✓

Main Application: Primarily utilized in automotive radiators and condensers.

✓

High Efficiency: Features high welding speeds and a small heat-affected zone.

✓

Versatility: Capable of welding thin-walled and diverse metal tubes without requiring pre-cleaning of the workpiece.

Frequently Asked Questions

Are these tubes suitable for customized projects?

Yes, customized orders are welcome. We can manufacture products according to your specific technical performance requirements or samples.

What materials are used in the manufacturing?

The core material is generally 3003 aluminum alloy, with a cladding weldable alloy of 4343 or 4045 for enhanced durability.

What information is needed for a fast quote?

Please provide details including thickness, diameter, working temperature, color, quantity, and specific application.

What are the benefits of high-frequency welding?

It offers high welding speeds, a very small heat-affected zone, and the ability to weld extremely thin-walled metal tubes effectively.

What certifications do your products hold?

The products are certified under ISO9001, TS16949, and CCC standards to ensure high-quality manufacturing.

How are the products packaged for transport?

Standard transport involves high-quality wooden pallets to ensure safe delivery and protect against damage.
