Product Description

i

Basic Specifications

Model NO.
Customized
Application
Cooler
Principle
Recuperative Heat Exchanger
Style
Plate and Bar
Material
Aluminum
HS Code
84186190
Capacity
6,000,000kg / Per Year
Transport Package
Wooden Pallet or Requirement
✓

Product Description

Aluminum Plate Fin Combined Heat Exchanger Oil Cooler is engineered from premium aluminum alloy, offering a lightweight profile, exceptional seismic strength, and superior heat transfer efficiency. Our design utilizes high-efficiency fins to maximize heat transfer area and optimize the total heat transfer coefficient.

Higher Efficiency

Materials are selected for maximum thermal conductivity to ensure rapid cooling.

Compact Design

Corrugated metal plate structure allows for a larger effective heat transfer area in a smaller footprint.

Durable & Reliable

Simple structure with minimal heat loss, flexible assembly, and a long service life.

⚙

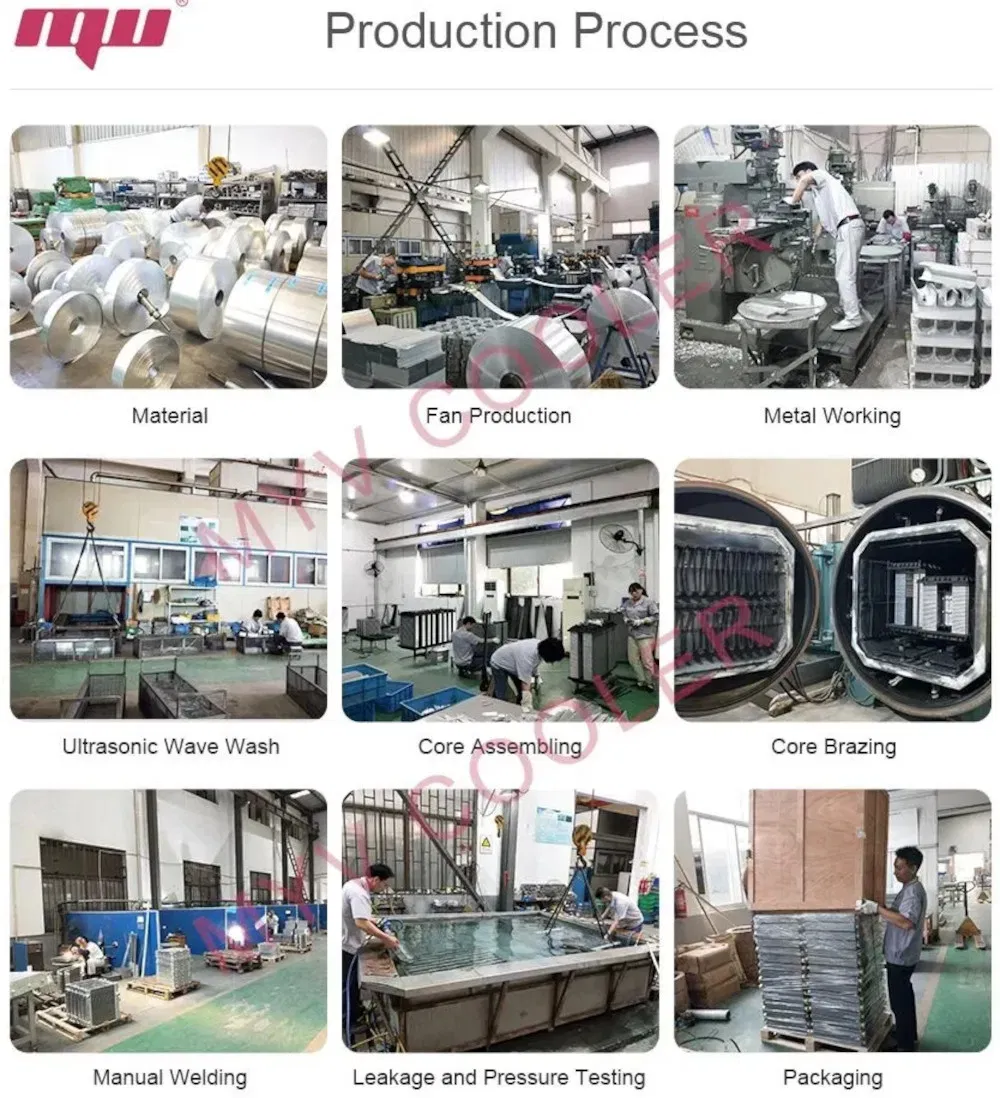

Manufacturing Process

Blanking Fin punching Cleaning Core components Vacuum brazing Parts processing Welding Pressure testing Drying Overall inspection Painting Packaging
📷

Detailed Photos

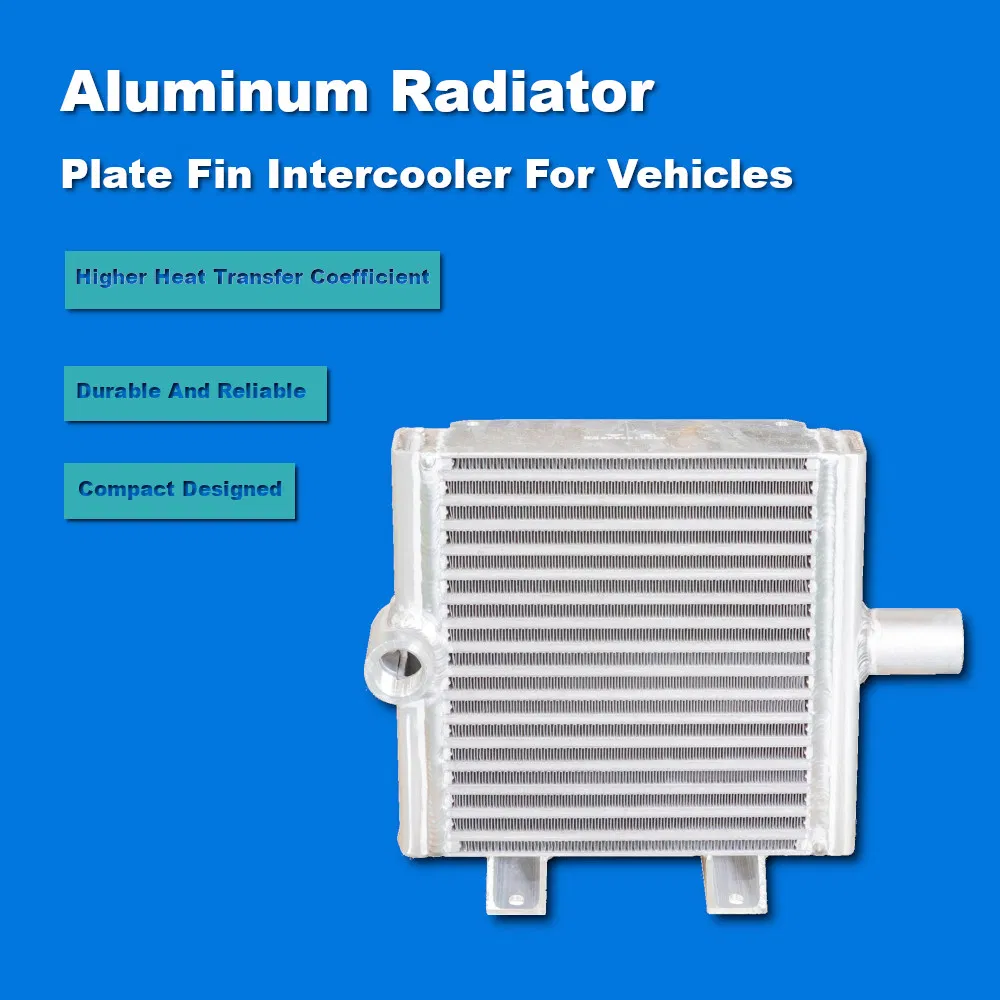

Aluminum Plate and Bar Radiator Core

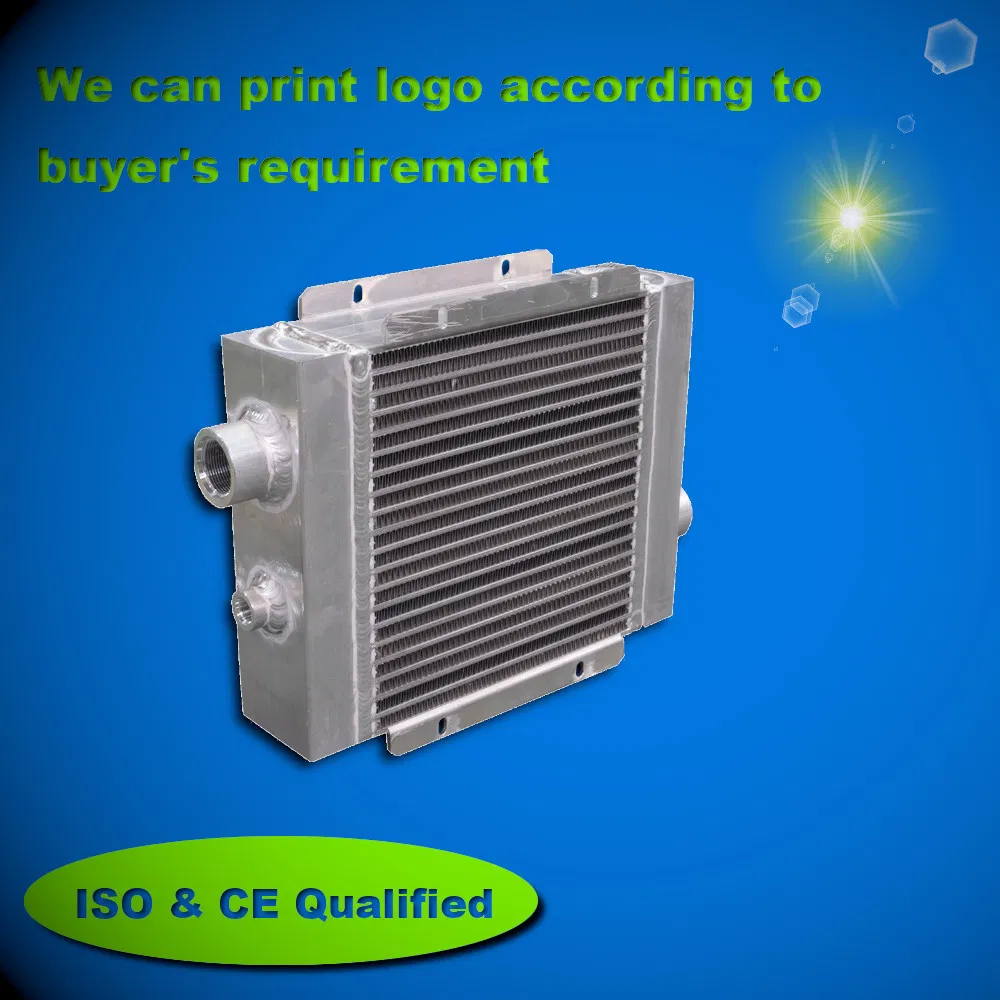

Radiator Core Detail

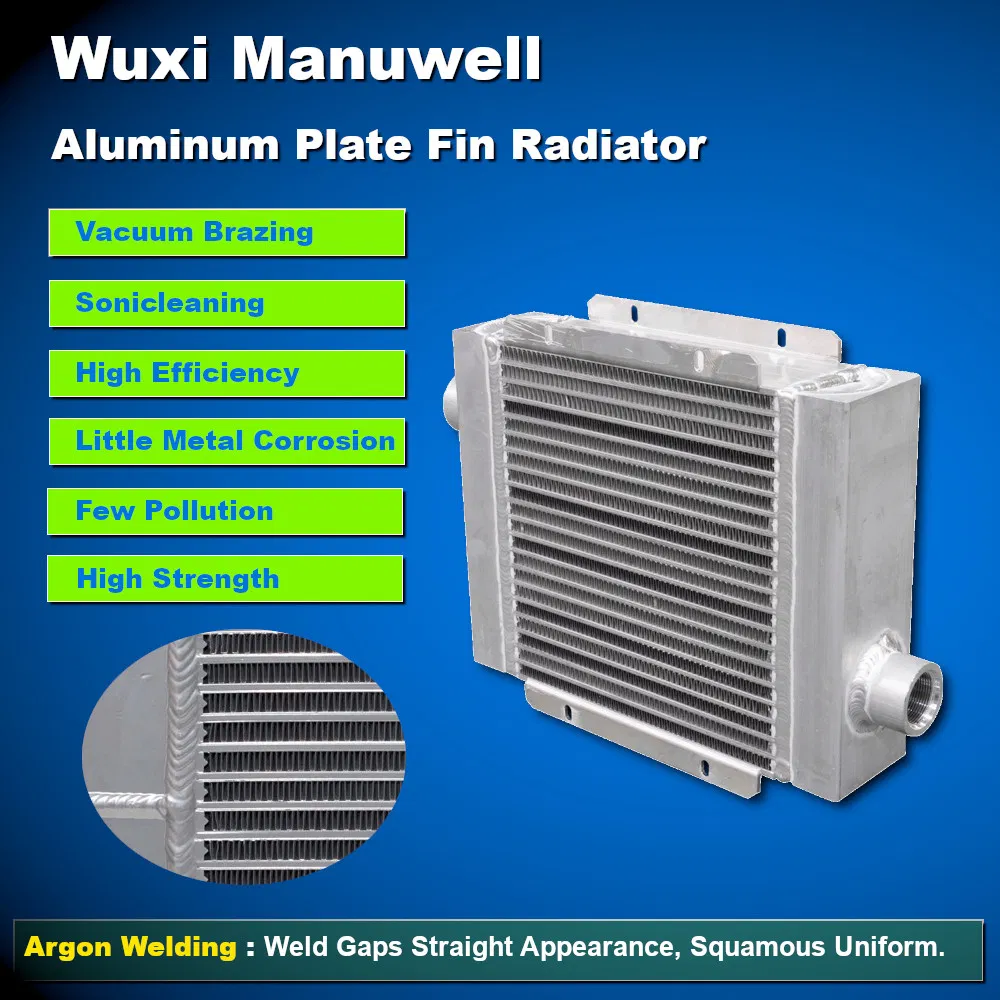

Heat Exchanger Production

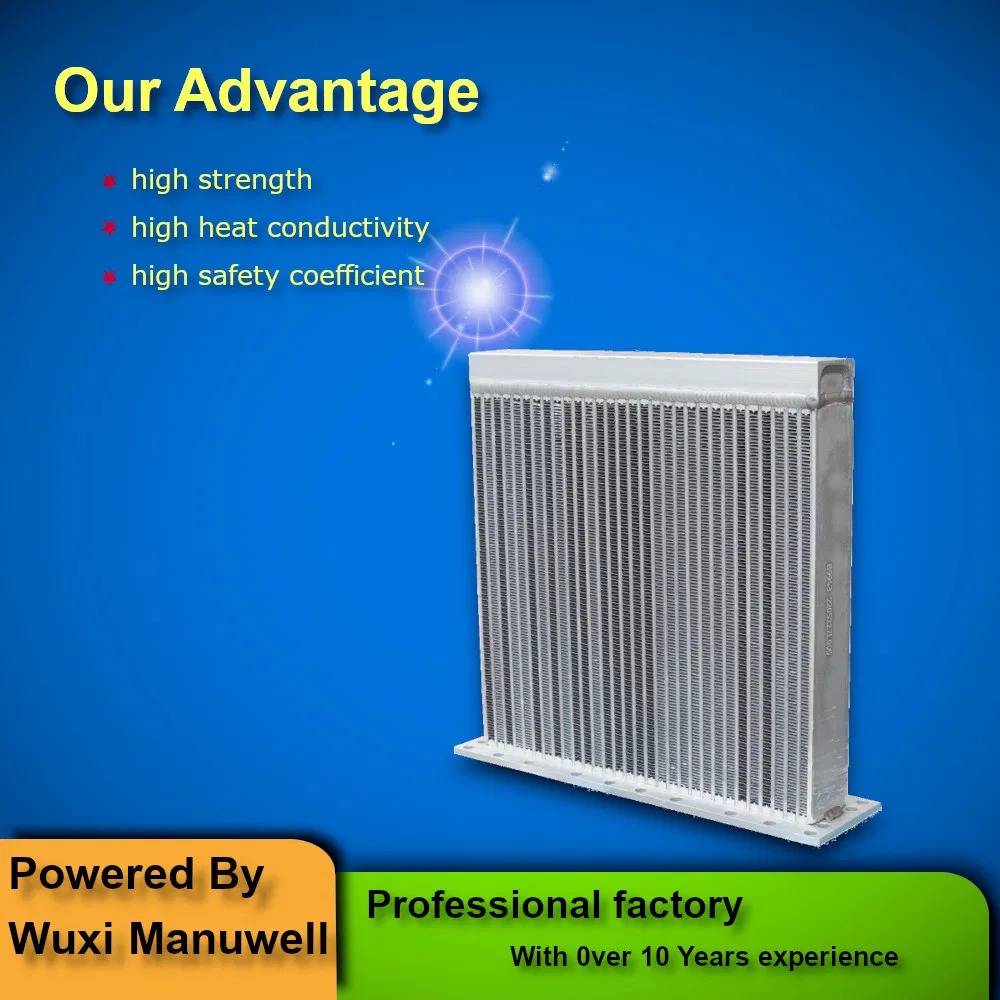

Brazed Aluminum Radiator

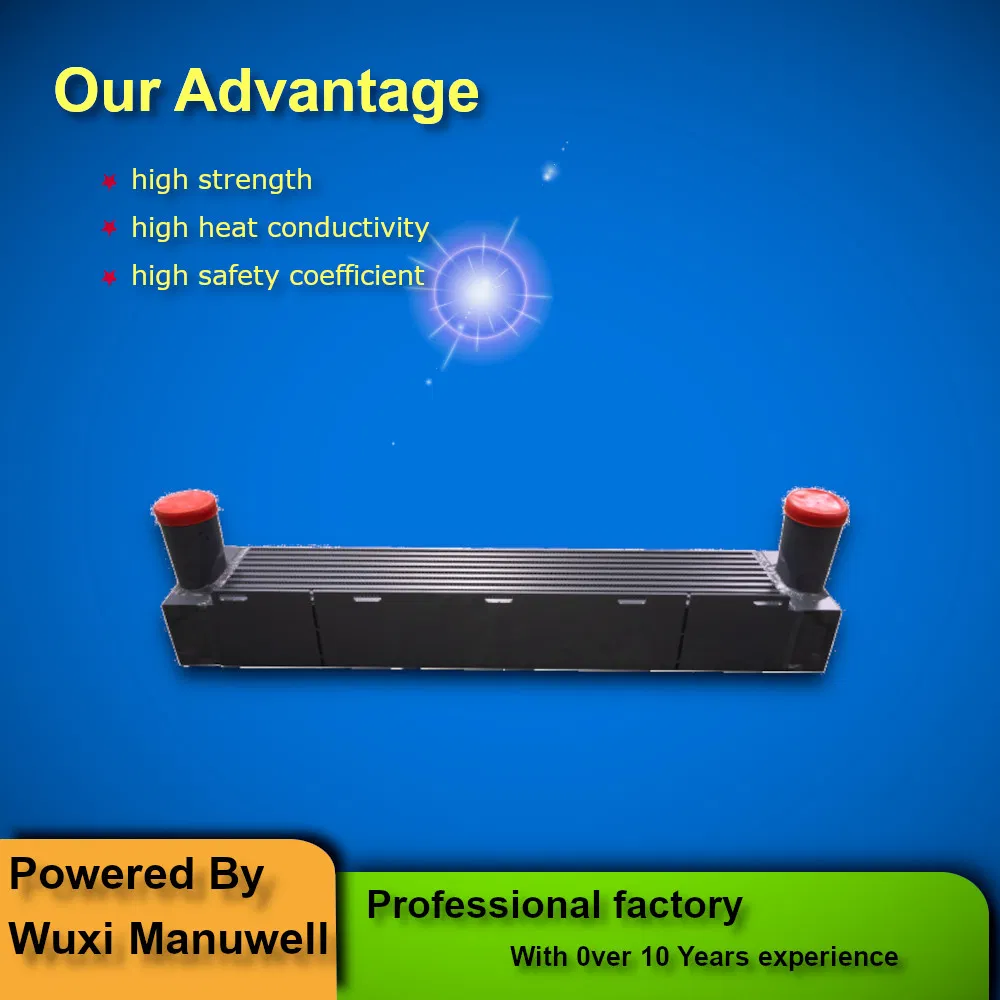

Oil Cooler View
Industrial Radiator

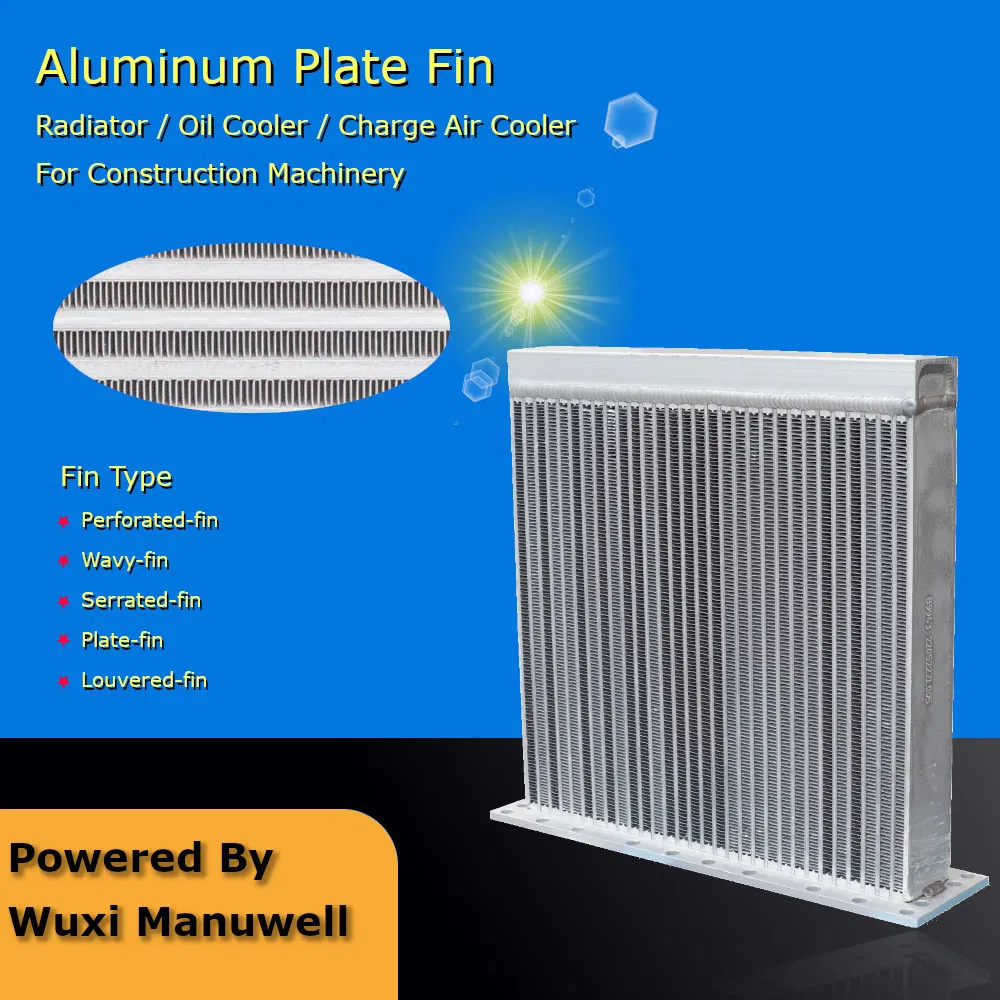

Custom Cooling Solution

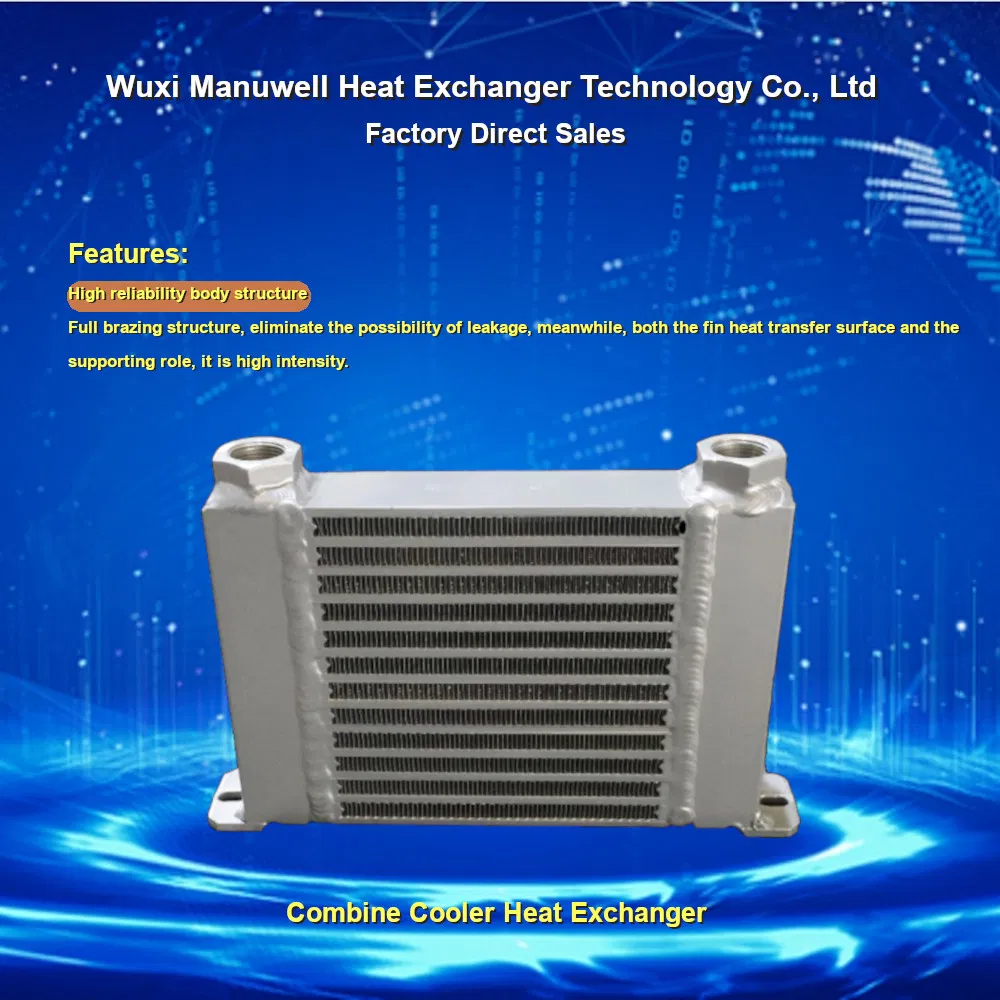

Aluminum Fin Radiator

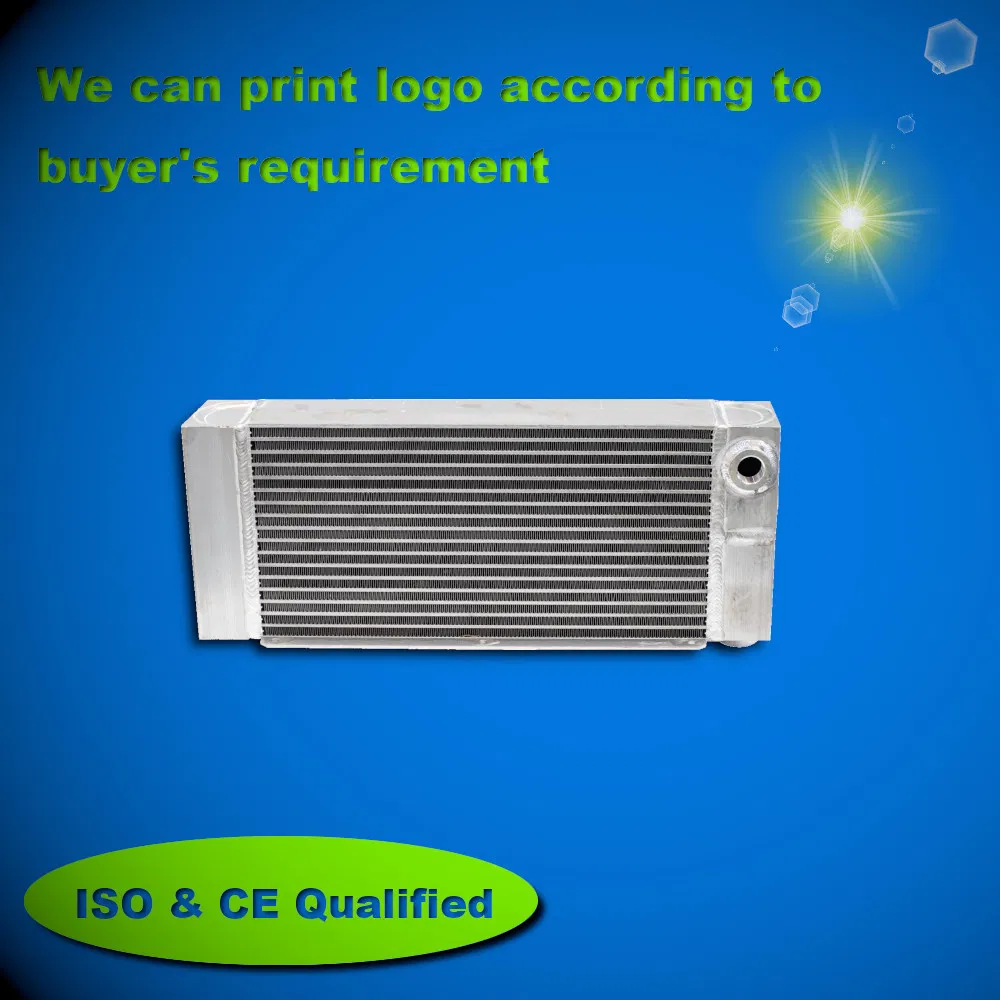

Brazed Core Assembly

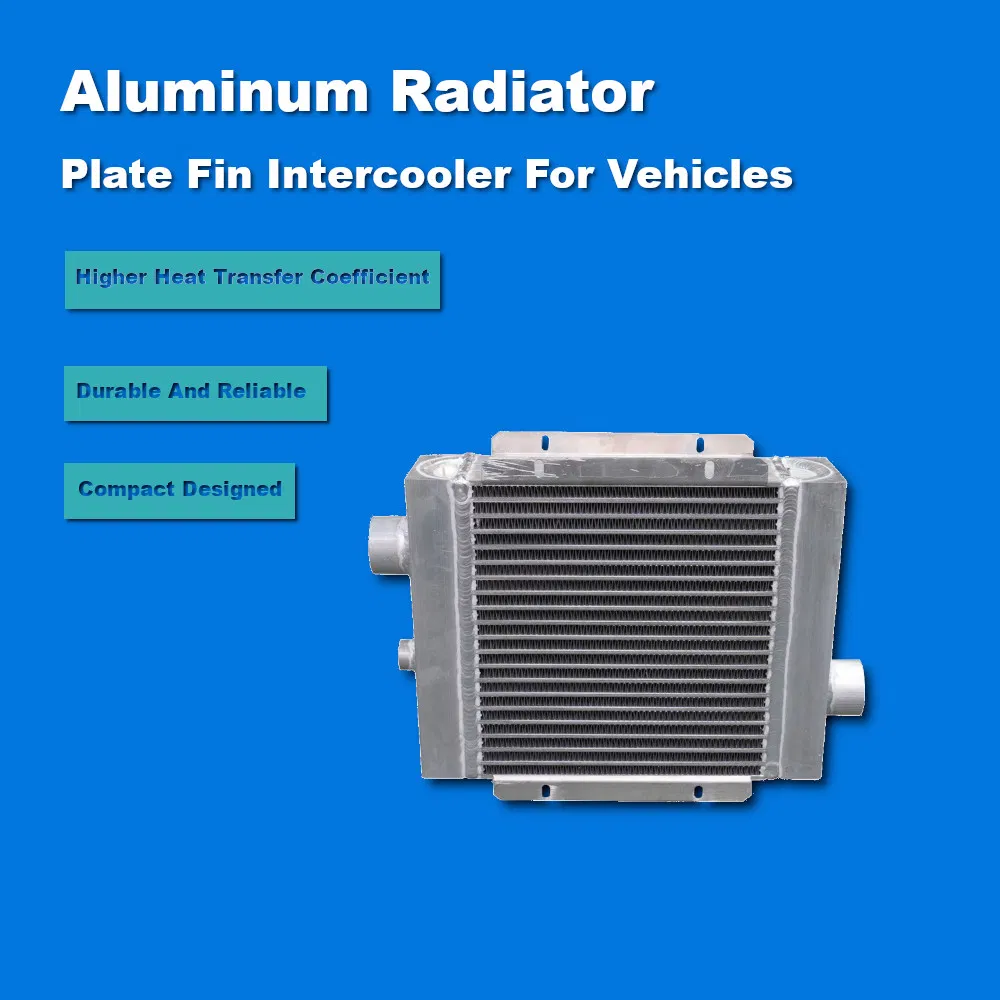

Spare Parts Radiator

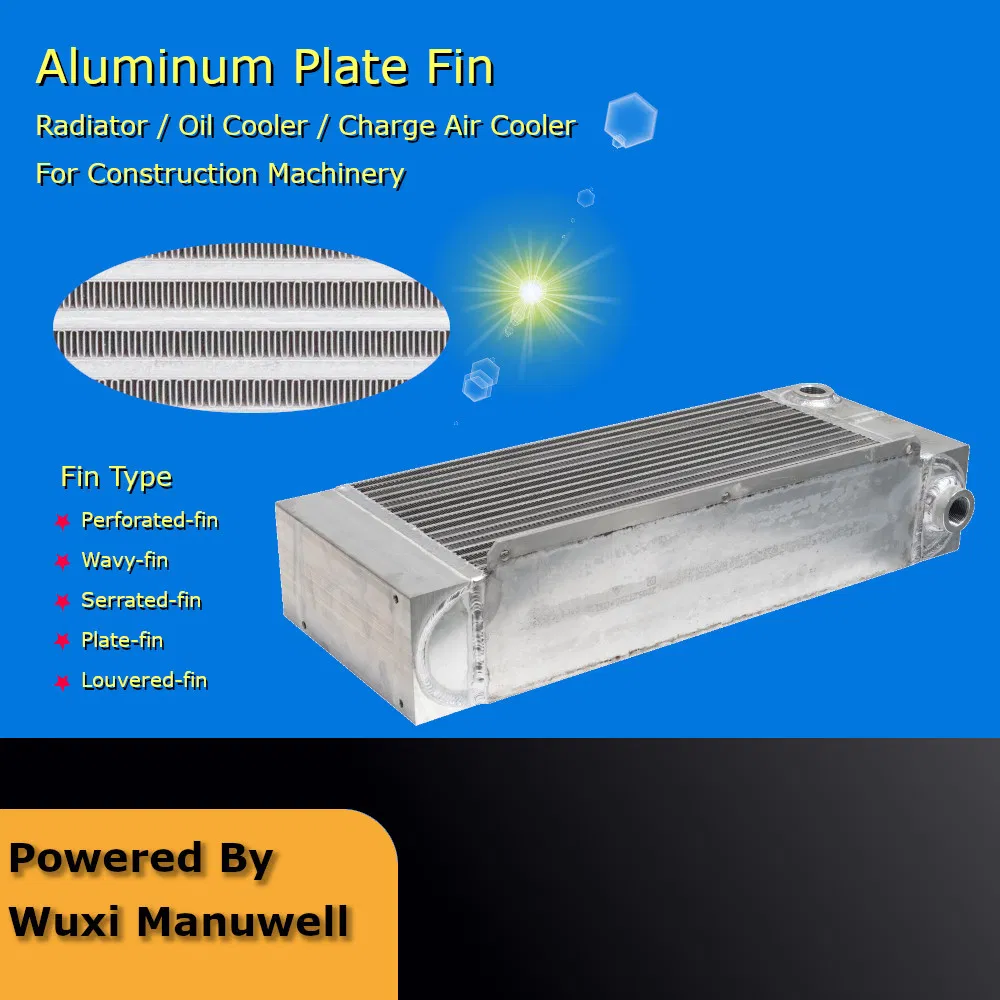

Excavator Cooling Parts

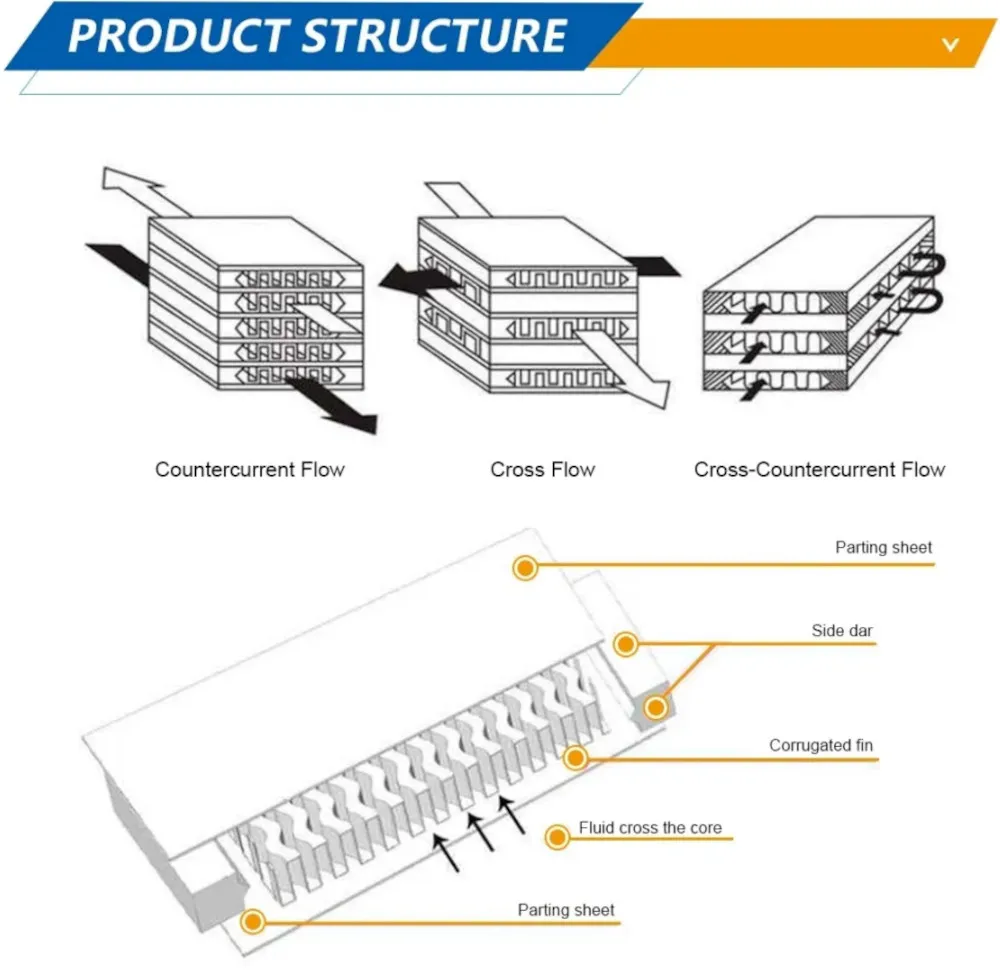

Cooling Water Tank
Oil Cooler Side View
Heat Exchanger Component
Plate Fin Design
Radiator Structure
Finished Product Radiator
Industrial Cooling Unit
Final Inspection Unit
?

Frequently Asked Questions

What are the main applications for these heat exchangers?
They are widely used in hydraulic systems, lubrication systems, air compressors, engineering and construction machinery, power systems, transmission oil cooling, marine applications, and automotive engine water tanks.
What material is used for the plate and bar construction?
The units are manufactured using high-quality aluminum alloy, which provides a balance of lightweight construction, high thermal conductivity, and excellent seismic resistance.
Why is the plate-fin design considered more efficient?
The corrugated plate-fin design maximizes the effective heat transfer area within a compact volume. This results in a higher heat transfer coefficient compared to traditional shell and tube exchangers.
Do your products meet international quality standards?

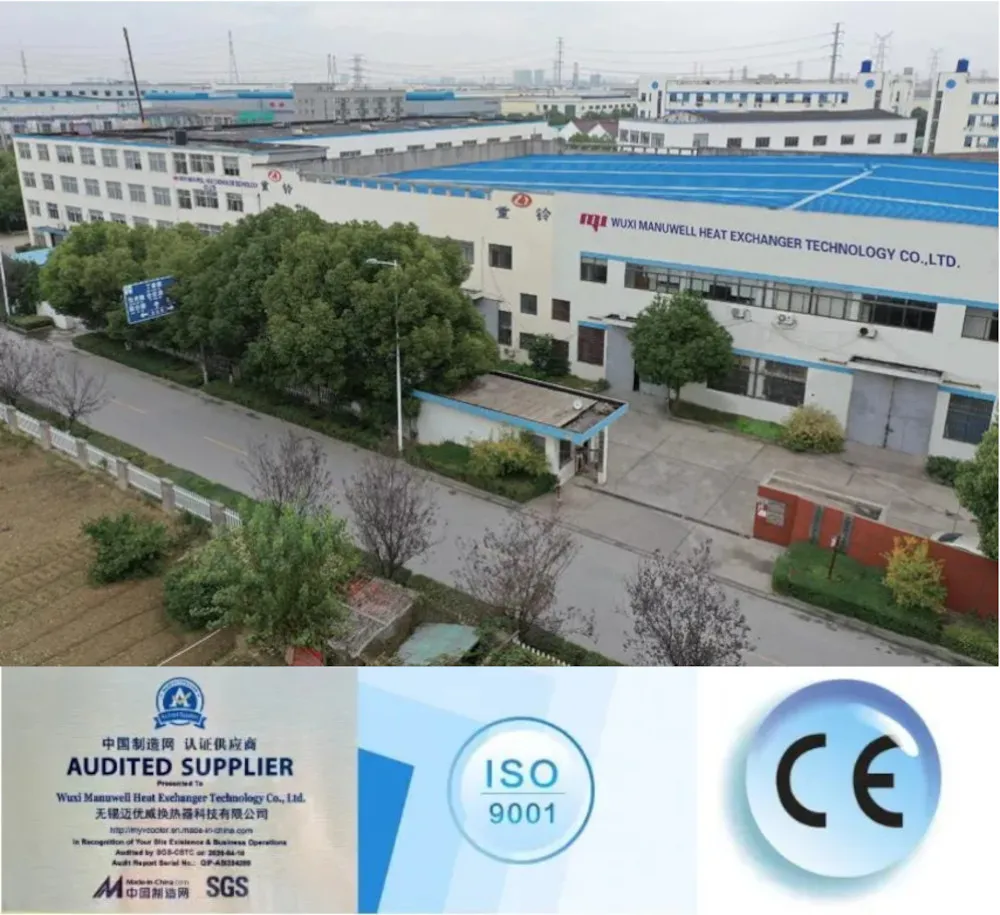

Yes, all our aluminum plate and bar heat exchangers have passed ISO 9001 and CE certifications, ensuring consistent quality and performance.
Can you provide customized cooling solutions?
Absolutely. We specialize in customized designs tailored to specific requirements for dimensions, performance, and application environments.
What is the production process for these radiators?
The process includes precision blanking, fin punching, vacuum brazing, specialized welding, and rigorous pressure testing and inspection to ensure zero defects.
