Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser
Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser
Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser
Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser
Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser
1 / 5
Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser
Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser
Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser
Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser
Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser

Aluminum Radiator High Frequency Welded Tube for New Energy Vehicle Condenser

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
tube11
Component
Radiator
Body Material
Aluminium
Cold Style
Water-cooled
Certification
ISO9001, TS16949, CCC
Structure
Sealed Type
Radiator Type
Direct-flow
Core Type
Tube-fin
Material
Customized
Production Capacity
600mt/Month
Origin
China
Transport Package
Wooden Pallet
P

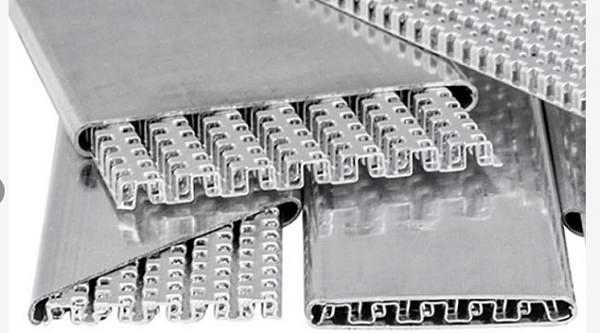

High Frequency Welded Radiator Tube

The manufacturing method of high frequency welded radiator tube involves shaping a flat aluminum strip into a tube, then connecting the edges through a high-frequency welding process. This seam welding is performed without any filler material, followed by precision sizing to reach exact tolerances.

Advanced Composition: This composite pipe typically uses 3003 as the core material, with cladding weldable alloys like 4343 or 4045. It is designed for furnace or flame brazing with superior sacrificial corrosion resistance.

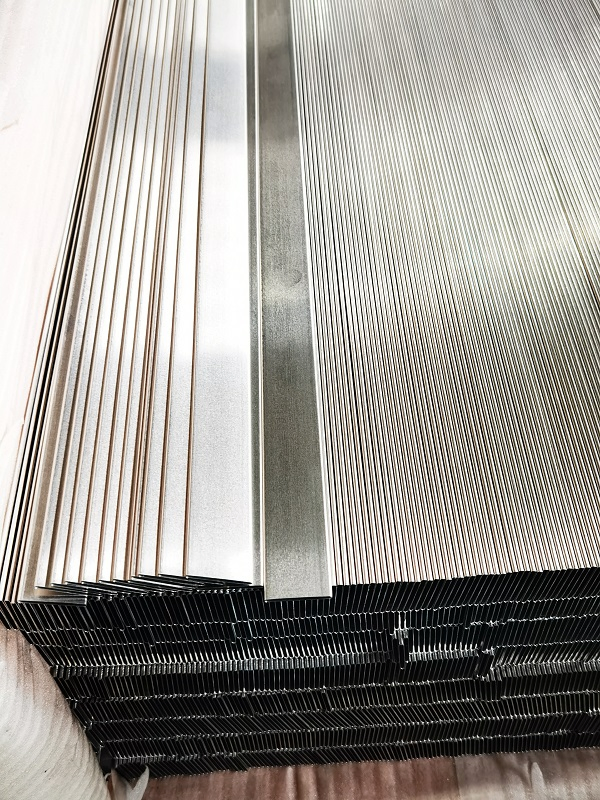

Welded Tube Display 1

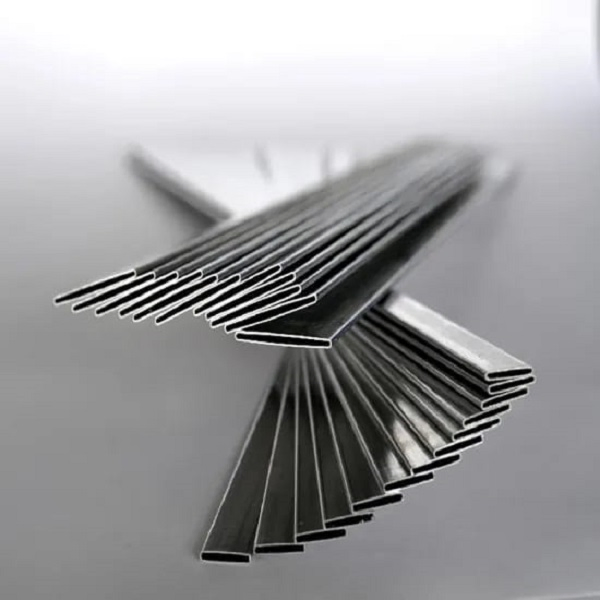

Welded Tube Display 2

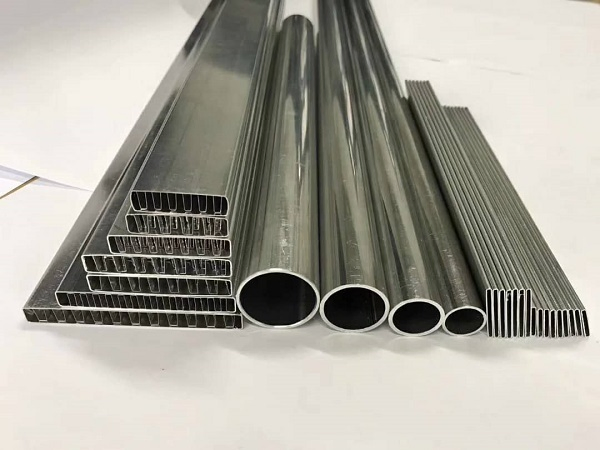

Welded Tube Display 3

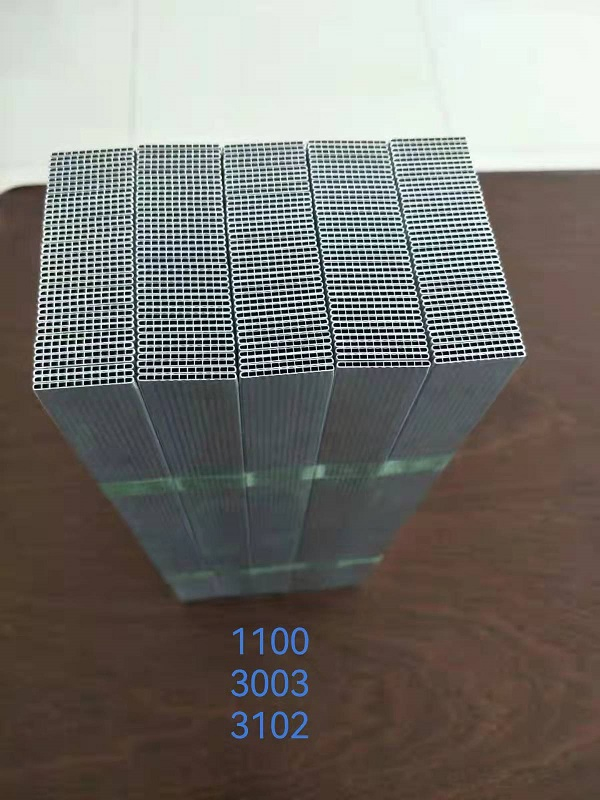

Welded Tube Display 4
T

Technical Parameters (Height*R*Thickness)

Standard Specification List
12*1.5*0.26/0.2842*2.0*0.35/0.40
12*1.71*0.26/0.2822*1.5*0.30/0.32
12*2.0*0.26/0.2820*2.0*0.30/0.32
13*1.75*0.26/0.28/0.3032*2.0*0.30/0.32/0.35/0.40
14.55*1.5*0.26/0.28/0.3025*2.0*0.30/0.32/0.40
25.5*2.0*0.28/0.3014.55*2.0*0.26/0.28/0.30
16*1.4*0.26/0.30/0.3225.5*1.75*0.28/0.30
16*1.5*0.26/0.28/0.30/0.3226*1.2*0.28/0.30
16*1.71*0.28/0.30/0.3226*1.4*0.26/0.30/0.32
16*1.8*0.28/0.30/0.3226*1.5*0.30/0.32
16*2.0*0.28/0.30/0.32/0.3526*1.6*0.30/0.32
16*2.5*0.28/0.3026*2.0*0.30/0.32/0.35/0.40
16.5*1.75*0.28/0.3027*1.5*0.30
18*1.5*0.30/0.3227*1.2*0.30
18*1.6*0.30/0.3232*1.75*0.28/0.30
Contact us for more specifications...
A

Feature & Application

These tubes are primary components in auto radiators and condensers. Key advantages include:

  • ✔ High welding speeds for efficient production.
  • ✔ Minimal welding heat-affected zones.
  • ✔ Ability to weld thin-walled tubes precisely.
  • ✔ Suitable for various metal alloy combinations.
?

Frequently Asked Questions

What materials are used in these radiator tubes?
The tubes are primarily made of high-quality aluminum. The core material is typically 3003 alloy, while the cladding layer uses 4343 or 4045 alloys to ensure optimal brazing performance.
Do you support customized product orders?
Yes, customized orders are welcome. We can adjust technical performance, dimensions, and material specifications based on your provided samples or technical requirements.
What are the main applications of high-frequency welded tubes?
They are widely used in the automotive industry, specifically for manufacturing radiators, condensers, and other heat exchanger components for both traditional and new energy vehicles.
How do I get a faster quotation?
To receive a quick quote, please provide detailed requirements including insulation thickness, diameter, working temperature, quantity, and specific application details.
What are the advantages of the high-frequency welding process?
This process offers high welding speeds, produces a small heat-affected zone, and allows for the welding of very thin-walled tubes without the need for additional filler materials.
What certifications do your products hold?
Our manufacturing processes and products are certified under international standards including ISO9001, TS16949, and CCC, ensuring high quality and reliability.
