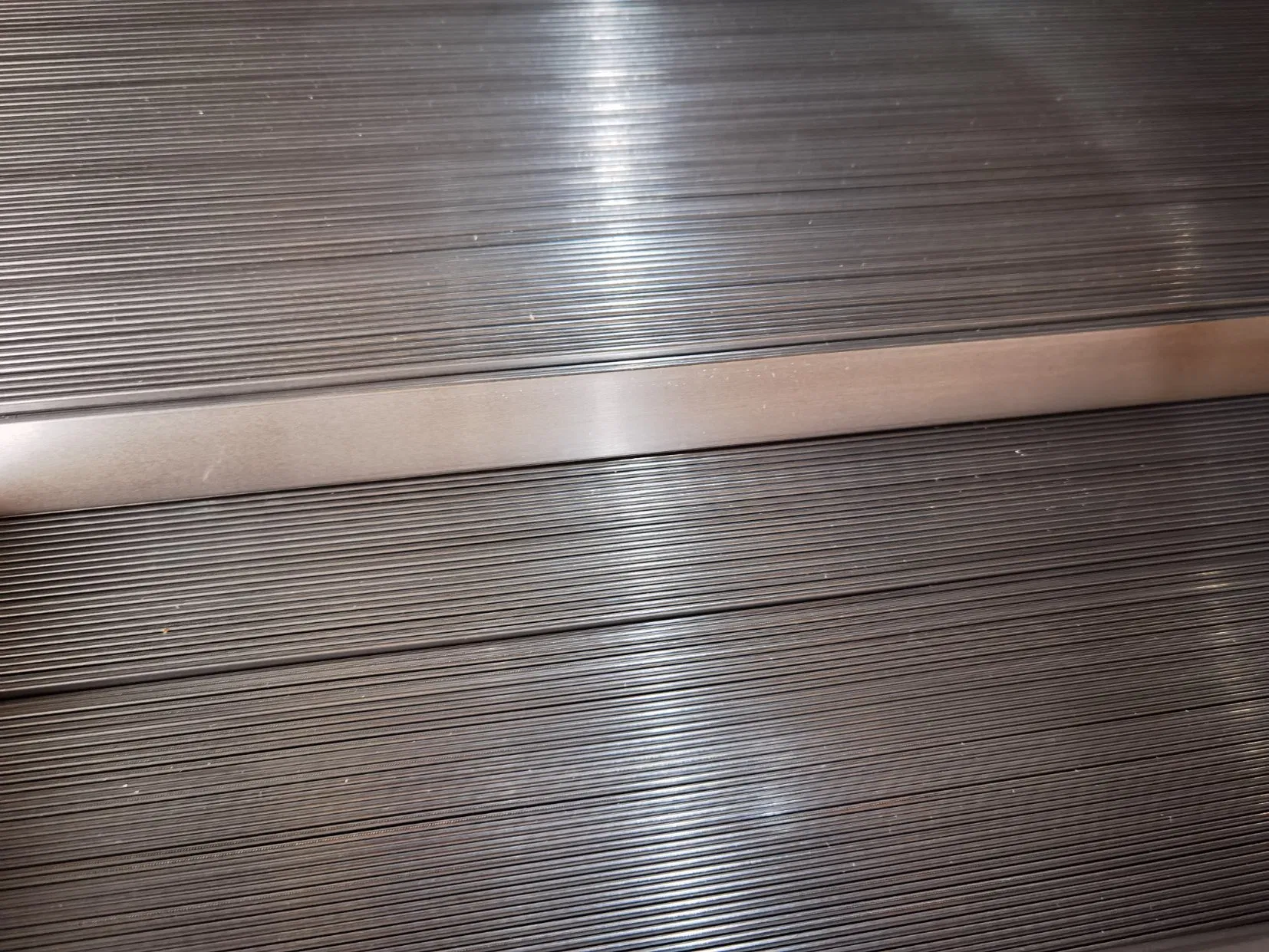

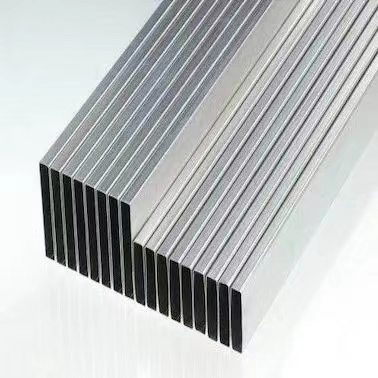

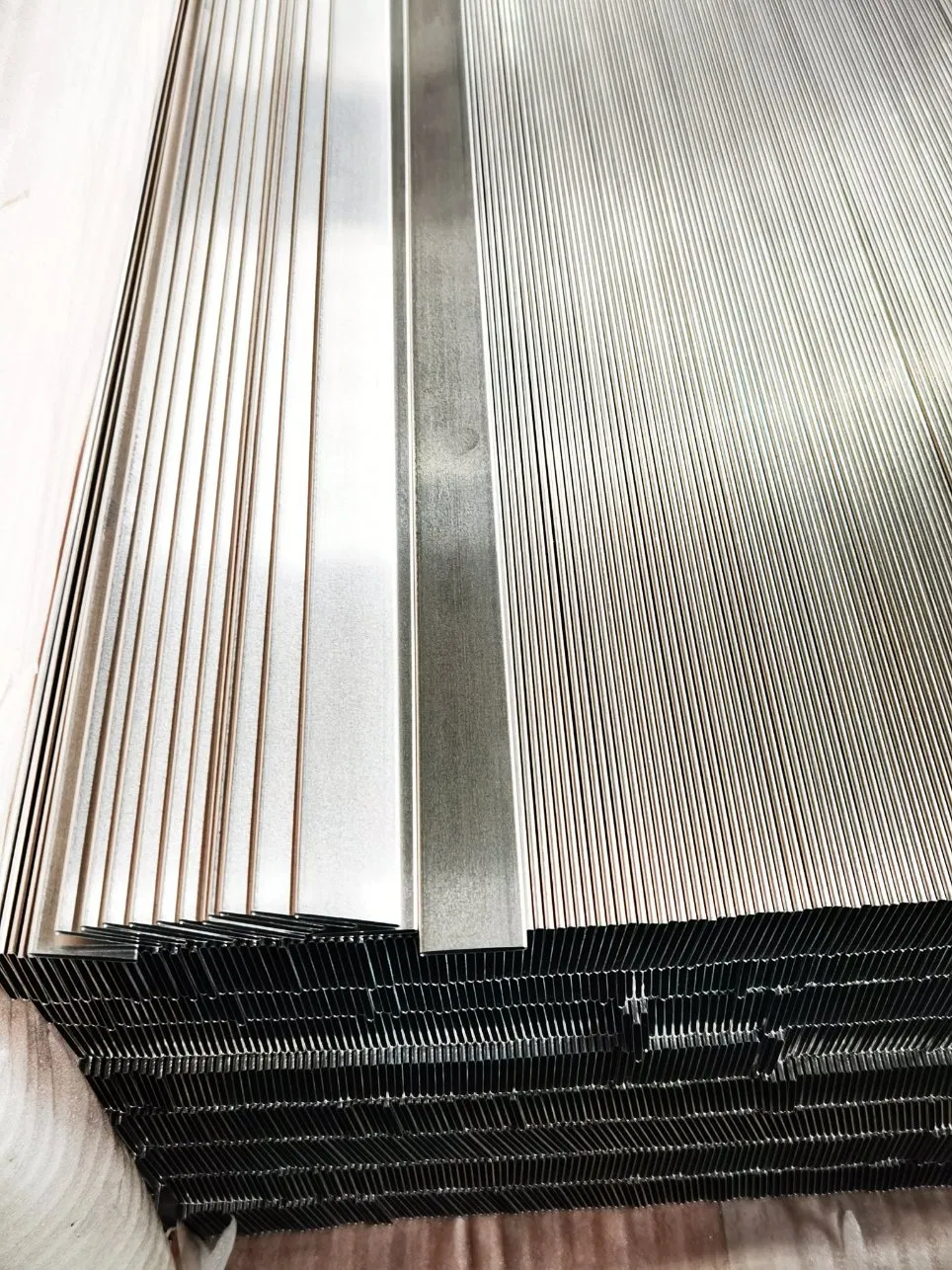

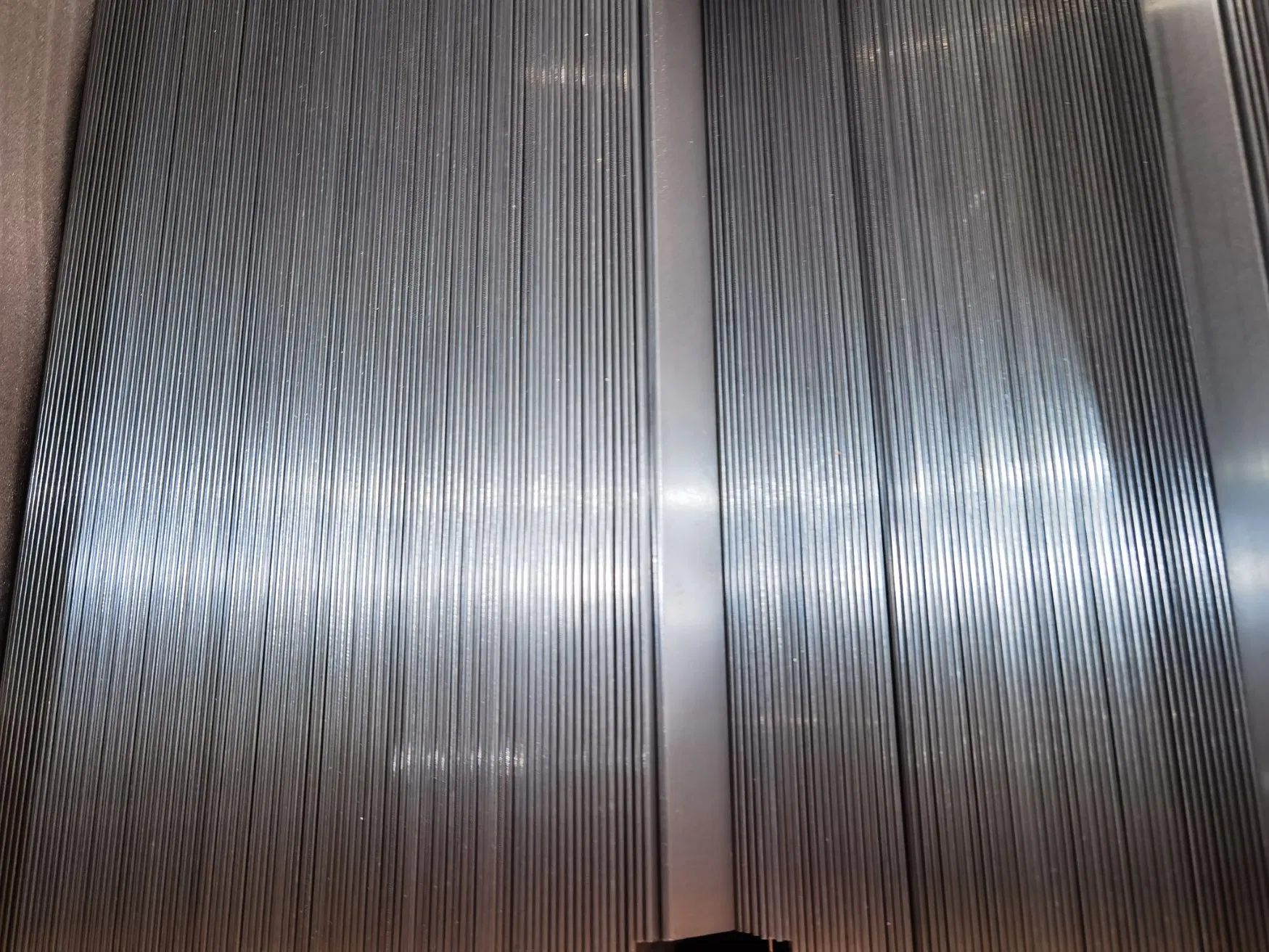

The manufacturing method of high frequency welded radiator tube involves shaping a flat aluminum strip into a tube, then connecting the edges through a high-frequency welding process. This performs seam welding without the use of any filler material. The welded pipe size is then adjusted until exact tolerances are achieved.
This product is a composite pipe. Unlike extruded or drawn tubes, these can feature weldable layer materials of different aluminum alloys. Typically, the core material is 3003, with a cladding weldable alloy of 4343 or 4045. It is extensively used in heat exchanger tube production for furnace or flame brazing, offering excellent sacrificial corrosion resistance.

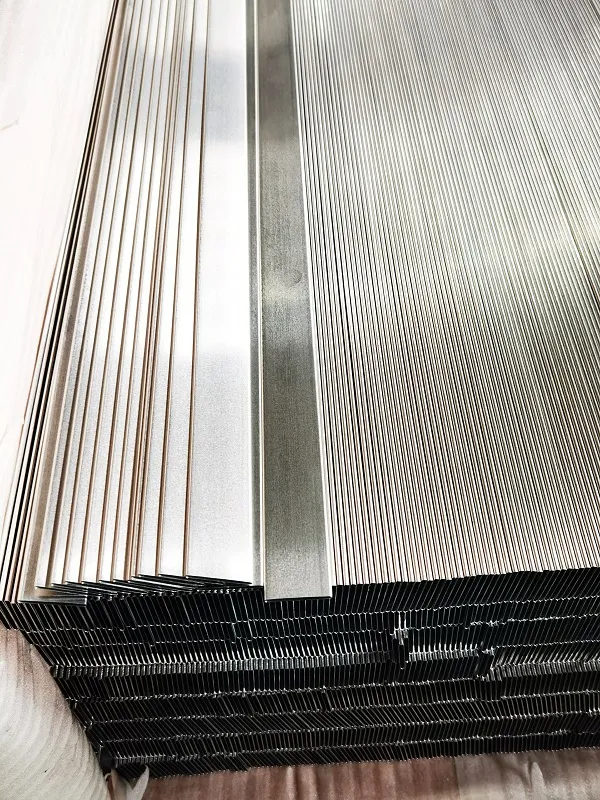

| High frequency welded radiator tube (Height * R * Thickness) | |
|---|---|
| 12 * 1.5 * 0.26/0.28 | 42 * 2.0 * 0.35/0.40 |
| 12 * 1.71 * 0.26/0.28 | 22 * 1.5 * 0.30/0.32 |
| 12 * 2.0 * 0.26/0.28 | 20 * 2.0 * 0.30/0.32 |
| 13 * 1.75 * 0.26/0.28/0.30 | 32 * 2.0 * 0.30/0.32/0.35/0.40 |
| 14.55 * 1.5 * 0.26/0.28/0.30 | 25 * 2.0 * 0.30/0.32/0.40 |
| 25.5 * 2.0 * 0.28/0.30 | 14.55 * 2.0 * 0.26/0.28/0.30 |
| 16 * 1.4 * 0.26/0.30/0.32 | 25.5 * 1.75 * 0.28/0.30 |
| 16 * 1.5 * 0.26/0.28/0.30/0.32 | 26 * 1.2 * 0.28/0.30 |
| 16 * 1.71 * 0.28/0.30/0.32 | 26 * 1.4 * 0.26/0.30/0.32 |
| 16 * 1.8 * 0.28/0.30/0.32 | 26 * 1.5 * 0.30/0.32 |
| 16 * 2.0 * 0.28/0.30/0.32/0.35 | 26 * 1.6 * 0.30/0.32 |
| 16 * 2.5 * 0.28/0.30 | 26 * 2.0 * 0.30/0.32/0.35/0.40 |
| 16.5 * 1.75 * 0.28/0.30 | 27 * 1.5 * 0.30 |
| 18 * 1.5 * 0.30/0.32 | 27 * 1.2 * 0.30 |
| 18 * 1.6 * 0.30/0.32 | 32 * 1.75 * 0.28/0.30 |

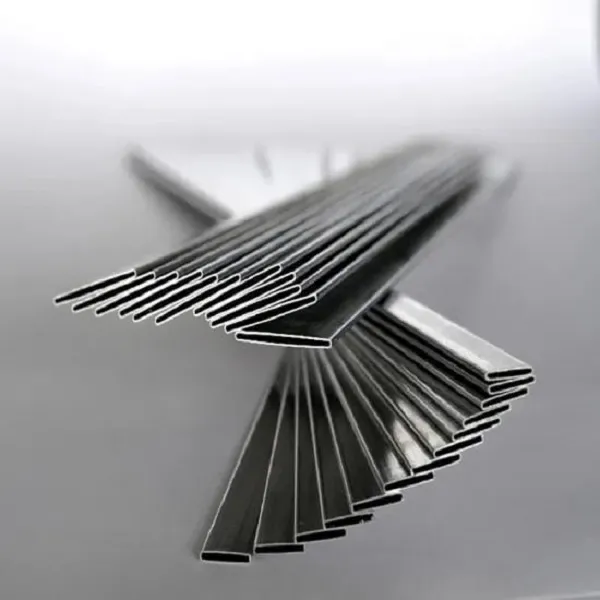

These tubes are primarily utilized in automotive radiators and condensers. Key characteristics include:
