🚗 Product Description

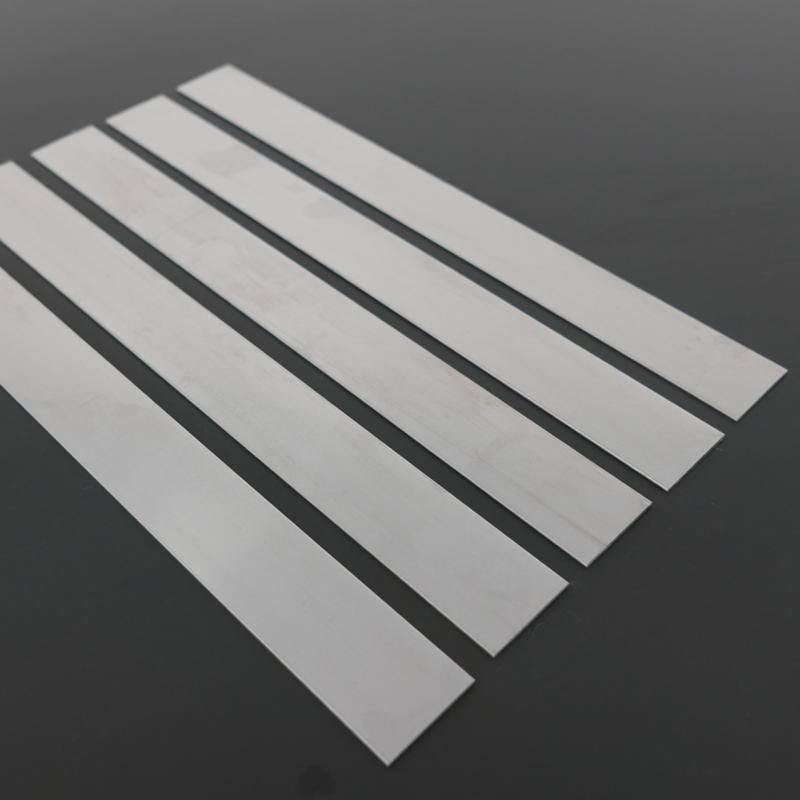

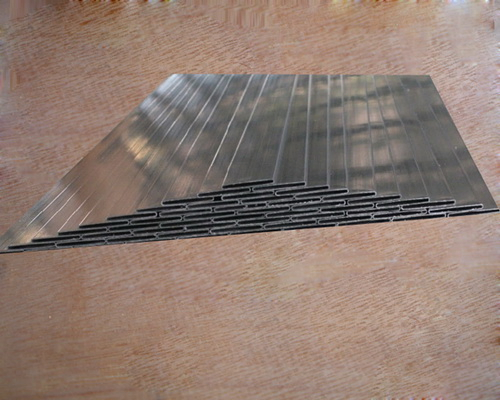

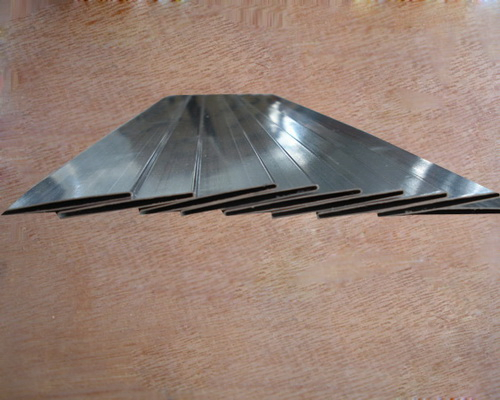

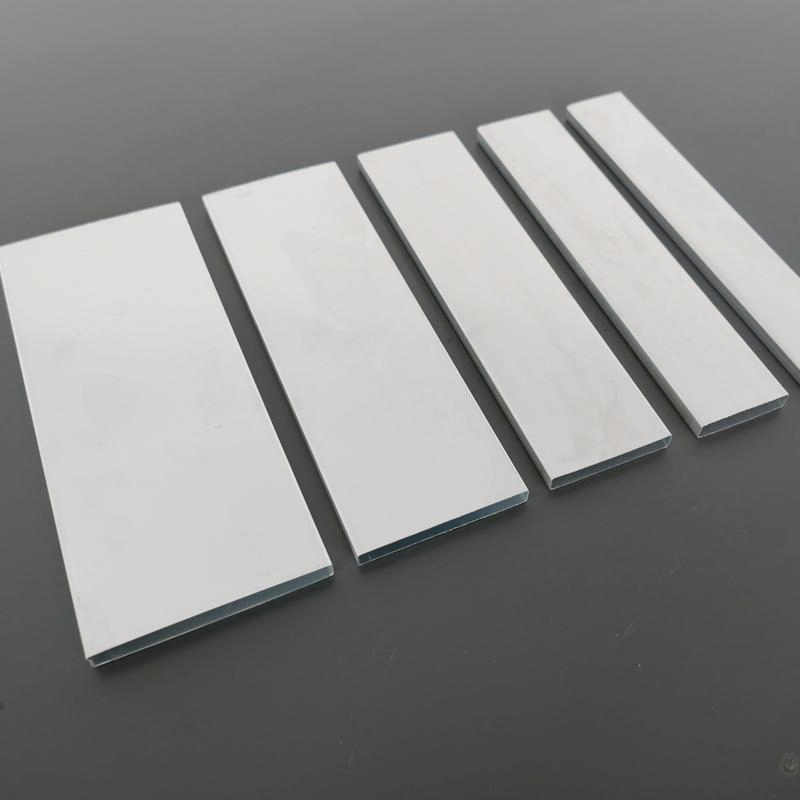

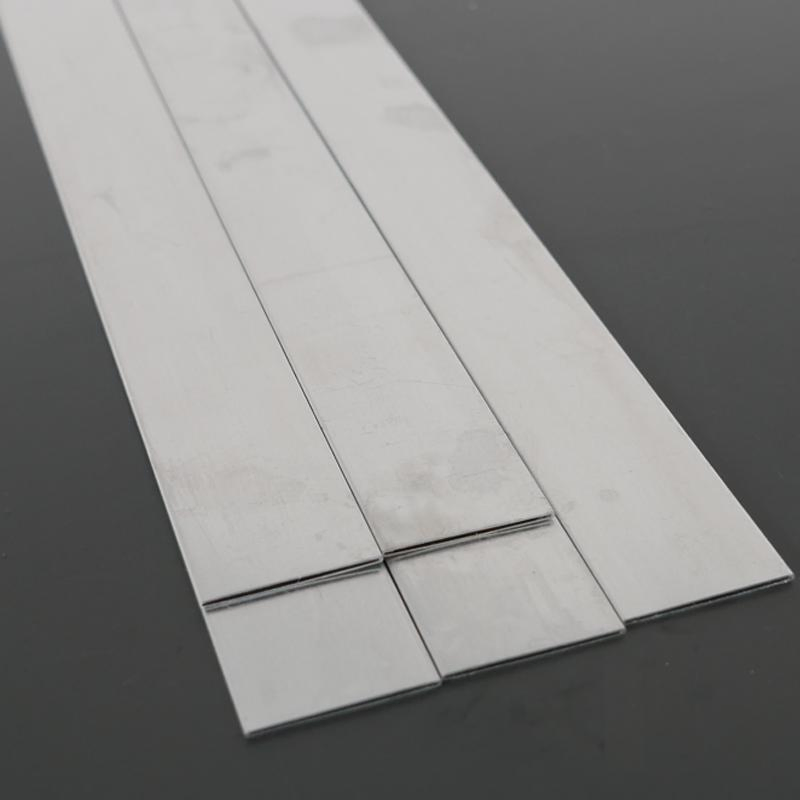

HF Welded Aluminum Tube Pipe for Automotive Radiator Condenser Heat Exchanger
High Frequency Welded Aluminum Tube Pipe designed specifically for automotive cooling systems including radiators, condensers, and heat exchangers.
| High Frequency Welded Auto Water Tank Aluminum Tube |
| Material Alloy |
AA3003, 4343/3003/7072 |
| Product Dimension (mm) |
Width (mm) |
16 |
18 |
22 |
26 |
32 |
| Thickness (mm) |
2 |
2 |
2 |
2 |
2 |
| Wall Thickness |
0.28-0.38mm |
| State |
H14 |
| High Frequency Welded Auto Intercooler Aluminum Tube |
| Material Alloy |
AA3003, 4343/3003/4343 |
| Product Dimension (mm) |
Width (mm) |
36.6 |
50 |
50 |
62 |
64 |
| Thickness (mm) |
10.1 |
8.08 |
10.1 |
10.1 |
8.08 |
| Wall Thickness |
0.38-0.50mm |
| State |
H24 |
✅ Key Advantages
✔
High quality brightness finish and aesthetics with superior anti-corrosion and anti-oxidation properties.
✔
Extremely tight tolerance levels on diameter, thickness, and length; features tidy and smooth sections without burrs.
✔
Available in a variety of strong alloys tailored with specific mechanical properties.
✔
Excellent weight-to-strength ratio: thin-walled tubes with high mechanical values and good toughness.
✔
Smooth and reliable processing; radiator tubes can be custom-made to meet specific engineering requirements.
✔
Embossed patterns available for both aesthetic and functional performance.
✔
100% recyclable environmentally friendly product.
✔
Superior quality control: 100% Eddy Current inspection and ISO16949 certification.
🔧 Manufacturing & Application

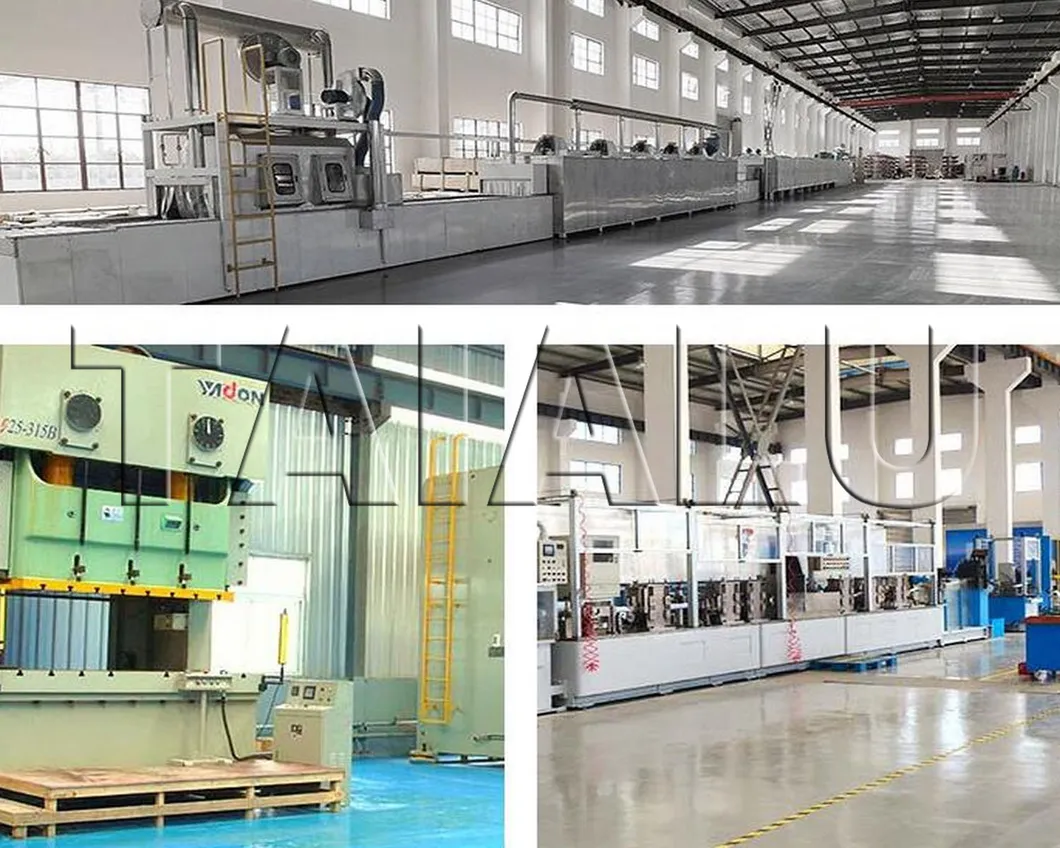

Main Equipment:
🔧High frequency welded tube mill.
🔧Hot extrusion tube mill.
🔧Cold drawn tube mill.
🔧Projection measuring instruments and high precision physic drawing equipment.
Applications: Auto water tanks, Heat exchangers, Aluminum radiators, Inter-coolers, Evaporators, and more.
❓ Frequently Asked Questions
What materials are used for these high-frequency welded tubes?
We primarily use high-grade aluminum alloys such as AA3003, 4343, and 7072, which provide excellent weldability and corrosion resistance.
What is the standard wall thickness for radiator tubes?
For standard auto water tank tubes, the wall thickness typically ranges from 0.28mm to 0.38mm. Intercooler tubes range from 0.38mm to 0.50mm.
Are the tubes inspected for leaks or defects?
Yes, 100% of the welds undergo Eddy Current inspection to ensure zero defects and full integrity, following ISO16949 standards.
Can the dimensions of the tubes be customized?
Absolutely. While we have standard widths like 16mm to 64mm, tubes can be custom-made in terms of length, width, and thickness to meet your specific heat exchanger requirements.
What makes aluminum HF welded tubes better than other types?
They offer an excellent weight-to-strength ratio, tight tolerances, smooth burr-free sections, and are 100% recyclable, making them ideal for high-performance automotive cooling.
