Auto Intercooler Aluminum Tube Pipe China Suppliers
Auto Intercooler Aluminum Tube Pipe China Suppliers
Auto Intercooler Aluminum Tube Pipe China Suppliers
Auto Intercooler Aluminum Tube Pipe China Suppliers
Auto Intercooler Aluminum Tube Pipe China Suppliers
1 / 5
Auto Intercooler Aluminum Tube Pipe China Suppliers
Auto Intercooler Aluminum Tube Pipe China Suppliers
Auto Intercooler Aluminum Tube Pipe China Suppliers
Auto Intercooler Aluminum Tube Pipe China Suppliers
Auto Intercooler Aluminum Tube Pipe China Suppliers

Auto Intercooler Aluminum Tube Pipe China Suppliers

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
4045/4343/4043/7072 /3003/3305/6063
Grade
3000/4000 Series
Temper
H14, H16, H18
Alloy
Non-alloy
Surface Finishing
Mill Finish/Polished/Anodizing/Brushing
Certification
CE, ISO, ISO9001:2008/SGS
Outer Diameter
9-61mm
Wall Thickness
1-3.0mm
Weld Line Height
≤0.08mm
Production Capacity
10000mt/Month
HS Code
7604210000
Package
Ep Paper Inside, Craft Paper/Pallet Outside
⚙️

Product Description

The intercooler is a vital component of the supercharger system, serving as a turbocharged accessory designed to enhance the engine's ventilation efficiency. It is strategically installed between the gas manifolds. Most intercoolers utilize high-performance rectangular square tubes to maximize cooling performance.

1. Types of Intercooler Rectangular Tube
  • Intercooler Motherboard: Single/Double cladding material, using 4045, 4343, 7072 anti-corrosion layers (Zinc optional), produced via stamping.
  • Intercooler Finned Tube: Single/Double cladding material with high-frequency welding or cold drawing processes.
  • Intercooler Square Tube: High-precision welding and drawing using 4045/4343/7072 cladding.
2. Material Introduction
  • Cladding Layer: 4045, 4343, 7072 anti-corrosion layers (Zinc can be added).
  • Material Temper: H24.
  • Cladding Rate: 10±2% or customized.
  • Core Layer: 3003, 3005 alloys.
  • Wall Thickness: 0.08mm - 1.2mm.
3. Key Characteristics
✔ Lightweight ✔ Easy Welding ✔ Corrosion Resistance ✔ Voltage Resistance ✔ ROHS Compliant ✔ High Recycling Value
4. Technical Requirements
  • Cutting end face burr: ≤ 0.1mm.
  • Inner wall weld line height: ≤ 0.2mm.
  • Cutting end face angle: 90° +/- 2°.
  • Surface Quality: Clean, free of oil, dust, aluminum chips, scratches, or bumps.
📸

Product Showcase

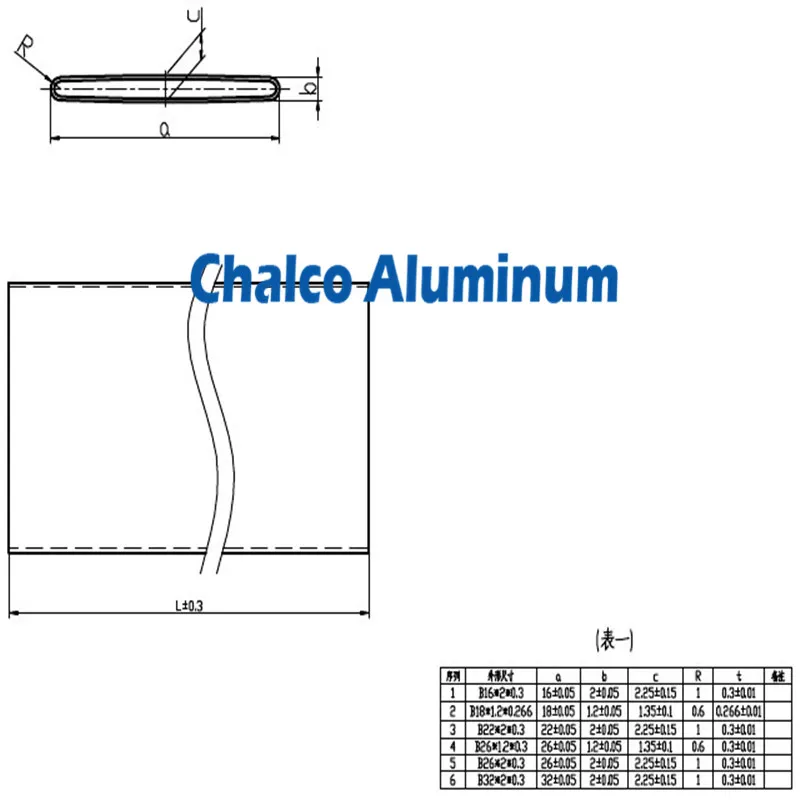

Auto Intercooler Aluminum Tube

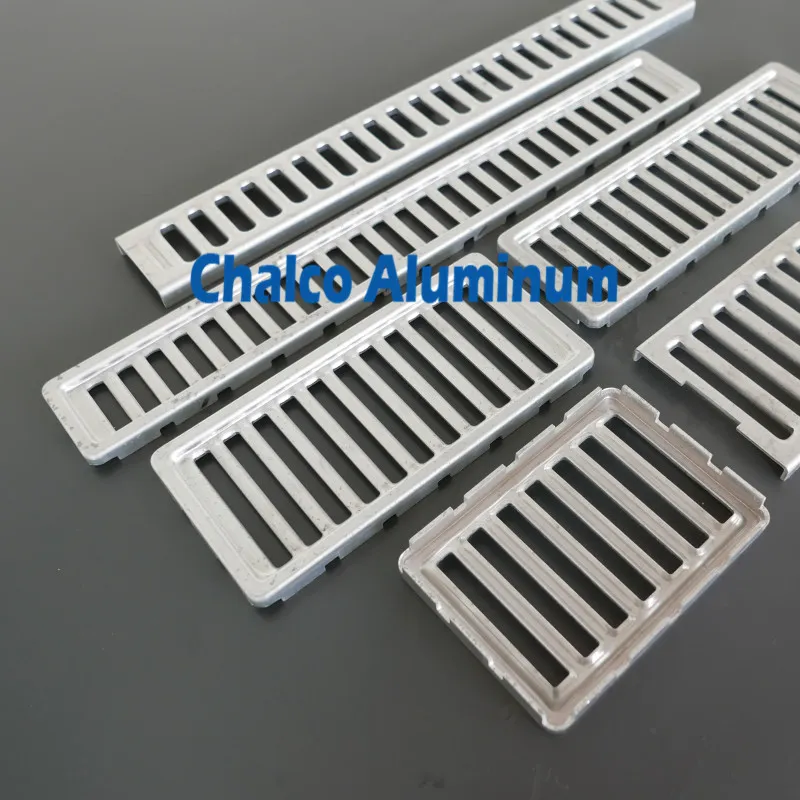

Aluminum Intercooler Pipe Details

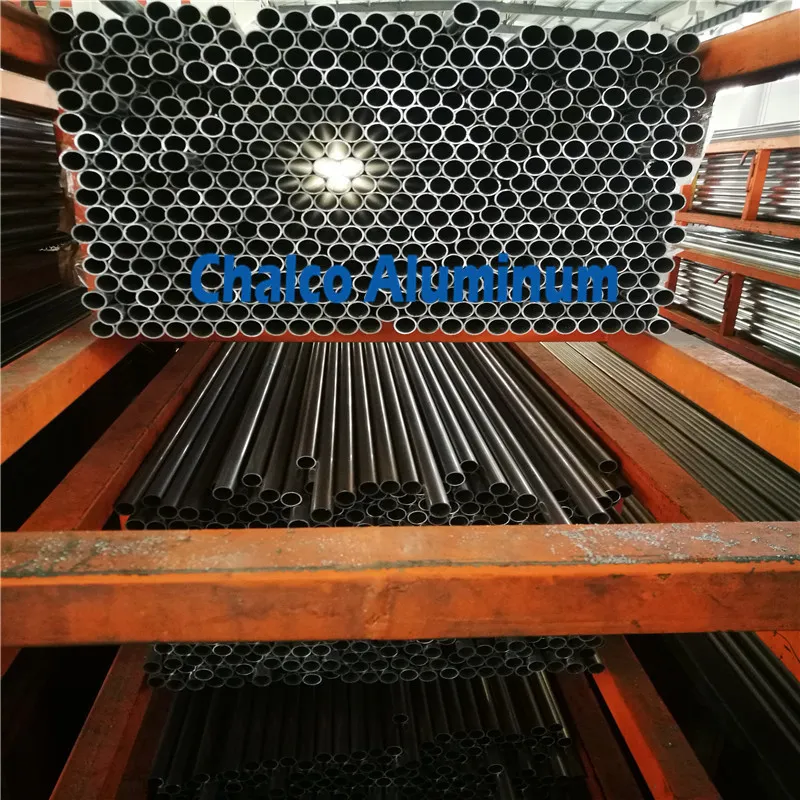

Intercooler Rectangular Tube Production
❓

Frequently Asked Questions

What is the primary function of an intercooler tube in a vehicle?
The intercooler tube is part of the turbocharging system. Its main purpose is to cool the compressed air from the turbocharger before it enters the engine, thereby increasing air density and improving engine ventilation efficiency.
Which aluminum alloys are used for these rectangular tubes?
The core layer typically uses 3003 or 3005 series aluminum, while the cladding layer uses 4045, 4343, or 7072 alloys to provide superior corrosion resistance and welding properties.
What are the advantages of high-frequency welding for intercooler pipes?
High-frequency welding ensures a strong, clean seam with very low weld line height (≤0.08mm). It allows for high production speeds while maintaining strict dimensional tolerances.
Are the tube dimensions customizable?
Yes, both the length and specific dimensions of the rectangular tubes can be customized according to specific customer requirements and engine designs.
How do you ensure the surface quality of the tubes?
The manufacturing process includes strict inspections to ensure surfaces are free of oil, dust, and aluminum chips. We also guarantee no pressure pits, bumps, or scratches are present on the final product.
What certifications do these aluminum products carry?
Our products meet international standards including CE, ISO 9001:2008, and SGS certifications, and are fully compliant with ROHS environmental standards.
